Our Product / Services
We offer the best product range of Magnetic Chip Conveyor, Hinge Belt Chip Conveyor, Drum Chip Conveyor and Scraper Type Drum Conveyor.

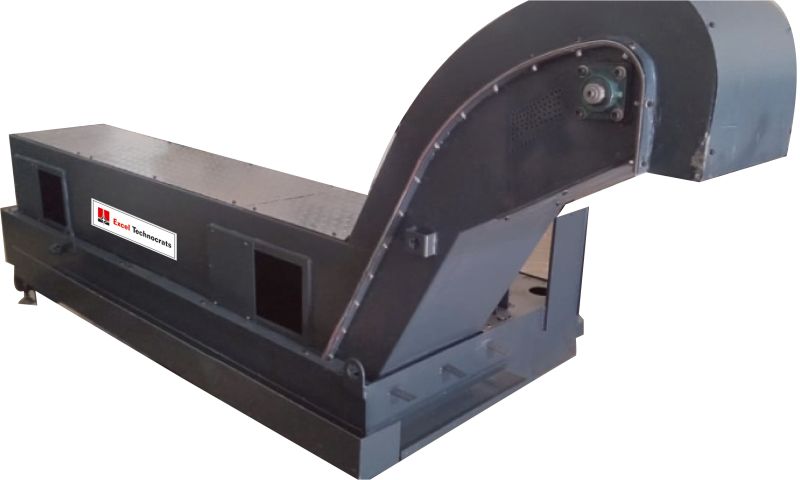

Magnetic chip conveyors are intended for ferrous material applications with small chips. the chips fall on to the conveyors stainless steel surface and are conveyed by powerful magnets moving underneath. The chips are released from the magnetic at the discharge end, and fall freely into a collection container.

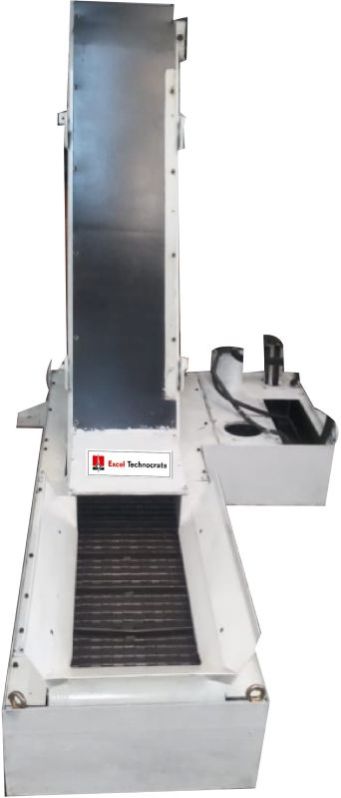

Hinge belt chip conveyors, the most common format, after an effetive means of managionveyorn heavy chip loads and stringy chips. Chips that fall from the machine tool land on the conveyor belt and are conveyed away from the machine tools precision surfaces.
Looking for a hinged belt chip conveyor, metal working or material handling conveyor? After careful analysis of your application, we engineer a hinged steel belt conveyor to meet all of your specifications. We ensure a lasting solution and proper fit. Our hinged belt conveyors are rugged, long wearing and low maintenance with many options to choose from. They are used to convey a wide variety of materials for virtually every industry involved in metal working, material handling, chip removal and scrap handling.
The Dirty Tank Coolant Inlet is the first area to receive chips, turnings, fines and coolant from the machine tool. There, large chips settle to the bottom where they are removed by a drag Conveyor. All coolant must then pass through a series of drum filters. There A SS Drum screen, scraped, captures smaller chips and lighter weight chips Away by a scraping plate or flushed by back wash arrangement and then remove by the drag conveyor. The separated coolant exits through the inside of the Drum filter to a clean coolant exit.
The separated coolant can be now either pumped back to the machine tool, or Pumped through another filtration system for secondary cleaning. (excel fab) Filter compliments the Aluminum Chip Conveyor by providing secondary Coolant filtration. It filters coolant clean up to 25 microns.
Scraper type chip conveyors are most often used for cast iron, bronze or brass machining, witch produces smaller chips that can nest together. Chips fall directly to the bottom of the conveyor, and scapers drag debris to the discharge end of the conveyor.
