Cabinets & Enclosures

We are leaders in the market for providing best range of Control Panel Enclosure (welded Body), Outdoor Enclosures, Transformer Enclosures, Stainless Steel Enclosure and Gas Cylinder Enclosure

Control Panel Enclosure (Welded Body)

Control Panel Enclosure (Welded Body)
  • Min. Order (MOQ) 1 Piece(s)
  • Number Of Flower Control Panel Enclosure
  • Material Metal
  • Packaging Type Multicolor
  • Feature Stronger Design, Good Strength To Weight Ratio, Better IP Protection (up To IP55), Economical Design
  • Sub-Assemblies Closed Side Design, Non-Removable Sides And Top Cover, Cutout With Removable Plate For Cable Entry, Jointable Enclosures, Various Components Included
  • Standard Size 100mm, 150mm, 200mm, Single Door Up To 1000mm Width, Split Doors For Larger Sizes
We Offer Control Panel Enclosure.features:1) a Stronger Design Available in Enclosures2) Good Strength to Weight Ratio3) Better Ip Protection (up to Ip55)4) Quite Economic Design sub-assemblies:01) as this is Closed Side Design Sides are Not Removable02) Top Cover is also Not Removable Cutout with Removable Plate Can Be Provided for Cable Entry from Top and for Ventilation Purpose We Can Either if Required.03) Two or More Enclosures May Be Joint Together if Required04) Base, Doors Gland Plates, 'c' Plates, Lifting Arrangement, 19" Rack, 19'' Frame Swing Frame Same as that for Modular Frame Structure Design standard Size the Enclosures: width: 500mm 1200mm (pitch of 100mm)depth: 400mm 600mm (pitch of 50mm)height: 1000mm 2200mm (pitch of 100mm)base: 75mm, 100mm, 150mm and 200mm * Up to 1000mm Width Single Door, Above Sizes Will have Split Doors.

Additional Information:

Payment Terms : L/C, T/T

Packaging Details : As per requirement.

View Complete Details
Ask Latest Price & Details
Outdoor Enclosures

Outdoor Enclosures
  • IP Rating 67
  • Brand Name Excel Enclosures
  • Material MS
  • Width 300 mm - 1200 mm
  • Height 300 mm-2200 mm
  • Punched holes Pitch Of 12.5 mm
  • Depth 120 mm-1000 mm
  • Base 75 mm, 100 mm, 150 mm, 200 mm
  • Usage Research Center, Industrial
View Complete Details
Ask Latest Price & Details

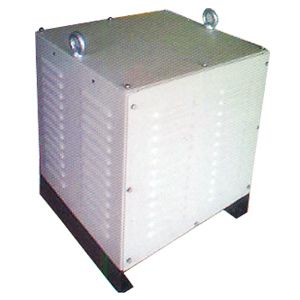

Transformer Enclosures

Transformer Enclosures
  • Width 300mm -2000mm
  • Height 300mm-2200mm
  • Depth 300mm-1500mm
Transformer enclosures Welded body with sides, top and bottom closed in 1.52.00 thk folded CRCA sheet or modular frame structure in 3.00 thk.Canopy can be mounted on top.Sides can be covered with covers with punched ventilation lovers.It can be manufactured in GI sheets or stainless steel sheet for outdoor use
View Complete Details
Ask Latest Price & Details
Stainless Steel Enclosure

Stainless Steel Enclosure
Stainless steel enclosure These are manufactured in JB, WMM, MFS & MFSE Contrustion. SS 304, SS 316 material grade are available. Surface finish is available in matt or glossy. Refer respective page for size variables.
View Complete Details
Ask Latest Price & Details
Gas Cylinder Enclosure

Gas Cylinder Enclosure
  • Number Of Flower Enclosures
  • Material Mild Steel
  • Shape Rectangular
  • Width 400 mm - 1200 mm
  • Height 500 mm - 2000 mm
  • Base 75 mm, 100 mm, 150 mm
  • IP Rating 55
View Complete Details
Ask Latest Price & Details

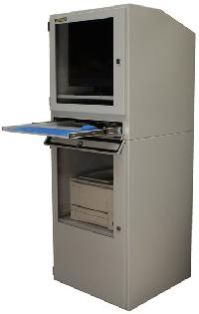

PC Enclosures

PC Enclosures
  • Min. Order (MOQ) 4 Piece(s)
  • Number Of Flower PC Enclosure Systems
  • Feature Monitor Compartment Door Operated By Gas Spring Cylinder, Rubber Bidding Less Glass
  • Material Steel
  • Application Protecting PC Components
  • Designs Modular Frame Structure, Modular Closed Side, Single Body Design
  • IP Protection Up To IP55-67
  • Additional Features Four Different Types Of PC Enclosures Available
We Offer Pc Enclosures.features : 1) Pc Enclosure Systems Can Be Manufactured in all the Three Designs I.e. Modular Frame Structure or Modular Closed Side or Single Body Design2) Better Ip Protection (up to Ip55-67) it Mainly Comprises : 1) Monitor Compartment Door Can Be Operated By Gas Spring Cylinder (for Hands Free Operation).2) Rubber Bidding Less Glass/acrylic Gives Attractive Look & Fits Easily.3) Sliding Keyboard Drawer4) Depending Upon the Facilities Required There are Four Different Types of P.c. Enclosures.

Additional Information:

Payment Terms : L/C, T/T

Packaging Details : As per requirement

Delivery Time : 2 Weeks

View Complete Details
Ask Latest Price & Details
Modular Frame Structure Enclosures Panel

Modular Frame Structure Enclosures Panel
  • Min. Order (MOQ) 1 Piece(s)
  • Material CRCA Sheet
  • Sub-assemblies Modular Frame Structure, Base, Door, Cover, Bottom Gland Plates
  • Standard Sizes Width: 500mm ~ 2000mm, Depth: 400mm ~ 1000mm, Height: 1000mm ~ 2200mm
  • Base Options 75mm, 100mm, 150mm, 200mm
  • Door Options Front & Rear Single Door, Split Doors, Partial Doors
  • Mounting Plate Size Width - 100mm, Height - 100mm
  • Ventilation Bottom Slotted Or Perforated Covers For Ventilation
  • Component Mounting Adjustable Mounting In 25mm Pitch
  • Inter-panel Separator Thickness 1.5mm

We Offer Modular Frame Structure Enclosures. sub-assemblies: 01) modular Frame Structure: made of 3.00 Thk Folded Crca Sheet with Vertical and Horizontal (depth Wise) Indexing Holes Dia 9 & Dia 4.2 in 12.5 Mm Pitches. 02) base: made in 3.00 Thk Folded Sheet with Removable Front and Rear Covers in 2.00 Thk. Base Cover Can Be Slotted for Ventilation from Bottom (if Required). 03) door: front & Rear Single Door / Split Doors / Partial Doors in 2.00 Thk Crca Sheet. with Support Channels, Sheet Metal Special Hinges, 3/4 Point Handle lock. 04) cover: front Fixed Bolted Cover in 2.00 Thk for Instrumentation Panels in Place Of Door. When Door Not Necessary At Rear Screwed Cover in 1.5 Thk. 05) bottom Gland Plates: in Varying Combination in 2.00 Thk Folded Crca Sheet. Slotted or Perforated Bottom Covers in 1.5 Thk (for Ventilation from Bottom if Required). 06) side Cover: screwed Side Covers in 1.5 Thk Crca Sheet 07) top Cover: in 1.5 Thk Crca Bolted in Lifting Eye Bolts Itself. 08) component Mounting Plate: in 2.00/3.00 as per Requirement. - Size (width -100) X (height - 100) with Depth Wise Adjustable Mounting In 25 Pitch. - Partial Component Mounting Plates in Any Size Within Maximum Size Range. 09) inter Panel Separator: made in 1.5 Thk When Two or More Enclosures Joined Together. 10) lifting Eye Bolts: hooks are Used for Normal Weight and Heavy Duty Angles for Bigger Enclosures. 11) 19'' Rack: din Standard 19” Equipments Mounting Arrangement is Possible. 12) 19"swing Frames: suitable for 19” Mounting in Width and Height as per Requirement. standard Sizes: width: 500mm 2000mm (pitch of 100mm) depth: 400mm 1000mm (pitch of 50mm) height: 1000mm 2200mm (pitch of 100mm) base: 75mm, 100mm, 150mm and 200mm * Up to 1000mm Width Single Door Can Be Provide Above 1000mm Split Doors are Recommended * Up to 1200mm Width Single Welded Structure Can Be Provide & for Width Above 1000 Mm Two Separate Structures or Twin Welded Together Structure is Recommended.

Additional Information:

Payment Terms : L/C, T/T

Packaging Details : As per requirement.

Delivery Time : 2 weeks

View Complete Details
Ask Latest Price & Details
