1 Products availableWe offer the best product range of Computerised Micro Vickers Hardness Tester, VICKY'S Computerised Vickers Hardness Tester, Computerised Brinell Hardness Tester, Computerised Fully Automatic Brinell Hardness Tester and Portable Hardness Tester.
| ||||||||||||||||
| ||||||||||||||||
| Features : |
| Fully Computerised (PC Based) Vickers Hardness Machine. Direct and accurate measurement of Vickers Hardness number using "State of the Art" image processing technology. Wide testing range : from soft metal up to hardest. High accuracy and repeatability of measurement at all loads. Faster measurement yielding to higher productivity. Small size of indentation makes it a non destructive testing on finished components. Motorised loading and unloading cycle. Small loads allow testing of thin sheet metals. Advanced Window XP based software : |
| Latest GUI Features : |
| User friendly software with Windows Features.Online indentation setting and focusing on PC monitor.Advance image processing : Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen. |
| Batch file Processing :Option for Data, storage and reports generation. |
| Statistical Evaluation :Software forcalculating standard deviation, mean, medium, histogram etc. |
| Wide options in calibration mode.- Calibration / Verification on PC monitor makes easier to operate. 'FIE' Computerised Hardness Tester is a simple and accurate means to produce automatically measure the diamond indentation to give Vickers hardness numbers. Intel Pentium IV 2.00 GHz or above processor is recommended.Microsoft Windows 98SE or above (Recommended XP)System Ram : 128 MB or above (Recommended 256 MB)One RS 232 (serial) port. (PC not included in standard scope of supply) These testers are suitable for measuring the hardness of precision metallic parts with wide testing range - from soft to hard and their accurate results are widely acclaimed. These testers strictly confirm to IS 1754 - 2002. |
| Features : |
| Fully Computerised (PC Based) Brinell Hardness Tester. Direct and accurate measurement of Brinell Hardness Number using "State of Art" image processing technology. 'Wide testing range' : from soft metal such as lead up to medium hardened steels. High accuracy and repeatability of measurement at all loads. Faster measurement yielding to higher productivity. Hydraulic loading and unloading cycle. Advanced Window based software. |
| Latest GUI Features : |
| User friendly software with all help file and Window Features.Online indentation setting and focusing on PC monitor.Advance image processing : Algorithms implemented for precise calculation ofhardness numbers with various options to cover all ranges of specimen. |
| Batch file Processing : |
| Option for data/storage and reports generation. |
| Statistical Evaluation |
| Software foe calculating standard deviation, mode medium, histogram etc.Wide options in calibration mode.Extendibility for future advanced image processing analysis, requirements. |
| 'FIE' Computerised Brinell Hardness Tester is a simpleand a accurate means to produce automatically measures the ball ondentation give Brinell hardness number.These testers are suitable for measuring the hardness of metallic parts with wide leasting range - from soft to hard, and their accurate results are widely acclaimed.These testers strictly confirm to IS : 2281, BS : 10003-2 and ASTM E-10 |
| Construction : |
| The robust machine frame is designed to accommodate the high precision loading system and an optical device with CCD camera. Specimen is placed on a testing table. The test cycle is semi automatic. The accurate load is applied on a ball indentor by means of a lever and weights. After a specific lapse of time. The load is removed. The image is digitized using a CCD camera fitted on the optical device and is captured by the PC. The diameter if the indentation are directly measured by Pc to give the Brinell Hardness Number directly. |
| Total Load | kgf | 500 to 3000 in stages of 250 kgf |
| Magnification of objectives | - | 2x |
| Max. Test Height | mm | 410 |
| Scale least count | mm | 0.01 |
| Throat depth | mm | 200 |
| Machine Dimension (Approx.) | mm | L 995 x W 400 x H 1178 |
| Weight (Approx.) | mm | 450 |
| Power Supply | V/Cy/Ph | 415/50/3 |
| Measurement Range | mm | 1-6 |

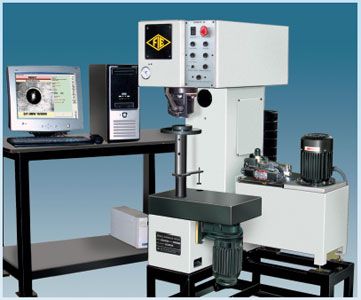

| 'FIE'Computerised Fully Automatic Brinell Hardness Tester, Model B3000-PC-FA is fabricated from steel plates and is designed for precise loading system. It is fully automatic machine for production testing. Once the job is placed on testing table and press "Cycle Start" button. The job is raised and brought in contact with clamping device. Then identor is swivelled and brought in vertical loading position. The loading operation starts. After preset dwelling timer, unloading operation starts. As soon as load is fully removed, the indentor is swivelled and the image is digitalized using a CCD camera fitted on machine and captured by the PC. |
| The diameter of indentation is measured by PC and the Brinell Hardness is displayed on monitor with the help of "State of Art" technology software. The job is lowered down and here the auto cycle is over. |
| Operationally the machine can be operated after a lapse of interval without operation of push button, so that operator has only to do loading and unloading of job on machine. |
| This tester is designed for measuring hardness of metallic parts with wide testing range from soft to hard and its accurate results are widely acclaimed. |
| This tester conforms to IS:2281, BS:10003 and ASTME-10. |
| Features : |
| Fully automatic machine for production testing.Fully computerised (PC based) Brinell Hardness Tester.Direct and accurate measurement of Brinell hardness number using "State of Art" image processing technology.Wide testing range : From soft metal such as lead up to hardest, like tempered steel.High accuracy and repeatability of measurement at all loads.Advanced Window XP based software :- Latest GUI features with user friendly software.- On line indentation setting and focusing on PC monitor.- Advanced image processing : Algorithms implemented for precise calculations of hardness numbers with various options to cover all ranges of specimens.- Batch file processing : Option for data/storage and reports generation.- Statical Evaluation : Software for calculating standard deviation, mean, medium, frequency distribution graph, variation graph etc.- Calibration mode facility.- Extendibility for future advanced image processing analysis, requirements.- "Auto measurement start" from machine. |
| |
| Scope of Supply : |
| Basic machine with CCD camera, optics with illumination system and connecting cable.PCI video capture card with driver software.PC and Windows operating system is to be procured by customer. |
