Abrasive cutter is rugged, sturdy and designed to cut Metallurgical Samples to optimal quality consistently and safely . Cutting Wheel spindle is connected with motor shaft by pulley and belt mechanism. The movement of cutting wheel towards the specimen is applied by handle fixed with motor base pivot spindle and the cutter unit is balanced by springs for smooth chop type movement. Corrosion resistant window. Cooling by two high flow water jets to provide optimum cooling. Large (25mm) drain, re-circulation coolant tank with 30LTR. Capacity Working on 440 volts, AC main supply with coolant tank of sufficient capacity. The chop type cut off wheel machine is suitable for quick and clean cutting of metallography specimen from rods & tubes etc.

\n
• X-Y Movement Vice is made up of M.S, Specially designed.
\n

\n
• Coolant circulation System is provided with suitable filtering arrangement.
\n

\n
• Light attachments system is provided for clean and accurate cutting of samples
\n

\n
• Heavy Duty motor is provided 2/3/5 H.P , 3 Phase.
\n

\n
• Large Viewing window to monitor the cutting operation. Technical Data-
\n

\n
• Operation -Manually by moving motor to cut the sampl.
\n

\n
• Cutting Operation :- By manual cutt-off wheel in chop type procedur.



\n

• Sample Cutting Capacity –

50mm / 60mm / 75mm / 90mm

• Vice Type – Self centering

• Vice Size – 4” / 5”

• Wheel size – 10” / 12”

• Power – 3 Hp, 5Hp, 7.5 Hp

It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel, non- ferrous metal plating such as nickel & chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices  It has a wide range of measurement facilities up to 1200 Microns coating thickness for respective model. Instruments are available without Probe and with probe.

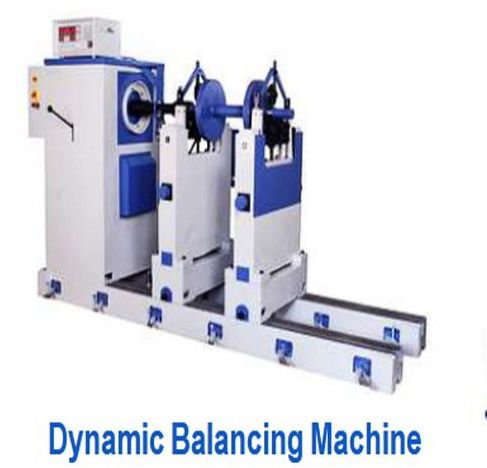

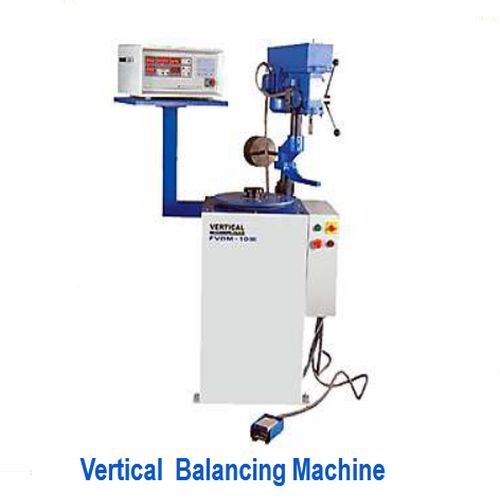

Hard bearing type horizontal end driven two plane machines and vertical balancing machine with microprocessor based or DSP based measuring panel suitable for balancing of different types of rotors like rotor of electrical machines, fly wheels, crankshafts, submersible pump rotors, etc.Both type of machines are provided with electronic companion software to compensate the unbalance effect due eccentricity between rotating (Spindle ) axis & adaptor (Rotor) axis Additional bed length with or without gap bed arrangement can be provided at extra cost for extra-long rotors. Machines conform to IS:13277-1992

Features :

\n
• Hard bearing type horizontal end driven two plane machineswith microprocessor based measuring panel.
\n

\n
• Measures & stores the unbalance in gms along with the anglefor two selected correction planes on digital display.Minimum achievable unbalance upto 0.5 micron shift in c.g. Various Models
\n

\n
• Suitable for rotors from 0.5 kg to 10, 000 kg. Horizontal belt driven hard bearing two plane machines are also supplied for rotors weighing from 0.1 kg upto 3000 kg. Unbalance indication either by stroboscopic method or photo scanning method sensitivity upto 0.5 micron.
\n

\n
• Computerized / Electronic versions with printer facility & special machines to suit customers’ requirements can also be supplied
\n

Features :

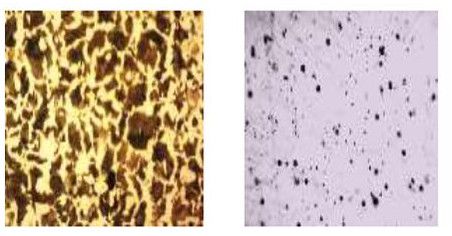

• Grain size estimation (as per ASTM E-112)

• Phase Analysis (as Per ASTM E- 562)

• Nodularity Analysis (as per ASTM A-247)

• Particle count and size classification

• Linear measurements

• Inclusion analysis (as per E-45 & E -1122)

• Capacity – 50 T to 300 T

• Digital Display

• Chanel Frame

• Hydraulic Operated

• Power - Single Phase / 3 phase

• Capacity – 100 Nm to 6000 Nm

• Digital Display

• MS Frame

• Electrically Operated

• Power - Single Phase / 3 phase

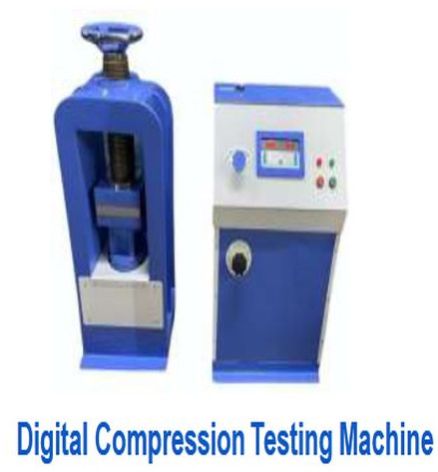

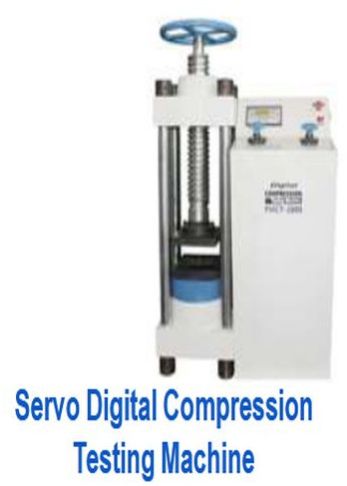

Capacity – 50 T to 300 T• Digital Display• 4 column• Hydraulic Operated• Power - Single Phase / 3 phase

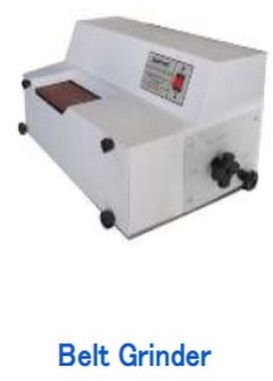

• Belt Size - 100 mm x 915 mm

• Power – Single Phase - 220 V

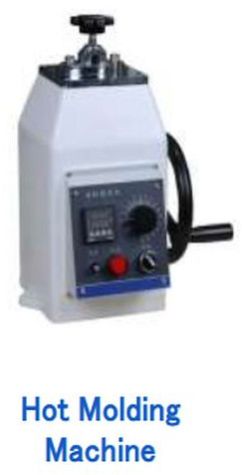

• Mold Size - 30mm / 45mm

• Auto cut at Set Temperature

• Digital Temperature Controller

• Hand Wheel Operated

• Power – Single Phase - 220 V
