FLOSYS PUMPS PVT LTD

Malumachampatti Village, Coimbatore, Tamil Nadu

Flosys FSL - Series Pumps HYGIENE LOBE pumps have been specially developed to prevetn product contamination and confined to the highest standards of Hygiene, Sterlizing in Place ( SIP) and Clean in Place ( CIP). The Gentle Pumping action minimize the shear and crush damage to delicate liquid .

The Material of Construction of pumps are in AISI 316, AISI 316L .

SpecificationFlow Rate: Up to 500 M3 / HRPressure: 6 , 12 , 24 , 36 , 48 (BAR)Material of ConstructionBearing Housing: CI IS 210 FG 260Pump Housing: CI IS 210 FG 260, CF 8, CF 8 MRotor: Alloy Steel, Tool Steel, AISI 304, AISI 316, Hard Chrome PlatedOther Rotating Parts: Alloy Steel, Tool Steel, AISI 304, AISI 316Bonded Stator: Natural, NBR, HNBR, EPDM, Hypalone, Newoprene, Silicon, Viton etc

These pumps are designed for hygiene applications. All the material parts in contact with the fluids are in smooth-finished stainless steel. The stators are of NON- NON-CONTAMINATED FOOD GRADE elastomers viz NBR, EPDM, SILICON & VITON. Shaft sealing are ensured by hygiene quality gland packing or mechanical seal. These pumps are available in SMS/ Triclover or equivalent joints for suction & delivery connection

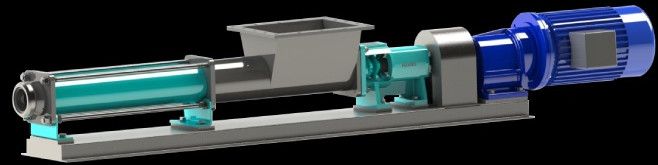

The hopper type suction allows gravity flow of plastico-viscous material on to augur cum coupling rod pushes viscous substances in to pumping cavity/. Product retaining pockets are completely avoided, eliminating bacteriological and chemical contamination. SpecificationFlow Rate: Up to 500 M3 / HRPressure: 6, 12, 24, 36, 48 KG/ CM 2 ( BAR)Material of ConstructionBearing Housing: CI IS 210 FG 260Pump Housing: AIDI 304, AISI 316 Wide Hopper FabricatedRotor: AISI 304 HCP, AISI 316 Un PlatedOther Rotating Parts: AISI 304, AISI 316 (Augur Type Coupling Rod)Bonded Stator: Food Grade, NBR, HNBR, EPDM, Hypalon, Neoprene, Silicon, Viton

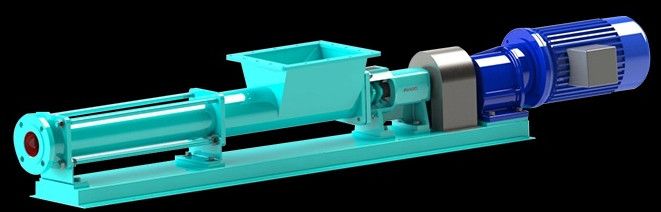

For corrosive chemical transfer, the pumps are in complete Stainless Steel construction. The hopper-type suction inlet allows gravity flow of thixotropic or non-Newtonian fluids onto the auger coupling rod pushes viscous substances into the pumping cavity. SpecificationFlow Rate: Up to 500 M3 / HRPressure: 6, 12, 24, 36, 48 KG/ CM 2 ( BAR)Material of ConstructionBearing Housing: CI IS 210 FG 260Pump Housing: MS Hopper FabrricatedRotor: Alloy Steel, Tool Steel, AISI 304 HCP, AISI 316 Un PlatedOther Rotating Parts: Alloys Steel, Tool Steel , AISI 304/316 (Augur Type Coupling Rod)Bonded Stator: NBR, HNBR, EPDM, Hypalone, Neoprene, Silicon, Viton etc

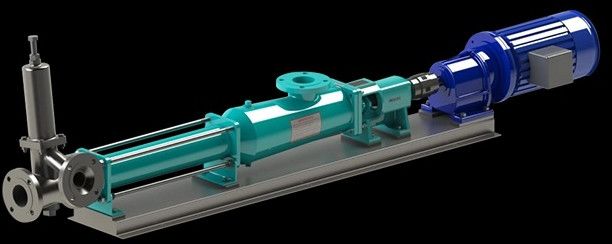

Various options in the joints, such as double-sealed bush/ pin. Open bush/pin, etc are available. Delivery options with flange, SMS, or suitable connections are available. Mild Steel or Stainless Steel material constructions with internal rotating parts to suit any condition. Shaft sealing is done by soft gland packing or mechanical Seal. SpecificationFlow Rate: Up to 500 M3 / HRPressure: 6, 12, 24, KG/ CM 2 (BAR)Material of ConstructionBracket: WCB/CS, MS, AISI 304, AISI 316, FabricatedPump Housing: MS, AISI 304, AISI 316 SeamlessRotor: Alloy Steel, Tool Steel, AISI 304 HCP, AISI 316 Un Plated, PlatedRotating Parts: Alloys Steel, Tool Steel , AISI 304/316Bonded Stator: NBR, HNBR, EPDM, Hypalone, Neoprene, Silicon, Viton etc

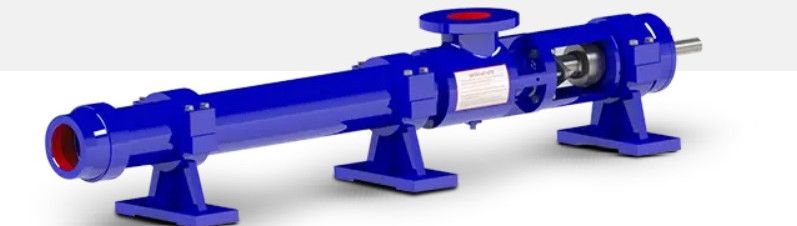

These pumps are offered with many different types of shaft sealing arrangements. The main features are modular design, maintenance-free, Easy assembly/ disassembly, simple pin design allows for easy maintenance, NPT discharge connection, low shear, non-pulsation, etc., Base Frame Pump SpecificationFlow rate: 0.4 to 391 GPM (0.2 m3/ Hr to 90 M3/ Hr )Pressure: 150 - 225 PSI ( 10 to 15 Bar)MOC: Tool Steel Chrome plated / Stainless Steel Chrome platedStator: Buna / EPDM / Viton/ NaturalMaterial of ConstructionBearing Housing: CI IS 210 FG 260Pump Housing: AIDI 304, AISI 316 Wide Hopper FabricatedRotor: AISI 304 HCP, AISI 316 Un PlatedOther Rotating Parts: AISI 304, AISI 316 (Augur Type Coupling Rod)Bonded Stator: Food Grade, NBR, HNBR, EPDM, Hypalon, Neoprene, Silicon, Viton
