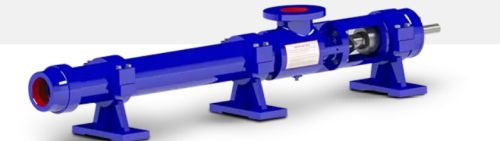

Contact SupplierThese pumps are offered with many different types of shaft sealing arrangements. The main features are modular design, maintenance-free, Easy assembly/ disassembly, simple pin design allows for easy maintenance, NPT discharge connection, low shear, non-pulsation, etc.,Base Frame Pump
Specification
Flow rate: 0.4 to 391 GPM (0.2 m3/ Hr to 90 M3/ Hr )
Pressure: 150 - 225 PSI ( 10 to 15 Bar)
MOC: Tool Steel Chrome plated / Stainless Steel Chrome plated
Stator: Buna / EPDM / Viton/ Natural
Material of Construction
Bearing Housing: CI IS 210 FG 260
Pump Housing: AIDI 304, AISI 316 Wide Hopper Fabricated
Rotor: AISI 304 HCP, AISI 316 Un Plated
Other Rotating Parts: AISI 304, AISI 316 (Augur Type Coupling Rod)
Bonded Stator: Food Grade, NBR, HNBR, EPDM, Hypalon, Neoprene, Silicon, Viton
