Our Products

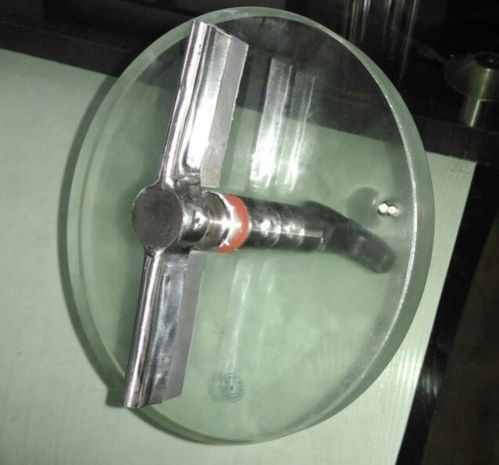

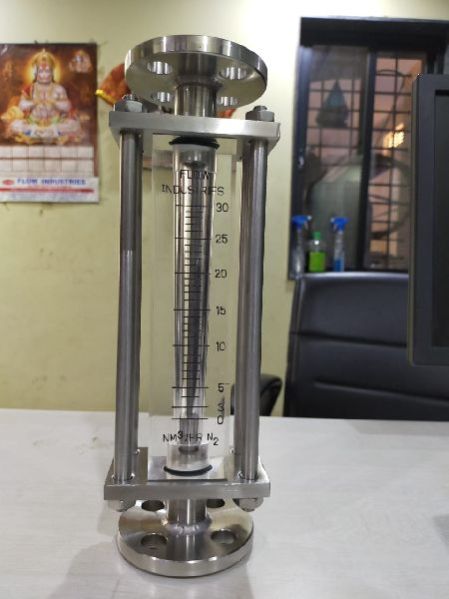

Our Complete range of products are DISPLACE LEVEL SWITCH, Chlorine Gas Rotameter, Electromagnetic Flow Meter, Toughened Glass with Wiper and NITROGEN ROTAMETER.
Additional Information:
Payment Terms : T/T

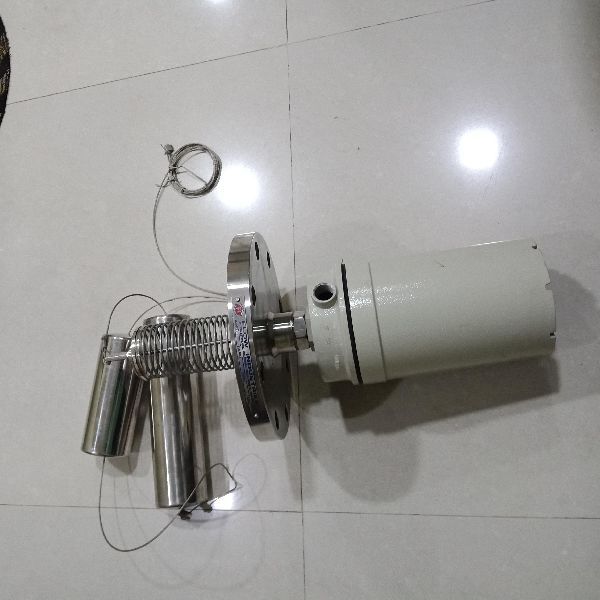

displacer level switches are the most versatile for level control and have advantages over float type switches in the control of agitated liquids paints-varnishes & heavy oil and foaming liquids. the displacer weight is heavier than the liquid which is suspended by a spring. when the liquid rises the displacer looses the weight, this causes the spring to retract slightly to a new equilibrium position. this retract of the spring interchanges the position of the magnet provided at the top and actuates the switch. upto three independent switch junctions are available in the single unit, with broad choice of operating sequences. these are flange mounted and are available with a choice of material of construction.
it is based on buoyancy principle and is available in different material of construction for a variety of switching functions. the instrument can be used for level switching function in large tanks upto 15m, in turbulent liquids and even without steel pipes. the switch position can be adjusted at site depending upon the requirement. it works reliably upto 200c temperature & 40 kg/cm pressure. the material of construction may be ms, ss304/ss316 or pp and the enclosure protection confirms to ip56/ip65/ex-proof iia & iib or iic. it is economical for large vessels and can be easily transported.
Enclosure:Aluminium die cast
Flange :CS LINED PTFE
Lining : PTFE
Electrode :Hastelloy C
Accuracy : +/- 0.5 FSD
Repeatability: 0.2%
Temp :- ( - 10 To 100 Degree )
Working Pressure :- 20 Bar
Connection: flange
Protection : IP 67 / EX
Power :- 230 VAC
O/P : 4 20 mA analog , Pulse output , RS-485 interface , High And Low Alarm output
Internal data storage :- Start and Stop Batch Daily and Monthly
Additional Information:
Payment Terms :
Packaging Details : WOODEN BOX
