Rotameters

Our Complete range of products are Bypass Rotameter, Glass Tube Rotameter, Metal Tube Rotameter, By Pass Rotameter and Low Flow Rotameter.

Bypass Rotameter

₹ 15,000 - ₹ 60,000 / Set(s) Get Latest Price

Min. Order (MOQ) 01 Set(s)

We are offering bypass rotameter. by pass rotameter (model no. Fi-bpr-204)suitable for high range of fluid in pipe line between 2'" or above upto 300 mm nb. Where on line rotameter cant be used.it consist of one orifice plate to be mounted in the pipe line between two flange. One more integral orifice with two inlet & outlet & one by pass rotameter is provided to read, direct flow.material of wetted part m.s/c.s./s.s.304/s.s.316material of orifice range 25 to 10000m'/ hr of wateraccuracy 1.5 % full scale readingaccessories isolation valvehigh & low flow alarmswith 4-20ma two wire transmitterdigital indicator, totaliser.

Additional Information:

Payment Terms :

Packaging Details : STANDARD

Delivery Time : 10-15 Days

View Complete Details

Ask Latest Price & Details

Glass Tube Rotameter

₹ 4,800 - ₹ 32,000 / Set(s) Get Latest Price

Min. Order (MOQ) 01 Set(s)
Size 25 NB
Material Glass, Stainless Steel
Country of Origin India

We are offering glass tube rotameter. Glass tube rotameter (model no. Fi-gtr-202)designed on variable area basis using tappered borosilicate galss tube pressure rating at 10kg/cm2 temp at 150c.material of wetted part c.s./s.s.304/s.s.316/pp/pvc/teflonline size 15mm nb to 100nbflow range 10 to 20, 000 lph of wateraccuracy 1 % full scale readingaccessories screwed/flanged/house connection.

Additional Information:

Payment Terms :

Packaging Details : STANDARD

Delivery Time : 10-15 Days

View Complete Details

Ask Latest Price & Details

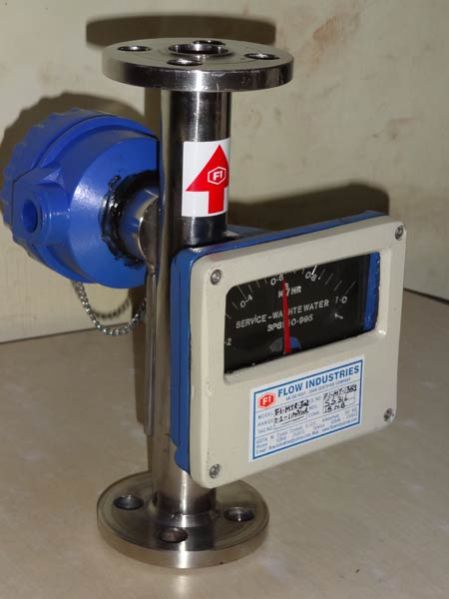

Metal Tube Rotameter

₹ 15,000 - ₹ 1.50 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece

We offer metal tube rotameter (model no. Fi-mtr-201)suitable for measuring flow rate for translucent opaque liquid, gases under high temp. & pressurematerial of const c.s.//s.s.304/s.s.316/pp/pvc/teflon linnedlines size 15mm nb to 200mmnb, flow range 100 to 100, 000 lph of water at ambient temp.30 to 7000 nm/hr ofr air at nptaccuracy 1 % full scale readingaccessories steam jacketinghigh & low flow alarms4-20ma transmitter out putdigital indicator, totali

Additional Information:

Payment Terms :

Packaging Details : STANDARD

Delivery Time : 2-3 WEEKS

View Complete Details

Ask Latest Price & Details

By Pass Rotameter

₹ 15,000 - ₹ 60,000 / Piece Get Latest Price

Suitable for high range of fluid in pipe line between 2'" or above upto 300 mm NB. Where on line rotameter cant be used.It consist of one orifice plate to be mounted in the pipe line between two flange. one more integral orifice with two inlet & outlet & one by pass Rotameter is provided to read, direct flow.

Material of wetted part	M.S/C.S./S.S..304/S.S.316
Material of orifice range	25 to 10000M'/ HR of water
Accuracy	±1.5 % full scale reading
accessories	Isolation valve High & low flow alarms With 4-20mA two wire transmitter Digital Indicator, Totaliser.

View Complete Details

Ask Latest Price & Details

Low Flow Rotameter

Suitable for measurement of low flow rate of liquid ogases.

Fittings	Top / Bottom / Rea/as per requirement in S.S screwed nozzle or hosepipe connection are offered on request.
Material of Const.	Borosilicate glass tube fitted in S.S.304/ wetted parts S.S.316 Fabricated with clear & unbreakable perspex plastic body, scales are directly engraved on tapered position
Range	Between 0.5 to 150 LPH of water of ambient temp 15 to 4000 LPH of air at NTP
Accuracy	±2 % full scale reading
accessories	Built in Needle valve D.P. Regulator High & Low Flow Alarms
