Crusher, Shredder & Presses

We offer a complete product range of Inclinable Power Press, Pillar Type Power Press, Cross Shaft Press and Mechanical Power Press Machines

Inclinable Power Press

Inclinable Power Press
  • Adjustment of Slide 28, 30
  • No. of Slide Strokes (RPM) 50, 45, 45
NKH is one of the established Manufacturer, Exporter and Supplier of H Frame Power Press Machine. We manufacture H Frame Press Machine in different series that boast assorted features. Our H Frame Press Machine series is preferred for its flawless performance, sturdy construction, and high productivity rate. These machines are easy to maintain and easy to operate.We are manufacturer of all type of power presses i.e. Pillar type (Marshal type), inclinable type (American Type) and Heavy Duty Crankless Presses upto 1000 tons. We manufacture these presses out of good cast iron as well as fabricate them depending upon the choice of our clients. Our presses are ideal for Cutting, Blanking, Piercing, Drawing and Trimming purposes etc.This Power Press is also known as Training Press or Power Press
View Complete Details
Ask Latest Price & Details

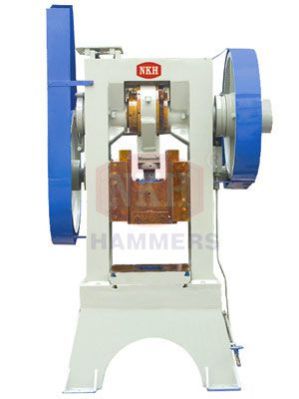

Pillar Type Power Press

Pillar Type Power Press
  • Capacity 20 to 500 tons.
We manufacture H Frame Press Machine in different series that boast assorted features. Our H Frame Press Machine series is preferred for its flawless performance, sturdy construction, and high productivity rate. These machines are easy to maintain and easy to operate.We are manufacturer of all type of power presses i.e. Pillar type (Marshal type), inclinable type (American Type) and Heavy Duty Crankless Presses upto 1000 tons. We manufacture these presses out of good cast iron as well as fabricate them depending upon the choice of our clients. Our presses are ideal for Cutting, Blanking, Piercing, Drawing and Trimming purposes etc.
View Complete Details
Ask Latest Price & Details
Cross Shaft Press

Cross Shaft Press

More accurate NKH Cross Shaft Power Presses that raise standards of precision & rigidity.

Single Point Suspension Non-Inclinable Single Action Press having steel plate fabricated construction, duly stress relieved with 6 Point gibbing of slide, fitted with pneumatically operated combined single disc. friction clutch & brake.

Features
  • Reduced Noise & Vibrations
  • Minimal Frame Gapping, Low Angular Deflection < 1.5 minutes
  • High Rigidity Frame & Bolster
  • High Precision Forming for Longer Die Life
  • Hi-Torque Pneumatically Operated Single Disc Combined Clutch & Brake Unit
  • Gear Transmission Runs in Oil Bath
  • Wide Slide & Bolster Area

Capacity Tons 32 40 63 80 100 160 200 250
Table Size 630×400 800×450 850×500 960×570 1000×625 1120×650 1250×800 1250×800
Slide Area L-RxF-B 350×250 400×325 500×400 500×400 625×425 700×590 875×775 900×775
Day Light (SUAU) 330 340 400 420 450 560 650 675
Stroke Length Fix 60 60 100 100 125 160 200 200
Stroke Length (Adi) 8-60 8-60 8-100 8-100 8-125 8-160 8-200 8-200
Slide Adjustment 63 63 70 70 80 100 100 125
Shut Height (SDAU) 270 280 300 320 325 400 450 475
Nos Of Slide Strokes (SPM) 50 50 50 50 45 40 40 35
Fly Wheel Energy (KJ) 4.4 8 16.75 20 25 55 70 80
Height from Floor to Top 800 850 856 850 850 900 900 900
Main Motor (HP) 3 5 7.5 7.5 10 20 20 25
Req.air pressure for pneumatic clutch ( Kg/Cm2) 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Optional Die Cushion Capacity 1.7 4.5 70 80 100 200 200 270
Stroke 50 50 50 50 50 75 100 100
Air Pressure (Kg/Cm2) 6 6 6 6 6 6 6 6
View Complete Details
Ask Latest Price & Details

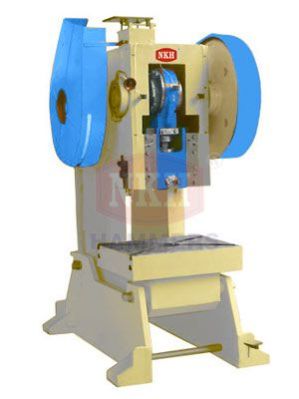

Mechanical Power Press Machines

Mechanical Power Press Machines

NKH is a leading name in manufacturing mechanical power press machines and tools and commands a name for high quality production and perfect performance. Solid steel with suitable cross ribbing is used in manufacturing the C-Frame Power Presses. Rolling key type of clutch is employed in the C-Frame that offers incessant strokes for mass production. Special alloy steel is used for manufacturing crankshaft and fitted in with gunmetal bushes for smooth performance and extended durability. To acquire enormously high precision press operation, table and ram are impeccably aligned to each other.

Features
  • Capacity Ranging from 5 to 315 Tons.
  • This C-Type press features one piece frame of rolled steel plates, carefully proportioned and Mig welded for maximum strength and rigidity.
  • Crankshaft from high carbon steel.
  • Crank pins are extra large to minimize deflection and to provide wide bearing areas.
  • The press is equipped with Rolling key clutch with repeated and non-repeated safety device.

Capacity Tons 5 10 20 30 50 75 100 150 200 250 315
Table Size 350×300 435×350 500×375 600×400 625×475 700×550 900×600 1000×700 1150×800 1200×850 1350×950
Distance Between Bed of Ram (SUAU) 210 280 300 360 400 425 455 500 550 600 700
Slide Stroke Length Adjustable or Fix 40 50 65 85 100 110 125 125 150 150 175
Adjustment of Slide 25 25 28 30 35 40 45 50 60 70 75
Shank Hole 25 28 30 35 40 45 50 55 63 65 70
No. of Slide Strokes 55 50 50 45 45 40 40 35 30 30 25
Main Motor 1/1440 2/1440 2/1440 3/1440 5/1440 7.5/1440 10/1440 15/1440 20/1440 25/1440 30/1440
Motor Pulley Dia B-2.5 B-3 B-3 B-4 B-5 B-6 B-7 B-7 C-8 C-8 C-9
Height from Floor to top ok Bolster 625 325 675 700 725 750 775 825 825 825 850
Bed Openind (Dia) 75 100 100 125 150 175 200 225 250 275 300
View Complete Details
Ask Latest Price & Details
