We have been in the manufacturing of excellent quality Bevel Gearboxes with our main mission of customer satisfaction. We have a well known position in industry as Bevel Gearboxes Exporter and Bevel Gearboxes Supplier. We always deliver these Spiral Bevel Gearboxes on time and with most. reasonable prices offered. We believe that our clients know us for the quality that we provide and are fully aware of our responsibility of catering to their needs and requirements in this regard.

• We are very proud to say that with the help of high quality Bevel Gearboxes provided by us, we have been able to establish ourselves among the leaders of Bevel Gearboxes Exporter and Bevel Gearboxes Supplier. Bevel Gearboxes provided by us are trustworthy, manufactured using latest sophisticated technology. Each of our product is subjected to strict quality control measures to ensure that only the best in terms of quality and design reaches the market.
• These drives are used primarily to transmit power at 90 Degrees or to Split Power from one Input Drive to one, two or three output Drives. They are also used as “Power Take Off” drives from one common shaft. The Ratio of Bevel Gears are standardized at 1:1, 1.5:1 & 2:1. Special ratios on request. Gleason standard Generated Straight Bevel gears, Hollow Shaft versions available.

Our prime concern is to fulfill variegated requirements of the clients, all the time. And, to achieve this objective, we have installed a capacious warehouse. Our experts ensure that payments are made on time and for that, we have online payment processing system to evade security issues. We have well maintained payment logs available for the convenience of our customers.

Product Details :

• Cubical form housing for symmetry.
• Gear ratios 1:1, 1.5:1 and 2:1.
• 8 different sizes for maximum output torque ranging from 17 Nm to 3550 Nm.
• Fully machined with tapped holes for universal mounting, thus 6 possible mounting positions.
• 1 input with 1, 2, or 3 outputs, hollow outputs.
• motor flange for direct mounting of motors (up to FG55).
• Either direction of rotation.
• Mounting base for fastening outside the Cubical form.
• Efficiency 95-96 % depending upon Lubrication.
• Oil or grease filling.
• 'O' Rings /oil seals at all joints.
• Tapered roller bearings for high radial & Axial load capacity, long life.
• Spiral bevel gearbox (Gleason System) for FG60 & FG75.

Materials of Construction :

• For 14000 & 30, 000 lbs, Housing is made of closed grain cast-iron, for higher sizes, SG 500/7 material.
• Screw made of Cr-Mo medium Carbon Steel, hardened and tempered for high core strength.
• Nut made of aluminum bronze to British Standard grade AB2.
• Bevel gearbox Case hardened.
• Tapered roller bearings to carry heavy axial as well as radial loads.

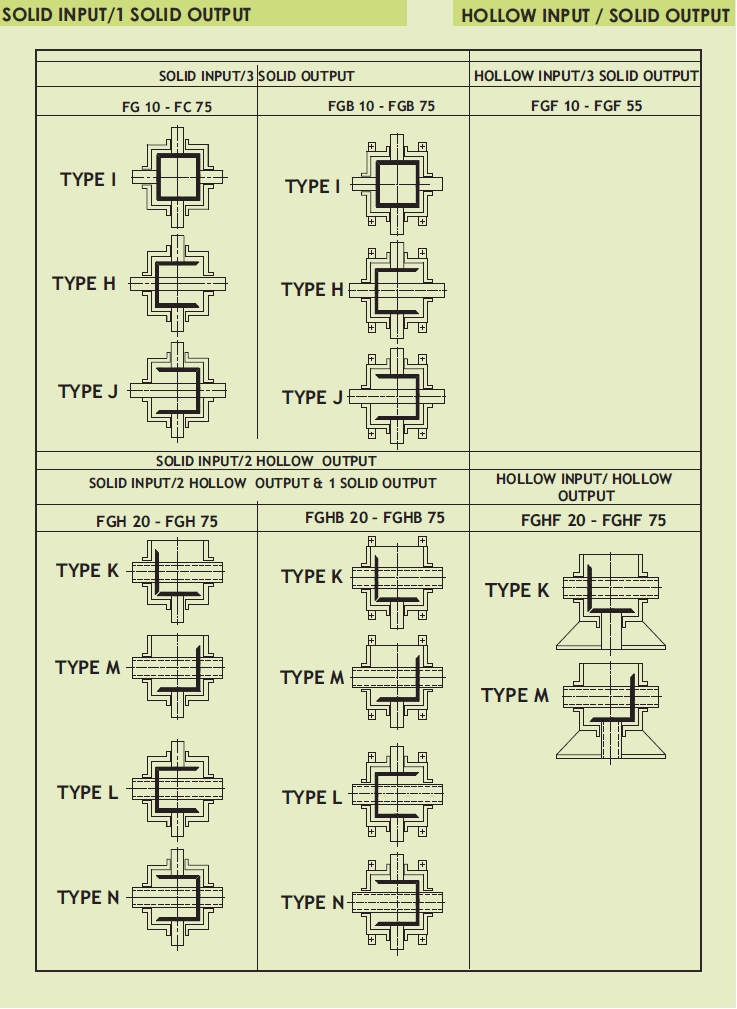

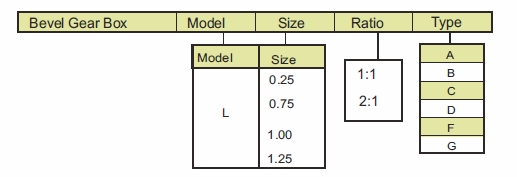

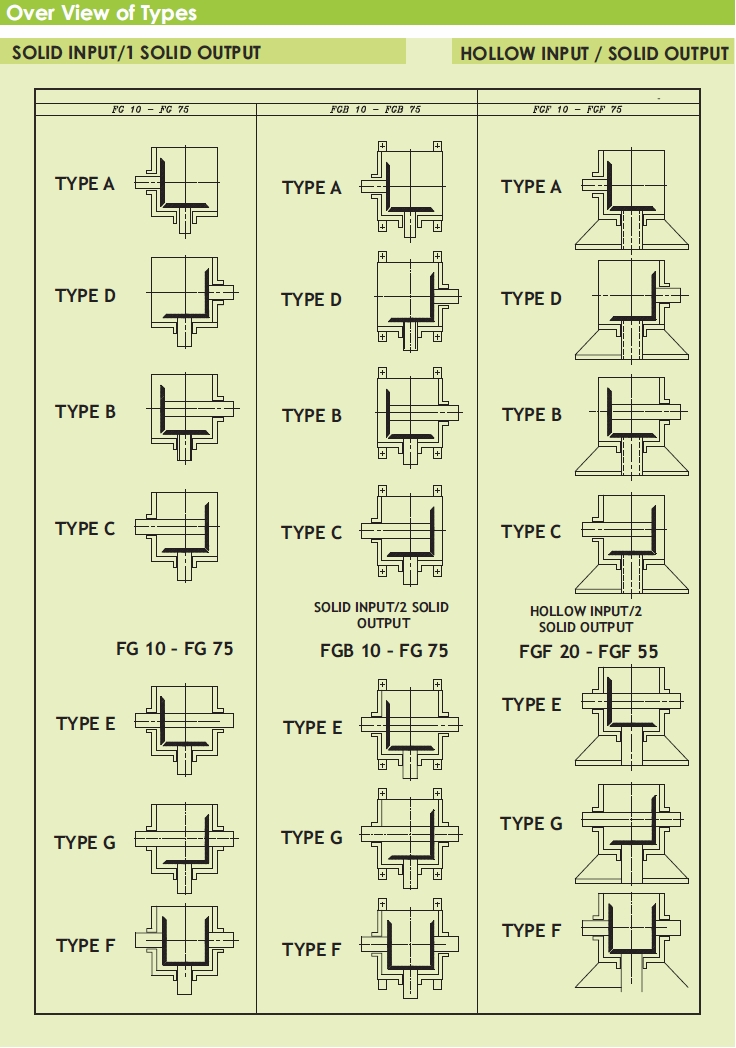

Type

• A, B
• C, D
• E, F
• G, H
• I, J
• K.L
• M, N

Ratio :

• 1:1
• 1.5:1
• 2:1
