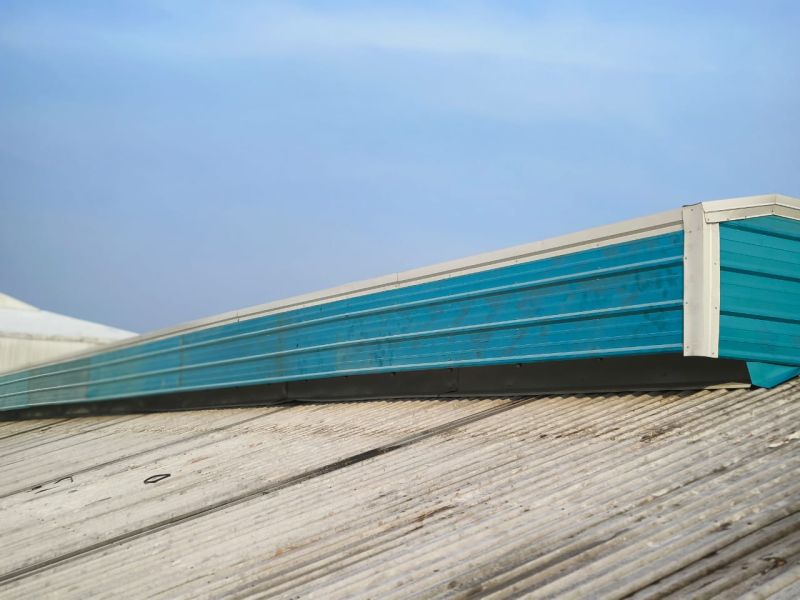

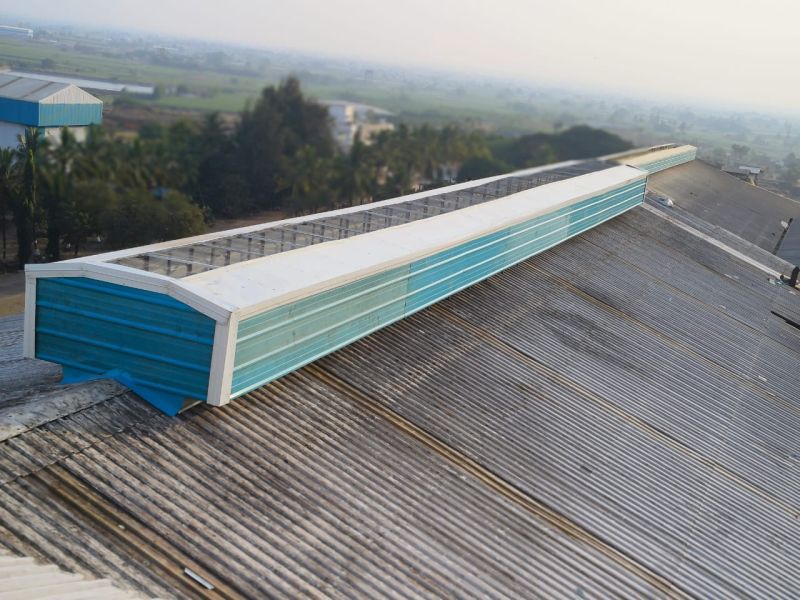

We offer a complete product range of Apex Ridge Vent
Apex vent is assembled on-site. Constructed roof vents are roofing components custom-designed and placed directly on the roof\'s ridge to provide optimal airflow for factories. The process involves creating frames manufactured in our factory and installing them on-site. The material used for the vents is selected to meet the specific requirements of the roof\'s ridge. The ridge vent spans the entire length of the roof ridge, allowing hot air to escape the factory\'s building space while facilitating the inflow of fresh air through the inlet or opening vent.

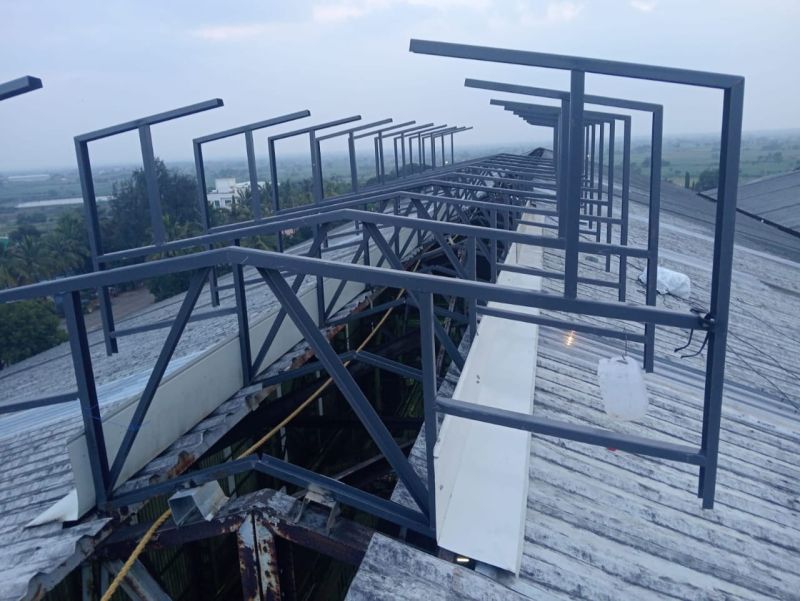

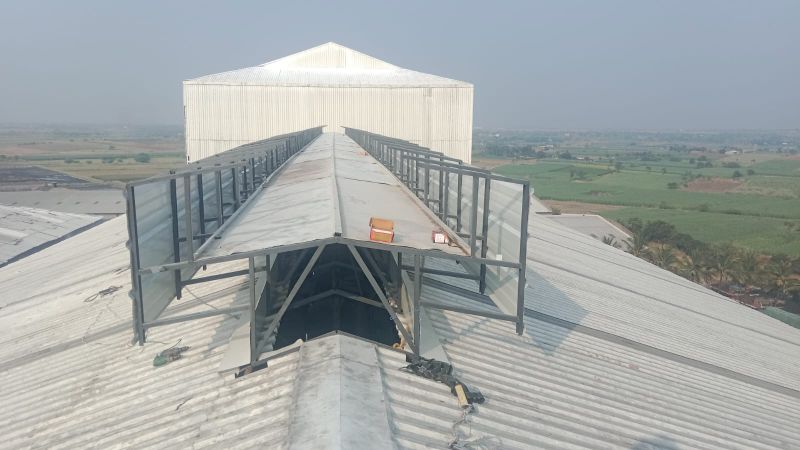

Apex-type Airflow Ridgevents are custom-built on-site ridge vents with numerous advantages. Designed to fit precisely on the roof, they offer superior sealing and a reduced likelihood of leaks. The Apex Ridgevent consists of two frame structures, which are pre-assembled in our factory to ensure ease of installation and delivery. The primary and secondary structures are welded together, resulting in a solid and stable framework.
The main frame structure is securely welded with a base steel component at the ridgevent throat, integrating seamlessly into the roof structure. The sideboard is constructed from a colour-coated pressed profile sheet with edge flashing for enhanced strength and aesthetics. Depending on installation needs, the ridge can incorporate either colour-coated metal sheets or translucent polycarbonate sheets, offering flexibility in material choices.
To ensure efficient drainage, the ridgevent is equipped with a flow guide plate that directs rainwater onto the roof surface. This feature, combined with a leak-proof solution, prevents water infiltration and ensures reliable rainwater management.
Apex Ridgevent is a high-performance ventilation system designed for industrial and commercial applications. Its innovative design supports enhanced indoor air quality by reducing heat build-up and promoting continuous airflow. Additionally, its robust construction, coupled with effective rainwater drainage and material versatility, makes it a sustainable and cost-effective choice for factories and large-scale facilities.
The durable design of the Apex Ridgevent ensures a long service life with minimal maintenance requirements, making it an excellent investment for factory owners seeking a balance between functionality, durability, and energy efficiency. Its ability to accommodate various roof profiles further establishes it as a versatile solution for diverse industrial setups.
Additional Information:
Delivery Time : 15days
Specifications
| Throat (C) | (W) | (H) | (D) | Purline Distance (A) |
|---|---|---|---|---|
| 900 | 2200 | 1130 | 1200 | 1000 |
| 1000 | 2445 | 1255 | 1300 | 1100 |
| 14200 | 2860 | 1500 | 1500 | 1300 |
| 1500 | 3665 | 1880 | 1800 | 1600 |
| 2000 | 4890 | 2510 | 2300 | 2100 |
| 2500 | 5950 | 3130 | 2800 | 2600 |
| 3000 | 7150 | 3765 | 3300 | 3100 |
