We are a trusted name as Water Well Drilling Rig Manufacturer, Exporter and Supplier in Andhra Pradesh, India. We make available

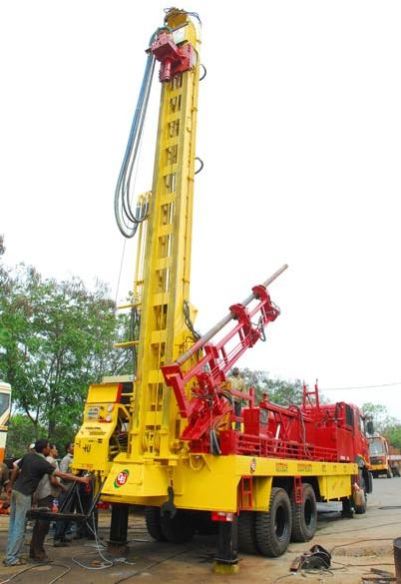

Water Well Drilling Rig (Inwell 100) in standardized as well as customized sizes to meet varied industrial requirements. Brief Description - The INWELL100 hydraulically operated drill rig is ideal for water well drilling application in rock formation.
-
- Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class.
-
- The INWELL100 rigs flexibility means it will be five pieces construction (Mast, Tripod, Drill head, Feed gearbox and Power pack) and air compressor will be mounted on separate trolley or truck.
-
- Highlights
- Proven technology ensures easy maintenance and more productive.
-
- The rig can be customized as per customer requirement.
-
- All the actuators are operated by proportional control valves.
-
- Key Specification
- Drill rod handling 5feet (1.5 meters)
-
- Drilling depth up to 330feet (100meters)
-
- Drilling diameter 4.5inch (114mm)-5inch (127mm)
-
- Pull up force 2500kgf-3000kgf
-
- Drill head torque 80 kg.m
-
- Air compressor 450 cfm150psi
-
- Optional : Trolley mounted mud pump driven by diesel engine through mechanical drive for mud rotary drilling. Download
-
