Our Products
We offer the best product range of Brass Moulding Inserts, Brass Vaned Expansion Inserts, Brass Press In Inserts, Brass Knurled Expansion Inserts and Brass Unheaded Brass Hex Drive Inserts.
We are the preeminent Manufacturer, Exporter and Supplier of Brass Moulding Inserts from Jamnagar, Gujarat, India. Made using top-notch quality brass, our Moulding Inserts are durable, sturdy, corrosion resistant and light weight. Also, these Brass Moulding Inserts are perfectly finished and dimensionally accurate. We are capable of handling even the bulk orders of buyers as we maintain a huge stock of these Brass Moulding Inserts in our warehouse.

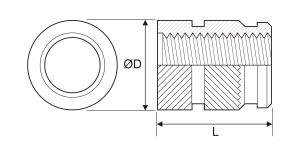

We have a strong foothold as Manufacturer, Exporter & Supplier of Brass Vaned Expansion Inserts in Gujarat, India. We have developed an in-house facility for furnishing standard as well as specific demands of the buyers. We also maintain stock of Brass Vaned Expansion Inserts at our depot. Buyers can acquire them in retail or bulk, from us.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Length (L) |
ØD | Pilot Hole |
|---|---|---|---|
| M2 | 4 | 3.7 | 3.2 |
| M2.5 | 5.8 | 4.5 | 4 |
| M3 | 5.8 | 4.5 | 4 |
| M4 | 8.2 | 6.2 | 5.6 |
| M5 | 9.5 | 6.9 | 6.4 |
| M6 | 12.7 | 8.5 | 8 |
| M8 | 12.7 | 10.1 | 9.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.

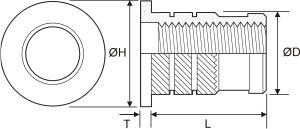

Get in touch with us for acquiring top of the line quality Brass Press In Inserts! We are a trusted Manufacturer, Exporter & Supplier of Brass Press In Inserts from Gujarat, India. The entire series is produced under the supervisory guidance of professional thus; high quality and durability are assured. Further, we offer them in tailored specifications as well. One can contact us for prices and stock information.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Length (L) |
ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4 | 4.8 | 3.35 | 0.6 | 3.1 |
| M2.5 | 5.3 | 5.6 | 4.4 | 0.6 | 3.8 |
| M3 | 5.3 | 5.6 | 4.2 | 0.6 | 4.2 |
| M3.5 | 6.3 | 6.4 | 5 | 0.8 | 4.6 |
| M4 | 7.4 | 7.2 | 5.8 | 0.8 | 5.4 |
| M5 | 8.3 | 8 | 6.6 | 1 | 6.2 |
| M6 | 9.2 | 9.5 | 8.2 | 1.3 | 7.8 |
| M8 | 9.2 | 11 | 9.7 | 1.3 | 9.3 |
| M10 | 9.2 | 14 | 12 | 1.6 | 11.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.
The company stands tall among the distinguished Manufacturers, Exporters & Suppliers of Brass Knurled Expansion Inserts. The Expansion Inserts we make available are accredited for their high tensile strength, excellent resistance to corrosion and good electrical conductivity. Bulk orders of these are processed by us as per the specific requirements of the buyers.
Highlights :
Our company stands tall among the preeminent Manufacturers, Exporters & Suppliers of Brass Unheaded Brass Hex Drive Inserts. Manufactured using excellent quality materials, our inserts are known for their high corrosion resistance and durability. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of these within the allocated time.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Length (L) |
∅D | K | Pilot Hole |
|---|---|---|---|---|
| M4 | 10 | 8 | 4 | 6.6-7.2 |
| M5 | 12 | 10 | 5 | 8.4-9.2 |
| M6 | 15 | 12 | 6 | 10.0-10.8 |
| M8 | 18 | 16 | 8 | 14.0-14.9 |
| M10 | 25 | 18.5 | 10 | 16.2-17.2 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.

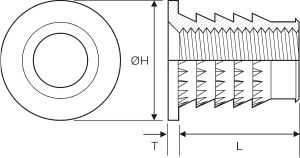

Are you looking out for high-class Brass Multi Headed Inserts? If the answer is in affirmative, get in touch with us! We are well-reckoned Manufacturer, Exporter & Supplier of Brass Multi Headed Inserts from Gujarat, India. Available in regular and short versions with reduced head diameter and double head height sizes our Inserts are widely preferred. Interested buyers can get them in retail or bulk, from us.
Highlights :
Graph
Specification
| Thread Size |
Available Lengths(L) |
Available ØH |
Available T |
Pilot Hole |
|---|---|---|---|---|
| M1.6 | 2 | 3.2 | 0.5 | 2.3-2.5 |
| M2 | 2.0 / 4.2 | 4.8 | 0.5 | 3.0-3.3 |
| M2.5 | 4.1 / 5.2 | 5.5 / 7.1 | 0.75 | 3.7-4.0 |
| M3 | 4.1 / 5.2 | 5.5 / 7.1 | 0.75 / 1.50 | 3.7-4.0 |
| M3.5 | 4.1 / 7.1 | 6.4 / 7.9 | 0.75 / 1.50 | 4.6-5.0 |
| M4 | 5.6 / 8.5 | 7.1 / 8.7 | 0.75 / 1.50 | 5.4-5.9 |
| M5 | 6.6 / 10.1 | 7.9 / 11.1 | 0.90 / 1.75 | 6.0-6.5 |
| M6 | 7.7 / 12.3 | 9.5 / 12.7 | 1.00 / 2.00 | 7.7-8.2 |
| M8 | 10.1 / 13.8 | 12.7 / 14.3 | 1.25 / 2.50 | 10.2-10.6 |
| M10 | 13.8 | 14.3 | 2.5 | 12.5 - 13.0 |
Precisely designed and constructed, our Brass Headed Screw-in Inserts are high on the marks of quality, performance and service life. We are top-notch Manufacturer, Exporter & Supplier of Brass Headed Screw-in Inserts in India and abroad. Our Inserts can also be customized to suit your specific need. All you need to do is give a call for prices and stock information.
Highlights :
Graph
Specification Of Brass Screw-in/Regular Head
| Thread Size |
L Short / Long |
ØH | T | Pilot Hole |
|---|---|---|---|---|
| M2.5 | 4.0 / 5.25 | 6.35 | 0.6 | 3.8-4.1 |
| M3 | 4.0 / 5.25 | 7.1 | 0.75 | 4.1-4.4 |
| M3.5 | 5.0 / 6.2 | 8.3 | 0.75 | 5.0-5.3 |
| M4 | 5.6 / 7.1 | 8.7 | 0.75 | 5.8-6.1 |
| M5 | 6.4 / 8.4 | 11.1 | 0.9 | 6.9-7.2 |
| M6 | 7.9 / 9.8 | 12 | 1 | 8.0-8.4 |
| M8 | 7.5 / 12.4 | 14.3 | 1.25 | 10.1-10.6 |
| M10 | 12.0 / 16.0 | 18 | 1.5 | 13.0-13.5 |
Specification Of Brass Screw-in/Reduced Head
| Thread Size |
L | ØH | T | Pilot Hole |
|---|---|---|---|---|
| M3 | 6.25 | 4.7 | 0.75 | 4.1-4.4 |
| M4 | 8.4 | 6.3 | 0.8 | 5.8-6.1 |
| M5 | 10 | 7.5 | 0.8 | 6.9-7.2 |
| M6 | 7.9 / 12.0 | 8.6 | 0.9 | 8.0-8.4 |
| M8 | 14 | 11.1 | 1 | 10.1-10.6 |

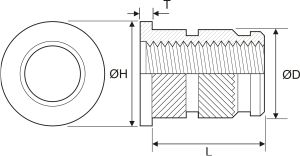

We let our buyers lay their hands on our wide assortment of Brass Ultra Inserts that are designed and manufactured as per the defined industry standards. We are entrusted with a task of manufacturing, exporting & supplying Brass Ultra Inserts from Gujarat, India. We make them available in imperial thread sizes and studded versions for furnishing divisive demands of the buyers. All you need is to contact us for prices and stock information.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Length (L) |
ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4 | 4.8 | 3.6 | 0.6 | 3.2 |
| M2.5 | 5.8 | 5.6 | 4.6 | 0.6 | 4 |
| M3 | 5.8 | 5.6 | 4.6 | 0.6 | 4 |
| M3.5 | 7.2 | 6.4 | 5.4 | 0.8 | 4.8 |
| M4 | 8.2 | 7.2 | 6.3 | 0.8 | 5.6 |
| M5 | 9.5 | 8 | 7 | 1 | 6.4 |
| M6 | 12.7 | 9.5 | 8.6 | 1.3 | 8 |
| M8 | 12.7 | 11 | 10.2 | 1.3 | 9.6 |
| M10 | 12.7 | 14 | 12.3 | 1.3 | 11.7 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.
The company has cemented its presence among the has cemented its presence among the successful Manufacturers, Suppliers and Exporters of Brass Barbed Expansion Inserts. We manufacture the inserts using excellent quality materials. Bulk orders of these are processed by us as per the specific requirements of the buyers. Please contact us for prices and stock information.
Highlights :
Owing to our rich industry experience, we are reckoned among the distinguished Manufacturers, Suppliers and Exporters of Brass Spreading Inserts Strict quality-tests based on different parameters ensure that only defect-free inserts reach the buyers. We offer these at nominal rates. Please contact us for prices and stock information.
Highlights :
Backed by our team of dexterous professionals, we have emerged as a distinguished Manufacturer, Supplier and Exporter of Brass Slot Drive Inserts. The inserts we make available are accredited for their high corrosion resistance and excellent quality. We have all the in-house facilities to deliver bulk orders of these within the allocated timeframe.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Available Lengths (L) | ØD | Pilot Hole |
|---|---|---|---|
| M3 | 6* / 8 / 10 / 12 | 6 | 4.6-5.2 |
| M4 | 8 / 10 / 12 / 15 | 8 | 5.7-6.6 |
| M5 | 10 / 12 / 15 / 20 | 10 | 7.6-8.5 |
| M6 | 10* / 12 / 15 / 18 / 20 / 25 / 30 | 12 | 9.4-10.4 |
| M8 | 15* / 18* | 14 | 12.6-14.0 |
| M8 | 14* / 18 / 23 / 30 | 16 | 12.6-14.0 |
| M10 | 15* / 20 / 25 / 30 / 40 | 18.5 | 15.1-16.5 |
| M12 | 20* / 25 / 30 / 35 | 22 | 18.3-19.8 |
| M16 | 25 / 30 / 35 | 25 | 21.3-22.8 |
| M20 | 30 | 30 | 26.3-27.8 |
*With fully threaded internal length.
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.
Leveraging on our rich industry experience, we are counted among the distinguished Manufacturers, Exporters & Suppliers of Brass Headed Brass Hex Drive Inserts. These are manufactured in compliance with international quality standards. We have all the in-house facilities to deliver bulk orders of these within the allocated timeframe. One can obtain these at competitive rates.
Highlights :
Graph 01
Graph 02
Specification
| Thread Size |
Available Lengths (L) | ØD | K | Pilot Hole |
|---|---|---|---|---|
| M5 | 06/08/16 | 10 | 5 | 8.4-9.2 |
| M6 | 6 / 7 / 8 / 12 / 15 / 18 | 12 | 6 | 10.0-10.8 |
| M8 | 15 / 18 | 14 | 8 | 12.0-12.8 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.

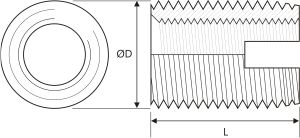

Contact us in case you are searching for strong and durable Brass Unheaded Screw-in Inserts! We are an eminent Manufacturer, Exporter as well as Supplier of Unheaded Screw-in Inserts from Gujarat, India. Our Brass Unheaded Screw-in Inserts are the outcome of premium material and precision engineering. Interested buyers can contact us for prices and stock information.
Highlights :
Graph
Specification
| Thread Size |
Available Lengths (L) |
ØD | Pilot Hole |
|---|---|---|---|
| M2 | 4.0 / 4.8 | 3.5 | 3.1-3.3 |
| M2.5 | 4.0 / 5.25 / 6.25 | 4.33 | 3.8-4.1 |
| M3 | 4.0 / 5.25 / 6.25 | 4.73 | 4.1-4.4 |
| M3.5 | 5.0 / 6.2 / 7.3 | 5.52 | 5.0-5.3 |
| M4 | 5.6 / 7.1 / 8.4 | 6.31 | 5.8-6.1 |
| M5 | 6.4 / 8.4 / 10.0 | 7.5 | 6.9-7.2 |
| M6 | 7.9 / 9.8 / 12.0 | 8.69 | 8.0-8.4 |
| M8 | 9.5 / 12.4 | 11.06 | 10.1-10.6 |
| M10 | 12.0 / 16.0 | 13.95 | 13.0-13.5 |

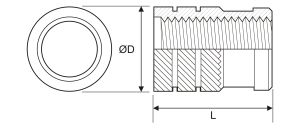

Get in touch with us for acquiring preeminent quality Brass Multi Unheaded Inserts! We are counted amid top-notch Manufacturers, Exporters & Suppliers of Brass Multi Unheaded Inserts in Gujarat, India. Made up of the first-class material, we make them available in regular and short versions. As a result, the whole lot of our Brass Multi Unheaded Inserts stands high on the counts of quality, durability and performance. Please contact us for prices and stock information.
Highlights :
Graph
Specification
| Thread Size |
Available Lengths(L) |
Pilot Hole |
|---|---|---|
| M2 | 3.1 / 4.2 | 3.0-3.3 |
| M2.5 | 4.1 / 5.2 | 3.7-4.0 |
| M3 | 4.1 / 5.2 | 3.7-4.0 |
| M3.5 | 4.1 / 7.0 | 4.6-5.0 |
| M4 | 5.6 / 8.5 | 5.4-5.9 |
| M5 | 6.6 / 10.0 | 6.0-6.5 |
| M6 | 7.7 / 12.3 | 7.7-8.2 |
| M8 | 8.3 / 13.8 | 10.2-10.6 |
| M10 | 10.5 / 16.1 | 12.5-13.0 |
| M12 | 16.1 | 15.0-15.4 |
We are bracketed among the reliable Manufacturers, Suppliers and Exporters of Brass Spreading Dowel Inserts. High tensile strength, excellent resistance to corrosion and good electrical conductivity are some of the attributes of our Dowel Inserts. Buyers are free to place bulk orders of the inserts with us and we ensure their timely execution within the allocated timeframe.
Highlights :
Our company stands tall among the preeminent Manufacturers, Exporters & Suppliers of Brass Self Lock Expansion Inserts. The inserts we make available are manufactured in compliance with set industrial norms. Bulk orders of these are processed by us as per the specific requirements of the buyers. Please contact us for prices and stock information.
Highlights :
Graph
Specification
| Internal Thread |
Available Lengths (L) | External Thread (ØD) |
Pilot Hole |
|---|---|---|---|
| M3 | 6 | M5 x 0.5 | 4.6-4.8 |
| M4 | 8 | M6.5 x 0.75 | 5.8-6.2 |
| M5 | 08/10/16 | M8 x 1.0 | 7.1-7.6 |
| M6 | 08/10/12 | M9 x 1.0 | 8.1-8.6 |
| M6 | 14 | M10 x 1.5 | 8.6-9.4 |
| M8 | 12/15/16 | M12 x 1.5 | 10.6-11.4 |
| M10 | 15 / 18 | M14 x 1.5 | 12.6-13.4 |
| M12 | 22 | M16 x 1.5 | 14.6-15.4 |
All dimensions in mm.
Pilot hole dimensions are for reference purpose only.
Owing to our rich industry experience, we are counted among the distinguished Manufacturers, Suppliers and Exporters of Brass Studded Press-In Insert. The inserts we make available are manufactured using excellent quality materials in compliance with international quality standards. Please contact us for prices and stock information. Contact us today!
Highlights :
