Our Products

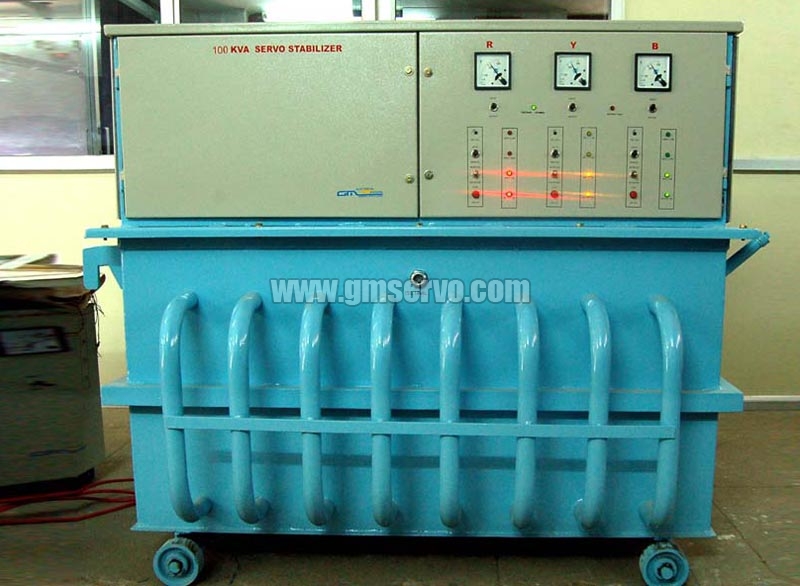

We offer the best product range of 100kva 3ph Servo Stabilizer, Servo Voltage Stabilizer, 60kva 3phase Servo Stabilizer-oil Cooled, Three Phase Oil Cooled Servo Controlled Voltage Stabilizer and 250kva 3phase Servo Stabilizer-oil Cooled.
We are offering 100kva 3ph servo stabilizer. Input:300-470v output:415v type:oil cooled.
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
TECHNICAL SPECIFICATIONS
|
GENERAL |
1 |
MODEL |
STANDARD INDOOR /OUTDOOR |
|
2 |
REFERENCE STANDARD |
IS: 9815 |
|
|
3 |
CAPACITY |
100KVA |
|
|
4 |
TYPE OF COOLING |
OIL COOLED |
|
|
5 |
DEGREE OF PROTECTION |
IP:32 |
|
|
RATING |
1 |
INPUT VOLTAGE RANGE |
300-470V,340-480V,360-500V,300-500V |
|
2 |
OUTPUT VOLTAGE |
415V+1%, 400V+1%, 380V V+1% |
|
|
3 |
RATED SUPPLY FREQUENCY |
50HZ |
|
|
4 |
RATED CONTINUOUS CURRENT |
138A AT 415V+1% |
|
|
5 |
REFERENCE AMBIENT TEMPERATURE |
50*C |
|
|
TEMPERATURE RISE |
1 |
TEMPERATURE RISE ABOVE AMBIENT |
50C OVER AND ABOVE AMBIENT LOSSES |
|
EFFICIENCY |
1 |
MAXIMUM EFFICIENY |
:>97% |
|
REGULATION |
1 |
AT 0.8 POWER FACTOR |
± 1% |
|
2 |
AT UNITY POWER FACTOR |
± 1% |
|
|
METERING |
1 |
VOLTMETER & AMMETER |
0-300V Digital Voltmeter with selector switches to read the input and output voltages ph-N 0-300A Digital Ammeter with selector switch to read the output current. |
|
VOLTAGE SENSING |
|
|
SENSING TRANSFORMER Qty: 3nos. |
|
CORRECTION RATE |
|
|
30V/sec |
|
AC SYNCHRONOUS MOTOR DETAILS |
|
TORQUE RATING FOR EACH MODEL |
10Kg Qty: 3nos. Make: Precision |
|
INDICATIONS & CONTROLS |
|
|
Indications for each Phase:
Controls on each Phase:
|
|
FABRICATED AND PAINTED FRAME & TANK |
|
|
TANK THICKNESS: 5MM, STEEL MAKE: TATA/JINDALPAINTING: FRAME, COVERS: SEIMENS GRAY PAINT THICKNESS: 90MICRONS |
|
TRANSFORMER OIL |
1 |
MAKE |
ELECTRAL |
|
|
2 |
OIL FILLING DEVICE |
AT YOUR SCOPE |
|
|
3
|
OIL DRAIN POINT |
AVAILABLE (OUTLET AVAILABLE FOR TANK TO EMPTY THE OIL) |
|
PROTECTIONS |
|
|
Low Voltage Protection High Voltage Protection Over load Protection Short Circuit Protection Single Phase Preventer Spike Voltage Protection |
Servo Voltage Stabilizer that we offer is gaining high popularity due to its longer service life and durability. We are named among the renowned Manufacturers and Suppliers of Servo Voltage Stabilizer. It is manufactured under the strict vigilance of experts. Thus, buying it from us will be the safest option for the buyers. One can place retail as well as bulk orders for Servo Voltage Stabilizer with us.
60KVA 3PHASE SERVO STABILIZER INDOOR/OUTDOOR -OIL COOLED INPUT RANGES : 300-470V, 340-480V, 360-480V, 300-500V OUTPUT: 415V, 400V, 380V
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
TECHNICAL SPECIFICATIONS
|
GENERAL |
1 |
MODEL |
STANDARD INDOOR /OUTDOOR |
|
2 |
REFERENCE STANDARD |
IS: 9815 |
|
|
3 |
CAPACITY |
60KVA |
|
|
4 |
TYPE OF COOLING |
OIL COOLED |
|
|
5 |
DEGREE OF PROTECTION |
IP:32 |
|
|
RATING |
1 |
INPUT VOLTAGE RANGE |
300-470V,340-480V,360-500V,300-500V |
|
2 |
OUTPUT VOLTAGE |
415V+1%, 400V+1%, 380V V+1% |
|
|
3 |
RATED SUPPLY FREQUENCY |
50HZ |
|
|
4 |
RATED CONTINUOUS CURRENT |
83A AT 415V+1% |
|
|
5 |
REFERENCE AMBIENT TEMPERATURE |
50*C |
|
|
TEMPERATURE RISE |
1 |
TEMPERATURE RISE ABOVE AMBIENT |
50C OVER AND ABOVE AMBIENT LOSSES |
|
EFFICIENCY |
1 |
MAXIMUM EFFICIENY |
:>97% |
|
REGULATION |
1 |
AT 0.8 POWER FACTOR |
± 1% |
|
2 |
AT UNITY POWER FACTOR |
± 1% |
|
|
METERING |
1 |
VOLTMETER & AMMETER |
0-300V Digital Voltmeter with selector switches to read the input and output voltages ph-N 0-300A Digital Ammeter with selector switch to read the output current. |
|
VOLTAGE SENSING |
|
|
SENSING TRANSFORMER Qty: 3nos. |
|
CORRECTION RATE |
|
|
30V/sec |
|
AC SYNCHRONOUS MOTOR DETAILS |
|
TORQUE RATING FOR EACH MODEL |
3Kg Qty: 3nos. Make: Precision |
|
INDICATIONS & CONTROLS |
|
|
Indications for each Phase:
Controls on each Phase:
|
|
FABRICATED AND PAINTED FRAME & TANK |
|
|
TANK THICKNESS: 5MM, STEEL MAKE: TATA/JINDALPAINTING: FRAME, COVERS: SEIMENS GRAY PAINT THICKNESS: 90MICRONS |
|
TRANSFORMER OIL |
1 |
MAKE |
ELECTRAL |
|
|
2 |
OIL FILLING DEVICE |
AT YOUR SCOPE |
|
|
3
|
OIL DRAIN POINT |
AVAILABLE (OUTLET AVAILABLE FOR TANK TO EMPTY THE OIL) |
|
PROTECTIONS |
|
|
Low Voltage Protection High Voltage Protection Over load Protection Short Circuit Protection Single Phase Preventer Spike Voltage Protection |
Backed by our dexterous professionals, we have emerged as a reliable Manufacturer and Supplier of Three Phase Oil Cooled Servo Controlled Voltage Stabilizer in Hyderabad. The Three Phase Oil Cooled Servo Controlled Voltage Stabilizer we make available are manufactured in conformity with international quality standards and norms. To cater bulk and urgent requirements of buyers, we maintain a large stock of Three Phase Oil Cooled Servo Controlled Voltage Stabilizer at our state-of-the art warehouses. Buyers can obtain the Voltage Stabilizer at market-leading rates.
Specifications
| Capacity | 25 to 1200 KVA 3PH |
|---|---|
| Input Voltage Range | 340 V - 470 V AC 3phase |
| Output Voltage | 415 V +/- 1% ph to ph (240v phase) |
| No. of phases | Three |
| Line Frequency | 47-53Hz. |
| Output Voltage Regulation | +1% |
| Type of Cooling | Oil Cooled |
| Type | Unbalanced supply and Load conditions |
| Efficiency | >95% |
| Speed of Correction | 30 V per sec. |
| Wave form distortion | Nil |
| Effect of Load power factor | Nil |
| Ambient Temperature | 0-40oC |
| Duty Cycle | Continuous |
| Indications on each phase | Input on,Input Low,Input High,Output On,Output Cutoff. |
| Controls on each Phase | Auto/Manual Selector Switch,Increase/Decrease Selector Switch,Volts adj. Potentiometer. |
| Metering | Voltmeter to read Input and Output Voltages with selector switch, Ammeter to read the Output current. |
| Other Indications &Controls | Input R, Y, B Indications in each ph 3phOutput on Indication,Reset Auto/Manual selector switch Output On Switch Output off Switch. |
| Protection | Low Voltage Protection,High Voltage Protection,Over load Protection,Short Circuit Protection, Single Phase Preventer. |
250KVA 3PHASE SERVO STABILIZER INDOOR/OUTDOOR -OIL COOLED INPUT RANGES : 300-470V, 340-480V, 360-480V, 300-500V OUTPUT: 415V, 400V, 380V
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
TECHNICAL SPECIFICATIONS
|
GENERAL |
1 |
MODEL |
STANDARD INDOOR /OUTDOOR |
|
2 |
REFERENCE STANDARD |
IS: 9815 |
|
|
3 |
CAPACITY |
250KVA |
|
|
4 |
TYPE OF COOLING |
OIL COOLED |
|
|
5 |
DEGREE OF PROTECTION |
IP:32 |
|
|
RATING |
1 |
INPUT VOLTAGE RANGE |
300-470V,340-480V,360-500V,300-500V |
|
2 |
OUTPUT VOLTAGE |
415V+1%, 400V+1%, 380V V+1% |
|
|
3 |
RATED SUPPLY FREQUENCY |
50HZ |
|
|
4 |
RATED CONTINUOUS CURRENT |
347A AT 415V+1% |
|
|
5 |
REFERENCE AMBIENT TEMPERATURE |
50*C |
|
|
TEMPERATURE RISE |
1 |
TEMPERATURE RISE ABOVE AMBIENT |
50C OVER AND ABOVE AMBIENT LOSSES |
|
EFFICIENCY |
1 |
MAXIMUM EFFICIENY |
:>97% |
|
REGULATION |
1 |
AT 0.8 POWER FACTOR |
± 1% |
|
2 |
AT UNITY POWER FACTOR |
± 1% |
|
|
METERING |
1 |
VOLTMETER & AMMETER |
0-300V Digital Voltmeter with selector switches to read the input and output voltages ph-N 0-300A Digital Ammeter with selector switch to read the output current. |
|
VOLTAGE SENSING |
|
|
SENSING TRANSFORMER Qty: 3nos. |
|
CORRECTION RATE |
|
|
30V/sec |
|
AC SYNCHRONOUS MOTOR DETAILS |
|
TORQUE RATING FOR EACH MODEL |
10Kg Qty: 3nos. Make: Precision |
|
INDICATIONS & CONTROLS |
|
|
Indications for each Phase:
Controls on each Phase:
|
|
FABRICATED AND PAINTED FRAME & TANK |
|
|
TANK THICKNESS: 5MM, STEEL MAKE: TATA/JINDALPAINTING: FRAME, COVERS: SEIMENS GRAY PAINT THICKNESS: 90MICRONS |
|
TRANSFORMER OIL |
1 |
MAKE |
ELECTRAL |
|
|
2 |
OIL FILLING DEVICE |
AT YOUR SCOPE |
|
|
3
|
OIL DRAIN POINT |
AVAILABLE (OUTLET AVAILABLE FOR TANK TO EMPTY THE OIL) |
|
PROTECTIONS |
|
|
Low Voltage Protection High Voltage Protection Over load Protection Short Circuit Protection Single Phase Preventer Spike Voltage Protection |

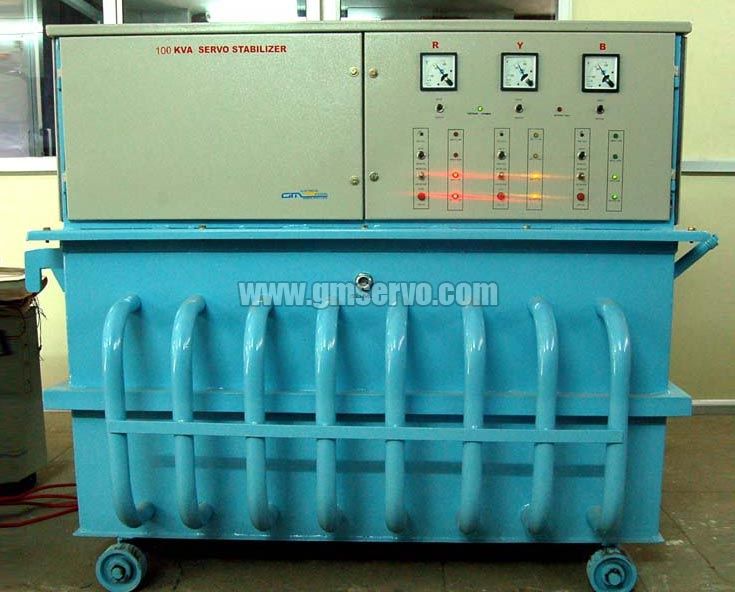

Industrial Stabilizers that we offer is gaining high popularity due to its longer service life and durability. We are named among the renowned Manufacturers and Suppliers of Industrial Stabilizers. It is manufactured under the strict vigilance of experts. Thus, buying it from us will be the safest option for the buyers. One can place retail as well as bulk orders for Industrial Stabilizers with us.
Specifications
| Capacity | 25 to 1200 KVA 3PH |
|---|---|
| Input Voltage Range | 340 V - 470 V AC 3phase |
| Output Voltage | 415 V +/- 1% ph to ph (240v phase) |
| No. of phases | Three |
| Line Frequency | 47-53Hz. |
| Output Voltage Regulation | +1% |
| Type of Cooling | Oil Cooled |
| Type | Unbalanced supply and Load conditions |
| Efficiency | >95% |
| Speed of Correction | 30 V per sec. |
| Wave form distortion | Nil |
| Effect of Load power factor | Nil |
| Ambient Temperature | 0-40oC |
| Duty Cycle | Continuous |
| Indications on each phase | Input on,Input Low,Input High,Output On,Output Cutoff. |
| Controls on each Phase | Auto/Manual Selector Switch,Increase/Decrease Selector Switch,Volts adj. Potentiometer. |
| Metering | Voltmeter to read Input and Output Voltages with selector switch, Ammeter to read the Output current. |
| Other Indications &Controls | Input R, Y, B Indications in each ph 3phOutput on Indication,Reset Auto/Manual selector switch Output On Switch Output off Switch. |
| Protection | Low Voltage Protection,High Voltage Protection,Over load Protection,Short Circuit Protection, Single Phase Preventer. |

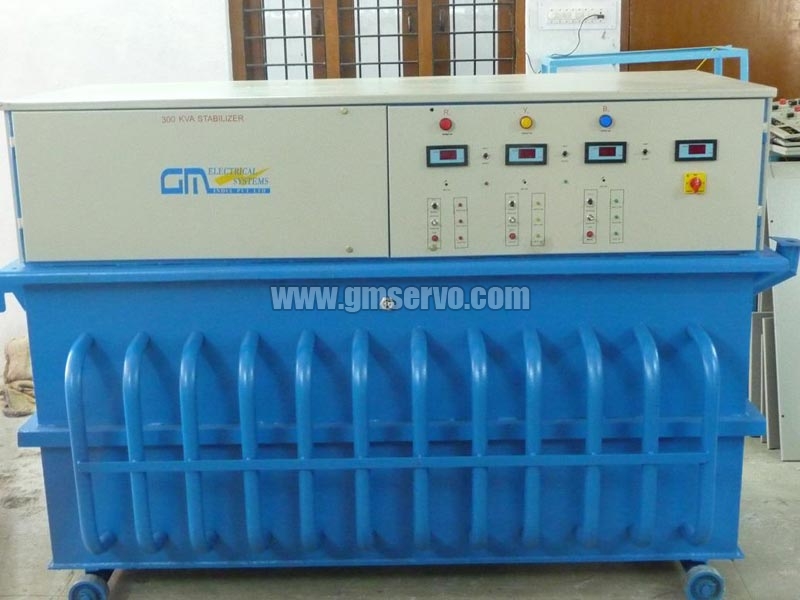

300KVA 3PHASE SERVO STABILIZER INDOOR/OUTDOOR -OIL COOLED INPUT RANGES : 300-470V, 340-480V, 360-480V, 300-500V OUTPUT: 415V, 400V, 380V
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
TECHNICAL SPECIFICATIONS
|
GENERAL |
1 |
MODEL |
STANDARD INDOOR /OUTDOOR |
|
2 |
REFERENCE STANDARD |
IS: 9815 |
|
|
3 |
CAPACITY |
300KVA |
|
|
4 |
TYPE OF COOLING |
OIL COOLED |
|
|
5 |
DEGREE OF PROTECTION |
IP:32 |
|
|
RATING |
1 |
INPUT VOLTAGE RANGE |
300-470V,340-480V,360-500V,300-500V |
|
2 |
OUTPUT VOLTAGE |
415V+1%, 400V+1%, 380V V+1% |
|
|
3 |
RATED SUPPLY FREQUENCY |
50HZ |
|
|
4 |
RATED CONTINUOUS CURRENT |
416A AT 415V+1% |
|
|
5 |
REFERENCE AMBIENT TEMPERATURE |
50*C |
|
|
TEMPERATURE RISE |
1 |
TEMPERATURE RISE ABOVE AMBIENT |
50C OVER AND ABOVE AMBIENT LOSSES |
|
EFFICIENCY |
1 |
MAXIMUM EFFICIENY |
:>97% |
|
REGULATION |
1 |
AT 0.8 POWER FACTOR |
± 1% |
|
2 |
AT UNITY POWER FACTOR |
± 1% |
|
|
METERING |
1 |
VOLTMETER & AMMETER |
0-300V Digital Voltmeter with selector switches to read the input and output voltages ph-N 0-300A Digital Ammeter with selector switch to read the output current. |
|
VOLTAGE SENSING |
|
|
SENSING TRANSFORMER Qty: 3nos. |
|
CORRECTION RATE |
|
|
30V/sec |
|
AC SYNCHRONOUS MOTOR DETAILS |
|
TORQUE RATING FOR EACH MODEL |
10Kg Qty: 3nos. Make: Precision |
|
INDICATIONS & CONTROLS |
|
|
Indications for each Phase:
Controls on each Phase:
|
|
FABRICATED AND PAINTED FRAME & TANK |
|
|
TANK THICKNESS: 5MM, STEEL MAKE: TATA/JINDALPAINTING: FRAME, COVERS: SEIMENS GRAY PAINT THICKNESS: 90MICRONS |
|
TRANSFORMER OIL |
1 |
MAKE |
ELECTRAL |
|
|
2 |
OIL FILLING DEVICE |
AT YOUR SCOPE |
|
|
3
|
OIL DRAIN POINT |
AVAILABLE (OUTLET AVAILABLE FOR TANK TO EMPTY THE OIL) |
|
PROTECTIONS |
|
|
Low Voltage Protection High Voltage Protection Over load Protection Short Circuit Protection Single Phase Preventer Spike Voltage Protection |

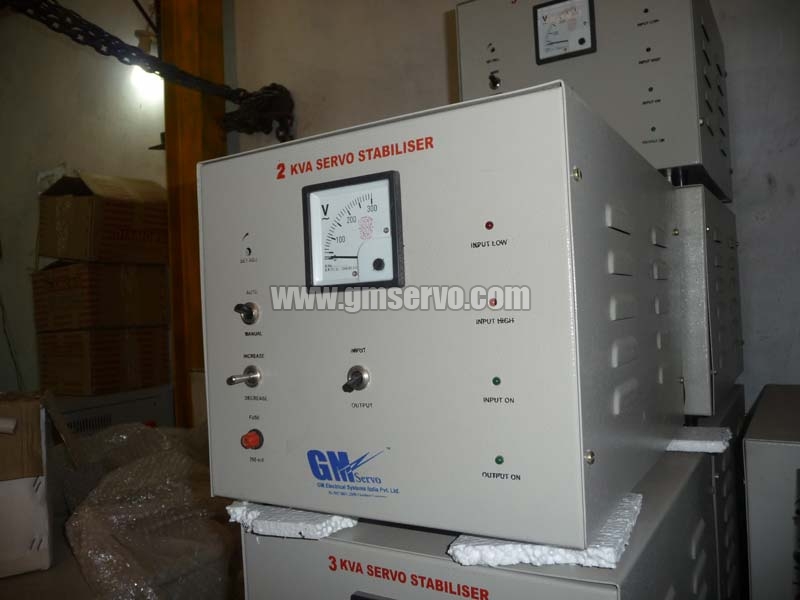

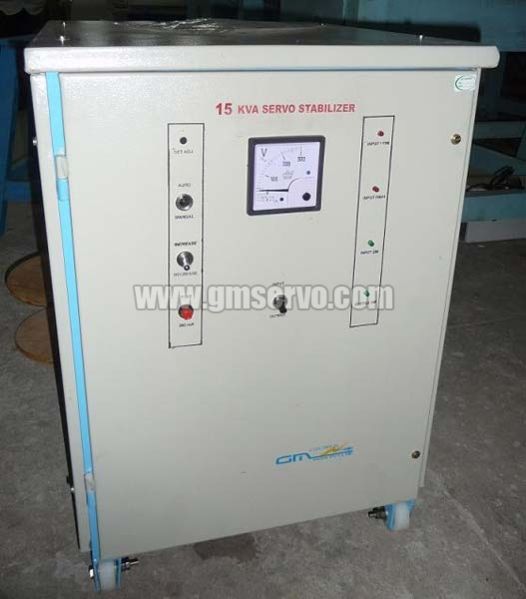

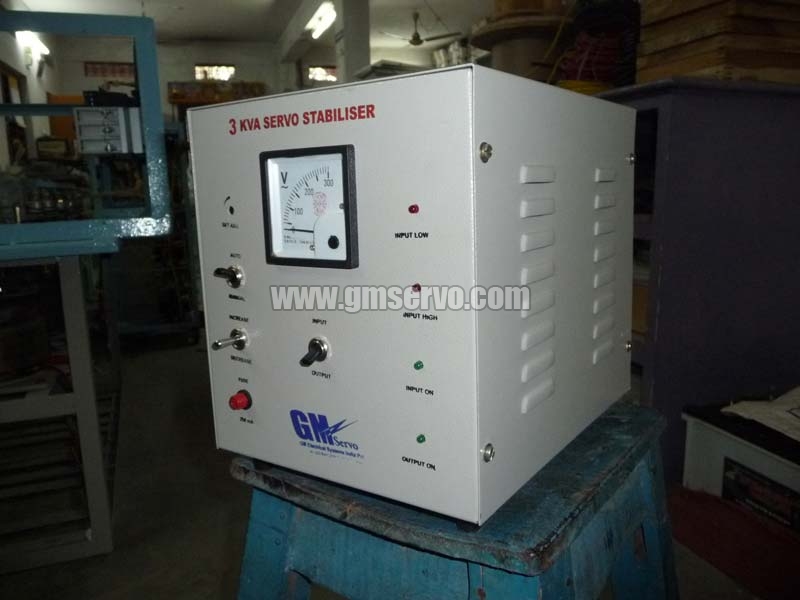

Single Phase Air Cooled Voltage Stabilizer, offered by us, is manufactured using quality approved components and the latest techniques at our well-equipped production house. Also, it is tested on the parameters of quality, durability and functionality in order to ensure its defect-free mechanism. Our Single Phase Air Cooled Voltage Stabilizer is also delivered on time so as to maintain trust of the buyers. One can obtain Single Phase Air Cooled Voltage Stabilizer from us at a very reasonable price.
Details
| Capacity | 1 to 30 KVA 1PH |
|---|---|
| Input Voltage Range | 170V - 270 V AC 1PH |
| Output Voltage | 230V +/- 1% |
| No. of phases | Single |
| Line Frequency | 47-53Hz. |
| Output Voltage Regulation | 1.00% |
| Type of Cooling | Air Cooled |
| Type | Unbalanced supply and Load conditions |
| Efficiency | >95% |
| Speed of Correction | 60V per sec. |
| Wave form distortion | Nil |
| Effect of Load power factor | Nil |
| Ambient Temperature | 0-50ºC |
| Duty Cycle | Continuous |
| Indications on each phase | Input on,Input Low,Input High,Output On,Output Cutoff. |
| Controls on each Phase | Auto/Manual Selector Switch,Increase/Decrease Selector Switch,Volts adj. Potentiometer. |
| Metering | Voltmeter to read Input and Output Voltages with selector switch. |
| Other Indications &Controls | Input Output Indications ,Reset Auto/Manual selector switch Output On Switch Output off Switch. |
| Protection | Low Voltage Protection,High Voltage Protection,Over load Protection, |

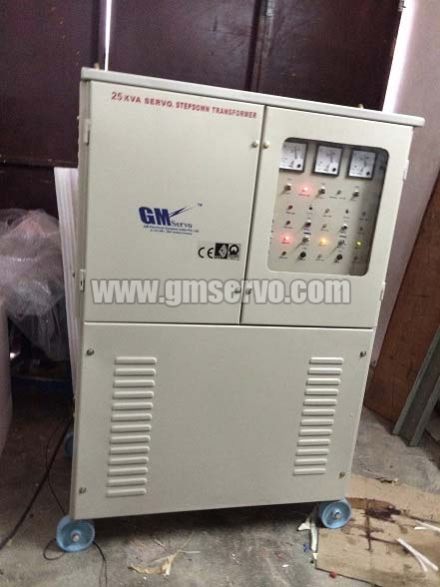

25KVA 3PHASE SERVO STABILIZER WITH INBUILT ISOLATION TRANSFORMER INDOOR/OUTDOOR -AIR COOLED INPUT RANGES : 300-470V, 340-480V, 360-480V, 300-500V OUTPUT: 415V, 400V, 380V
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
Based on advanced technology, our Three Phase Air Cooled Voltage Stabilizers are of impeccable quality. Our company’s name figures in the list of reliable Manufacturers and Suppliers of Three Phase Air Cooled Voltage Stabilizer in Hyderabad. The entire range of the Three Phase Air Cooled Voltage Stabilizer is quality tested on various parameters by our experts before the final dispatch. Bulk orders of the Air Cooled Voltage Stabilizers are catered by us.
Details
Specifications
| Capacity | 3 to 60 KVA 3PH |
|---|---|
| Input Voltage Range | 340 V - 470 V AC 3phase |
| Output Voltage | 415 V +/- 1% ph to ph (240v phase) |
| No. of phases | Three |
| Line Frequency | 47-53Hz. |
| Output Voltage Regulation | +1% |
| Type of Cooling | Air Cooled |
| Type | Unbalanced supply and Load conditions |
| Efficiency | >95% |
| Speed of Correction | 30 V per sec. |
| Wave form distortion | Nil |
| Effect of Load power factor | Nil |
| Ambient Temperature | 0-40oC |
| Duty Cycle | Continuous |
| Indications on each phase | Input on,Input Low,Input High,Output On,Output Cutoff. |
| Controls on each Phase | Auto/Manual Selector Switch,Increase/Decrease Selector Switch,Volts adj. Potentiometer. |
| Metering |
Digital Voltmeter to read Input and Output Voltages with selector switch. Ammeter to read the Output current |
| Other Indications &Controls | Input R, Y, B Indications in each ph 3phOutput on Indication,Reset Auto/Manual selector switch Output On Switch Output off Switch. |
| Protection | Low Voltage Protection,High Voltage Protection,Over load Protection,Short Circuit Protection, Single Phase Preventer. |

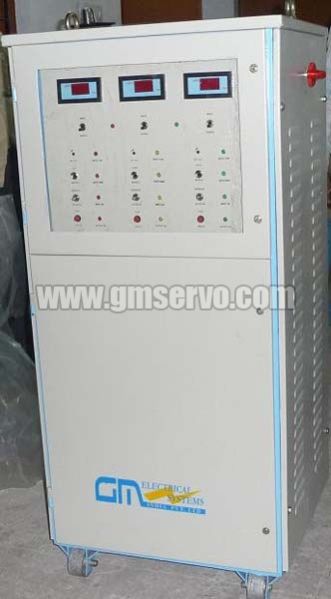

40KVA 3PHASE SERVO STABILIZER INDOOR/OUTDOOR -AIR COOLED INPUT RANGES : 300-470V, 340-480V, 360-480V, 300-500V OUTPUT: 415V, 400V, 380V
PROTECTIONS:Low Voltage Protection, High Voltage Protection, Over load Protection, Short Circuit Protection, Single Phase Preventer.
For excellent quality Electronic Voltage Stabilizer, you can contact us. We are enlisted among the trusted Manufacturer and Supplier of Electronic Voltage Stabilizer in Hyderabad. The Electronic Voltage Stabilizers offered by us are used for electrical appliances like air conditioners and freezers. Owing to our reliable logistics network, we are capable of delivering bulk orders of the Voltage Stabilizer within stipulated time.
Specifications
| Input Voltage Range | 170V-270V Output 9% (200V - 240V) |
|---|---|
| Out Voltage | 220V + 9% (200V - 240V) |
| Protections | Over voltage / Under voltage Trip |
| Time Delay Facility | Electronic Time Delay (20 - 200 sec) to switch on the output after restoring normality. |
| Termination | Input : Power chord (Rated) Output : 30Amps/3 pin connector |
| Metering | 0-300V Voltmeter with selector switch to read input and output voltages. |
| Indications | (a) Input On (b) Output On (c) OV/UV Trip |
Gnmrao (Gm Electrical Systems India Pvt. Ltd.)
5-35/276, Shaktipuram, Prasanthinagar, Ie, Kukatpally, Hyderabad, Telangana - 500072
Share us via
Write a Review
