Gravity Controls

Vasai, Mumbai, Maharashtra

Applications :

• For Pressure/ burst testing of Castings, Valves, Hoses, Pressure Vessels etc.
• Cyclic Pressure / life Testing of Pressure Gauges, Pressure Switches, Hoses etc.
• Transferring of liquids from barrels, storage tank etc
• Burst Strength Testing of pressurised vessels such as LPG / Nitrogen/ Oxygen gas cylinders, storage tanks, hoses, pipes etc.
• Pumping oil or grease in centralized lubrication systems.
• Seal leakage test of Control Valves.
• Operation of Single Acting Hydraulic Cylinders used in lifting platforms, hydraulic clamps, compression moulding presses etc.
• Isostatic Pressing of powder metals and ceramics.
• Portable Systems for Construction, Mining & Defence Equipments.
• Precise filling of liquid products such as soft drinks, juices, medicines etc
• in packaging machines

Features :

• Operates only with air without hydraulic power pack
• Energy saving. low air consumption.
• Fast action.
• Force and Speed infinitely adjustable.
• Absolute air/oil separation for trouble free operation.
• Reduce noise level.
• Low maintenance, smooth operation.
• Compact and light weight.
• Low cost.
• Easy for oil filling.

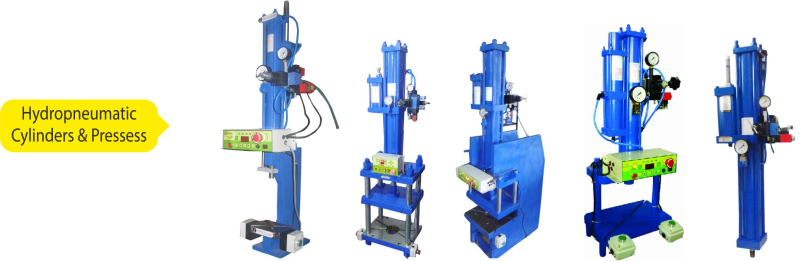

Hydropneumatic intensifiers are widely used on conventional machines, where hydraulic power unit is not available with the machine. Single acting elements are generally used with hydropneumatic intensifiers.

Applications:

To supply oil at high pressure to the spindle cylinder of the machining center (vmc/hmc), which inturn is used for the tool de-clamp operation.

We are offering number plate embossing machine works on hydropneumatic system. These machines are designed with high precision in order to meet the international quality standards. these are manufactured by using latest technology under the supervision of our experts; and are highly attractive and durable. furthermore, these are appreciated by clients for their qualities like durability, optimum performance and longer service life. neat finish and energetic color combinations of these number plates makes them different from the ones available in the market.

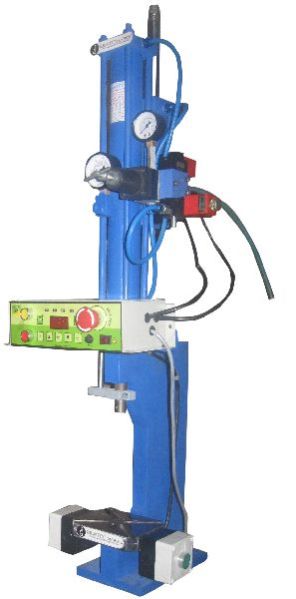

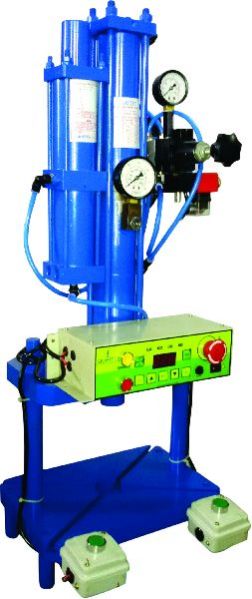

We are offering c frame hydro pneumatic press. details of c frame hydro pneumatic press (1.5-50 ton) : Type : C frame2 column4 column Capacity : 1.5, 3, 5, 8, 15, 20, 25, 32, 50 tons Total stroke : 50mm, 75mm, 100mm, 150mm, 200mm. Power stroke : 4mm, 6mm, 8mm, 12mm, 24mm Controls : Auto mode, Manual mode Electrical 2 hand safety control, Digital 2 hand safety control Operating voltage : 230 VAC 5 A Inlet pressure : minimum 3 kgcm2 to maximum 6 kgcm2 Application : punching, blanking, sheet metal bending, riveting, sheering etc. Features of C Frame hydro pneumatic press (1.5-50 ton) : Operates only on air no hydraulic power pack needed Energy saving and low power consumption Fast action Force and speed infinitely adjustable Absolute airoil separation for trouble free operation Low noise level. Low maintenance required and smooth operation Compact and light weight Low cost Easy for oil filling.

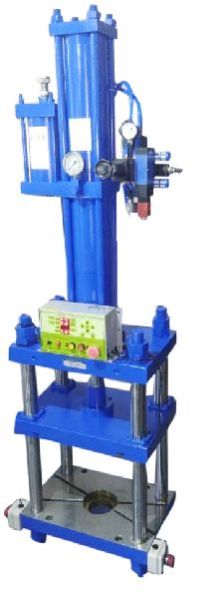

we offer Hydropneumatic Label Cutting Machine. Details Of Hydro Pneumatic Cutting Machine Capacity : 1 2 3 5 8 15 20 25 32 50 Tons Type : 2 column, 4 column guided moving plate Total Stroke : 50mm, 75mm, 100 mm, 150mm, 200mm Power Stroke : 3mm, 6mm, 12mm, 24mm Controls Electrical 2 Hand Safety Control Controls (Push Button) Digital 2 Hand Safety Control Operating Voltage : 230 V AC 5A Inlet Pressure : Minimum 3 KgCm2 to Maximum 6 KgCm2 Application : Sticker Cutting (HalfFull) Label Cutting ( HalfFull ), Paper Cutting Features Of Hydro Pneumatic Cutting Machine Stroke adjustment for both up and down Very low air consumption High speed with increased productivity Low maintenance and smooth operation Energy saving and low noise level Operates only on air no Hydraulic Power Pack needed.

We are offering Hydropneumatic Riveting machine. Details of hydro pneumatic riveting machine Capacity : 2, 3, 5, 8, 15, 20, 25, 32, 50 tons Type : c frame guided moving plate Automation : 2 stage indexing table Total stroke : 50mm, 75mm, 100mm, 150mm, 200mm Power stroke : 4mm, 6mm, 8mm, 12mm, 24mm controls Electrical control panel, Digital 2 hand safety control Operating voltage : 230 v ac 5a Air input : minimum 3 kgcm2 to maximum 6 kgcm Application : SPM for riveting (made as per customers requirement and specification) Features of hydro pneumatic riveting machine Very precise High productivity Less manpower required as it is auto indexing Various jobs can be done on the same machine Easy to operate and maintain Very easy on filling Operates only on air no hydraulic power pack needed.
