Our product range contains a wide range of Fabric Inspection Machine, FLAT WORK ROTARY IRON, Fabric Inspection Machines, Fabric Reversing Machine and FABRIC PLATING MACHINE
| Technical Specification Of Work Rotary Iron: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | Roller Dimensions (Without Padding) |
Normal Roller Speed |
CONNECTIONS | Heating (Thermostatically Controlled) |
Total Electricity Consumption |
Suction Pipe Dimensions Exhaust Side |
Overall Dimensions (WxDxH) |
|||
| Drive Motor | Suction Motor | Electric | Steam | In Case of Steam/Thermal Fluid Heating |
In Case Of Electric Heating | |||||
| GFS-12 GFS-12 | Ø12" X 84" | 4.66RPM | 0.37KW | 0.37KW | 9kw | 30 kg/hr. | 0.75KW | 9.75KW | 3" BSP(75mm) |
3200x1350x1350 |
| GFS-18 GFS-18 | Ø18" X 96" | 6.50 RPM | 0.75KW | 0.75KW | 24KW | 72Kg/Hr. | 1.50KW | 25.50KW | 3" BSP(75 mm) |
3500x1500x1350 |
| GFS-30 GFS-30 | Ø30" X 120" | 10.1 RPM | 3.75 KW | 1.50 KW | 72 KW | 225 Kg/Hr. | 7.0 KW | 77.25 KW | 4" BSP(100 mm) |
4500x2040x1575 |

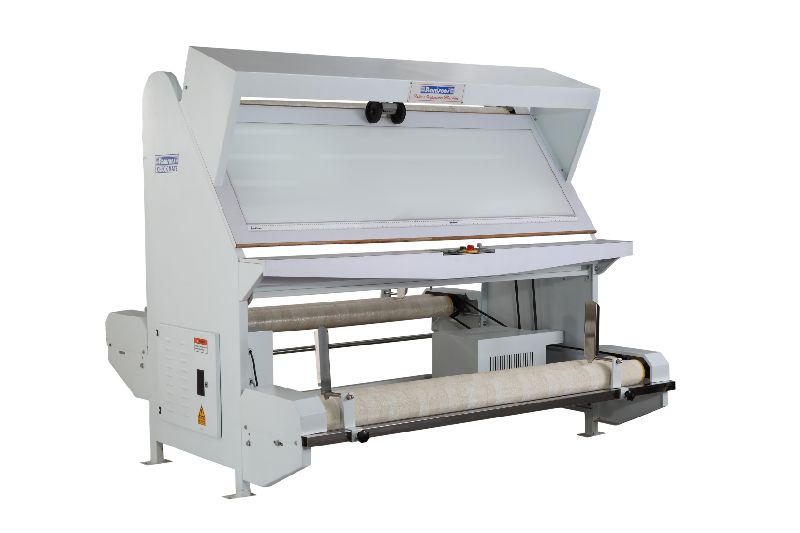

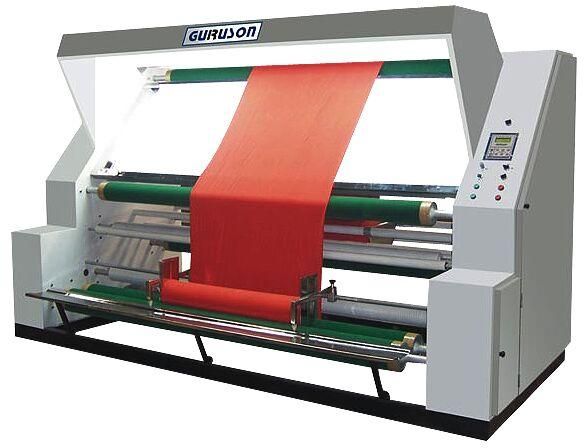

GURUSON Fabric Inspection Machine is required for checking and mending of, see through defects in fabrics. Machine is also suitable for re-rolling / plating or both. Single side and both side checking model are available.
SALIENT FEATURES
It is designed to reverse the knitted fabrics in tube form from before and after dyeing/raising. Operation of his machine is very simple, even an untrained worker can operate. A roll weighing 20 Kg. of knitted fabric can be reversed in 90 seconds only.Process starts by foot stepping the paddle, the blower starts. Manually put the fabric on outer surface of the pipe., the roll starts opening and the fabric collects on the pipe. Five to six rolls collects on the pipe, and then by other foot stepping the paddle, and inserting the fabric end manually on the mouth of the pipe, the flow of air sucks the entire fabric in and reverse it.
Guruson Tubular Fabric Plating Machine basically consists a stretcher made of stainless steel 304 Grade which controls & stables the width of the fabric after hydro extraction or before compaction, heat settin & raising. This process helps to increase the production. The fabric comes out here in a plated form.
SALIENT FEATURES
