Our Products

Our product range contains a wide range of COUPLING KIT, Bolt Baseplate, Vacuum-Side shutter kit, Heater Assembly Power and Box Shielding Kit

High Purity Carbon Rods

High Purity Carbon Rods
Available in 3.05 mm diameter or 6.15 mm diameter sizes (depending upon coating system). Carbon rods are typically used for evaporating (and sometimes shadowing) carbon onto specimens being prepared for either x-ray microanalysis (EDS or WDS) or transmission electron microscopy (TEM). Carbon rods supplied by Quorum are high purity - spectroscopically pure - with less than 6 ppm ash. Carbon rods are supplied in a flat-ended format and should be shaped using the Quorum 13232 carbon rod shaper. A word of warning: do not be tempted to use a pencil sharpener as process control and quality will be poor!
View Complete Details
Ask Latest Price & Details
Controlled Pulse

Controlled Pulse
Installed as standard on E and ES models, controlled profiles ensure carbon is evaporated in short pulses. This significantly reduces or eliminates the amount debris (large carbon fragments) associated with traditional carbon "flash" evaporation. Plus it allows carbon cord evaporation to be accurately controlled using the optional film thickness monitor (FTM) accessory.
View Complete Details
Ask Latest Price & Details
Crystal Sensor

Crystal Sensor
  • Brand Name COL
  • Brand Code CNT06RCC
RC cut quartz crystal sensor for Colnatec-type sensor heads: 6 MHz, 12.5 mm dia., 7 microns RMS finish, resistance < 15 Ohms, Plano-Convex contour, cleanroom-compatible packaging, available with gold, aluminium ("alloy") or silver electrodes, made in the USA
View Complete Details
Ask Latest Price & Details
Pneumatic Shutter Actuator

Pneumatic Shutter Actuator
  • Brand Name Moorfield
  • Product code MOR_03-0011
Pneumatic Shutter Actuator Pneumatically driven mechanical shutter actuator with 180 action and connections for 6 mm OD tubing
View Complete Details
Ask Latest Price & Details
COUPLING KIT

COUPLING KIT
  • Brand Name Moorfield
  • Product code MOR_03-0009
Kit for air-side coupling of actuator and feedthrough shafts, includes actuator mounting bracket and coupling sleeve
View Complete Details
Ask Latest Price & Details
DC Power

DC Power
  • Brand Name Moorfield
  • Product code MOR_03-0018
Kit for DC-power actuated shutter system, contains shutter bladearmshaft, feedthrough, DC power actuator, and couplers (SPECIFY DESIRED BLADE, ARM AND SHAFT DIMENSIONS AT CHECKOUT)
View Complete Details
Ask Latest Price & Details
Throttle Valve

Throttle Valve
  • Brand Name Moorfield
  • Product code MOR_03-0035
Throttle valve for mounting on ISO-160 ports, constructed from aluminium blade and body, SS shaft, PTFE bushes and o-ring seals. Not designed for use as a shutoff valve. Ideal for use in cases where sputtering or any relatively high-pressure vacuum process is required, or in any situation where gas flow throttling is required to prevent pump stalling. Here the use of throttle valves is also advantageous through reductions to the quantities of process gases required. The basic valve is operated operated manually. Alternatively, we can fit them with electrical motors or pneumatic components for DC or pneumatic valve actuation, respectively (SELECT APPROPRIATE OPTION BELOW). With such automated actuation, the valve moves between fully open and a mechanically defined setpoint.
View Complete Details
Ask Latest Price & Details
Bolt Baseplate

Bolt Baseplate
  • Brand Name Moorfield
  • Product code MOR_03-0031
1" bolt baseplate feedthrough with adaptor for 34" dia. compression quickfit fitting, complete kit contains 1" bolt baseplate feedthrough (SS-304 for durable thread), compression screw, brass compression bush and washer, and o-ring. This kit is specially designed for making positive earth connections to sputtering magnetrons via vacuum chambers. Suitable for use with all magnetrons with 34" diameter shafts, e.g., Lesker Torus, Moorfield Magitron, and models from AJA and Angstrom Sciences.
View Complete Details
Ask Latest Price & Details
Vacuum-Side Shutter Kit

Vacuum-Side Shutter Kit
  • Brand Name Moorfield
  • Product code MOR_03-0021
Vacuum-side shutter kit containing shutter blade, arm and shaft, and attachment parts (SPECIFY DESIRED BLADE, ARM AND SHAFT DIMENSIONS AT CHECKOUT)
View Complete Details
Ask Latest Price & Details
Heater Assembly Ceramic

Heater Assembly Ceramic
  • Brand Name Moorfield
  • Product code 03-1969
Kit contains: Ceramic heater element support plate, ceramic substrate support top piece. Allows for replacing ceramic top and bottom pieces of nanoCVD-8G heater stage.
View Complete Details
Ask Latest Price & Details
Heater Assembly Power

Heater Assembly Power
  • Brand Name Moorfiled
  • Product code 03-1968
Kit contains: Carbon-carbon composite heater element, ceramic bolts 2, ceramic bush x 2, power legs 2, graphite washers 2. Allows for rebuild of power delivery section of nanoCVD-8G heater stage.
View Complete Details
Ask Latest Price & Details
Box Shielding Kit

Box Shielding Kit
  • Brand Name Moorfield
  • Product code 03-1938
Stainless-steel box shielding kit for TE1 source. Shielding allows for efficient power usage and restricted stray depositionIR. (Image shows shielding fitted to TE1 source.)
View Complete Details
Ask Latest Price & Details
Low-temperature Evaporation Source

Low-temperature Evaporation Source
  • Brand Name Moorfield
  • Product code 03-1953
Designed for fine temperature (80600 C) and deposition rate control, Moorfield LTE sources are ideal for vacuum deposition of organic materials. For best performance, use together with a source shutter. Fitted with K-type thermocouple and quartz crucible as standard. 15 CC crucible capacity; 5 CC suggested charge volume. UHV-compatible and with multiple mountings options.
View Complete Details
Ask Latest Price & Details
Magnetron

Magnetron
  • Product code 03-1965
  • Brand Name Moorfiled
High-vacuum magnetron sputtering head for industry-standard 4" diameter targets. Accepts target thicknesses from 116" to 14". Easy target replacement and maintenance. Available with or without FlexiHead mounting for variable head angle and in-chamber height-adjustment (image shows model with FlexiHead option). Provided with tube stub for 1" bolt baseplate feedthroughs as standard. Also available flange-mounted. Water-cooled and suitable for accepting RF, DC or pulsed DC power.
View Complete Details
Ask Latest Price & Details
Dual Sensor

Dual Sensor
  • Brand Name MMC
  • Product code 700-063
Right angle dual quartz crystal sensor head (30" long) with shutter, 2 cooling tubes (316" dia.) and 1 air tube (18" dia.)
View Complete Details
Ask Latest Price & Details
Manual Actuation

Manual Actuation
  • Brand Name Moorfield
  • Product code MOR_03-0016
Kit for manually-actuated shutter system, contains shutter bladearmshaft, feedthrough and couplers (SPECIFY DESIRED BLADE, ARM AND SHAFT DIMENSIONS AT CHECKOUT)
View Complete Details
Ask Latest Price & Details
Sensor Connection

Sensor Connection
  • Brand Name MMC
  • Product code 400-017
2 34" CF (NW40CF) feedthrough with 1 sensor connection (BNC air-side to MicroDot), 2 cooling tubes (316" dia.) and 1 rotary feedthough (316" shaft)
View Complete Details
Ask Latest Price & Details
Thermal Evaporation Controller

Thermal Evaporation Controller
  • Brand Name Moorfield
  • Product code 03-1948
TEC-4CDA four-channel co-deposition thermal evaporation controller. Can be used for operation of up to two sources simultaneously. Compatible with most R&D thermal evaporation sources. Manual or automatic contol (automatic control is via a 0-10 V analogue input and source selection relays on the unit's back panel). Optionally available with complete transformer circuit and cable set for power delivery.
View Complete Details
Ask Latest Price & Details
Dual Channel Power Supply

Dual Channel Power Supply
  • Brand Name Moorfield
  • Product code 03-1960
Dual-channel power supply and controller for LTE sources, co-deposition capable. Allows for manual control of source power or temperature, and also offers 0-10 V signal input for external control (e.g., from deposition rate controller). Rack-mount or standalone unit. Suitable for sequential or co-deposition operation of up to 2 LTE sources.
View Complete Details
Ask Latest Price & Details
Precision Horizontal Diamond Wire Saw

Precision Horizontal Diamond Wire Saw
The sample can be positioned inside the loop thereby allowing for accurate positioning prior to and viewing of the sample during the cutting process. The sample holder is attached to a counter-balanced arm that uses weights to establish and maintain the proper amount of force throughout the entire cut or slice. Tensioning of the wire is also accomplished through the use of weights. This saw allows the use of particularly thin diameter wire (down to 0.08 mm). Very often users choose to mount a microscope on the saw so that accurate positioning of the diamond wire can more readily be accomplished or to watch the cut or slice while in progress. A precision micrometer is supplied as standard equipment to facilitate fast and accurate positioning of the sample. The Precision Diamond Wire Sawhorizontal construction. The samplefeed by a table using gravity andespecially suitable for small samplesneeding sensitive adjustments. The Precision Diamond Wire Sawhorizontal construction. The samplefeed by a table using gravity andespecially suitable for small samplesneeding sensitive adjustments.
View Complete Details
Ask Latest Price & Details
SEM Preparation Systems

SEM Preparation Systems
  • Feature Cryo workflow options
The PP3010T is a highly automated, easy to use, column-mounted, gas-cooled cryo preparation system suitable for most makes and models of SEM, FE-SEM and FIBSEM.
View Complete Details
Ask Latest Price & Details
Edwards E306 Thermal Evaporators

Edwards E306 Thermal Evaporators
We can work with most system configurations, including units set up for thermal or e-beam evaporation, and magnetron sputtering. Edwards E306 Thermal We can provide standard Edwards layouts available including 1, 2 or 3 boat configurations with interspaced shielding. 4 boat TE4 with optional co-deposition mode. Replacement thermal control systems either console or 19" rack-mount based.
View Complete Details
Ask Latest Price & Details
Dry Scroll Pumps

Dry Scroll Pumps
The Edwards nXDS dry scroll pump series offer exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features. The nXDS improves on the original XDS pump technology by offering increased pumping speeds, combined with lower ultimate pressures, low power consumption and reduced noise. The gas ballast allows for pumping of condensable vapours, including water, solvents, dilute acids and bases. nXDS pumps feature the very latest in tip seal technology, giving a significantly longer life between tip seal changes. We offer the nXDX6i for use with the Q150 series of coaters and PP3010T cryo preparation system. For the larger chamber Q300 series of coaters the nXDX10i is recommended. Please see: Ordering Information.
View Complete Details
Ask Latest Price & Details
Precision Vertical Diamond Wire Saw

Precision Vertical Diamond Wire Saw
A slotted table enables the operator to position the sample in both the axis. This model is an inexpensive alternative to the Model 3242 however offers the same degree of precision cutting. Limitations include only being able to use the outer radius of the loop; therefore the sample is mounted outside the loop and all cutting is carried out by moving the outer radius of the wire towards the sample.
View Complete Details
Ask Latest Price & Details
Panel PC Touch Screen

Panel PC Touch Screen
a large touch screen panel PC, mounted on the Prepdek workstation. User-defined 'recipes' can be entered and stored for instant future access. The screen can be set to suit operator preferences; for example, vacuum measurement can be displayed in millibar, Pascal or Torr. Many of the key steps in the specimen preparation process are automated (system set up, gas flow control, sublimation and sputter coating). Further help is available through a series of on-screen videos.
View Complete Details
Ask Latest Price & Details
Single Drawer

Single Drawer
The GloQube uses a single drawer with two independent vacuum chambers: a clean chamber for glow discharge applications requiring hydrophobichydrophilic conversion, typically using air as the process gas, and a vapour chamber designed for hydrophilichydrophobic (negative or positive) conversions, typically using reagents such as methanol and alkylamine.
View Complete Details
Ask Latest Price & Details

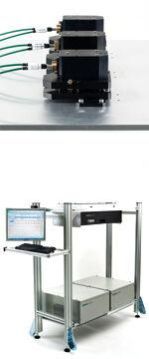

Trajectory Solar Monitor

Trajectory Solar Monitor
TSM is a state-of-the-art metrology product line for thin film PV manufacturing lines. Approved for in-situ integration by leading PV developers, TSM products push the metrology performance envelope for robustness, reliability, and cost implementing flexible fiber coupled sensor architecture. With optimized optics enabling high tilt and roughness tolerance and simple yet powerful spectral detectors, cost is minimized at a MTBF >10, 000 hours. The TSM product line is offered in several configurations for a broad range of applications.UV-Vis reflectometry for buffer and TCO layers thickness and composition measurement.Near Infra-red reflectometry for CIGSCdTe thickness and composition measurementNIR-base photoluminescence for CIGSCdTe band gap analysis.
View Complete Details
Ask Latest Price & Details
Carbon Fibre

Carbon Fibre
C5421 carbon fibre cord. Sometimes referred to as braid, carbon fibre cord consists of eight separate strands of individual carbon fibre braided together. The fibre is manufactured so that when cut the ends resist unravelling. The fibre density is about 1.6 gm. C5461 carbon fibre, fine strands (unwoven). Can be used on Emitech "K" series of carbon coater, but not recommend for Quorum "Q" series. Note: Quorum Q series coaters (E and ES versions) are supplied with 1 m of C5421. Additional supplies in varying lengths can be purchased (see Ordering Information).
View Complete Details
Ask Latest Price & Details
Temperature Control

Temperature Control
the temperature of water circulating through the jacket. Three pressure valves permit easy connection to the liquid CO2 cylinder and allow liquid agitation and venting of the chamber. A source of hot running water is essential. Cooling is also useful, especially for sequential critical point drying process runs andor in laboratories where the room temperature may be high. The temperature of the E3100 chamber is raised with a hot water supply. Mains water can be used but a more elegant method involves the use of the optional E4860 Recirculating HeaterChiller which can be used to pre-cool the chamber to below ambient temperature prior to loading specimens and then to heat the chamber to the critical temperature.
View Complete Details
Ask Latest Price & Details
ANNEAL System

ANNEAL System
  • Purity Benchtop configuration Up to 6” substrate diameters Choice of heating technologies up to 1000 °C Gas and pressure control, Easy Simple access.
Systems are optimised for the thermal treatment of 2D materials and wafers under controlled atmospheres. Substrates are supported face-up on stage-top platens that are situated centrally inside a stainless-steel high-vacuum chamber fitted with appropriate heat shielding and a shuttered viewport. Heating is via a heat source located beneath the platen. Maximum temperatures up to 1000 C are possibledepending on the heating technology used: ANNEAL systems can be fitted with up to 3 mass flow controllers (MFCs). Typical gases are Ar, O2 and N2, and full scale flow rates are flexible. All systems have wide-range gauges, but for improved accuracy, capacitance manometers are also available. In case chamber pressure is critical, automatic pressure control is available with control resolutions to 0.1 mbar. ANNEAL systems are highly modular and can be configured for a wide range of applications
View Complete Details
Ask Latest Price & Details
Electron-Beam Evaporation

Electron-Beam Evaporation
  • Products MiniLab deposition systems | Components and parts
  • Knowledge base Electron-Beam Evaporation
Electron-beam (e-beam) evaporation is a type of physical vapour deposition in which a material to be deposited is heated to a temperature at which it evaporates, by bombardment with a beam of electrons.
View Complete Details
Ask Latest Price & Details
Thermal Evaporation System

Thermal Evaporation System
  • Products M307 entry-level evaporator | MiniLab deposition systems | Components and parts
  • Knowledge base Thermal Evaporation
Thermal evaporation is a common, straightforward means of thin film deposition typically used to deposit metals. Materials are heated, under vacuum, to temperatures at which they evaporate or sublime.
View Complete Details
Ask Latest Price & Details
Flexible Systems

Flexible Systems
Our flagship MiniLab range can be fitted with etching technology including alongside traditional thin film deposition components. Allows for highly-flexible, multi-purpose systems.
View Complete Details
Ask Latest Price & Details
Graphene

Graphene
Optimised for high-throughput growth of graphene samples. Heating to high temperatures (up to 1100 C) under controlled low-pressure atmospheres based on flows of argon, hydrogen and methane.
View Complete Details
Ask Latest Price & Details
Hall Effect Measurement System

Hall Effect Measurement System
HL5500PC is a turnkey, high performance hall effect system for the measurement of resistivity, carrier concentration, and mobility in semiconductors. Modular in concept, allowing easy upgrade paths, the system is suitable for a wide variety of materials, including silicon and compound semiconductors. HL5500PC has both low and high resistivity measurement capabilities, with optional cryostats extending thetemperature range from 77K to 550K. With an intuitive Microsoft Windows user interface, no programming experience is required to set up or use the HL5500PC.
View Complete Details
Ask Latest Price & Details
Prepdek Workstation

Prepdek Workstation
The Prepdek workstation has been designed to allow specimen mounting, freezing (plus pre-frozen specimen manipulation) and transfer device storage on one ergonomically designed work surface. The control electronics are mounted in a sealed but accessible cabinet beneath the Prepdek. Set into the work surface is a pumped storage tube which allows the cryo transfer device to be stored under vacuum conditions when not in use.
View Complete Details
Ask Latest Price & Details
System Components

System Components
Mounted onto a suitable vacuum chamber port, the CoolLok consists of a loading chamber body with built-in controls for pumping, venting and transfer. A custom-designed interface flange to the vacuum chamber and connections and fittings to the pumping system are included (see: Pumping below). The interface has cold nitrogen gas feeds to and from the microscope cold stage and cold trap. Interlocking to the microscope is included.
View Complete Details
Ask Latest Price & Details
Sputter Coating

Sputter Coating
The advance design of sputtering head, power supply and system control allows sputtering of both oxidising and non-oxidising (noble) metals for thin film applications and for scanning electron microscopy (SEM) coating. The range of target materials available is extensive and detailed in the Ordering Information section. For sputtering applications where thick films are required, then the Q300T ES can operate for up to 60 minutes.
View Complete Details
Ask Latest Price & Details
Glove Box

Glove Box
  • Material Plastic
  • Condition New
  • Application Lab Use, Suitable For Most Applications Requiring A Pumping System
  • Feature Durable, Supreme Finish
  • Printing Handling Glossy Lamination
  • Country of Origin India
  • Glove Ports Excellent Performance, Long Working Life
  • Type Glove Boxes
  • Compatibility 13034 Rotary Pump, 2336 Turbomolecular Plus Diaphragm Pumping System

glove box using a generic NW fitting and for most applications requires a suitable pumping system (13034 rotary pump or 2336 turbomolecular plus diaphragm pumping system). The airlock is designed to accept the PP3010T vacuum transfer device.s.

View Complete Details
Ask Latest Price & Details
