Heighten Technology - Cutting Machine

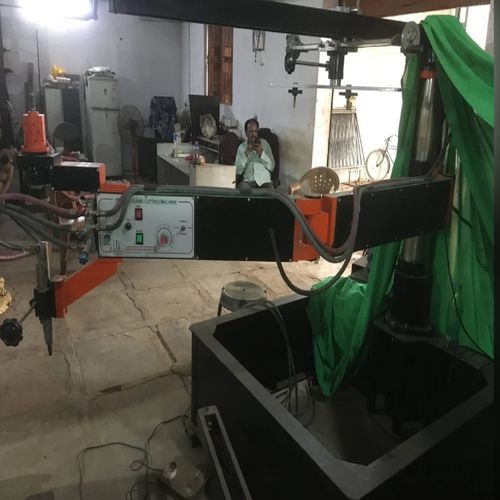

• HT 2000 is a Professional, Tough and Durable Profile Cutting Machine
• This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application
• A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy
• HT 2000 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel
• The Machine can cut from 5 mm to 200 mm Plate thickness with Oxy Fuel
• The Machine can cut any complex shapes like Flanges, Stars, Hooks, Ellipse, Triangles or even Circles, Squares, Rectangles and even Straight Lines
• The Machine can cut any shape from 20 mm dia to 2000 mm square
• The Machine runs on just single phase 230 V power and consumes very less electricity
• It is supplied with Permanent Magnet Tracing Head
• The Machine is very popular in Indian Fabrication Industry and is used by small workshops to Large Ship Fabricators

Benefits :

• It is an all Aluminium Hinge, Right handed machine Ease of operation
• Its Repeatability accuracy is plus minus 1 mm
• It is supplied with permanent magnet hence no magnet failure
• It is a 95% Mechanical machine: Negligible Maintenance, Seldom Breaks down
• Large Speed Range: from 70 mm/min to 3000 mm/min
• It has tracing roller up and down lever: Enables flange cutting in single setting
• It has X and Y axis (Dual) slide mechanism: enables quick job setting, faster production

Additional Spares :

• Small Fixed Spanner: 1 Nos
• Adjustable Spanner: 1 Nos
• Nozzles: 2 Nos
• Nozzle Cleaner: 1 Nos
• LN Key: 2 Nos
• Template Holder: 2 Nos
• Tracer Roller: 6 Nos

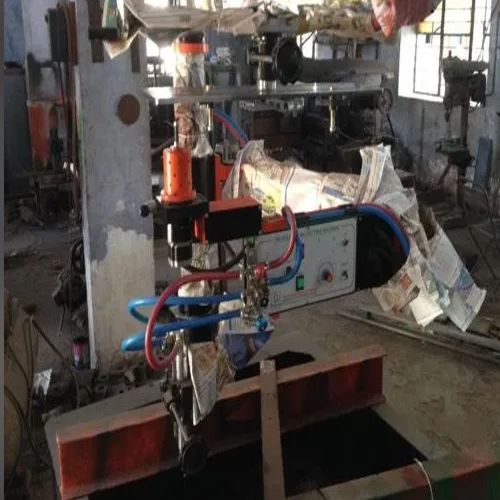

• HT 1300 is a Professional, Tough and Durable Profile Cutting Machine
• This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application
• A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy
• HT 1300 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel
• The Machine can cut from 5 mm to 200 mm Plate thickness with Oxy Fuel
• The Machine can cut any complex shapes like Flanges, Stars, Hooks, Ellipse, Triangles or even Circles, Squares, Rectangles and even Straight Lines
• The Machine can cut any shape from 20 mm dia to 1300 mm square
• The Machine runs on just single phase 230 V power and consumes very less electricity
• It is supplied with Permanent Magnet Tracing Head
• The Machine is very popular in Indian Fabrication Industry and is used by small workshops to Large Ship Fabricators
• Cutting Capacity: Any shape up to 1300 mm dia
• Max. Straight Cut: 1500 mm in length
• Cutting Speed: 60 mm/min to 3000 mm/min
• Power Supply: 220/250 Volts AC. 50 Hz
• Motor: 1/20 HP. AC/DC. Series FHP
• Speed Control: Variable by Disc Knob
• Maximum Current: 1 Amp
• Fuse: Bottle Type 1 Amp
• Tracer Movement: Clockwise/Stop/Anticlockwise
• Torch: Injector Type
• Torch Holder: Rack and Pinion (Vertical)
• Hose Connection: 3/8’’G (Fuel Gas LH and Oxygen RH)
• Gross Weight: 400 kgs (Approx)

Benefits

• It is an all Aluminium Hinge, Right handed machine Ease of operation
• Its Repeatability accuracy is plus minus 1 mm
• It is supplied with permanent magnet hence no magnet failure
• It is a 95% Mechanical machine: Negligible Maintenance, Seldom Breaks down
• Large Speed Range: from 70 mm/min to 3000 mm/min
• It has tracing roller up and down lever: Enables flange cutting in single setting
• It has X and Y axis (Dual) slide mechanism: enables quick job setting, faster production

Additional Spares:

• Small Fixed Spanner: 1 Nos
• Adjustable Spanner: 1 Nos
• Nozzles:2 Nos
• Nozzle Cleaner: 1 Nos
• LN Key: 2 Nos
• Template Holder: 2 Nos
• Tracer Roller: 6 Nos

• HT 1300 is a Professional, Tough and Durable Profile Cutting Machine
• This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application
• A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy
• HT 1300 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel
• The Machine can cut from 5 mm to 200 mm Plate thickness with Oxy Fuel
• The Machine can cut any complex shapes like Flanges, Stars, Hooks, Ellipse, Triangles or even Circles, Squares, Rectangles and even Straight Lines
• The Machine can cut any shape from 20 mm dia to 1300 mm square
• The Machine runs on just single phase 230 V power and consumes very less electricity
• It is supplied with Permanent Magnet Tracing Head
• The Machine is very popular in Indian Fabrication Industry and is used by small workshops to Large Ship Fabricators
• Cutting Capacity: Any shape up to 1300 mm dia
• Max. Straight Cut: 1500 mm in length
• Cutting Speed: 60 mm/min to 3000 mm/min
• Power Supply: 220/250 Volts AC. 50 Hz
• Motor: 1/20 HP. AC/DC. Series FHP
• Speed Control: Variable by Disc Knob
• Maximum Current: 1 Amps
• Fuse: Bottle Type 1 Amp
• Tracer Movement: Clockwise/Stop/Anticlockwise
• Torch: Injector Type
• Torch Holder: Rack and Pinion (Vertical)
• Hose Connection: 3/8’’G (Fuel Gas LH and Oxygen RH)
• Gross Weight: 400 kgs (Approx)

Benefits

• It is an all Aluminium Hinge, Right handed machine Ease of operation
• Its Repeatability accuracy is plus minus 1 mm
• It is supplied with permanent magnet hence no magnet failure
• It is a 95% Mechanical machine: Negligible Maintenance, Seldom Breaks down
• Large Speed Range: from 70 mm/min to 3000 mm/min
• It has tracing roller up and down lever: Enables flange cutting in single setting
• It has X and Y axis (Dual) slide mechanism: enables quick job setting, faster production

Additional Spares:

• Small Fixed Spanner: 1 Nos
• Adjustable Spanner: 1 Nos
• Nozzles:2 Nos
• Nozzle Cleaner: 1 Nos
• LN Key: 2 Nos
• Template Holder: 2 Nos
• Tracer Roller: 6 Nos
• Output Current (Ampere): 0-100
• HT 1300 is a Professional, Tough and Durable Profile Cutting Machine
• This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application
• A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy
• HT 1300 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel
• The Machine can cut from 5 mm to 200 mm Plate thickness with Oxy Fuel
• The Machine can cut any complex shapes like Flanges, Stars, Hooks, Ellipse, Triangles or even Circles, Squares, Rectangles and even Straight Lines
• The Machine can cut any shape from 20 mm dia to 1300 mm square
• The Machine runs on just single phase 230 V power and consumes very less electricity
• It is supplied with Permanent Magnet Tracing Head
• The Machine is very popular in Indian Fabrication Industry and is used by small workshops to Large Ship Fabricators

Specifications:

• Cutting Capacity: Any shape up to 1300 mm dia
• Max. Straight Cut: 1500 mm in length
• Cutting Speed: 60 mm/min to 3000 mm/min
• Power Supply: 220/250 Volts AC. 50 Hz
• Motor: 1/20 HP. AC/DC. Series FHP
• Speed Control: Variable by Disc Knob
• Maximum Current: 1 Amps
• Fuse: Bottle Type 1 Amp
• Tracer Movement: Clockwise/Stop/Anticlockwise
• Torch: Injector Type
• Torch Holder: Rack and Pinion (Vertical)
• Hose Connection: 3/8’’G (Fuel Gas LH and Oxygen RH)
• Gross Weight: 400 kgs (Approx)

Benefits:

• It is an all Aluminium Hinge, Right handed machine Ease of operation
• Its Repeatability accuracy is plus minus 1 mm
• It is supplied with permanent magnet hence no magnet failure
• It is a 95% Mechanical machine: Negligible Maintenance, Seldom Breaks down
• Large Speed Range: from 70 mm/min to 3000 mm/min
• It has tracing roller up and down lever: Enables flange cutting in single setting
• It has X and Y axis (Dual) slide mechanism: enables quick job setting, faster production

Additional Spares:

• Small Fixed Spanner: 1 Nos
• Adjustable Spanner: 1 Nos
• Nozzles:2 Nos
• Nozzle Cleaner: 1 Nos
• LN Key: 2 Nos
• Template Holder: 2 Nos
• Tracer Roller: 6 Nos
• Output Current (Ampere): 0-100
