Name: Dragontop International Industrial Ltd
Address: Room No. 19, Yale Industrial Centre, 61-63, Au Pui Wan Street, Shatin.nt., Hong Kong

Our Products

Flexographic Printing Machines
2 Products available
- Flexographic Printing Machine
- Flexographic Printing Machine
Printing Machines
2 Products available

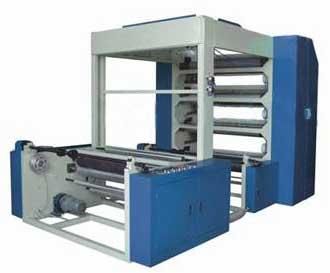

- Non Woven Flexible Printing Machine
- Non Woven Flexible Printing Machine
Sealing & Strapping Machines
2 Products available
- Soft Handle Sealing Machine
- Soft Handle Sealing Machine
Bag Making Machine
2 Products available
- Non Woven Bag Making Machine 0023
- Non Woven Bag Making Machine
Hydraulic Press
2 Products available
- Hydraulic Punching Machine
- Hydraulic Punching Machine
Molding Machines
2 Products available
- Automatic High Speed Blow Moulding Machine
- Automatic High Speed Blow Moulding Machine
Others Products 1 Products available
- Non Woven Bag Making Machine 001

Our Products

We offer a complete product range of Non Woven Bag Making Machine 001

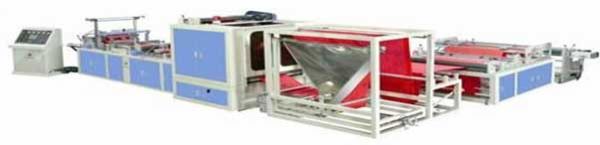

Non Woven Bag Making Machine 001

We offer an exclusively designed non woven bag making machine. One can make t-shirt bags and side string shoe bags from our non woven bag making machine by extra charging its machinery. Our non woven bag making machine is specially structured with hydraulic punching machine. Our non woven bag making machine comes handy with an optional automatic punching device for even more efficient functioning. Our non woven bag making machine also has self-adoptable bilateral frequency motor timing to meet different printing speeds.

Technical Parameters

Model Bag width Bag length Power Air power Total power Production speed Overall Dimension(L x W x H)

M-600 Vest bags : 200-550mm
Flat bags : 280-600mm Vest bags : 280-600mm
Flat bags : 200-550mm According to clients' requirements 0.5-0.6Mpa 10kw 10-90 pcs/minute 8.6 x 1.6 x 1.6 (m)

M-700 Vest bags : 200-650mm
Flat bags : 280-600mm Vest bags : 280-600mm
Flat bags : 200-650mm According to clients' requirements 0.5-0.6Mpa 11kw 10-90 pcs/minute 11.96 x 2 x 1.8

Free Spares Of Non-Woven Bag Making Machine

Name of Spares Quantity

Thermocouple 0.5m 2 pcs

Japanese black Solid 1 pc

Contactor 2 pcs

Time relay 1 pc

Potentiometer 1 pc

Proximity Switch 1 pc

Hall Switch 2 pcs

Displacement Switch 1 pc

Embossing Roller 1 couple

Stainless Thermal Board 1 pc

Timing Belt 300L 1 pc

Spring Belt 20 pcs

Sensor 1 pc

Speed Controller Board 1 pc

Carbonic Brush 4 pcs

Main controller of main ultrasonics

Main ultrasonic transistor 1 pc

Mould of Main Ultrasonic 1 pc

Main Controller of unwinding ultrasonic 1 pc

Main transistor of unwinding ultrasonic 1 pc

Inner Hexagon Spanner 1 pc

Activity Spanner 8-inch 1 pc

Opening Spanner 1 pc

Hammer 1 pc

Electric Pen 1 pc

Needle-nose pliers 1 pc

View Complete Details

Ask Latest Price & Details

Non Woven Bag Making Machine

We are offering non woven bag making machine. technical parametersmodelbag widthbag lengthpowerair powertotal powerproduction speedoverall dimension(l x w x h)m-600vest bags : 200-550mmflat bags : 280-600mm vest bags : 280-600mmflat bags : 200-550 mmaccording to clients' requirements0.5-0.6mpa10kw10-90 pcs/minute8.6 x 1.6 x 1.6 (m)

Technical Parameters

Model Bag width Bag length Power Air power Total power Production speed Overall Dimension(L x W x H)

M-600 Vest bags : 200-550mm
Flat bags : 280-600mm Vest bags : 280-600mm
Flat bags : 200-550 mm According to clients' requirements 0.5-0.6Mpa 10kw 10-90 pcs/minute 8.6 x 1.6 x 1.6 (m)

View Complete Details

Ask Latest Price & Details

Non Woven Bag Making Machine 0023

We are offering non woven bag making machine. technical parameters modelbag widthbag lengthpowerair powertotal powerproduction speedoverall dimension(l x w x h)m-700vest bags : 200-650mmflat bags : 280-600mmvest bags : 280-600mmflat bags : 200-650 mm according to clients' requirements0.5-0.6 mpa11kw10-90 pcsminute11.96 x 2 x 1.8

Technical Parameters

Model Bag width Bag length Power Air power Total power Production speed Overall Dimension(L x W x H)

M-700 Vest bags : 200-650mm
Flat bags : 280-600mm Vest bags : 280-600mm
Flat bags : 200-650 mm According to clients' requirements 0.5-0.6 Mpa 11kw 10-90 pcs/minute 11.96 x 2 x 1.8

View Complete Details

Ask Latest Price & Details

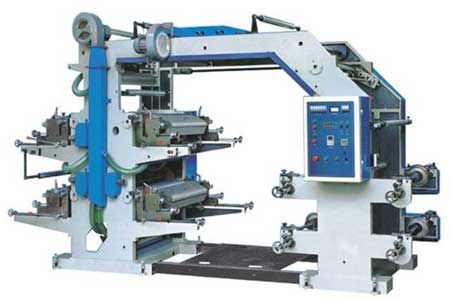

Flexographic Printing Machine

We offer our specially designed Flexographic Printing Machine that can precisely do all printing tasks. Our Flexographic Printing Machine is efficient in printing papers and non-woven fabrics. Our Flexographic Printing Machine has 2100mm, as the maximum circum length of rollers. Our Flexographic Printing Machine has 1400mm maximum length of effectiveness. Our exclusively designed Flexographic Printing Machine comprises of solid machinery parts including Metal Anilox Roller, Low pressure Electrical parts, Aluminum and rubber Rollers.

Main Parameter
Model : 1400mm
Material : Non-woven fabric, Paper, Film, Aluminum and so on
Max.Width of Printing : 1400mm
Max. Length of Printing: 100-1000mm
Max.Speed of Material Printing : 10-50m/min
Thickness of Plate (including the glue) : 2.38mm
Weight : 4500kg
Dimension : 4600*2400*2300mm

Unwind Unit
Max Circum.Length of Roller : 2100mm
Max.Length of Effective Roller : 1400mm
Dia.of Roller : 76mm
Max.Dia. of Unwind : 1000mm
Type of Unwind : Auto tension with magnetic powder

Main Machine Specification List
Main Motor : 1 pcs 5kw
Ink transfer motor : 1 pcs 0.75kw
The inverter
Blower : 2 pcs 0.75kw
Aluminum Rollers
Metal Anilox Roller : 1 pcs/per color
Rubber rollers : 1 pcs/per color
Low pressure Electrical parts
Switches
Electrical control Box : 1 set
Main machine body : 1 set
Pneumatic component

Printing Unit
Constitution of Printing : Chrome plated Roller, Rubber Roller, Metal Anilox roller, Plate-glued roller
Girth of Pressing Roller : 100-350mm
Material of Plate : Resin and Rubber
Principle of Work : Gears Drive
Type of Chromatically : 360 degree circulating
Way of Adjusting : Air shaft
Plated-glued roller adjusting: manual

Heating and Drying Unit
Type of Heating and drying : blowing first then heating
Heating Zones : Heating Tubes 4 colors : 6zones
Power of Heating :Model 1200mm: 2.2kw
Assistance of Drying Length 1m
Blowers :2 Fans
Power of Blowers : Model 1400mm: 2*0.75kw

Electrical Parts
Main motor : 4colors1400mm:5kw
Ink-Transfer Motor : 4colors:1400mm:0.75kw
An Inverter Equips With the Main Motor

View Complete Details

Ask Latest Price & Details

Flexographic Printing Machine

We offer our specially designed Flexographic Printing Machine that can precisely do all printing tasks. Our Flexographic Printing Machine is efficient in printing papers and non-woven fabrics. Our Flexographic Printing Machine has 2100mm, as the maximum circum length of rollers. Our Flexographic Printing Machine has 1400mm maximum length of effectiveness. Our exclusively designed Flexographic Printing Machine comprises of solid machinery parts including Metal Anilox Roller, Low pressure Electrical parts, Aluminum and rubber Rollers.

Details

Main Parameter

Model : 1400mm

Material : Non-woven fabric, Paper, Film, Aluminum and so on

Max.Width of Printing : 1400mm

Max. Length of Printing: 100-1000mm

Max.Speed of Material Printing : 10-50m/min

Thickness of Plate (including the glue) : 2.38mm

Weight : 4500kg

Dimension : 4600*2400*2300mm

Unwind Unit

Max Circum.Length of Roller : 2100mm

Max.Length of Effective Roller : 1400mm

Dia.of Roller : 76mm

Max.Dia. of Unwind : 1000mm

Type of Unwind : Auto tension with magnetic powder

Main Machine Specification List

Main Motor : 1 pcs 5kw

Ink transfer motor : 1 pcs 0.75kw

The inverter

Blower : 2 pcs 0.75kw

Aluminum Rollers

Metal Anilox Roller : 1 pcs/per color

Rubber rollers : 1 pcs/per color

Low pressure Electrical parts

Switches

Electrical control Box : 1 set

Main machine body : 1 set

Pneumatic component

Printing Unit

Constitution of Printing : Chrome plated Roller, Rubber Roller, Metal Anilox roller, Plate-glued roller

Girth of Pressing Roller : 100-350mm

Material of Plate : Resin and Rubber

Principle of Work : Gears Drive

Type of Chromatically : 360 degree circulating

Way of Adjusting : Air shaft

Plated-glued roller adjusting: manual

Heating and Drying Unit

Type of Heating and drying : blowing first then heating

Heating Zones : Heating Tubes 4 colors : 6zones

Power of Heating :Model 1200mm: 2.2kw

Assistance of Drying Length 1m

Blowers :2 Fans

Power of Blowers : Model 1400mm: 2*0.75kw

Electrical Parts

Main motor : 4colors1400mm:5kw

Ink-Transfer Motor : 4colors:1400mm:0.75kw

An Inverter Equips With the Main Motor

View Complete Details

Ask Latest Price & Details

Automatic High Speed Blow Moulding Machine

We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing machine. The Automatic High Speed Blow Moulding Machine has adopted original heating and blowing techniques, by which the automatic blowing machine series have achieved powerful productivity. Avail our Automatic High Speed Blow Moulding Machine at a very reasonable price. Our Automatic High Speed Blow Moulding Machine is equipped with High speed electrical heating cutter. Our High speed electrical heating cutter is also equipped with good quality wholly hydraulic system, adopting Taiwan HYTEK components and proportional controlling circle.

Used For Production of Main Traits

Drums
Water tank
Bottles
Jerry cans
Kettles
Double station with single die head
Designed for 1000L viz maximum volume
Modified Hydraulic System
Reliable Mechanical Actions
Proportional controlling circle

Configuration

Parision Control Thickness Control Moog Japan
Temperature Control Module Mistubishi Germany
Servo Valve & Servo Transducer Rolex Germany
Inverter FUJI Japan
Hydraulic Oil Seal Valqua Japan
Intermediate Relay Omron Japan
Pneumatic Valve Airtech Taiwan
Hydraulic Pump & Valve Hytek Taiwan
Pneumatic Switch & Contactor Seimens Germany
Hydraulic Motor & Screw Motor Energetic-ox China

Technical Specifications

Parameters Units
Max container capacity L 1000L
Number of die heads Set 1
Machine dimension (L*W*H) M 6.8x5.0x4.5
Total weight Ton 23
Clamping Unit
Clamping force KN 640
Platen opening stroke mm 2500
Platen size mm 1350*1850
Max mould size (W*H) mm 1200*1600
Mould thickness mm 800-1500
Power
Max drive KW 90
Total power KW 130
Fan power for screw KW 0.14*3
Air pressure Mpa 0.7
Air consumption M3/min 0.9
Average energy consumption KW 96
Extrder Unit
Screw diameter mm 120
Screw L/D ratio L/D 25
Plasticizing capacity Kg/hour 200
Number of heating zone Zone 3
Extruder heating power KW 37
Extruder driving power KW 90
Die Head
Number of heating zone Zone 3
Power of die heating KW 17
Max die pin diameter mm -

Specifications

Capacity 1000L(Max)
Output(dry cycle) PC/h=60
Total power 160KW
Average energy consumption 130KW

Extrusion Unit

Screw mode Gradually changed screw with same distance and different deep
Diameter of screw φ1200mm, L/D:24/1
Material of screw High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrel High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive mode U.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power 90KW
Plasticizing capacity 200Kg/hr
Temperature controlling Adopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precision Various ±1%;
Mode of heating Cast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power 37KW
Zones of heating 6 zones

Die Head System (Central-Incoming Extruding Die Head)

Accumulator Capacity 24L
Mode of heating Adopting heaters made of stainless steel
Temperature controlling precision Various in ±1^oC
Heating power 20KW
Temperature control Automatic temperature control model such asGermanytemperaturecontrolling
precision Various in ±1%
Max annular diameter Φ600mm;

Clamping Unit

Clamping force 640KN (max)

Platen opening stroke 800-2500mm

Platen size 1350*1850mm

Mould thickness 800-1500mm

Cutting Devoice High speed electrical heating cutter is equipped Hydraulic System The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle; Import hydraulic valve, seal and proportional control. Electronic Controlling Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc; Energy Equipment
Compress air Pressure : 0.7Mpa，currency: 0.9m3/min
Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h
Electric Sources : According to the voltage condition in your factory

View Complete Details

Ask Latest Price & Details

Automatic High Speed Blow Moulding Machine

We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing machine. The Automatic High Speed Blow Moulding Machine has adopted original heating and blowing techniques, by which the automatic blowing machine series have achieved powerful productivity. Avail our Automatic High Speed Blow Moulding Machine at a very reasonable price. Our Automatic High Speed Blow Moulding Machine is equipped with High speed electrical heating cutter. Our High speed electrical heating cutter is also equipped with good quality wholly hydraulic system, adopting Taiwan HYTEK components and proportional controlling circle.

Used For Production of Main Traits

Drums
Water tank
Bottles
Jerry cans
Kettles

Double station with single die head
Designed for 1000L viz maximum volume
Modified Hydraulic System
Reliable Mechanical Actions
Proportional controlling circle

Configuration

Parision Control Thickness Control Moog Japan
Temperature Control Module Mistubishi Germany
Servo Valve & Servo Transducer Rolex Germany
Inverter FUJI Japan
Hydraulic Oil Seal Valqua Japan
Intermediate Relay Omron Japan
Pneumatic Valve Airtech Taiwan
Hydraulic Pump & Valve Hytek Taiwan
Pneumatic Switch & Contactor Seimens Germany
Hydraulic Motor & Screw Motor Energetic-ox China

Technical Specifications

Parameters Units
Max container capacity L 1000L
Number of die heads Set 1
Machine dimension (L*W*H) M 6.8x5.0x4.5
Total weight Ton 23
Clamping Unit
Clamping force KN 640
Platen opening stroke mm 2500
Platen size mm 1350*1850
Max mould size (W*H) mm 1200*1600
Mould thickness mm 800-1500
Power
Max drive KW 90
Total power KW 130
Fan power for screw KW 0.14*3
Air pressure Mpa 0.7
Air consumption M3/min 0.9
Average energy consumption KW 96
Extrder Unit
Screw diameter mm 120
Screw L/D ratio L/D 25
Plasticizing capacity Kg/hour 200
Number of heating zone Zone 3
Extruder heating power KW 37
Extruder driving power KW 90
Die Head
Number of heating zone Zone 3
Power of die heating KW 17
Max die pin diameter mm -

Specifications

Capacity 1000L(Max)
Output(dry cycle) PC/h=60
Total power 160KW
Average energy consumption 130KW

Extrusion Unit

Screw mode Gradually changed screw with same distance and different deep
Diameter of screw φ1200mm, L/D:24/1
Material of screw High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrel High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive mode U.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power 90KW
Plasticizing capacity 200Kg/hr
Temperature controlling Adopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precision Various ±1%;
Mode of heating Cast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power 37KW
Zones of heating 6 zones

Die Head System (Central-Incoming Extruding Die Head)

Accumulator Capacity 24L
Mode of heating Adopting heaters made of stainless steel
Temperature controlling precision Various in ±1^oC
Heating power 20KW
Temperature control Automatic temperature control model such asGermanytemperaturecontrolling
precision Various in ±1%
Max annular diameter Φ600mm;

Clamping Unit

Clamping force 640KN (max)

Platen opening stroke 800-2500mm

Platen size 1350*1850mm

Mould thickness 800-1500mm

Cutting Devoice
High speed electrical heating cutter is equipped

Hydraulic System
The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle;
Import hydraulic valve, seal and proportional control.

Electronic Controlling
Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc;

Energy Equipment
Compress air Pressure : 0.7Mpa，currency: 0.9m3/min
Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h
Electric Sources : According to the voltage condition in your factory

View Complete Details

Ask Latest Price & Details

Non Woven Flexible Printing Machine

We offer a wide range of non woven flexible printing machine which is made from optimum quality raw materials. Our non woven flexible printing machine is easy to operate and accurately performs chromatic functions. Our non woven flexible printing machine is fully designed comprising automatic feature of switch off through temperature controllers. Our non woven flexible printing machine also comprises of bilateral frequency motor timing feature. Our non woven flexible printing machine come pre-installed with inch as well as stop buttons. special traits
easy to operate
gentle to start
accurate chromaticity
printing quantity can be set with length counter according to the requirements
can stop automatically by temperature controller
constant temperature control is realized automatically by temperature controller
printing ink is transferred by embossing rollers
the drying system is reliable and suitable for high speed running and automatic turnoff when the machine stops
lengthwise aligning device with 360 continuous adjustment is driven by synchronous motor
bilateral frequency motor timing is adopted to meet different printing speed
the inching button and stop button are both installed

Machine Parameters

Max. Width of Printing Material 1600 MM

Max. Dia of Winding& Unwinding 1M

Printing Speed 50M/Min

Total Power 17Kw

Overall Dimension 3800x2800x2300MM

View Complete Details

Ask Latest Price & Details

Non Woven Flexible Printing Machine

We offer a wide range of Non Woven Flexible Printing Machine which is made from optimum quality raw materials. Our Non Woven Flexible Printing Machine is easy to operate and accurately performs chromatic functions. Our Non Woven Flexible Printing Machine is fully designed comprising automatic feature of switch off through temperature controllers. Our Non Woven Flexible Printing Machine also comprises of bilateral frequency motor timing feature. Our Non Woven Flexible Printing Machine come pre-installed with inch as well as stop buttons. Special Traits
Easy to operate
Gentle to start
Accurate chromaticity
Printing quantity can be set with length counter according to the requirements
Can stop automatically by temperature controller
Constant temperature control is realized automatically by temperature controller
Printing ink is transferred by embossing rollers
The drying system is reliable and suitable for high speed running and automatic turnoff when the machine stops
Lengthwise aligning device with 360 continuous adjustment is driven by synchronous motor
Bilateral frequency motor timing is adopted to meet different printing speed
The inching button and stop button are both installed

Machine Parameters

Max. Width of Printing Material 1600 MM

Max. Dia of Winding& Unwinding 1M

Printing Speed 50M/Min

Total Power 17Kw

Overall Dimension 3800x2800x2300MM

View Complete Details

Ask Latest Price & Details

Soft Handle Sealing Machine

We offer a filly developed soft handle sealing machine which comes framed with assistant material on the back of the machine. Our exclusively designed soft handle sealing machine adopts stepping motor with precision. Our soft handle sealing machine adopts stepping motor with precision performs major functions like cutting up and sealing. Our soft handle sealing machine seals the bags with precision. Our soft handle sealing machine has material that cut into long and narrow strips. characteristics
this machine is a frame for assistant material on the back of the machine
the width of the assistant material is the same as that of the hand bar
the assistant material is cut into long and narrow strips to be conveyed to the folded top
this kind of conveying system adopts stepping motor with precision convey, cutting up and sealing
it can seal it just to the center of the bag

Specifications

Main Technical Parameters Width 200mm-600mm

Thickness 0.05-0.2mm

Total Power 4KW

Power AV220V

Speed 18-30pcs/min

Total weight 500Kg

Machine Dimension 1650x1560x1240mm

View Complete Details

Ask Latest Price & Details

Soft Handle Sealing Machine

We offer a filly developed Soft Handle Sealing Machine which comes framed with assistant material on the back of the machine. Our exclusively designed Soft Handle Sealing Machine adopts stepping motor with precision. Our Soft Handle Sealing Machine adopts stepping motor with precision performs major functions like cutting up and sealing. Our Soft Handle Sealing Machine seals the bags with precision. Our Soft Handle Sealing Machine has material that cut into long and narrow strips. Characteristics
This machine is a frame for assistant material on the back of the machine
The width of the assistant material is the same as that of the hand bar
The assistant material is cut into long and narrow strips to be conveyed to the folded top
This kind of conveying system adopts stepping motor with precision convey, Cutting up and sealing
It can seal it just to the center of the bag

Specifications

Main Technical Parameters Width 200mm-600mm

Thickness 0.05-0.2mm

Total Power 4KW

Power AV220V

Speed 18-30pcs/min

Total weight 500Kg

Machine Dimension 1650x1560x1240mm

View Complete Details

Ask Latest Price & Details

Hydraulic Punching Machine

We offer highly efficient hydraulic punching machine that operates on automatic punching machinery as well. One can make t-shirt bags and side string shoe bags from our hydraulic punching machine by extra charging its machinery. Our hydraulic punching machine comes with a power of 1.5 kw and has 750 kg weight. Our hydraulic punching machine comes handy with features like maximum wash of cutting dint and regulating stockings. Our max wash of cutting dint works at a speed of 0.10m/s for washing. special utilityone can make t-shirt bags and side string shoe bags from our hydraulic punching machine by extra charging its machinery.

Specifications

Power 1.5 KW

Weight 750kg

Pressure 10t

Overall dimensions (mm) 710*800*1300mm

Max,Wash of Cutting Dint 100kn

Stroking Regulate Range (mm) 5-75

Wash of Cutting Speed 0.10m/s

View Complete Details

Ask Latest Price & Details

Hydraulic Punching Machine

We offer highly efficient Hydraulic Punching Machine that operates on Automatic punching machinery as well. One can make T-Shirt bags and Side String shoe bags from our Hydraulic Punching Machine by extra charging its machinery. Our Hydraulic Punching Machine comes with a power of 1.5 KW and has 750 Kg weight. Our Hydraulic Punching Machine comes handy with features like Maximum Wash of Cutting Dint and regulating stockings. Our Max Wash of Cutting Dint works at a speed of 0.10m/s for washing. Special UtilityOne can make T-Shirt bags and Side String shoe bags from our Hydraulic Punching Machine by extra charging its machinery

Specifications

Power 1.5 KW

Weight 750kg

Pressure 10t

Overall dimensions (mm) 710*800*1300mm

Max,Wash of Cutting Dint 100kn

Stroking Regulate Range (mm) 05/01/75

Wash of Cutting Speed 0.10m/s

View Complete Details

Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Product/Service

Quantity

Select Unit

Describe your Requirement

Mobile No.

Email ID

By clicking Send Inquiry, I accept the T&C and Privacy Policy.

Contact Us

Jem & Tashan (Dragontop International Industrial Ltd)

Room No. 19, Yale Industrial Centre, 61-63, Au Pui Wan Street, Shatin.nt., Hong Kong

Share us via

Found Something Wrong with this Listing? Report Here.

View Contact No.

Model	Bag width	Bag length	Power	Air power	Total power	Production speed	Overall Dimension(L x W x H)
M-600	Vest bags : 200-550mm Flat bags : 280-600mm	Vest bags : 280-600mm Flat bags : 200-550mm	According to clients' requirements	0.5-0.6Mpa	10kw	10-90 pcs/minute	8.6 x 1.6 x 1.6 (m)
M-700	Vest bags : 200-650mm Flat bags : 280-600mm	Vest bags : 280-600mm Flat bags : 200-650mm	According to clients' requirements	0.5-0.6Mpa	11kw	10-90 pcs/minute	11.96 x 2 x 1.8

Name of Spares	Quantity
Thermocouple 0.5m	2 pcs
Japanese black Solid	1 pc
Contactor	2 pcs
Time relay	1 pc
Potentiometer	1 pc
Proximity Switch	1 pc
Hall Switch	2 pcs
Displacement Switch	1 pc
Embossing Roller	1 couple
Stainless Thermal Board	1 pc
Timing Belt 300L	1 pc
Spring Belt	20 pcs
Sensor	1 pc
Speed Controller Board	1 pc
Carbonic Brush	4 pcs
Main controller of main ultrasonics
Main ultrasonic transistor	1 pc
Mould of Main Ultrasonic	1 pc
Main Controller of unwinding ultrasonic	1 pc
Main transistor of unwinding ultrasonic	1 pc
Inner Hexagon Spanner	1 pc
Activity Spanner 8-inch	1 pc
Opening Spanner	1 pc
Hammer	1 pc
Electric Pen	1 pc
Needle-nose pliers	1 pc

Main Parameter	Model : 1400mm Material : Non-woven fabric, Paper, Film, Aluminum and so on Max.Width of Printing : 1400mm Max. Length of Printing: 100-1000mm Max.Speed of Material Printing : 10-50m/min Thickness of Plate (including the glue) : 2.38mm Weight : 4500kg Dimension : 460024002300mm
Unwind Unit	Max Circum.Length of Roller : 2100mm Max.Length of Effective Roller : 1400mm Dia.of Roller : 76mm Max.Dia. of Unwind : 1000mm Type of Unwind : Auto tension with magnetic powder
Main Machine Specification List	Main Motor : 1 pcs 5kw Ink transfer motor : 1 pcs 0.75kw The inverter Blower : 2 pcs 0.75kw Aluminum Rollers Metal Anilox Roller : 1 pcs/per color Rubber rollers : 1 pcs/per color Low pressure Electrical parts Switches Electrical control Box : 1 set Main machine body : 1 set Pneumatic component
Printing Unit	Constitution of Printing : Chrome plated Roller, Rubber Roller, Metal Anilox roller, Plate-glued roller Girth of Pressing Roller : 100-350mm Material of Plate : Resin and Rubber Principle of Work : Gears Drive Type of Chromatically : 360 degree circulating Way of Adjusting : Air shaft Plated-glued roller adjusting: manual
Heating and Drying Unit	Type of Heating and drying : blowing first then heating Heating Zones : Heating Tubes 4 colors : 6zones Power of Heating :Model 1200mm: 2.2kw Assistance of Drying Length 1m Blowers :2 Fans Power of Blowers : Model 1400mm: 2*0.75kw
Electrical Parts	Main motor : 4colors1400mm:5kw Ink-Transfer Motor : 4colors:1400mm:0.75kw An Inverter Equips With the Main Motor

Main Parameter	Model : 1400mm Material : Non-woven fabric, Paper, Film, Aluminum and so on Max.Width of Printing : 1400mm Max. Length of Printing: 100-1000mm Max.Speed of Material Printing : 10-50m/min Thickness of Plate (including the glue) : 2.38mm Weight : 4500kg Dimension : 460024002300mm
Unwind Unit	Max Circum.Length of Roller : 2100mm Max.Length of Effective Roller : 1400mm Dia.of Roller : 76mm Max.Dia. of Unwind : 1000mm Type of Unwind : Auto tension with magnetic powder
Main Machine Specification List	Main Motor : 1 pcs 5kw Ink transfer motor : 1 pcs 0.75kw The inverter Blower : 2 pcs 0.75kw Aluminum Rollers Metal Anilox Roller : 1 pcs/per color Rubber rollers : 1 pcs/per color Low pressure Electrical parts Switches Electrical control Box : 1 set Main machine body : 1 set Pneumatic component
Printing Unit	Constitution of Printing : Chrome plated Roller, Rubber Roller, Metal Anilox roller, Plate-glued roller Girth of Pressing Roller : 100-350mm Material of Plate : Resin and Rubber Principle of Work : Gears Drive Type of Chromatically : 360 degree circulating Way of Adjusting : Air shaft Plated-glued roller adjusting: manual
Heating and Drying Unit	Type of Heating and drying : blowing first then heating Heating Zones : Heating Tubes 4 colors : 6zones Power of Heating :Model 1200mm: 2.2kw Assistance of Drying Length 1m Blowers :2 Fans Power of Blowers : Model 1400mm: 2*0.75kw
Electrical Parts	Main motor : 4colors1400mm:5kw Ink-Transfer Motor : 4colors:1400mm:0.75kw An Inverter Equips With the Main Motor

Clamping force	640KN (max)
Platen opening stroke	800-2500mm
Platen size	1350*1850mm
Mould thickness	800-1500mm
Cutting Devoice High speed electrical heating cutter is equipped Hydraulic System The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle; Import hydraulic valve, seal and proportional control. Electronic Controlling Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc; Energy Equipment Compress air Pressure : 0.7Mpa，currency: 0.9m3/min Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h Electric Sources : According to the voltage condition in your factory

Parision Control Thickness Control	Moog	Japan
Temperature Control Module	Mistubishi	Germany
Servo Valve & Servo Transducer	Rolex	Germany
Inverter	FUJI	Japan
Hydraulic Oil Seal	Valqua	Japan
Intermediate Relay	Omron	Japan
Pneumatic Valve	Airtech	Taiwan
Hydraulic Pump & Valve	Hytek	Taiwan
Pneumatic Switch & Contactor	Seimens	Germany
Hydraulic Motor & Screw Motor	Energetic-ox	China

Parameters	Units
Max container capacity	L	1000L
Number of die heads	Set	1
Machine dimension (LWH)	M	6.8x5.0x4.5
Total weight	Ton	23
Clamping Unit
Clamping force	KN	640
Platen opening stroke	mm	2500
Platen size	mm	1350*1850
Max mould size (W*H)	mm	1200*1600
Mould thickness	mm	800-1500
Power
Max drive	KW	90
Total power	KW	130
Fan power for screw	KW	0.14*3
Air pressure	Mpa	0.7
Air consumption	M3/min	0.9
Average energy consumption	KW	96
Extrder Unit
Screw diameter	mm	120
Screw L/D ratio	L/D	25
Plasticizing capacity	Kg/hour	200
Number of heating zone	Zone	3
Extruder heating power	KW	37
Extruder driving power	KW	90
Die Head
Number of heating zone	Zone	3
Power of die heating	KW	17
Max die pin diameter	mm	-

Capacity	1000L(Max)
Output(dry cycle)	PC/h=60
Total power	160KW
Average energy consumption	130KW

Screw mode	Gradually changed screw with same distance and different deep
Diameter of screw	φ1200mm, L/D:24/1
Material of screw	High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrel	High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive mode	U.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power	90KW
Plasticizing capacity	200Kg/hr
Temperature controlling	Adopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precision	Various ±1%;
Mode of heating	Cast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power	37KW
Zones of heating	6 zones

Accumulator Capacity	24L
Mode of heating	Adopting heaters made of stainless steel
Temperature controlling precision	Various in ±1^oC
Heating power	20KW
Temperature control	Automatic temperature control model such asGermanytemperaturecontrolling
precision	Various in ±1%
Max annular diameter	Φ600mm;

Max. Width of Printing Material	1600 MM
Max. Dia of Winding& Unwinding	1M
Printing Speed	50M/Min
Total Power	17Kw
Overall Dimension	3800x2800x2300MM

Main Technical Parameters Width	200mm-600mm
Thickness	0.05-0.2mm
Total Power	4KW
Power	AV220V
Speed	18-30pcs/min
Total weight	500Kg
Machine Dimension	1650x1560x1240mm

Power	1.5 KW
Weight	750kg
Pressure	10t
Overall dimensions (mm)	7108001300mm
Max,Wash of Cutting Dint	100kn
Stroking Regulate Range (mm)	5-75
Wash of Cutting Speed	0.10m/s

Dragontop International Industrial Ltd Hong Kong

Our Products

Non Woven Bag Making Machine 001

Non Woven Bag Making Machine

Non Woven Bag Making Machine 0023

Flexographic Printing Machine

Flexographic Printing Machine

Automatic High Speed Blow Moulding Machine

Automatic High Speed Blow Moulding Machine

Non Woven Flexible Printing Machine

Non Woven Flexible Printing Machine

Soft Handle Sealing Machine

Soft Handle Sealing Machine

Hydraulic Punching Machine

Hydraulic Punching Machine

Contact Us

Dragontop International Industrial Ltd
Hong Kong
