Molding Machines

Leading Manufacturer, Supplier & Retailer of Automatic High Speed Blow Moulding Machine.

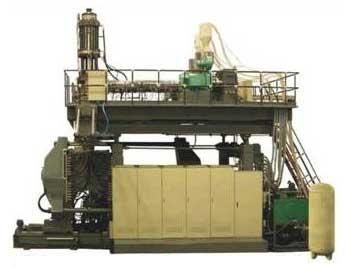

Automatic High Speed Blow Moulding Machine

Automatic High Speed Blow Moulding Machine
We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing machine. The Automatic High Speed Blow Moulding Machine has adopted original heating and blowing techniques, by which the automatic blowing machine series have achieved powerful productivity. Avail our Automatic High Speed Blow Moulding Machine at a very reasonable price. Our Automatic High Speed Blow Moulding Machine is equipped with High speed electrical heating cutter. Our High speed electrical heating cutter is also equipped with good quality wholly hydraulic system, adopting Taiwan HYTEK components and proportional controlling circle.

Used For Production ofMain Traits
  • Drums
  • Water tank
  • Bottles
  • Jerry cans
  • Kettles
  • Double station with single die head
  • Designed for 1000L viz maximum volume
  • Modified Hydraulic System
  • Reliable Mechanical Actions
  • Proportional controlling circle

Configuration

Parision Control Thickness ControlMoogJapan
Temperature Control ModuleMistubishiGermany
Servo Valve & Servo TransducerRolexGermany
InverterFUJIJapan
Hydraulic Oil SealValquaJapan
Intermediate RelayOmronJapan
Pneumatic ValveAirtechTaiwan
Hydraulic Pump & ValveHytek Taiwan
Pneumatic Switch & ContactorSeimensGermany
Hydraulic Motor & Screw MotorEnergetic-oxChina

Technical Specifications

ParametersUnits
Max container capacityL1000L
Number of die headsSet1
Machine dimension (L*W*H)M6.8x5.0x4.5
Total weightTon23
Clamping Unit
Clamping forceKN640
Platen opening strokemm2500
Platen sizemm1350*1850
Max mould size (W*H)mm1200*1600
Mould thicknessmm800-1500
Power
Max driveKW90
Total powerKW130
Fan power for screwKW0.14*3
Air pressureMpa0.7
Air consumptionM3/min0.9
Average energy consumptionKW96
Extrder Unit
Screw diametermm120
Screw L/D ratioL/D25
Plasticizing capacityKg/hour200
Number of heating zoneZone3
Extruder heating powerKW37
Extruder driving powerKW90
Die Head
Number of heating zoneZone3
Power of die heatingKW17
Max die pin diametermm-

Specifications

Capacity1000L(Max)
Output(dry cycle)PC/h=60
Total power160KW
Average energy consumption130KW

Extrusion Unit

Screw modeGradually changed screw with same distance and different deep
Diameter of screwφ1200mm, L/D:24/1
Material of screwHigh quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrelHigh quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive modeU.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power90KW
Plasticizing capacity200Kg/hr
Temperature controllingAdopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precisionVarious ±1%;
Mode of heatingCast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power37KW
Zones of heating6 zones

Die Head System (Central-Incoming Extruding Die Head)

Accumulator Capacity24L
Mode of heatingAdopting heaters made of stainless steel
Temperature controlling precisionVarious in ±1oC
Heating power20KW
Temperature controlAutomatic temperature control model such asGermanytemperaturecontrolling
precisionVarious in ±1%
Max annular diameterΦ600mm;

Clamping Unit

Clamping force640KN (max)
Platen opening stroke800-2500mm
Platen size1350*1850mm
Mould thickness800-1500mm
Cutting Devoice High speed electrical heating cutter is equipped Hydraulic System The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle; Import hydraulic valve, seal and proportional control. Electronic Controlling Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc; Energy Equipment
  • Compress air Pressure : 0.7Mpa，currency: 0.9m3/min
  • Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h
  • Electric Sources : According to the voltage condition in your factory
View Complete Details
Ask Latest Price & Details
Automatic High Speed Blow Moulding Machine

Automatic High Speed Blow Moulding Machine
We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing machine. The Automatic High Speed Blow Moulding Machine has adopted original heating and blowing techniques, by which the automatic blowing machine series have achieved powerful productivity. Avail our Automatic High Speed Blow Moulding Machine at a very reasonable price. Our Automatic High Speed Blow Moulding Machine is equipped with High speed electrical heating cutter. Our High speed electrical heating cutter is also equipped with good quality wholly hydraulic system, adopting Taiwan HYTEK components and proportional controlling circle.

Used For Production of Main Traits
  • Drums
  • Water tank
  • Bottles
  • Jerry cans
  • Kettles
  • Double station with single die head
  • Designed for 1000L viz maximum volume
  • Modified Hydraulic System
  • Reliable Mechanical Actions
  • Proportional controlling circle

Configuration


Parision Control Thickness ControlMoogJapan
Temperature Control ModuleMistubishiGermany
Servo Valve & Servo TransducerRolexGermany
InverterFUJIJapan
Hydraulic Oil SealValquaJapan
Intermediate RelayOmronJapan
Pneumatic ValveAirtechTaiwan
Hydraulic Pump & ValveHytek Taiwan
Pneumatic Switch & ContactorSeimensGermany
Hydraulic Motor & Screw MotorEnergetic-oxChina

Technical Specifications


ParametersUnits
Max container capacityL1000L
Number of die headsSet1
Machine dimension (L*W*H)M6.8x5.0x4.5
Total weightTon23
Clamping Unit
Clamping forceKN640
Platen opening strokemm2500
Platen sizemm1350*1850
Max mould size (W*H)mm1200*1600
Mould thicknessmm800-1500
Power
Max driveKW90
Total powerKW130
Fan power for screwKW0.14*3
Air pressureMpa0.7
Air consumptionM3/min0.9
Average energy consumptionKW96
Extrder Unit
Screw diametermm120
Screw L/D ratioL/D25
Plasticizing capacityKg/hour200
Number of heating zoneZone3
Extruder heating powerKW37
Extruder driving powerKW90
Die Head
Number of heating zoneZone3
Power of die heatingKW17
Max die pin diametermm-

Specifications


Capacity1000L(Max)
Output(dry cycle)PC/h=60
Total power160KW
Average energy consumption130KW

Extrusion Unit


Screw modeGradually changed screw with same distance and different deep
Diameter of screwφ1200mm, L/D:24/1
Material of screwHigh quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrelHigh quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive modeU.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power90KW
Plasticizing capacity200Kg/hr
Temperature controllingAdopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precisionVarious ±1%;
Mode of heatingCast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power37KW
Zones of heating6 zones

Die Head System (Central-Incoming Extruding Die Head)


Accumulator Capacity24L
Mode of heatingAdopting heaters made of stainless steel
Temperature controlling precisionVarious in ±1oC
Heating power20KW
Temperature controlAutomatic temperature control model such asGermanytemperaturecontrolling
precisionVarious in ±1%
Max annular diameterΦ600mm;









Clamping Unit

Clamping force 640KN (max)
Platen opening stroke 800-2500mm
Platen size 1350*1850mm
Mould thickness 800-1500mm
Cutting Devoice
High speed electrical heating cutter is equipped

Hydraulic System
The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle;
Import hydraulic valve, seal and proportional control.

Electronic Controlling
Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc;

Energy Equipment
  • Compress air Pressure : 0.7Mpa，currency: 0.9m3/min
  • Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h
  • Electric Sources : According to the voltage condition in your factory











View Complete Details
Ask Latest Price & Details
