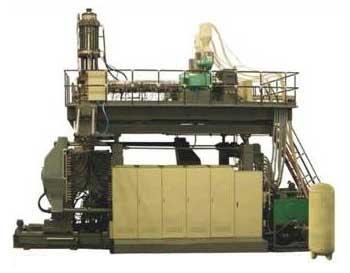

Automatic High Speed Blow Moulding Machine

Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing....

View More Details

Send Enquiry

Product Details

We offer optimum quality Automatic High Speed Blow Moulding Machine. Our Automatic High Speed Blow Moulding Machine is the most stable two-step fully automatic high-speed rotary stretch-blowing machine. The Automatic High Speed Blow Moulding Machine has adopted original heating and blowing techniques, by which the automatic blowing machine series have achieved powerful productivity. Avail our Automatic High Speed Blow Moulding Machine at a very reasonable price. Our Automatic High Speed Blow Moulding Machine is equipped with High speed electrical heating cutter. Our High speed electrical heating cutter is also equipped with good quality wholly hydraulic system, adopting Taiwan HYTEK components and proportional controlling circle.

Used For Production of

Main Traits

Drums
Water tank
Bottles
Jerry cans
Kettles

Double station with single die head
Designed for 1000L viz maximum volume
Modified Hydraulic System
Reliable Mechanical Actions
Proportional controlling circle

Configuration

Parision Control Thickness Control	Moog	Japan
Temperature Control Module	Mistubishi	Germany
Servo Valve & Servo Transducer	Rolex	Germany
Inverter	FUJI	Japan
Hydraulic Oil Seal	Valqua	Japan
Intermediate Relay	Omron	Japan
Pneumatic Valve	Airtech	Taiwan
Hydraulic Pump & Valve	Hytek	Taiwan
Pneumatic Switch & Contactor	Seimens	Germany
Hydraulic Motor & Screw Motor	Energetic-ox	China

Technical Specifications

Parameters	Units
Max container capacity	L	1000L
Number of die heads	Set	1
Machine dimension (LWH)	M	6.8x5.0x4.5
Total weight	Ton	23
Clamping Unit
Clamping force	KN	640
Platen opening stroke	mm	2500
Platen size	mm	1350*1850
Max mould size (W*H)	mm	1200*1600
Mould thickness	mm	800-1500
Power
Max drive	KW	90
Total power	KW	130
Fan power for screw	KW	0.14*3
Air pressure	Mpa	0.7
Air consumption	M3/min	0.9
Average energy consumption	KW	96
Extrder Unit
Screw diameter	mm	120
Screw L/D ratio	L/D	25
Plasticizing capacity	Kg/hour	200
Number of heating zone	Zone	3
Extruder heating power	KW	37
Extruder driving power	KW	90
Die Head
Number of heating zone	Zone	3
Power of die heating	KW	17
Max die pin diameter	mm	-

Specifications

Capacity	1000L(Max)
Output(dry cycle)	PC/h=60
Total power	160KW
Average energy consumption	130KW

Extrusion Unit

Screw mode	Gradually changed screw with same distance and different deep
Diameter of screw	φ1200mm, L/D:24/1
Material of screw	High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2
Material of barrel	High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900, brittleness≤2
Drive mode	U.S.A. AMERSON converter instrument + Hard gear surface decelerator
Drive power	90KW
Plasticizing capacity	200Kg/hr
Temperature controlling	Adopt automatic temperature control model such as Japan Mitsubishi
Temperature controlling precision	Various ±1%;
Mode of heating	Cast-aluminum heater with heater preserving and protecting cover of stainless steel
Heating power	37KW
Zones of heating	6 zones

Die Head System (Central-Incoming Extruding Die Head)

Accumulator Capacity	24L
Mode of heating	Adopting heaters made of stainless steel
Temperature controlling precision	Various in ±1^oC
Heating power	20KW
Temperature control	Automatic temperature control model such asGermanytemperaturecontrolling
precision	Various in ±1%
Max annular diameter	Φ600mm;

Clamping Unit

Clamping force	640KN (max)
Platen opening stroke	800-2500mm
Platen size	1350*1850mm
Mould thickness	800-1500mm
Cutting Devoice High speed electrical heating cutter is equippedHydraulic System The whole hydraulic system adopts Taiwan HYTEK components and proportional controlling circle; Import hydraulic valve, seal and proportional control. Electronic Controlling Imported Mitsubishi computer control system(7.7’ color screen + soft button + 300 points parison controller + temperature control module + PLC), other electronic parts, such as LG、OMRON，etc; Energy Equipment Compress air Pressure : 0.7Mpa，currency: 0.9m3/min Cold water required Pressure : 0.2～0.3Mpa，currency: 1000L/h Electric Sources : According to the voltage condition in your factory
