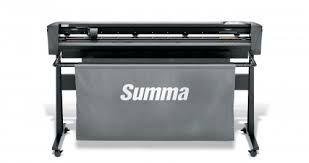

We are offering suma cutting plotter. Intuitive Control PanelThe large, easy-to-use control panel allows you to quickly changesettings like speed, pressure, plot mode and perform test cuts. Optical PositioningOPOS X contour-cutting alignment enables you to die-cut valuable printed vinyl graphics with complete confidence and reliability. High Speed Cut HeadNewly designed high-speed cutting head features precision accuracy for exceptionally reliable and effortless vinyl cutting. Integrated Media RollersIntegrated media rollers and roll end flanges load your vinyl straight and keep your media on-track, even when cutting at top speed. Summa D160Technical Specs & DetailsSpecifications Summa D160Cut Type Drag-knife with TurboCut and Tangential emulation modesTool Compatibility Blade, Pen, Pounce ToolCut Width 63.2-inch maximumCut Speed 44 inches-per-second maximumCut-force 0-400 grams, in 5-gram stepsStandard Accessories WinPlot or MacSign cut softwareCutter Control parameter control softwareStandard 36 drag-knife blade holder2 standard 36 degree drag-knife blades1 fiber-tip penUSB (serial available)

We are offering mimaki cg-75fxii cutting plotter (30-inch). the cg-75fxii effective cutting area 760mm51m(29.9"167') wider roll cutting format for professional usehigh precision cutting and performancemark sensor, with media hold function to guarantee accuracyhigher speed cutting up to 100 cmsfast and accurate contour cuttinghalf-cut function holds image in place after cutting for perfect stickers & decalsoptional media baskets availableprofessional & user-friendly software package included as standard mimaki cg-75fxii cutting plotter (30-inch)technical specs & detailsmodel cg-75fxiiacceptable sheet width 90mm1, 040mm (3.54"40.9")acceptable roll sheet outer less than f200mm , roll weight less than 18kgeffective cutting area*1 760mm x 51m(29.9" x 167')maximum auto cutting width*2 870mm (34.2)maximum cutting speed 100cms (39.3"s)maximum moving speed 140cms (55"s)adjustable speed range*3 1-10cms : 1cm step adjustment(0.39"-3.94"s : 0.39" step adjustment)10-50cms : 5cm step adjustment(3.94"-19.68"s : 2" step adjustment)50-100cms : 10cm step adjustment(19.68"-39.37" : 3.94" step adjustment)mechanical resolution 5m(0.0002")command resolution 25m or 10m(0.001" or 0.0004")-mgl-iicrepeatability 0.2mm (excluding shrinkage expansion caused by the film temperature)pen pressure 400grange of down pressure cutter 1020g(2g step), 20100g(5g step), 100400g(10g step)pouncing 1020g(2g step), 20100g(5g step), 100400g(10g step)pen 1020g(2g step), 20100g(5g step), 100150g(10g step)acceptable sheet*4 vinyl up to 0.15mm(0.006")thickness, fluorescent type vinylreflective sheetacceptable sheet for pouncing*5 paper thickness: 0.060.13mm (0.0024"0.005")applicable tools*6 cutter, water based ball-point pen, oil based ball-point pen, pouncing tooltype of command mgl-iicinterface rs-232c, usbreceiver buffer size 30mb standard (20mb when in sorting)operational temperature 535c (4195f)humidity 3575%(rh) non-condensationpower requirement ac100v240vpower consumption 130va or lessdimensions (wxdxh) 1, 285mm(50.5")x700mm(27.5")x1, 217mm(47.9")weight (with stands) 50kg(110 lbs.)

We are offering graphtec fc2250-120es flatbed cutting plotter. the fc2250 large format flatbed cutting plotters are ideal for designers and prototyping in the offset printing, digital printing, packaging industry, fashion industry, as well as road sign making, stone & glass sandblastingetching, electronic film industry, etc. 6 models are available, differ in sizes and hold down methods. the built-in automatic registration mark sensing system further simplifies contour cutting of printedmaterials. Incorporates arms to ensure precise cutting. Cut decals & other p&c application with arms. a tool lineup for cutting of thick paper and corrugated cardboard efg grade. fulfilling the max high pressure 1kg, and enables you to cut thick material. a usb2.0 interface. software applications that improve work efficiency. achieves a best-in-class cost performance. graphtec fc2250-120estechnical specs & detailsmodel name - 60vc - 120vc - 120mg - 120es - 180vc - 180esconfiguration digital servo, flatbedmedia hold-down method vc vc mg es vc esvc model :vacuum suction *1, es model : electrostatic adhesion, mg model : magneticeffective cutting area 610 x 920 mm 1200 x 920 mm 1740 x 920mm24.0 x 36.0 inch 47.2 x 36.0 inch 68.5 x 36.0 inchmaximum medium width 950 mm (37.4 inch) (y-axis direction)number of pens cutters 2maximum cutting speed 400 mms (16 inchs) (40-step range)cutting force pen 1: max. 4.9n(500 gf), 40-step range (1 to 40), pen 2: max. 9.8n(1 kgf), 40-step range (2 to 80)minimum character size about 10 mm square (varies with the character font and media)mechanical resolution 0.0025 mmprogrammable resolution gp-gl mode: 0.10.050.0250.01 mm, hp-gl *3 : 0.025 mmcutter and pen types cutter blades : supersteel, pens : water-based fibertip, oil-based ballpoint, disposable ink *4cutting media marking film (vinyl, fluorescent, reflective), stiff papercard up to 0.5 mm thick, sandblast rubber sheets up to 1.0 mm thick, high-intensity reflective film, polystyrene foam sheetsinterfaces rs-232c, usb 2.0 (full speed) ; auto-switchingcommand sets gp-gl and hp-gl *3 emulation (selected by menu)buffer memory 2 mbytedistance accuracy within +- 0.1% (plotter mode)repeatability within 0.1 mm (plotter mode)perpendicularity within 0.5 mm900 mm (plotter mode)power supply 100 to 120 vac, 5060 hz; 220 to 240 vac, 5060 hzpower consumption 100 w or lessoperating environment temperature: +10 to +35 deg.c, humidity: 35% to 75% rh (non-condensing)guaranteed precision temperature: +16 to +32 deg.c, humidity: 35% to 70% rh (non-condensing)externaldimensions(h x w x d) level 857 x 920 x 1285mm 944 x 1568 x 1285 mm 944 x 2068 x 1285mm33.8 x 36.0 x 50.6 in. 37.1 x 61.7 x 50.6 in. 37.1 x 81.4 x 50.6 in. 60degree inclination*2 - 1687 x 1568 x 987 mm 1687 x 2068 x 987 mm- 66.4 x 61.7 x 39.0 in. 66.4 x 81.4 x 39.0 in. Weight (including stand) approx. 58 kg approx. 69 kg approx. 74 kg128 lbs. 152 lbs. 163 lbs.
