| his data sheet covers the requirements for heat shrinkable heavy wall insulating tubes (MVIT) whose dimension will shrink to a predetermined size upon the application of heat above 125 C. Color of the MVIT is red. The MVIT provides a high level of insulation. |
| Typical Applications |
| MVIT is normally used as an integral part of cable joints up to 36kV for protection & insulation. MVIT provides excellent insulating properties and reinstates the original insulation level of the cable. |
| The following application table gives the MVIT dimensions. |
| Size (mm) | Inside Diameter |
Wall Thickness Recovered |
Standard Length (meters) |
|
|
As Supplied (min) |
Recovered (max) |
|||
| MVIT 40/12 | 40 | 12 | 4.3 | 1.0 / 1.5 |
| MVIT 50/16 | 50 | 16 | 4.3 | 1.0 / 1.5 |
| MVIT 60/20 | 60 | 20 | 4.5 | 1.0 / 1.5 |
| MVIT 75/25 | 75 | 25 | 4.5 | 1.0 / 1.5 |
| MVIT 100/30 | 100 | 30 | 4.5 | 1.0 / 1.5 |

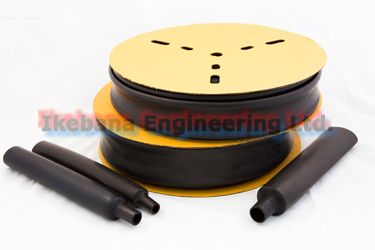

| This data sheet covers the requirements for heat shrinkable medium wall stress control tubes (SCT) whose dimension will shrink to a predetermined size upon the application of heat above 125 C. Color of the SCT is black. The SCT provides excellent stress control functions. |
| Typical Applications |
| SCT provides excellent electrical stress control at the end of semi-con screen in terminations and joints of XLPE cables. SCT is also used with PILC cables. SCT is normally used as an integral part of cable terminations and cable joints up to 36 kV. |
| The following application table gives the SCT dimensions. |
| Size (mm) | Inside Diameter |
Wall Thickness Recovered |
Standard Length (meters) |
|
|
As Supplied (min) |
Recovered (max) |
|||
| SCT 16/8 | 16.0 | 8.0 | 1.8 | 25.0 |
| SCT 20/10 | 20.0 | 10.0 | 1.6 | 25.0 |
| SCT 26/12 | 26.0 | 12.0 | 2.5 | 25.0 |
| SCT 30/15 | 30.0 | 15.0 | 2.7 | 25.0 |
| SCT 45/20 | 45.0 | 20.0 | 3.0 | 25.0 |
| SCT 50/25 | 50.0 | 25.0 | 3.3 | 20.0 |
| SCT 65/30 | 65.0 | 30.0 | 3.3 | 20.0 |
| SCT 75/40 | 75.0 | 40.0 | 3.4 | 20.0 |
| This data sheet covers the requirements for heat shrinkable bus bar insulating tubes (BBT & BBT Plus) whose dimension will shrink to a predetermined size upon the application of heat above 1250C. Color of the BBT & BBT Plus is red. The BBT & BBT Plus provides excellent insulating properties and have good flexibility for installation on all types of bus bars. BBT is a medium wall bus bar tube for genaral applications and BBT Plus is a heavy wall bus bar tube for applications which require a higher level of insulation. | |||
| Typical Applications | |||
| Busbars insulated with Ikebana BBT & BBT Plus are corona discharge free even with shorter spacing between phase to phase. This enables compact switch gear panel design. It offers good protection from environmental effects, ultra-violet radiation and moisture. The tough cross-linked polyolefin material provides good mechanical protection.
|
| TUBING SIZE | INSIDE DIAMETER | THICKNESS |
SUITABLE FOR BUSBAR CROSS SECTION |
|||||
| As Supplied | Recovered | As Supplied | Recovered | Rectangular | Round | |||
| Width + Thickness | Diameter | |||||||
| (Min) | (Max) | (Min) | (Max) | |||||
| BBT 15/6 | 15 | 6 | 1.1 | 2.5 | 12 | 18 | 6.5 | 12 |
| BBT 25/10 | 25 | 10 | 1.3 | 2.9 | 20 | 30 | 11 | 20 |
| BBT 30/12 | 30 | 12 | 1.3 | 2.9 | 22 | 38 | 13.6 | 25 |
| BBT 40/16 | 40 | 16 | 1.3 | 2.9 | 29 | 52 | 17.6 | 32 |
| BBT 50/20 | 50 | 20 | 1.3 | 2.9 | 36 | 65 | 22 | 43 |
| BBT 65/25 | 65 | 25 | 1.3 | 2.9 | 55 | 85 | 33 | 54 |
| BBT 75/30 | 75 | 30 | 1.3 | 2.9 | 55 | 95 | 33 | 63 |
| BBT 100/40 | 100 | 40 | 1.3 | 2.9 | 70 | 130 | 44 | 86 |
| BBT 120/50 | 120 | 50 | 1.3 | 2.9 | 90 | 165 | 55 | 105 |
| BBT Plus 25/10 | 25 | 10 | 1.6 | 4 | 17 | 28 | 11 | 20 |
| BBT Plus 40/16 | 40 | 16 | 1.6 | 4 | 28 | 45 | 18 | 32 |
| BBT Plus 65/25 | 65 | 25 | 1.6 | 4 | 45 | 67 | 28 | 47 |
| BBT Plus 75/25 | 75 | 25 | 1.6 | 4 | 45 | 84 | 28 | 54 |
| BBT Plus 95/30 | 95 | 30 | 1.6 | 4 | 54 | 106 | 33.6 | 70 |
| BBT Plus 120/40 | 120 | 40 | 1.6 | 4.1 | 67 | 134 | 44 | 87 |
ALL DIMENSIONS IN MM
| characteristics |
this data sheet covers the requirements for heat shrink thin wall tubes whose dimensions will shrink to a predetermined size upon the application of heat above 100 deg. C. Ikebana manufacture two categories of heat shrink thin wall tubes as follows:
|
ikebana heat shrink thin wall tubes have:
|
| typical applications |
| ikebana thin wall tubes are flexible commercial grade tubing useful for applications such as bundling, colour coding and harnessing of wires in automotive, electrical and electronics industry. Ikebana thin wall tubes offer excellent insulation and mechanical protection for wires. A wide color range makes the tubes very attractive for various applications. |
