Pulverizers

Our product range contains a wide range of Single Phase Fan Filter Connector Pulverizer, Wet Pulverizer, Mini Pulverizer, Jacketed Mini Pulverizer and Double Stage Pulverizer

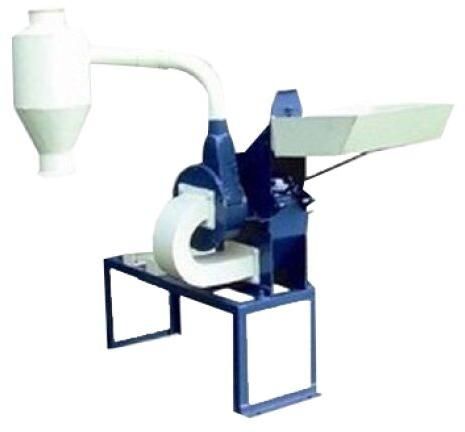

Single Phase Fan Filter Connector Pulverizer

Driven Type Electric
Condition New
Automatic Grade Semi Automatic
Voltage 110V
Country of Origin India
Type Pulverizer
Power 2 H.P-20 H.P
Capacity 80 To 100 Kg Per Hour
Model Sizes 8
Motor Pulley Size 8
Packaging Details Wooden Packing

Specifications:

Model Size (”)Power Motor Pulley Machine R.P.M.Capacity per/hr
Single Phase8” x 4”2 H.P8”350010-15 kg
Single Phase10” x 5”3 H.P8”350020/30 kg
0112” x 5”5 H.P10”350040-60 kg
0214” x 9”7.5 H.P10”350060-80 kg
0316”x10” 10 H.P10”350080-100 kg
0418”x10” 15 H.P10”3500100-110 kg
0520” 12” 20 H.P10”3500150-180 kg

Other Details:

Production Capacity: 80 to 100 Kg Per per hr
Delivery Time: 30 Days
Packaging Details: Wooden Packing

View Complete Details

Ask Latest Price & Details

Wet Pulverizer

Material Stainless Steel
Finishing Polished
Driven Type Electric
Color Silver
Condition New
Power 3-6kw
Pressure High Pressure
Operating Type Semi Automatic
Certification ISO 9001:2008 Certified
Voltage 380V
Packaging Type Carton Box
Dimension (LxWxH) 375x190x285mm
Machine Weight 100-200kg
Type Wet Pulverizer

Standard Accessories of Wet Pulverizer

Four numbers of different size holes screen for getting different paste.
Three meter suitable cable along with ampere meter & miniature circuit breaker & Suitable totally enclosedfan cooled three phase or Single Phase Squirrel cage motor Electricity (Special power can be accommodated):110/220/380/415 Volts, 50/60 Hz, 1/3 Phase

Model No.	IMM-WP-1202	IMM-WP-1203	IMM-WP-1204	IMM-WP-1205	IMM-WP-1206
Chamber Size (Ø=DiameterX Width)	Ø200mmX100mm	Ø200mmX200mm	Ø225mmx75mm	Ø325mmX90mm	Ø325mmX165mm
Pulverizer RPM	2880	2880	2880	2880	2880
Motor HP (Kw.)	1.5 Hp (1.125 Kw)	2 Hp (1.5 Kw)	3 Hp (2 Kw)	5 Hp (4 Kw)	7.5 Hp(6 Kw)
Pulverizer Dimensions	48x33x63cm 36 Kg Approximate	55x40x90cm 59 Kg Approximate

View Complete Details

Ask Latest Price & Details

Mini Pulverizer

Driven Type Electric
Color Blue
Condition New
Automatic Grade Semi Automatic
Power 3-6kw
Application Crushing, Pulverize Coal
Voltage 110V
Weight 100-200kg
Country of Origin India
Material Stainless Steel 304

Techno wings brand mini pulveriser is made from specially selected materials. The beater are interchangeable and reversible thus, the pulveriser will last for a life time with minimum replacement of parts. Mini pulverizer is Made from Cast Iron body. Grinding Chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding done by a set of swinging four numbers inter changeable and reversible beater on a balanced rotor which is fitted on a shaft. Shaft is fixed with a suitable deep groove ball bearings which is continuously lubricated by oil. This shaft is run by driven pulley and A screen classifier forms the lower half of the grinding chamber.

Standard Accessories of Mini Pulverizer

One number cotton Balloon
Five numbers of different size holes screen for getting different mesh powders.

Extra Accessories of Mini Pulverizer

Three meter suitable cable along with ampere meter & miniature circuit breaker & Suitable totally enclosed fan cooled three phase or Single Phase Squirrel cage motor Electricity (Special power can be accommodated): 220/380/415 Volts, 50/60 Hz, 1/3 Phase
All contacting parts Stainless steel 304 / 316 can be accommodated

Model No.	IMM-MP-4	IMM-MP-5	IMM-MP-6
Chamber Size (Ø=Diameter X Width)	Ø200mm x 75mm	Ø250mm x 100mm	Ø300mm x 150mm
Pulverizer's RPM	4500 to 6000	4500 to 6000	4500 to 6000
Motor HP (Kw.)	2 Hp (1.5 Kw) or 3 Hp (2.2 Kw)	5Hp (3.7 Kw) or 7.5Hp (5.6 Kw)	7.5 Hp (5.6 Kw) or 10 Hp (7.5 Kw)
Fineness Range	----	2 to 100 B.S.S. Mesh	----

View Complete Details

Ask Latest Price & Details

Jacketed Mini Pulverizer

Driven Type Electric
Color Blue
Condition New
Power 6-9kw
Pressure High Pressure
Operating Type Semi Automatic
Machine Capacity 50-100kg/h
Phase Single Phase
Country of Origin India
Type Mini Pulverizer
Material Stainless Steel 304/316
Usage Grinding, Wet-Pulpy And Dry Grinding
Specialities Effective And Continuous Grinding, Compact Size, Dust Free Operation, One Number Cotton Balloon, Five Numbers Of Different Size Holes Screen For Getting Different Mesh Powders

Grinding is carried out in a cool atmospheric temperature, which guarantee against thermal degradation of product quality and flavors.
Effective and Continuous Grinding
Suitable for Wet-Pulpy and Dry Grinding
Compact Size
Dust Free operation. No wastage of product and no pollution hazards
One number cotton Balloon
Five numbers of different size holes screen for getting different mesh powders.

Extra Accessories of Jacketed Mini Pulverizer

Three meter suitable cable along with ampere meter & miniature circuit breaker & Suitable totally enclosed fan cooled three phase or Single Phase Squirrel cage motor Electricity (Special power can be accommodated): 220/380/415 Volts, 50/60 Hz, 1/3 Phase
All contacting parts Stainless steel 304 / 316 can be accommodated

Model No.	IMM-JMP-4S	IMM-JMP-5S	IMM-JMP-6S
Chamber Size (Ø= Diameter x Width)	Ø200mm x 75mm	Ø250mm x 100mm	Ø300mm x 150mm
Pulverizer RPM	4500 to 6000	4500 to 6000	4500 to 6000
Moter HP (Kw)	2 Hp (1.5 Kw) or 3 Hp (2.2 Kw)	5 Hp (3.7 Kw) or 7.5 Hp (5.6 Kw)	7.5 Hp (5.6 Kw) or 10 Hp (7.5 Kw)
Fineness Range	----	2 to 100 B.S.S. Mesh	----

View Complete Details

Ask Latest Price & Details

Double Stage Pulverizer

Material Mild Steel
Finishing Powder Coated
Color Blue
Condition New
Power 9-12kw
Pressure High Pressure
Operating Type Automatic
Certification ISO 9001:2008 Certified
Voltage 380V
Packaging Type Carton Box
Machine Capacity 180-300kg/h
Specialities Ruggedly Constructed, Durable, Easy To Use
Dimension (LxWxH) 450x230x295mm
Country of Origin India
Type Pulverizer

Standard Accessories of Double Stage pulverizer

One number cotton balloon
Five numbers of different size holes screen for getting different mesh powders

Extra accessories of double stage pulverizer

Three meter suitable cable along with ampere meter and miniature circuit breaker and suitable totally enclosedfan cooled three phase or single phase sq. cage motor electricity (special power can be accommodated):220/380/415 volts, 50/60 Hz, 1/3 phase
All contacting parts stainless steel 304 / 316 can be accommodated

Model No.	IMM-DSP-84	IMM-DSP-124	IMM-DSP-168
Chamber Size (Ø= Diameter x Width)	Ø200mm x 75mm	Ø300mm x 100mm	Ø400 mm x 200mm
Pulverizer RPM	4500 to 6000	4500 to 6000	4500 to 6000
Motor HP (Kw)	5 Hp (3.7 Kw)	7.5 Hp (5.6 Kw) or 10 Hp (7.5 Kw)	15 Hp (11.2 Kw)
Fineness Range	40-125 Mesh	----	----
