Industrial Controls & Drives (I) Pvt Ltd

Maduravoyal, Chennai, Tamil Nadu

Digital VAF meter Model No. VAF 9000 new approach to develop panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more.

features

• Microcontroller based design
• Replaces Volt Meter, Ammeter and Frequency Indicator in an electrical panel
• True RMS measurement
• LT / HT Application
• 3 row, 4 digit 0.5" 7 segment red LED
• Displays 12 parameters in a single instrument
• Parameter displayed includes R, Y, B, RY, YB, BR voltage, R, Y, B current and frequency
• Parameter selection through Front Panel Keypad
• Phase indication and parameter indication through LED
• +/-1% accuracy on reading for voltage and current
• +/-0.05% accuracy on reading for frequency
• Voltage Resolution 0.1V for LT, 0.01 KV for HT
• Current Resolution 0.1A up to 100A, 1A (more than 100A) Frequency (0.01HZ)
• Voltage input 100 - 520V AC line to line for LT and 30 - 140V AC line to line for HT
• Current Input: 5A / 1A AC
• PT/CT setting through keypad with password facility
• Auxiliary supply : 90 to 270V AC/DC
• Dimension 96 x 96 x 45 mm
• Poly Carbonate enclosure
• Panel Mounting

MFM 9500 is a new approach to energy management, integrating Control I/Os which enable process integration, breaker status detection, alarm output, basic demand control outputs and more, directly integrated within the meter. ICD has also developed matching advanced EMS applications for specific energy consumption in heat treatment, textile, cements, power and steel much more.

features

• True RMS measurement
• Simultaneous sampling of voltage and current
• Measures 4 quadrant power and 2 quadrant energy
• Digital calibration ensures drift free operation for long time
• Isolated RS485 with industry standard MODBUS-RTU protocol
• Ethernet module, PROFIBUS-DP module available as option
• Dual communication ports option
• Sealed dust proof poly-carbonate enclosure

MFM 9212 is a new approach to Energy Management Systems and Energy Billing Systems integrating Control I/Os which enable Process Integration, Breaker Status Detection, Alarm output, Basic Demand control outputs and more, directly integrated within the meter . ICD has also developed matching advanced EMS applications for Specific Energy Consumption in Panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more.

features

• User Programmable
• Simultaneous sampling of voltage and current
• Confirms IS14697 for Accuracy Class 1 and Class 0.5
• Direct reading without multiplication factor
• Accurate on Harmonic Conditions
• 10 year back up for integrated energy data
• Available in both LCD and LED Model
• Measures 4 quadrant power and 2 quadrant energy
• Run hour Indication
• Built in phase analyzer for proper connection
• Low PT, CT burden (Less than 0.2 VA)
• Digital Calibration ensures drift free operation for long time
• High reliability and user friendly to configure and operate
• Sealed dust proof Poly Carbonate Enclosure and Touch safe terminals

DC Energymeter Model No. DEM 9004F/9024F Which is a very useful product in computing the power generated through Solar Power System.This DC ENERGY METER shall read the energy produced through Solar Array, which is vital to arrive the efficiency as well as to calculate & ascertain the payback period of the system.

THE DC ENERGY METER IS CAPABLE TO READ DC VOLTAGE, DC CURRENT, KW, KWH.

Features

• Single DC Voltage Channel (DEM9004F)
• Two Isolated DC Voltage Channels (DEM9024F)
• Four DC Current Channels
• Current measurement through Shunt or Hall Sensors
• Power Supply for Hall Sensors Provided in the meter
• Micro controller based with precision ADC
• Programmable CT primary current individually for 4 channels
• Displays DC Voltage, Current, kW, kWh and Run hour
• Separate energy and run hour register provided for all the four channel
• Digital Calibration by software
• Energy & Run hour storage in EEPROM back up
• kWh range 999999.99 kWh
• Run hour range 9999.59 hours
• Password protected
• Quick & easy to install
• Sealed Dust proof enclosure suitable for Panel mounting

PCM 9505 is a new approach to Energy Management Systems and Energy Billing Systems integrating Control I/Os which enable Process Integration, Breaker Status Detection, Alarm output, Basic Demand control outputs and more, directly integrated within the meter . ICD has also developed matching advanced EMS applications for Specific Energy Consumption in Panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more.

features

• True RMS Measurement
• Simultaneous sampling of voltage and current
• Confirms IS14697 for Accuracy Class 1 and Class 0.5
• Direct reading without multiplication factor
• Accurate on Harmonic Conditions
• 10 year back up for integrated energy data
• Available in both LCD and LED Model
• Measures 4 quadrant power and 2 quadrant energy
• Run hour Indication
• Energy storage in EERAM with 10 years backup
• Built in phase analyzer for proper connection
• Low PT, CT burden (Less than 0.2 VA)
• Digital Calibration ensures drift free operation for long time
• High reliability and user friendly to configure and operate
• Sealed dust proof Poly Carbonate Enclosure
• Touch safe terminals
• Wide range of Auxiliary supply (90 to 270V AC or DC)

EM 9024 is a new approach in the Field of EB/DG Energy Measurement. Separate Energy and Run hour measurement is made for both EB/DG. Communication is provided for monitoring of data's through MODBUS RTU Protocol.

features

• True RMS measurement
• 3 or 2 Element measurement
• Confirms IS14697 for Accuracy Class 1
• Programmable PT/CT Primary
• Direct reading without multiplication factor
• Low PT, CT burden. (Less than 0.2 VA)
• Energy storage in EERAM
• Auto scaling from Kilo to Mega
• Reverse indication for proper connection
• Measures 4 quadrant power and records import energy
• Digital Calibration by software
• Quick & easy to install
• Replace 2 Nos. energy meter in the panel
• Only one potential free contact is required to differentiate
• EB/DG
• Displays kW, kWh & Run hour
• Separate kWh and Run hour registers are provided for EB/DG
• EB/DG selection displayed by LED
• kWh range 9999999.9 kWh(LT), 99999999kWh(HT)
• Run hour range 9999.59 hours

em 9005which is suitable for low cost applications that displays basic parameters like active power, active energy. meter measure 4 quadrant power and records import energy. remote data logging can also be made for communication with plc/dcs.

features

• true rms measurement
• 3 or 2 element measurement
• confirms is14697 for accuracy class 1
• pt / ct setting through dip switch
• direct reading without multiplication factor
• low pt, ct burden. (less than 0.2 va)
• energy storage in eeram
• auto scaling from kilo to mega
• reverse indication for proper connection
• measures 4 quadrant power and records import energy
• quick & easy to install
• displays kw & kwh
• kwh range 9999999.9 kwh (lt), 99999999 kwh (ht)
• kw / kwh selection through front panel key
• optically isolated solid state no contact pulse output for kwh
• remote data logging possible using plc/dcs

The ICD Power Matrix APM7500 is an advanced compact powerful power monitoring device suitable for applications where basic to advanced metering functions, Power quality monitoring, Data logging, IO controls and flexible communication options are required. The ICD Power Matrix can be used as a standalone meter or as part of an energy management system, Energy billing system, Building automation system and substation automation systems.

features

• Basic and advanced metering functions
• Energy monitoring for all 4 quadrants with multiple tariff
• Demand storage with date and time stamp
• Power quality monitoring
• Alarm feature for selected parameters
• I/O module option for breaker status monitoring and remote control
• Data logging feature
• Multiple choice of communication ports (Modbus, Ethernet, Profibus)
• Modular design and full graphical 160*160 pixel LCD display

SEM 9510is a new approach to Energy Billing Systems For Shopping malls, IT Parks and other Commercial Establishments . Majorly used as residential metering for house, colonies and apartments. Act as a major part in check metering and also for windmill ARR.

FEATURES

• State-of-the art SMD Technology
• Wide range of input voltage
• Whole current operation
• 5A and 10A Ib with 600% operating range
• Accuracy class 1.0 as per IS 13779, IEC 62053-21, CBIP88
• Accuracy class 0.5 as per IS14697, IEC 62053-22 (CT operated meters)
• Accurate under Harmonic conditions
• 6 Digit custom made LCD with backlit
• Simultaneous sampling of voltage and current
• Very low voltage and current burden
• Instantaneous start and records energy for low starting current (0.2% of Ib)
• Built in transient protection
• Higher meter constant for faster testing
• High quality poly carbonate enclosure with sealing arrangements

SEM 9514 is a new approach to Energy Billing Systems For Shopping malls, IT Parks and other Commercial Establishments . Majorly used as residential metering for house, colonies and apartments. Act as a major part in check metering and also for windmill ARR.

FEATURES

• State-of-the art SMD Technology
• Wide range of input voltage
• Whole current operation
• 10A and 20A Ib with 600% operating range
• Accuracy class 1.0 as per IS 13779, IEC 62053-21, CBIP88 (Whole Current Meters
• Accuracy class 0.5 as per IS14697, IEC 62053-22 (CT operated meters)
• Accurate under Harmonic conditions
• 8 Digit custom made LCD with backlit
• Simultaneous sampling of voltage and current
• Very low voltage and current burden
• Instantaneous start and records energy for low starting current (0.2% of Ib)
• Built in transient protection
• Higher meter constant for faster testing
• High quality poly carbonate enclosure with sealing arrangements
• Tamper indications for current reversal, phase sequence, magnetic tamper and cover open

ICD SPARTAN prepayment meter is designed with latest state of art technology. It offers high accuracy, reliability and alsoreal value for money. This instrument is most suitable for measuring all electrical parameters.

The measured informations are shown in 8 digit LCD. 3x4 matrix keypad is provided on the front panel of the meter toaccess the information easily and quickly. The front panel is provided with antiglare feature for improved readability.

The measurement parameters include voltage, current, kW, and Energy (KWh). The voltage, Current, Power and energyreadings are true R.M.S including harmonics. The power and energy measurement is done for the full four quadrants. Themeter computes and updates the parameters every second.

In the present power scenario, Revenue & Demand Side Management are crucial for electrical power distribution. Users should be guided towards the energy savings & awareness needed on their energy consumption. So system need revenue management with better cash flow, reduced / elimination of billing and payment process & metering with the facility of demand side management.

We offer energy meters. Features- * single dc voltage channel (dem9004f) * two isolated dc voltage channels (dem9024f) * four dc current channels * current measurement through shunt or hall sensors * power supply for hall sensors provided in the meter

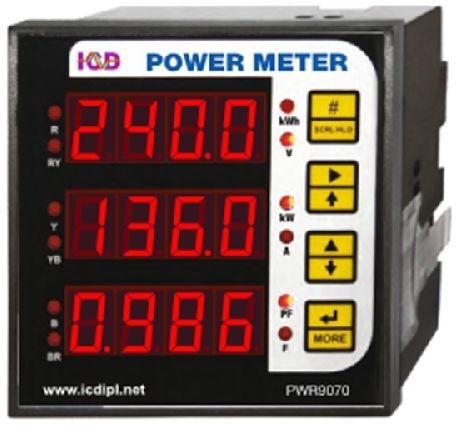

Energen Meters which displays Cummulative Active Energy, Three Phase Voltage, Three Phase Current and Frequency. Meters can be used for LT Applications.

features

• True RMS Measurement
• LT / HT Application
• 18 Digit .39 inch 7 Segment LED
• Confirms IS14697 for Accuracy Class 1 for energy
• Direct reading without multiplication factor
• Accurate on Harmonic Conditions
• 10 year back up for integrated energy data
• Parameter displayed includes R, Y, B, RY, YB, BR voltage, R, Y, B current, frequency, KW or kVA, kWh or kVAh
• Parameter selection through front Panel Keypad
• Phase indication and parameter indication through LED
• Accuracy : 1% on reading for voltage, current, kW or kVA , 0.05% on reading for frequency
• Resolution: Voltage 0.1V for LT, 0.01 KV for HT, Current 0.1A up to 100A, 1A (more than 100A) Frequency (0.01HZ)
• Voltage Input: 100 - 520V AC line to line for LT , 30 - 140V AC line to line for HT
• Current Input: 5A / 1A AC
• PT/CT setting through keypad with password facility
• Auxiliary supply : 90 to 270V AC/DC
• Dimension 96 x 96 x 45 mm
• Poly Carbonate enclosure
• Panel Mounting
