Cutting Machine

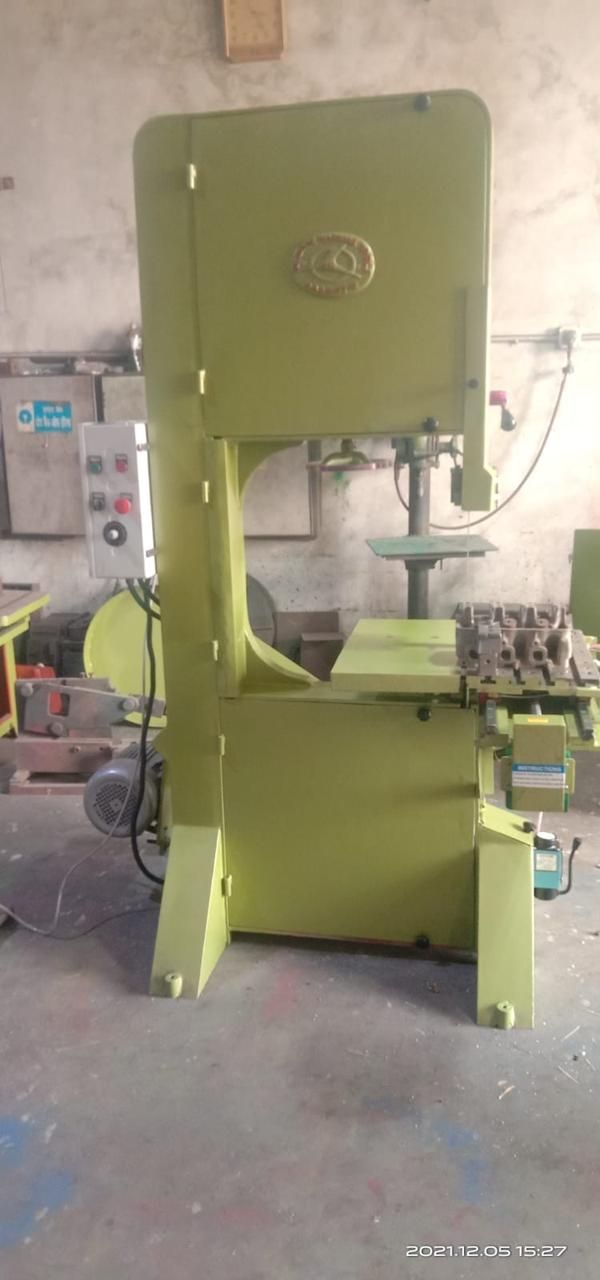

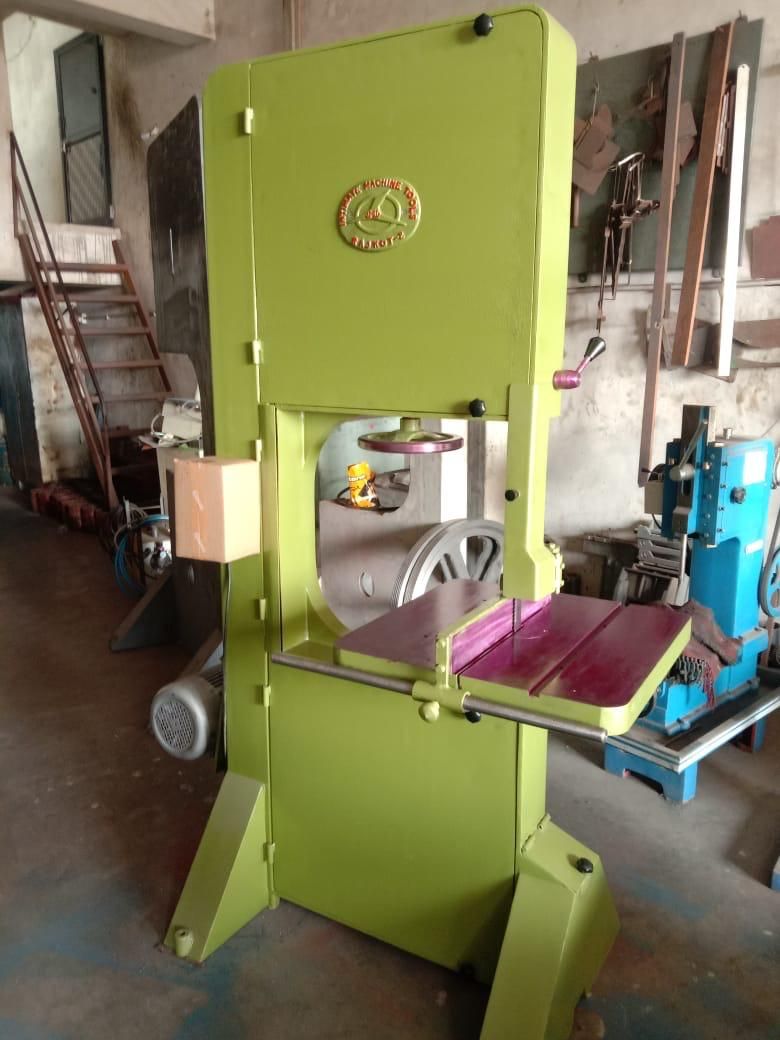

We are leaders in the market for providing best range of Motorised Frame Cutting Machine, CNC Plasma Cutting Machine, Laser Cutting Machine, Brass Cutting Band Saw Machine and Bandsaw Cutting Machine

Motorised Frame Cutting Machine

₹ 60,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece(s)
Certification ISO 9001:2008
Availability 100-1000kg
Packaging Type Blue
Country of Origin 220V
Automatic Grade Manual, Semi Automatic
Driven Type Electric
Brand Name Intimate
Brand Name Intimate Machine Tools

Additional Information:

Payment Terms : L/C, D/A, T/T, Western Union,

View Complete Details

Ask Latest Price & Details

Cnc Plasma Cutting Machine

₹ 7.50 Lakh - ₹ 15 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece(s)
Brand Name Intimate
Brand Name Intimate Machine Tools
Certification ISO 9001:2008
Weight 2000-4000kg
Color Red & Black
Voltage 440V
Rated Power 9-12kw
Automatic Grade Automatic
Warrenty 1 Year

CNC Plasma Cutting machines are widely used for cutting of stainless steel, Aluminum, Iron, Galvanized sheets, Titanium plate, MS. Plate for signs, architectural components, fabrication units etc.

Plasma Source – INTIMATE has selected the Hypertherm (U.S.A.) as our preferred plasma source. Hypertherm is the world leader in plasma cutting technology and has proven to be a consistent, reliable product for all levels of production demand.

Torch Height Control (THC) – The Torch height control system ensures that the cutting torch stays at the right height from the workpiece. THC helps to increase the life of consumables like nozzle and improves cutting quality.

Fume extraction bed – Plasma bed is fabricated by metal sheet specialized water system which is helpful to reduce fumes.

Additional Information:

Payment Terms : L/C, D/A, T/T, Western Union,

Technical Specification

Model No.	IPL 1325 – 45A	IPL 1325 – 85A
PROCESSING MATERIALS	Iron, Stainless steel plate, Aluminum, Galvanized sheet, Titanium plate, M.S. plate	Iron, Stainless steel plate, Aluminum, Galvanized sheet, Titanium plate, M.S. plate
PLASMA SOURCE	Powermax 45	Powermax 45
DRIVE SYSTEM	X,Y-axis – Rack & Pinion, Z-axis – Ball Screw	X,Y-axis – Rack & Pinion, Z-axis – Ball Screw
MAX. TRAVELING SPEED	20 m / min	20 m / min
CONTROL SYSTEM	7” display with resolution, Industrial ARM7 Processor chip, 2 axis controller, Storage capacity – 32 MB	7” display with resolution, Industrial ARM7 Processor chip, 2 axis controller, Storage capacity – 32 MB
OUTPUT POWER	20 TO 45 A	25 TO 85 A
TORCH HEIGHT CONTROLLER	THC system included for accurate torch height maintenance	THC system included for accurate torch height maintenance
INPUT VOLTAGE	3 Phase 420V AC, 50/60 Hz	3 Phase 420V AC, 50/60 Hz
AIR SYSTEM	Clean, Dry & Oil-Free	Clean, Dry & Oil-Free

Above Specifications are subject to change without prior notice.

Type of Material	Powermax 45	Powermax 45
	Piercing Capacity Max.	Edge Cutting Capacity
M.S.	9 mm	12mm
SS / Aluminum	9mm	3mm

Type of Material	Powermax 45	Powermax 45
	Piercing Capacity Max.	Edge Cutting Capacity
M.S.	20 mm	20mm
SS / Aluminum	16mm	3mm

Air Inlet	6 bar (189 Ipm)
Source Operating Temperature	10 c to 40 c
Straightness of cut Surface	The cut surface can be concave or convex

View Complete Details

Ask Latest Price & Details

Laser Cutting Machine

₹ 2.90 Lakh - ₹ 6.50 Lakh / Set Get Latest Price

Min. Order (MOQ) 1 Piece(s)
Material Mild Steel
Packaging Type Blue & White
Automatic Grade Automatic
Power Source Electric
Total Carbohydrate 1 Year
Usage Industrial
Brand Name INTIMATE MACHINE
Brand Name Intimate Machine Tools
Type Laser Cutting Machine
Weight 100-1000kg
Voltage 220V, 440V
Rated Power 1-3kw, 3-5kw, 5-7kw
Warrenty 1 Year
Application MDF, PVC, ACRYLIC & WOOD CUTTING

We are a leading Manufacturer, Exporter, Supplier, Retailer, Distributor, and Importer of the Intimate Machine Tools Laser Cutting Machine. Our automatic grade machine, powered by electricity, is designed for industrial use with a focus on cutting Mild Steel. The machine comes in a distinctive blue and white packaging and offers a total carbohydrate of 1 year. Trust in the Intimate brand for precision and efficiency in your laser cutting needs.

Additional Information:

Payment Terms : D/A, T/T, Western Union,

MODEL	ILE 32	ILE 43
X,Y Cutting Area	3’ X 2’ ( 918 X 610 mm)	4’ x 3’ ( 1220 x 918 mm)

Laser Power	100 W
Travelling Speed	O.1 to 400 mm/s
Reposition Accuracy	± 0.025 mm1
X,Y Movement System	Liner Guide Way
Z – Axis Movement	Manual
Power Adjustment	0.1 to 100 %
Maximum Cutting Thickness	Up to 25 mm Acrylic
Driving System	Stepper Motor
Operating System	Win XP, Win 7 32 bit
Interface	USB Interface
Supported Format	PLT, DXF, AI, BMP
Working Voltage	Single Phase 220V/50Hz ( Required Farthing)
Running Environment	45° C, Humidity 5% - 80%
Operating Display	Touch Panel
Memory Buffer	100 MB (Max. 33 Files)
