Invendis ET1300 DC, Class 1.0, 20 - 80V DC, 80 V, Non standard input, 3 R 3 DIGIT 0.56",

V, A, W, WH Programmable 50/60/75mV Input with 4 Currents and kWh channel wise

Range:

Voltage Range: 20-80 VDC or any other range on request.

Current Range: Through Shunt, 4 Independent Current Channels.

Shunt mV Rating: 50mV, 60mV or 75mV.

Range: 10% to 129% of Nominal

Accuracy:

Standard: Class 1.0 (+/- 0.5% of FS + 0.5% of Rdg + 1 digit)

Optional: Class 1.0 (+/- 0.25% of FS + 0.25% of Rdg + 1 digit)

Serial Port : RS-485 MODBUS RTU with data format confirming to

IEEE 754 for 32-bit-Float Point.

Ambient : Temp. 0-50 deg C, RH < 95% non-condensing

Mounting : Slide and Lock clamp

Warranty : 15 months from date of manufacture OR 12 months

from date of sale, whichever is earlier

eltrac et1300 dc, class 1.0, 20 - 80v dc, 80 v, non standard input, 3 r 3 digit 0.56", v, a, w, wh programmable 50/60/75mv input with 4 currents and kwh channel wise

kwh, 3 ph, cl.1.0, 415vac, 5a, counter type kwh, 96x96x52mm

configuration; 3 phase, 3 element, 1 phase or 3 phase nominal: 415v lt

input current: factory set

computation: true rms

temperature: 0-50 deg c

accuracy : (0.5% of fs + 0.5% of rdg + 1 digit)

0.2% for frequency

1.0% of fs for current

humidity:

ET0054 Single phase energy meter for Appliances, Class 1.0, Self Powered, 240 V, 1 Phase, 20A Internal CT, Any Other, Energy consumption meter, 1 row 4 digit 0.3" display , V, I, kW & kWh, Cl 1.0

Invendis ET2071 AC Basic, Class 1.0, 85 - 270V AC/DC, 415/110 V,

3 Phase, 5A, 3 R 3 DIGIT 0.56", V, A, Hz

Panel meter (96x96mm), for measuring voltage,

current and frequency,

5A secondary, CT primary programable

Configuration; 3 Phase, 3 Element, 3/4 wire

Nominal: 415v LT or 10v through PT

Input current: Factory set

Computation: True RMS for AC parameters

Isolation: 2000AC for one minute

Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition

Temperature: 0-50C

Humidity:

invendis et2081 ac basic, class 1.0, 85 - 270v ac/dc,

415/110 v, 3 phase, 5a, 3 r 3 digit 0.56",

v, a, hz, rpm, rhrs, alt & engine loading

panel meter (96x96mm), for measuring voltage, current and frequency,

5a secondary, ct primary programable, with run hour and prm, for genset (dg)application

configuration; 3 phase, 3 element, 3/4 wire

nominal: 415v lt or 10v through pt

input current: factory set

computation: true rms for ac parameters

isolation: 2000ac for one minute

safety: measurement category iii, pollution degree 2 as per en61010-1 first edition

temperature: 0-50c

humidity:

Invendis ET1113 DC, Class 1.0, 0 - 500V DC, 50/60/75 mV, 1 R 3 DIGIT O.56", Amps

DC voltmeter 0-500 VDC (96x96mm)

Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code)

Input V Nominal : 415 V LT or 110 V through PT (line to line)

Computation : True RMS for all Power & Energy Parameters

Accuracy : (0.5% of FS + 0.5% of Rdg + 1 digit)

0.2% for Frequency

1.0% of FS for Current

Isolation : 2000 V AC for one minute

Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition

Frequency : 0.1 Hz

Power : autoscaling depending on input

Power Factor : 0.01

Energy : 1 kWH upto 866 kW

10 kWH above 866 kW

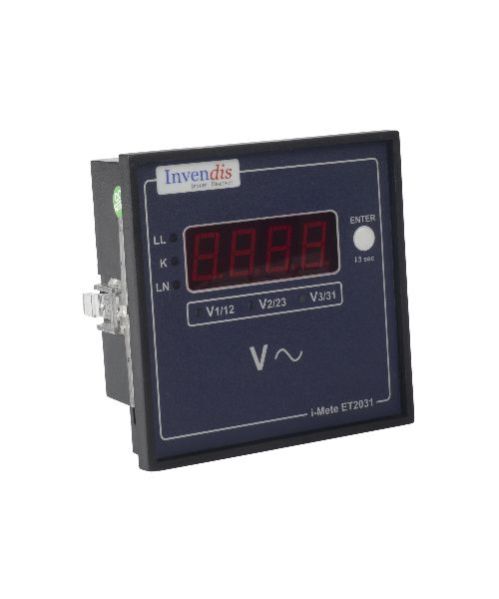

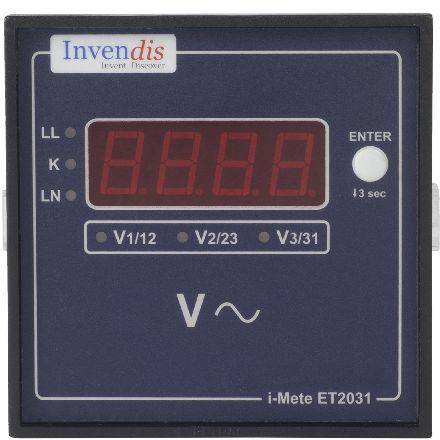

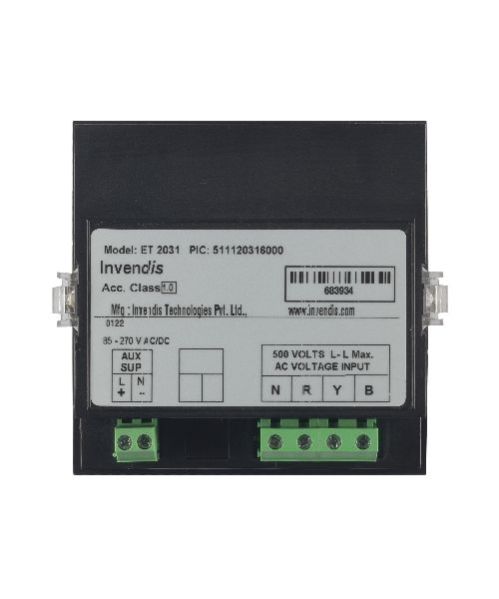

invendis et2031 ac basic, class 1.0, self powered from any phase, 415 v, 1 r 4 digit 0.56", relay output3 phase v, 3 relay out - best phase selector

configuration : 1/3 phase, 3 element; 3 / 4 wire (note order code)

input v nominal : 415 v lt or 110 v through pt (line to line)

computation : true rms for all power & energy parameters

accuracy : (0.5% of fs + 0.5% of rdg + 1 digit)

0.2% for frequency

1.0% of fs for current

isolation : 2000 v ac for one minute

safety : measurement category iii, pollution degree 2 as per en61010-1 first edition

frequency : 0.1 hz

power : autoscaling depending on input

power factor : 0.01

energy : 1 kwh upto 866 kw

10 kwh above 866 kw

Invendis ET1121 DC, Class 1.0, Self Powered, Non Standard, Non standard input, Any Other, DC Genset Battery monitor, 8-35, V 20 A Internal Shunt

Computation: True RMS for AC parameters

Isolation: 2000AC for one minute

Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition

Temperature: 0-50C

Humidity:

Invendis ET4031 P & E with Serial Communication, Class 0.5, 85 - 270V AC/DC, 415 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", Dual MeteringkW, kWh Eb, kWh Dg, Protocol Maodbus as per Scnider Register Mapping (obsolete)

Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code)

Input V Nominal : 415 V LT or 110 V through PT (line to line)

Computation : True RMS for all Power & Energy Parameters

Accuracy : (0.5% of FS + 0.5% of Rdg + 1 digit)

0.2% for Frequency

1.0% of FS for Current

Isolation : 2000 V AC for one minute

Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition

Frequency : 0.1 Hz

Power : autoscaling depending on input

Power Factor : 0.01

Energy : 1 kWH upto 866 kW

10 kWH above 866 kW

Invendis ET2033 AC Basic, Class 1.0, 85 - 270V AC/DC, 3 Phase with external CT, 1 R 4 DIGIT 0.56", A

Configuration; 3 Phase, 3 Element, 3/4 wire

Nominal: 415v LT or 10v through PT

Input current: Factory set

Computation: True RMS for AC parameters

Isolation: 2000AC for one minute

Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition

Temperature: 0-50C

Humidity:

Invendis ET1111 DC, Class 1.0, 0 - 100V DC, 80 V, 1 R 3 DIGIT O.56", V DC, Aux supply 0 - 100 V DC

Computation: True RMS for AC parameters

Isolation: 2000AC for one minute

Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition

Temperature: 0-50C

Humidity:

Invendis ET2921 AC Basic, Class 1.0, Self Powered, 415 V, Non standard input, Any Other, Volt & Ammeter, 300 V, 0-50 A Max, 2 row 3 digit

Computation: True RMS for AC parameters

Isolation: 2000AC for one minute

Safety: Measurement category III, Pollution Degree 2 as per EN61010-1 First Edition

Temperature: 0-50C

Humidity:

Invendis ET8000 GENSET CONTROLLERS, Class 1.0, Any Other, 415 V, 3 Phase, 5A, LCD 16X2 ROW, Any OtherAuto Transfer module with remote Start/Stop, AC metering, Digital I/O Auto transfer switch for Genset (DG), (96x96mm)

Overall Dimensions: 96 x 96 x 52 mm Mounting Hole: 92 x 92 mm. Mounted IP rating: IP 52 frontIP20 rear Supply Voltage & Current: 8 V to 30 V DC. Nominal 12/24 V Automotive / Nominal 50mA General protection: Reverse voltage120V load dump Input reference: 0V DC/Common Mains Voltage Input Range: 60-300 Volts RMS. Short duration overload capability 350V Generator Voltage Input Range: 60-300 Volts RMS Short duration overload capability 350V Mains Under/Over Frequency: Under Frequency = 40HzOver Frequency =70 Hz Output OP1 to OP5: Relay Coil Driver Open drain current limited 30V 300mA Generator Under/Over Frequency: Under Frequency = 40HzOver Frequency =70 Hz Output protection: Short circuitreverse voltageload dumpinductive relay currents Set-up and Adjustment: Menu buttons and LCD or by PC with cloning software. Terminations: Amp DUAC / Molex Mini Fit JNR Operating / Storage Temperature: -10 to +70C / -20 to +70C

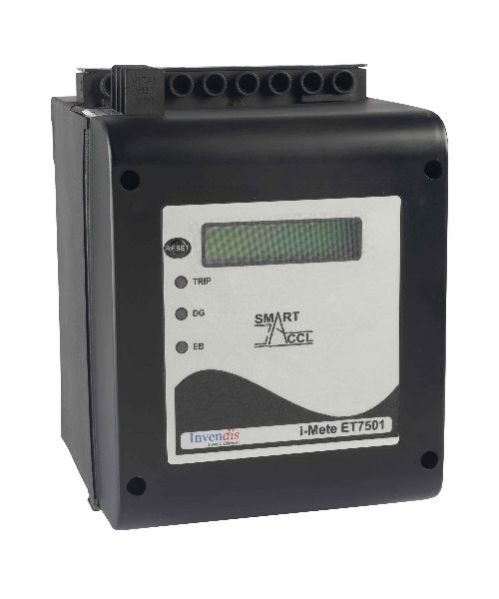

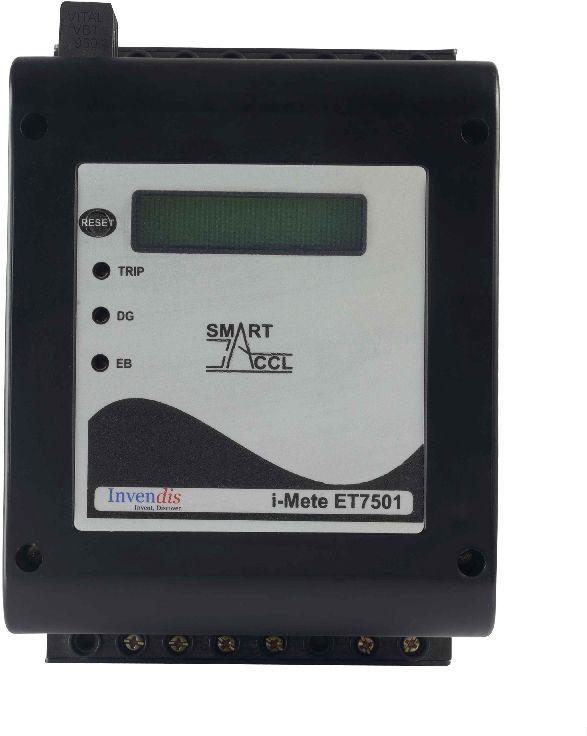

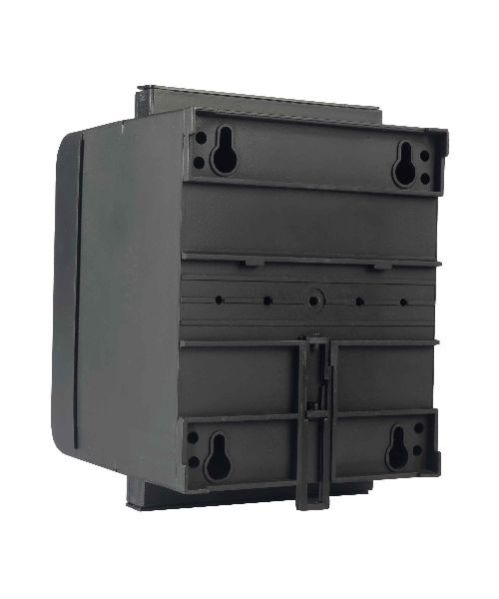

Invendis ET7501 Special Meters, Class 1.0, Self Powered, 240 V, Non standard input, LCD 16X2 ROW, Any OtherACCL with DG kWh , Interuptions , and Under/Over Voltage on EB , 25-25A

Service Type : Single PhaseThree Phase Four Power :From L1 to N Wire. 0.5 Watts; Voltage Channels :85-270 Volts ACCurrent Channels :0-100 Amps External depending on Measurement Type: True RMS using high-speed digital Line Frequency: 50 and 60Hz Waveform Sampling :13 kHz voltage and current Measurements: AmpskWh Accuracy: Better Than 1% Resolution Voltage : 1 V; Current : 0.1 Amp; kWkVAR : 0.1; PF : 0.01; kWH : 1 kWH Indicators: LCD and LED for Power On and Communication indication COMMUNICATION SPECIFICATIONS Direct: Modbus over RS-485 Modbus Framing RTU (binary) Communication Rate :9600 baud Data Bits: 8 Parity: None Stop Bit :1 Protocol Modbus Protocol MECHANICAL SPECIFICATIONS Operating Temperature: -7 to +60C (-20 to +140F) Humidity: 5% to 95% non-condensing Enclosure: Bare PCB Coated for Enviormental protection Weight (exclusive of CTs): Without Enclosure: Max 1000 g BCM 9 /18 Channel : 155 (L) x 108 H /170 (L) x 108 H Ct card containing 9 CTs :260 * 72MM Mounting: DIN RaiL CONNECTION BCPM CT connectivity: 20 PIN FRC Cable Voltage :1.5 Sq Round Pin Connectivity Micro- Controlled Based Devices for high precisionsmart decisions LCD Display for Electrical Parameters. Single Phase/Three Phase: 25A32A63A. Automatic selection for the Right supply & EB Voltage Limit Monitoring. Switching of power source based on the user set Under/Over Current levels on DG auto cut off. Also Configuration based on KW available (Optional)l RS 485 serial communication for summator-GPRS Alerts or BMS Integrator. Energy computation for EB / DG ( VIKW etc are available on R 485 Communication Port) Energy Readings backup on EPROM 5 times load Alert before total disconnection. (User Programmable through Port) Wide input voltage range - SMPS Based. LED Status Indication for MainsLoadGenerator & Over Load trip. Option for Base Mount or DIN Rail Mount. Dimensions: 155 X 200 X 150 mm

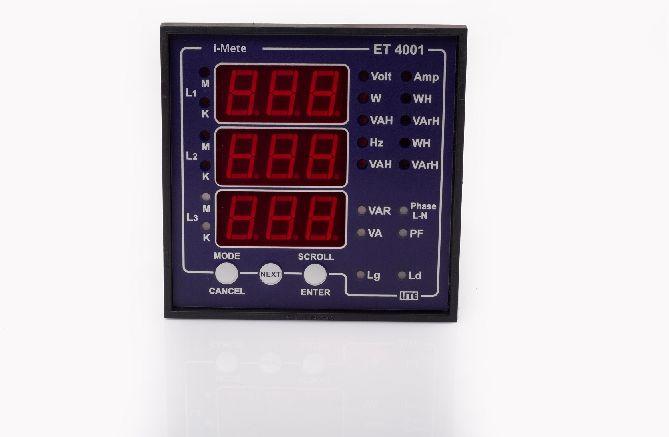

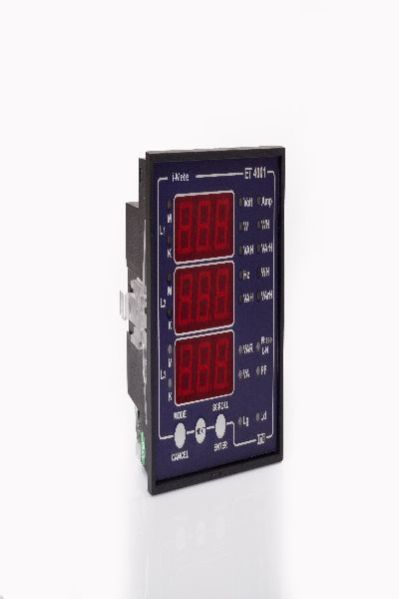

Invendis ET4001 P & E with Serial Communication, Class 1.0, 85 - 270V AC/DC, 415/110 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", V, A, KW, Hz, PF, KVA, kWh, Load Hrs V(LL), Amps, Hz, W, VA, VAR, PF, kWh, kVAh, kVARh, RS485, LED display

Configuration : 1/3 Phase3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line) Computation : True RMS for all Power & Energy Parameters Accuracy : (0.5% of FS + 0.5% of Rdg + 1 digit) 0.2% for Frequency 1.0% of FS for Current Isolation : 2000 V AC for one minute Safety : Measurement Category IIIPollution Degree 2 as per EN61010-1 First Edition Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

Invendis ET 5001 Multi-function meter for power distribution panels Serial communication for data logger interface. Optional BACnet port and measurement of Max. Demand and THD of the system. Voltage, current, frequency, power, and energy of the linked electrical load Suitable for 1Ph- 2Wire / 3P 3 wire -3P 4 wire system. Can sense current from external CT (configurable) Supports 20A

Usage : Electrical distribution panel to manage power distribution. Find application in Energy Management with analysis considering Maximum Demand, THD and its effects. Sub metering and can be used for billing tenants. Centralised Power management when interfaced with SCADA / Dataloggers

Technical Specifications Configuration: 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code) Input V Nominal: 415 V LT or 110 V through PT (line to line) Input I Nominal: 5 A or 1 A through CT Computation: True RMS for all Power & Energy Parameters Supports Demand computation and captures Max Demand. Accuracy: -- (0.5% of FS + 0.5% of Rdg + 1 digit) -- 0.2% for Frequency -- 1.0% of FS for Current Isolation: 2000 V AC for one minute Safety: Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition Frequency: 0.1 Hz Power: autoscaling depending on input Power Factor: 0.01 Aux Supply: 85 - 270 V AC or DC Energy: Increments 1 kWH upto 866 kW and 10 kWH above 866 kW RS485 / BACnet Interface for external system interfacing. Dimension: 96 x 96 mm (Bezel), x 52 mm Mounting: Slide and Lock clamp Ambient: Temp. 0-50 deg C, RH < 95% non-condensing
