Aerospace Equipment

We are leaders in the market for providing best range of Bharath Smart Flight Controller

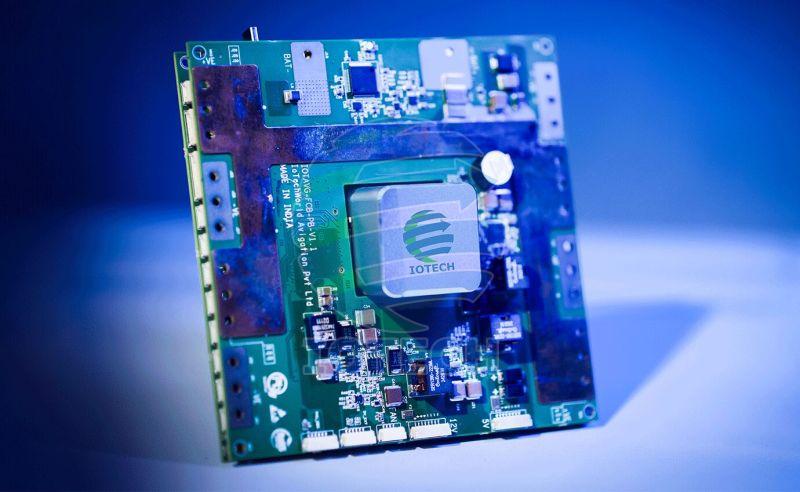

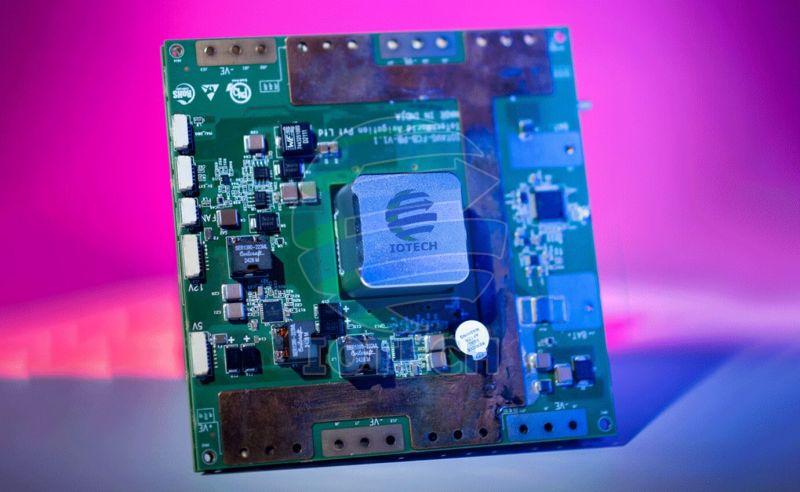

Bharath Smart Flight Controller

Min. Order (MOQ) 1 Piece
Power Source Electric
Country of Origin India
Brand Name Bharath
Model Number IBFC-14S
Input Voltage 21.6V – 58.8V
Current Range 0-200A
Servo Output 14
Receiver Protocol SBUS/PWM/DSM
Operating Temperature -10°C~+100°C
USB 1 (type-c)
Size 140 x 140 mm
Weight 534 g
Firmware ArduCopter 4.0.0 or above
Screw Hole Core M2.5 Other M3
CAN Bus 4 (CAN 5V: 2, CAN 12V: 2)
RSSI 3.3V Analog Voltage
USB Input 4.75V~5.25V
Servo Rail Input 0~10V
Support Multiple RC Inputs SBUS/PPM/DSM
14 PWM Outputs 12 Supports Dshot
Usage Power Distribution And Protection For Drones
Features Advanced Electronic Circuitry For Efficient Power Delivery And Reliable Operation
Compatibility Drones

“Smart Flight Controller” (BHARATH SFC), offers exceptional power distribution and protection. Our SFCs are equipped with advanced electronic circuitry to ensure efficient power delivery and reliable operation.

Whether powering your drone’s flight systems or ensuring the dependable performance of onboard equipment, our SFCs form the backbone of drone’s capabilities.

Supports 6S-14S LiPo batteries & up to 200A current.
Integrated battery monitor & compatibility with AIML modules (Jetson Nano/Xavier NX).
Versatile connectivity options, including 4G/5G capability.
Compatible with PX4 & ArduPilot for flexible software options. (Flight-Controller)

Additional Information

Enhanced Power Distribution

Efficient allocation of power to all components.

Reliable Operation

Stable and consistent power supply for optimal performance.

Safety Features

Protection against overcurrent and voltage surges to safeguard electronics.

Modular Design

Flexible and customizable to fit different drone configurations.

Compact Size

Lightweight and space-saving for improved flight efficiency.

Purpose: A critical component in drone systems that distributes power from the battery to various electronic components.
