Faccin SPA

Visano, Italy

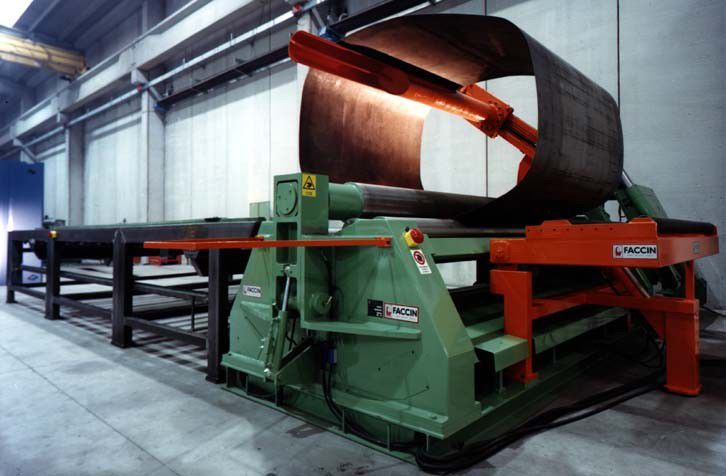

Four roll plate bending machines are considered to be the most versatile, precise and easy to use plate roll.The rear lateral roll, opposite to the feeding side, can be used as a back gauge for immediate plate squaring, resulting in very easy plate alignment and one man operation.After the plate is squared, it is always securely clamped between the top and bottom central pinch rolls, therefore pre-bending and rolling operations are safe and precise without the risk of the plate slipping.The pre-bending operation does not require the plate to tilt below the feeding level (as with traditional 3 roll machines), therefore horizontal motorized roller tables can be used to further improve the Introduction of the plate between the rolls.The cylinder can be rolled to the diameter needed, immediately after the pre-bending of the leading edge.This means that the machine needs less valuable workshop space, as an area for plate feeding is on one side of the machine only.The bending of the trailing edge is carried out after the cylinder is rolled. Basically, cylinders can be rolled in one pass, in one direction.Cone rolling is much easier, the side rolls are tilted to determine the cone angle and the central lower roll can also be tilted to clamp and drive the plate.Because of the guaranteed clamping and driving of the plate during all phases of the rolling process, the four roll machine is the only plate rolling technology that can be controlled effectively through NC and CNC systems.The perfect machine for plate up to 150mm thickness.

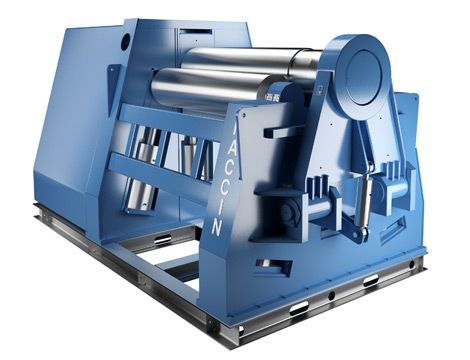

Specialist in the design, manufacturing and sale of bending rolls, faccin offers the widest range of bending machines available on the international market. Faccin bending rolls, suitable for bending plates in a variety of thicknesses, are technologically advanced products capable of bending varyingly thin or thick plates offering maximum precision, high productivity and long term reliability. With the aim to best satisfy every application requirement, faccin produces and sells various types of plate bending machines. The range includes three models suitable for bending thin plates: hcu, 2-roll bending roll with high speed and very high productivity, the asi 3-roll initial pinch bending roll and model 3hel, electronic 3-roll pyramid bending roll with double pinch. For rolling thicker plates, faccin produces and offers two different models: 4hel, a 4-roll pyramid electronic bending roll, and hav, a 3-roll variable geometry bending roll.

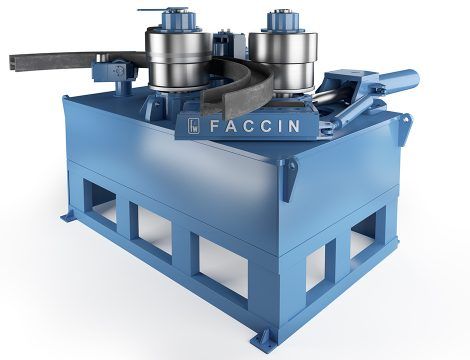

Faccin srl designs, manufactures and supplies a range of profile bending machines designed to support extreme rolling performance. Faccins angle rolls are technologically advanced, reliable and precise machines able to assure excellent bending quality and maximum productivity over time. Faccins roll bending machines are suitable for bending steel, stainless steel and aluminium profiles and beams of various shapes and sizes. With the aim to efficiently satisfy the most diverse processing requirements, faccin constructs and markets various types of angle rolls. The range includes two high performance models: rcmi, double pinch angle rolls with special modular roll system, is specifically designed for bending profiles with high flexion strength modulustaurus is the variable geometry angle roll suitable for bending aluminium profiles and for heavy metal fabrication work

Specialist in the design, manufacturing and sale of bending rolls, faccin offers the widest range of bending machines available on the international market. Faccin bending rolls, suitable for bending plates in a variety of thicknesses, are technologically advanced products capable of bending varyingly thin or thick plates offering maximum precision, high productivity and long term reliability. With the aim to best satisfy every application requirement, faccin produces and sells various types of plate bending machines. The range includes three models suitable for bending thin plates: hcu, 2-roll bending roll with high speed and very high productivity, the asi 3-roll initial pinch bending roll and model 3hel, electronic 3-roll pyramid bending roll with double pinch. For rolling thicker plates, faccin produces and offers two different models: 4hel, a 4-roll pyramid electronic bending roll, and hav, a 3-roll variable geometry bending roll.

A unique choice of plate rolls offers state of the art solutions to the most demanding problems associated with plate rolling.For light plates initial pinch machines are available: series ASI or the HCU models with urethane rolls for high production.For heavier thickness the range includes the traditional three-roll machine, the three-roll machine with variable axis design and also the world famous 4HEL four-roll series.Ships frame roll presses and special machines complete the full range of machines to roll plates with thicknesses varying from less than 1mm to over 250mm with useful working lengths exceeding 18 meters.
