Isoltech srl

Verdellino, Italy

innovative technology to produce cellular concrete. It's an innovative technology based on the concept of using only recycled aggregates, with no consumption of natural resources. The basic ingredients are a powerful foaming agent, of new generation, called Isocem S X, and a fluidizing additive, and effectively dosed, in balance with the other basic components. Isoltech made a patent application for this technology. Taking full advantage of the resources that the modern technology of building chemicals provides, you can get in addition to the savings, the maximum mechanical performance obtainable today.

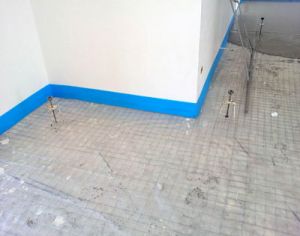

We are offering bilayer screeds. In bilayer screed, cellular concrete is used especially as insulating underlayer. As lightweight screed is used as trimming at pipes level as support of traditional screed, it reduces thickness and weight of. Lightweight concrete improves a lot the acoustic damping of noise, due to its discontinuous structure. Monolayer screeds monolayer screed is realized with cellular concrete at medium density (with sand) and it is possible to glue directly pavement on it. Cellular screed can have a density from 1000 to 1300 kgm3.

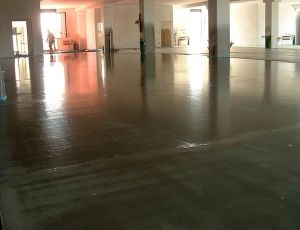

We are offering self-leveling cellular concrete screed . Increment d 1300 technology is a revolutionary innovation in the screeds branch because it permits to have durable, reliable, lightweight, thermal and acoustic insulating screeds. Increment d 1300 allows also important savings of material and labour. Increment d 1300 can be posed through the plant for cellular concrete ibs-s or the machine fluocem. increment d 1300 is an isoltech technology for the production of self-leveling, monolayer with floating, cellular concrete screed at medium density, suitable to receive a glued pavement. for the self-leveling screed realization, in addition to the protein foaming agent for cellular concrete isocem sb, it is necessary to use additives increment n and increment l.

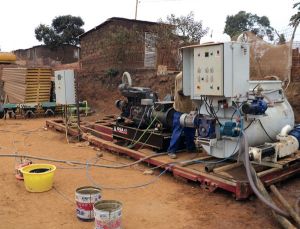

Cast in situ can be produced with the plant for cellular concrete IBS-S and Fluocem. This construction system consists in arranging a vertical mould of every type, for all or just a part of the construction to realize, including the internal sections. Cellular concrete panels are placed according to needs and dimensions: they can be cut or customized and blocked by the normal hardware of wood mould panels. Particularly productive is to use as mould the insulating panels as for example wood fibers or expanded polystyrene or polyurethane and leaving the insulating panels in situ to realize constructions with high thermal insulation value. It is possible to use both ISOCEM SB and ISOCEM SX, with the addition of a specific additive for vertical casts, Increment GV. In the mould, produced in this way, is located the arc-welded double net which supports the electric and hydraulic systems. All the technical installations have to be arranged before casting.

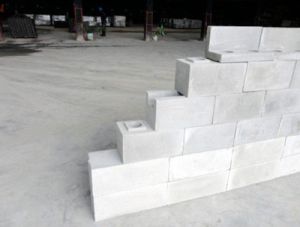

We are offering seismic 3c blocks. Isoltech’s 3c blocks: for a faster, cleaner and more precise assembly. Once the first line of blocks is levelled, they can be mounted dry, with no need for any further system to keep the wall plumb: this job is done by the mf (malefemale) joint of 3c blocks, offering many advantages: 1) lower use of plaster, as blocks are perfectly aligned and no surface corrections are needed; 2) lower use of glues (which are only needed on the vertical faces of blocks); 3) extraordinary savings on skilled labour and of course time; 4) no need for bearing pillars (in buildings up to 3 floors); 5) the male-female shape (of “mf” blocks) allows the mounting of dry walls. And after, a liquid mortar with sand and cement is poured into the columns made by the vertical holes of overlapping blocks. Inserting iron reinforcement bars (with “u”-blocks) allows the building of anti-seismic walls; also, slabs can be reinforced (with “l”-blocks) thanks to the special joint of these blocks for spandrel beams. 6) blocks can be easily cut with a conventional saw; 7) there are also the following special pieces: raceway block for vaults – perforated blocks for vertical structures. The different components of the isoltech system and the housings for iron reinforcement bars, both vertical and horizontal. In the tests performed at the university of bergamo, isoltech blocks exceeded expectations. 3c blocks have continuous cylindrical cavities and this feature gives them particular anti-seismic properties. thanks to these cavities (and to u-blocks with a duct for horizontal reinforcement bars, see pictures 2 and 3), the whole structure of the walls can be reinforced with iron both horizontally and vertically. Also, as the mechanical resistance of the reinforced wall relies on these cylindrical columns filled with iron and mortar, the density of blocks made of non-autoclaved cellular concrete can be very low.

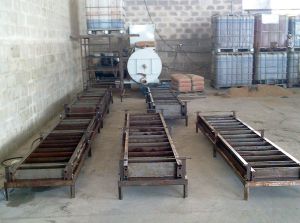

TECHNOLOGY FOR MASONRY BLOCKS Manual Plant to produce Cellular Concrete Blocks The manual plant to produce cellular concrete blocks consists simply of the machine IBS 2008 and manual moulds with knives. The production process or its use does not release any harmful effluents to the environment. This is also an alternative to plywood partitions and thus control deforestation. CLC blocks are also know as Foam concrete blocks. We provide turnkey solutions for manufacture CLC blocks. With manufacturing CLC block equipments, we are providing installations and training to staff of the clients.

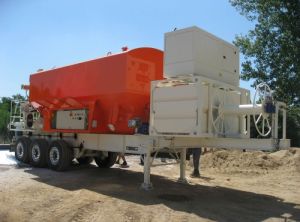

We are offering cellular lightweight concrete mixer. c2002 a cellular lightweight concrete mixer for screeds and insulation: mixing and pumping with heavyweight performances. C2002 is equipped with an internal current generator, a self-diagnosis tool connected to a sim card and a modem in the electrical panel. C2002 guarantees not only full autonomy in the construction site, but also a completely safe job, with real-time technical assistance. Thanks to its generous size, with loads up to 28 t of cement and 3000 liters of water and an accurate design for a perfect functionality, the plant for the production of cellular lightweight concrete c2002 offers excellent productivity in the mixing and pumping of cellular concrete, with a continuous output of 35 m3h. the system can be assembled on a 4-axle tractor or on a semitrailer. Silo capacity 280 quintals water capacity 3000 l foaming agent capacity 200 l set of pipes 70 m coiler electric output 35 m3h piston compressor 10 hp

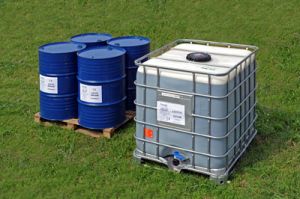

We are offering protein foaming agent for cellular concrete. Isocem sb is a protein foaming agent for cellular concrete made up of hydrolyzed proteins, which form a highly stable foam; isocem sb is used in all medium density mixes of cellular concrete with sand, from 600 to 1200 kgm3, where it is important to reach the best mechanical strength, for the production of cellular concrete blocks. Technical features isocem sb, protein foaming agent for the production of foam concrete, is used in percentage of 3% and it is suitable for applications such as lightweight blocks, cast in situ, prefabricated panels. Foaming agent is sold in tanks of 1100 kg or barrels of 230 kg.

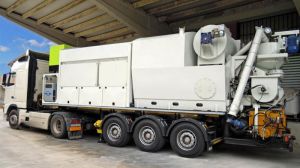

We are offering produce fluid screed automatic machine. Fluocem: automatic machine to produce fluid screed “fluoplan”. Fluocem is an automatic machine that can produce: 1- fluoplan®, our patented system to produce fluid screed of sand and cement; 2- cellular concrete without sand; 3- cellular concrete with sand at medium density. The plant in question is the only one on the market able to produce and pump, through three different programs to be selected on the switchboard. technical features fluocem is equipped with: • tank for sand of13 m3; • cement silos with 2 extraction cochleas; • central conveyor; • tank for additve fluoplan p (powder) ; • tank for additivefluoplan l (liquid); • tank for foaming agent isocem sb; • foam generator; • air compressor; • delivery pump. Dimensions lunghezza: length: 9 m width: 2, 5 m weight without trailer: 10 tons fluocem is built following ce rules production 78 m3h of fluoplan; 78 m3h of increment d 1300 (medium density screed); 1518 m3h of cellular concrete density 300600 kgm3 services fluocem is equipped with hydraulic power unit of 40 kw for hydraulic engines . It has also a current generation, extra power (40kw). It is assembled on a trailer, type zorzi, (excluded from the offer)

We are offering fixed plant for the production of cellular concrete with sand. ibs 2008: fixed plant for the production of cellular concrete with sand. The foam, produced by its specific generator, is conveyed through pipes to the mixer, where it is mixed with the mixture of concrete. Mixed cellular concrete is brought to a mould through a discharge pipe or a pump. The system produces automatically cellular concrete according to the density predetermined. The cellular concrete mixer ibs 2008 is a medium-sized system with manual feeding (which can be made automatic). Ibs 2008 is specifically designed to produce cellular concrete with sand of medium density and it is ideal to produce foam concrete blocks thanks its output between 7 and 10 m3h. Ibs 2008 capacity is 950 l and it is supplied with a horizontal mixing blade, foam generator, a water pump with timer for a constant output, a 300 l extra tank, an electrical panel and a 4 hp air compressor. automation for ibs 2008 the level of automation of ibs 2008 can be partial or total, as it is possible to create an automatic supply of raw materials around it, for an industrial production with no need of assistance from specialized staff or long adjusting before every batch. In this configuration ibs 2008 becomes the heart of the production in a more complex, automatic system, as in the picture below.ibs 2008 machine can be equipped of others accessories, as the loading bucket (ibs-s) to realize fluoplan, increment d 1300 or casts in situ.
