Our Products

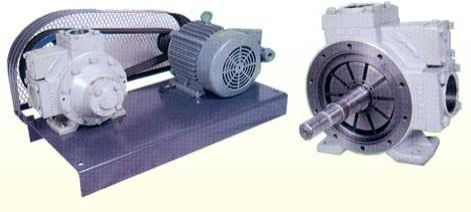

We are leaders in the market for providing best range of LPG Pumps
We offer technically sound LPG Pumps that are highly appreciated in the national as well as international markets. Today, we have carved a niche as one of the key Liquefied Petroleum Gas Pumps Manufacturers and exporters. Use of advanced technology parts in LPG Transfer Pumps ensures excellent results. To meet the different demands of the clients, our LPG Transfer Pumps are available in a variety of horsepower and capacity ranges. Low power consuming property of our LPG Transfer Pumps makes them preferred choice among small as well as big scale industries.
| SPECIFICATION | GEGP-2000 | PARTS | |
|---|---|---|---|
| Input flangs(option) | 2 'o'" (3") | CASE,COVER | SPECIAL STEEL |
| ouput flangs(option) | 2" (3") | ROTOR CAM | |
| Maximum rpm | 950 | BEARING CAP SIDE PLATE | |
| Maximum rpm | 420 | SHAFT | STEEL |
| Maximum temperature | 107 E | VANE | SPECIAL CARBON |
| Minimum temperature | -32 E | RELIEF VALVE | STEEL |
| Maximum working pressure | 28.6 kg/S2 | BEARING | CYLINDER ROLLER |
| Maximum differential pressure | 8.6 kg/S2 | '0' RING | VITON |
| HORSE POWER | PPM | MAX.CAPACITY |
|---|---|---|
| 7.5 | 950 | 375 Liters/min |
| 5 | 780 | 300 Liters/min |
| 5 | 640 | 240 Liters/min |
| 5 | 520 | 200 Liters/min |
