Jayani Technologies LLP

Shilphata, Mumbai, Maharashtra

Our Portable 16A Scalable Charger work on mode 2 with Type 1 Vehicle Plugs. Whether you are at home or at the workplace, you can charge your vehicle. Portable Charging cable with type-2 ( IEC 62196-2 ) comply plug suitable for single phase 16amp chargin

Our Portable 16A Scalable Charger work on mode 2 with Type 2 Vehicle Plugs. Whether you are at home or at the workplace, you can charge your vehicle. Portable Charging cable with type-2 ( IEC 62196-2 ) comply plug suitable for single phase 16amp charging.

Type 2 (IEC 62196-2) Vehicle Inlet (Electric Vehicle End) 4 Point Fixing for Electric Vehicle Charging Parameters

JT Single Phase 32Amp Type 1 Female Inlet Socket for Electric Vehicles Car Charger SAE J1772 32A

Type1 ev socket single Phase 32Amp for charging station and electrical vehicle charging port comply toSAE J1772 32A

JT AC EV Charging Station 32 Amp 3 Phase 22kw Type 2 with wifi, ISO 17409 and IEC 61851, IP66, CE

JT Mobility charging station is India's first intelligent wifi enable and mobile app-based Charging Station. The perfect solution for the charging needs of electric vehicles in residential societies, offices, malls, restaurants, shops, and petrol pumps. Charging station owners can utilize our analytical interface to track units charged including the earned amount of payment.

Our Charging station Incorporating Type 2 (EN62196) sockets and Mode 3 (IEC 61851) communication module with locking mechanism, our unit is ready for all electric vehicles on the market and those coming soon. FUTURE PROOF NOW - Standard charge single phase 230V 7.2kW (32A) & Fast charge 440V 22kW (32A) 3 phase charging.

It is easy to install, stable in performance, and has a complete protection mechanism. The APP could show current, consumption and other detailed charging parameters. Also, those parameters could be set through the APP before charging. Automatic upgrade program could always keep latest version. The charger can be used with stand.

JT Mobility charging station is India's first intelligent wifi enable and mobile app-based Charging Station. The perfect solution for the charging needs of electric vehicles in residential societies, offices, malls, restaurants, shops, and petrol pumps. Charging station owners can utilize our analytical interface to track units charged including the earned amount of payment.

Our Charging station Incorporating Type 2 (EN62196) sockets and Mode 3 (IEC 61851) communication module with locking mechanism, our unit is ready for all electric vehicles on the market and those coming soon. FUTURE PROOF NOW - Standard charge single phase 230V 7.2kW (32A) & Fast charge 440V 22kW (32A) 3 phase charging.

It is easy to install, stable in performance, and has a complete protection mechanism. The APP could show current, consumption and other detailed charging parameters. Also, those parameters could be set through the APP before charging. Automatic upgrade program could always keep latest version. The charger can be used with stand.

IEC 62196-2 (Type2) Female Plug (Charging Station End) For Electric Vehicle Charging

IEC 62196-2 (Type2) Male Plug (Driver End) For Electric Vehicle Charging

This cable works on all charging stations mode 3 according to standards ISO 17409 and IEC 61851. It is compatible with all the charging stations and all EV rechargeable vehicle with type 1. This cable will work safely on all charging stations, even the ones with inferior or superior charging power.

This product is special designed for electric vehicle charging, generally called a mode 3 EV charging cable used to connect EV charger and electric car. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment. It could also withstand the crushing of a vehicle. The product is equipped unique temperature monitor system. To ensure the safe operation, it will automatically cut off the charging current when the temperature is over set value.

This cable works on all charging stations mode 3 according to standards ISO 17409 and IEC 61851. It is compatible with all the charging stations and all EV rechargeable vehicle with type 2. This cable will work safely on all charging stations, even the ones with inferior or superior charging power.

This product is special designed for electric vehicle charging, generally called a mode 3 EV charging cable used to connect EV charger and electric car. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment. It could also withstand the crushing of a vehicle. The product is equipped unique temperature monitor system. To ensure the safe operation, it will automatically cut off the charging current when the temperature is over set value.

JT AC EV Charging Cable Mode-3 Type 2 - Type 2 Single Phase 32 Amp 7.2Kw IEC 62196-2, IP66, CE

This cable works on all charging stations mode 3 according to standards ISO 17409 and IEC 61851. It is compatible with all the charging stations and all EV rechargeable vehicle with type 2. This cable will work safely on all charging stations, even the ones with inferior or superior charging power.

This product is special designed for electric vehicle charging, generally called a mode 3 EV charging cable used to connect EV charger and electric car. This product has a unique integrated design and strong structure which can be used outdoor and in rainy environment. It could also withstand the crushing of a vehicle. The product is equipped unique temperature monitor system. To ensure the safe operation, it will automatically cut off the charging current when the temperature is over set value.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality OFNR jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G /400G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP/PSM4/QSFP28/QSFP-DD transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH/OFNP jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G /400G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP28 transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality OFNP jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G /400G / 800G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP28/QSFP-DD transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

The trunk cable assemblies are composed of high quality OFNP jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G /400G / 800G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP28/QSFP-DD transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 24 Fiber MPO trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO Trunk Cable are built with highest quality components. 24 Fiber MPO trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO Trunk Cable are built with highest quality components. 24 Fiber MPO trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality OFNP jacketed fiber optic cables used in data center, telecom and backbone application for 400G / 800G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 16 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure.

The trunk cable assemblies are composed of high quality OFNP jacketed fiber optic cables used in data center, telecom and backbone application for 400G / 800G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 16 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 SR8 transceivers.

MPO Loopback Assemblies are designed for testing of MPO parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MPO plug it forms optical link which allows testing of optical network segment by segment. Our MPO loopback cables are factory pre-terminated, tested and packed along with the test reports. 12 Fiber MPO loopback patch cord assemblies are used to loopback QSFP+/QSFP/PSM4 transceivers.

MPO Loopback Assemblies are designed for testing of MPO parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MPO plug it forms optical link which allows testing of optical network segment by segment. Our MPO loopback cables are factory pre-terminated, tested and packed along with the test reports. 12 Fiber MPO loopback patch cord assemblies are used to loopback QSFP+/QSFP/PSM4 transceivers.

MPO Loopback Assemblies are designed for testing of MPO parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MPO plug it forms optical link which allows testing of optical network segment by segment. Our MPO loopback cables are factory pre-terminated, tested and packed along with the test reports. 24 Fiber MPO loopback patch cord assemblies are used to loopback CFP/CFP+/CXP transceivers.

MPO Loopback Assemblies are designed for testing of MPO parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MPO plug it forms optical link which allows testing of optical network segment by segment. Our MPO loopback cables are factory pre-terminated, tested and packed along with the test reports. 12 Fiber MPO loopback patch cord assemblies are used to loopback CFP/CFP+/CXP transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP/PSM4 transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP/PSM4 transceivers.

MPO Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 40G / 100G connectivity. Our MPO trunk cables are factory pre-terminated, tested and packed along with the test reports. MPO TrunkCableare built with highest quality components. 12 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP+/QSFP/PSM4 transceivers.

MTP Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MTP trunk cables are factory pre-terminated, tested and packed along with the test reports. MTP Trunk Cable are built with highest quality components. 24 Fiber MTP trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MTP Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MTP trunk cables are factory pre-terminated, tested and packed along with the test reports. MTP Trunk Cable are built with highest quality components. 24 Fiber MTP trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MTP Trunk Cables are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. The trunk cable assemblies are composed of high quality LSZH jacketed fiber optic cables used in data center, telecom and backbone application for 100G connectivity. Our MTP trunk cables are factory pre-terminated, tested and packed along with the test reports. MTP TrunkCableare built with highest quality components. 24 Fiber MTP trunk patch cord assemblies are used to interconnect CFP/CFP2/CFP+/CXP transceivers.

MTP Loopback Assemblies are designed for testing of MTP parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MTP plug it forms optical link which allows testing of optical network segment by segment. Our MTP loopback cables are factory pre-terminated, tested and packed along with the test reports. 12 Fiber MTP loopback patch cord assemblies are used to loopback CFP/CFP+/CXP transceivers.

MTP Loopback Assemblies are designed for testing of MTP parallel links and for device burn-in. By creating a loop of signal from transmitter to receiver within one MTP plug it forms optical link which allows testing of optical network segment by segment. Our MTP loopback cables are factory pre-terminated, tested and packed along with the test reports. 24 Fiber MTP loopback patch cord assemblies are used to loopback CFP/CFP+/CXP transceivers.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone application for 40G / 100G /400G / 400G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MPO Fan out Assemblies provide connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28 and QSFP-DD to 4 x QSFP-28 with PSM4 / LR / FR / DR Transceiver Modules.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone application for 40G / 100G /400G / 400G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MPO Fan out Assemblies provide connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28 and QSFP-DD to 4 x QSFP-28 with SR4 Transceiver Modules.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone application for 40G / 100G /400G / 400G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MPO Fan out Assemblies provide connections between QSFP+ to 4 x SFP+, QSFP28 to 4 x SFP28 and QSFP-DD to 4 x QSFP-28 with SR4 Transceiver Modules.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone application for 40G / 100G /400G / 400G connectivity. OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure. 8 Fiber MPO Fan out Assemblies used for connections between QSFP28 to 4 x SFP28 , QSFP-DD to 4 x QSFP-28 and QSFP-DD800 to QSFP-56 with SR4 Transceiver Modules.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MPO to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 10 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MPO to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 10 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MPO to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 10 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high-density networking and used in data center, telecom and backbone application for 40G / 100G /400G / 400G connectivity. OM5 fibers are 100% standards compliant meeting all OM3 and OM4 specifications, with an additional requirement for Differential Mode Delay (DMD) that compensates for modal and chromatic dispersion. And they include additional bandwidth characterization at 953 nm to support extended distances when using SWDM. OM5 fibers apply to data centers which require quick infrastructure deployment with extended reach that want to maintain bandwidth throughout the infrastructure. 16 Fiber MPO trunk patch cord assemblies are used to interconnect QSFP-DD and QSFP-DD800 transceivers. QSFP-DD to 8 x SFP-56 and QSFP-DD800 to QSFP-28 with SR8 Transceiver Modules.

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 40G / 100G connectivity. 40G parallel optics transceivers (40GBASE-LR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MPO QSFP+ to SFP+ Fan out Assemblies provide connections between single QSFP+ (40G transceiver with MPO interface) and 4 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 40G / 100G connectivity. 40G parallel optics transceivers (40GBASE-SR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MPO QSFP+ to SFP+ Fan out Assemblies provide connections between single QSFP+ (40G transceiver with MPO interface) and 4 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 12x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MPO to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 12 x SFP+ (10G transceivers with LCDuplexInterface).

MPO breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MPOharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MPO to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MPO interface) and 12 x SFP+ (10G transceivers with LCDuplexInterface).

MTP breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MTPharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 40G / 100G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MTP QSFP+ to SFP+ Fan out Assemblies provide connections between single QSFP+ (40G transceiver with MTP interface) and 4 x SFP+ (10G transceivers with LCDuplexInterface).

MTP breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MTPharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 40G / 100G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MTP QSFP+ to SFP+ Fan out Assemblies provide connections between single QSFP+ (40G transceiver with MTP interface) and 4 x SFP+ (10G transceivers with LCDuplexInterface).

MTP breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MTPharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 40G / 100G connectivity. 40G parallel optics transceivers (40GBASE-XR4) can support 4x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 8 Fiber MTP QSFP+ to SFP+ Fan out Assemblies provide connections between single QSFP+ (40G transceiver with MTP interface) and 4 x SFP+ (10G transceivers with LCDuplexInterface).

MTP breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MTPharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MTP to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MTP interface) and 10 x SFP+ (10G transceivers with LCDuplexInterface).

MTP breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment. JTOPTICS MTPharnesscables reduce the overall cost and setup time for complex high density networking and used in data center, telecom and backbone application for 100G connectivity. 100G parallel optics transceivers (100GBASE-XR10) can support 10x10G modes this feature allow new parallel optics active equipment being compatible with existing 10G transceivers. 24 fiber MTP to LC Fanout Assemblies provide connections between single CFP/CXP (100G transceiver with MTP interface) and 10 x SFP+ (10G transceivers with LCDuplexInterface).

MPO LC Patch panel is made of CRS Cold rolled steel, Designed for 19' rack-mount cabinet. Rack mounted holds up to 4 pcs Fiber Adapter Panels or 4 pcs of HD MPO LC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter application to maximizing rack space utilization and minimizing floor space.

MPO LC Patch panel is made of CRS Cold rolled steel, Designed for 19' rack-mount cabinet. Rack mounted holds up to 8 pcs Fiber Adapter Panels or 8 pcs of HD MPO LC Cassette. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space.

2X12F MPO Cassette Modules are fitted with 2 nos of 12 Fibers SM breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

2X12F MPO Cassette Modules are fitted with 2 nos of 12 Fibers MM breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

MPO Cassette Modules are fitted with 12 Fibers breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

MPO Cassette Modules are fitted with 12 Fibers breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

MPO Cassette Modules are fitted with 24 Fibers breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

MPO Cassette Modules are fitted with 24 Fibers breakout cable and have LC adapters on the front side and MPO Adaptor at the rear. This cassette is made into smaller size and can be deployed in an ODF. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high density networking used in data centerapplication.

1RU rack mount enclosure, which can house 4 pcs HD series MTP modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space. JTOPTICS ODF reduce the overall cost and setup time for complex high density networking used in data centerapplication.

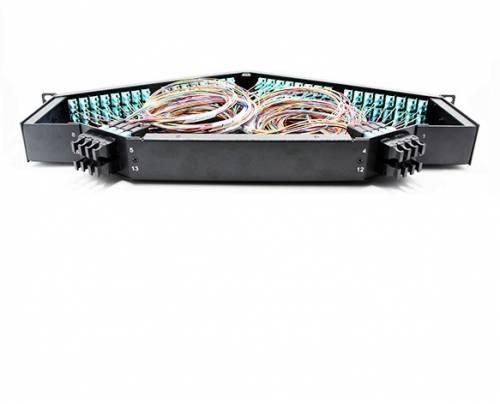

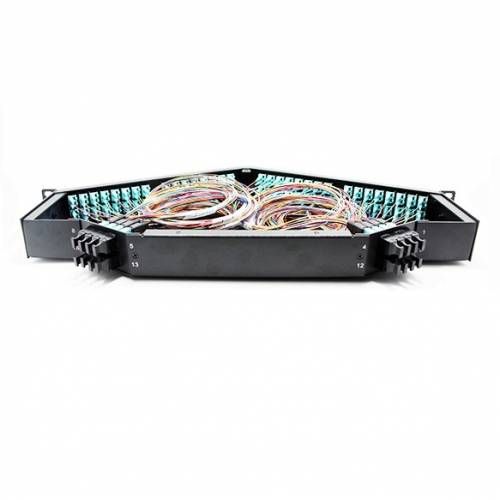

96 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

96 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

128 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

128 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

144 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

144 Fiber 1U MPO Angled patch panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center, telecommunication, LAN network and FTTH etc.

1RU Ultra High-Density rack mount enclosure, which can house 12 pcs UHD series MPO modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space. FHX fiber optic enclosure houses, organizes, manages, and protects fiber optic cable terminations. The 1U enclosure houses 3 independently sliding drawers, each drawer can hold 4 UHD MPO cassettes by default.

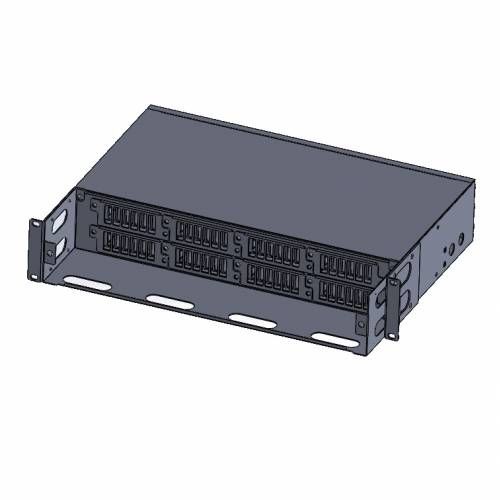

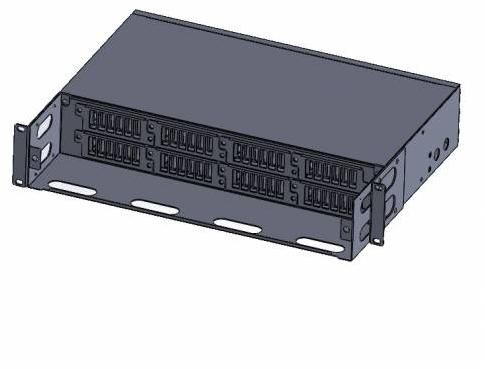

2RU Ultra High-Density rack mount enclosure, which can house 24 pcs UHD series MPO modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space. UHD fiber optic enclosure houses, organizes, manages, and protects fiber optic cable terminations. The 1U enclosure houses 6 independently sliding drawers, each drawer can hold 4 UHD MPO cassettes by default.

4RU Ultra High-Density rack mount enclosure, which can house 48 pcs UHD series MPO modular cassettes or fiber adapter panels. It provides high density flexible system for managing fiber terminations, connections, and patching in data center application to maximizing rack space utilization and minimizing floor space. UHD fiber optic enclosure houses, organizes, manages, and protects fiber optic cable terminations. The 1U enclosure houses 12 independently sliding drawers, each drawer can hold 4 UHD MPO cassettes by default.

JTOPTICS ultra high density MPO cassette features one rear 12-fiber MPO ports connection and 12 LC ports in front. This MPO fiber cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable, and it is ideal to deploy a Base-8 connectivity solution for use in main, horizontal and equipment distribution areas. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high-density networking used in data centerapplication.

JTOPTICS ultra high density MPO cassette features one rear 12-fiber MPO ports connection and 12 LC ports in front. This MPO fiber cassette is designed to upgrade existing LC links to LR4 parallel optics without wasting any of the fibers inside the cable, and it is ideal to deploy a Base-8 connectivity solution for use in main, horizontal and equipment distribution areas. JTOPTICS MPO Cassette Modules reduce the overall cost and setup time for complex high-density networking used in data centerapplication.

1U Horizontal Cable Management Panel ensures optimal cable radius preventing deterioration or breakage by providing proper bend radius protection. It manages cable within a rack or cabinet from the front and back with unique fingers designed to protect cables from damage. Flexible fingers maximize the care and protection of the equipment and cables, keeping the structured cabling system unhurt and totally functional. Lightweight plastic construction provides durability and easy installation. Removable top cover makes it easy to add or remove bundled cables quickly.

45U Single Sided Vertical Cable Management with Cover, Vertical Cable Managers are designed to manage networking equipment in half the area required by traditional cable management systems. Molded cable management fingers, with integral bend radius control, combine with angled patch panels to eliminate the need for horizontal cable managers. This frees up rack space for additional patch panels, active equipment, or cable pathways reducing the number of racks that may be required for the network layout.

5U Vertical Cable Manager Cable Management Bend Radius Finger Bracket provides extra-deep cable management capacity for applications that require large cable bundles or thick cables. Light in weight, this type of bracket can be installed in specific areas of the rack, rather than along its entire height.

The Horizontal Cable Management Panels with D Rings are built with steel for strength and durability. Easily route large amounts of cable horizontally and vertically through robust rings. The D-Ring provides a creative solution for adding individual D-Ring to a rack or on a wall using appropriate fasteners.

100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU.

JTOPTICS QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.

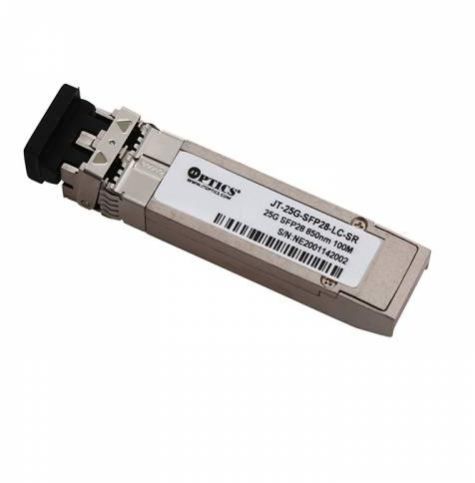

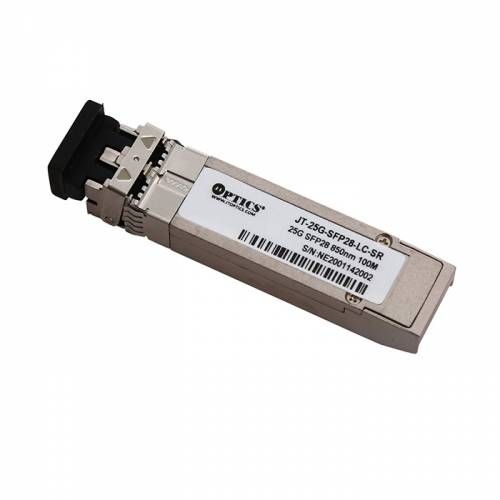

SFP28 optical transceivers are designed for use in 25 Gb/s data rate over multimode fiber. They are compliant to IEEE 802.3by, SFF-8472 Rev 12.2 and SFF-8402, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JTOPTICS SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. Each SFP28 transceiver module is individually tested on a series of Cisco switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.

SFP28 optical transceivers are designed for use in Ethernet links up to 25.78 Gb/s data rate and up to 10 km link length. They are compliant with SFF-8472 Rev 12.2 and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JTOPTICS SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

JTOPTICS offers a broad range of industry-compliant 10G SFP+ optical transceiver modules for 10-Gigabit Ethernet, 10G Fibre Channel, 10G OTN, SONET/SDH, and 10G CPRI wireless deployments in diverse networking environments.

SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

JTOPTICS offers a broad range of industry-compliant 10G SFP+ optical transceiver modules for 10-Gigabit Ethernet, 10G Fibre Channel, 10G OTN, SONET/SDH, and 10G CPRI wireless deployments in diverse networking environments.

SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

JTOPTICS offers a broad range of industry-compliant 10G SFP+ optical transceiver modules for 10-Gigabit Ethernet, 10G Fibre Channel, 10G OTN, SONET/SDH, and 10G CPRI wireless deployments in diverse networking environments.

SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Bidirectional SFP transceiver is intended mainly for connecting high-speed hubs, Ethernet switches, and routers together in different wiring closets or buildings using long cabling runs and developed to support longer-length on fiber backbones. BIDI Transceiver used only one fiber to transmit and receive optical signal.

Bidirectional SFP transceiver is intended mainly for connecting high-speed hubs, Ethernet switches, and routers together in different wiring closets or buildings using long cabling runs, and developed to support longer-length on fiber backbones. BIDI Transceiver used only one fiber to transmit and receive optical signal.

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps at long distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. Our transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps at long distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. Our transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

JTOPTICS JT-1G-SFP-RJ Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data-rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

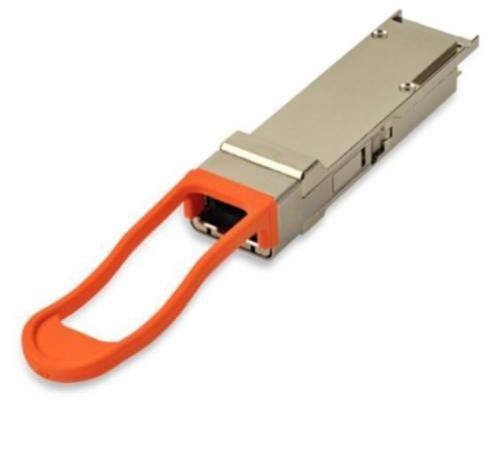

QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 40km of single mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4 and IEEE 802.3bm CAUI-4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, air tightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 Lite standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layer applications.

QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. Taking COB+PCBA integrated design, it has mature packaging process during automated production. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-PSM4 and CAUI-4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-PSM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks , enterprise core and distribution layer applications.

QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3bm 40GBASE-ER4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JTOPTICS QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4 and OTU3 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

QSFP+ transceiver modules are designed for use in 40 GigabitEthernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JTOPTICS QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4 10GBASE-LR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU.

JTOPTICS QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4 10GBASE-LR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU.

JTOPTICS QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

JTOPTICS 400G SR8 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x26.56GBd. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.

400GBASE-DR4 QSFP DD optical transceiver shares similar specifications as JTOPTICS 400GBASE-DR4 with the only difference in reach. The JT-OSFP-400G-DR4 offers a transmission distance of up to 500 meter over a single-mode fiber link. Quad Small Form-Factor Pluggable Double Density (QSFP-DD) transceiver with optical MPO-12/MTP-12 connector is designed for long-range single-mode 400 Gigabit Ethernet (400GbE) high-speed applications of up to 400 gigabits per second.

JTOPTICS 400GBASE-DR4 module supports link lengths of up to 500m parallel SMF with MTP/MPO-12 connector. It is compliant to QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.

400GBASE-FR4 QSFP DD optical transceiver is designed for high-speed, long-range 400 Gigabit Ethernet applications of up to 400 gigabits per second. The JT-OSFP-400G-FR4 is offered with optical LC Duplex Connector. This module utilizes the 400GBASE-FR4 technology for transmission. With this transceiver, two Ethernet switches can be connected through two single-mode fiber cores. The JT-QSFPDD-400G-FR4 supports a transmission distance of up to 2 kilometers.

JTOPTICS 400GBASE-FR4 module supports link lengths of up to 2km SMF with duplex LC connector. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device

JT-STM1-SFP-BD-IR Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-3 IR-1/STM S-1.1 and OC-3 SR/STM I-1, and are suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM1-SFP-BD-LR1 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-3 /STM -1 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM1-SFP-BD-LR2 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-3 /STM -1 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM4-SFP-BD-IR Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-12 IR-1/STM S-4.1 and OC-12 SR/STM I-4. In addition, they comply with SONET and SDH standards OC-3 IR-1/STM S-1.1 and OC-3 SR/STM I-1, The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM4-SFP-BD-LR1 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-12 /STM -4 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM4-SFP-BD-LR2 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-12 /STM -4 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM16-SFP-BD-IR small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-48 /STM-16 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM16-SFP-BD-LR1 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-48 /STM-16 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM16-SFP-BD-LR2 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-48 /STM-16 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM64-SFP-BD-IR small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-192 /STM-64 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM64-SFP-BD-LR1 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-192 /STM-64 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

JT-STM64-SFP-BD-LR2 small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They comply with SONET and SDH standards at OC-192 /STM-64 and suitable for Fast Ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

OSFP 400G SR8 DAC Direct Attach Cable is a twinax cable solution with two copper-based conductors for transmitting electrical signals at short distances. The OSFP DAC Direct Attach Cable transmit the signals faster (i.e. with a lesser latency) and require considerably less current, compared to electrical signals sent via a twisted pair cable. JT-OSFP-400G-DAC Direct Attach Cable (DAC) as passive 400 Gigabit Twinax copper type with OSFP to OSFP connector, for linking hardware in racks and across adjacent racks. JTOPTICS JT-OSFP-400G-DAC OSFP Direct Attach Cables are suitable for 400G Ethernet as well as InfiniBand applications and are available in various lengths.

OSFP 400G SR4 Breakout DAC Direct Attach Cable is a twinax cable solution with two copper-based conductors for transmitting electrical signals at short distances. The OSFP Breakout DAC Direct Attach Cable transmit the signals faster (i.e. with a lesser latency) and require considerably less current, compared to electrical signals sent via a twisted pair cable. JT-OSFP-QSFP28-400G-DAC Direct Attach Breakout Cable (DAC) as passive 400 Gigabit to 4x 100 Gigabit Twinax copper type with OSFP to 4x QSFP28 connector, for linking hardware in racks and across adjacent racks.

OSFP 400G SR8 Breakout DAC Direct Attach Cable is a twinax cable solution with two copper-based conductors for transmitting electrical signals at short distances. The OSFP Breakout DAC Direct Attach Cable transmit the signals faster (i.e. with a lesser latency) and require considerably less current, compared to electrical signals sent via a twisted pair cable. JT-OSFP-SFP56-400G-DAC Direct Attach Breakout Cable (DAC) as passive 400 Gigabit to 8x 50 Gigabit Twinax copper type with OSFP to 8x SFP56 connector, for linking hardware in racks and across adjacent racks.

QSFP56 passive copper cable assembly feature eight differential copper pairs, providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel, and meets 200G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements. Available in a broad rang of wire gages-from 26AWG through 30AWG-this 200G copper cable assembly features low insertion loss and low cross talk.

QSFP56 uses PAM4 signals for transmission, which doubles the rate. However, there are more stringent requirements for cable insertion loss. For detailed requirements, please see High Speed Characteristics.

200G QSFP56 passive cable assembly can provide new generation performance of QSFP by higher date transfer rate. At the same time, QSFP56 TO 2 x QSFP28 cable choose dual side drain cable and self-designed PCBA, provide low loss. All the designing is based on the industry standard specifications, such as SFF-8679, SFF-8636 and QSFP56 TO 4SFP56 MSA specifications.

200G QSFP56 passive cable assembly can provide new generation performance of QSFP by higher date transfer rate. At the same time, QSFP56 TO 4 x SFP56 cable choose dual side drain cable and self-designed PCBA, provide low loss. All the designing is based on the industry standard specifications, such as SFF-8679, SFF-8636 and QSFP56 TO 4SFP56 MSA specifications.

400G QSFP56-DD PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections for 400G Ethernet (2x 200GE) and InfiniBand systems. Each cable consists of eight lanes each operating at data rates of up to 50Gb/s (PAM4). The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with QSFP-DD MSA standard specifications and provide connectivity between devices using QSFP-DD (QSFP56-DD) ports.

400G QSFP-DD to 4x 100G QSFP28 PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections between 400G Ethernet and 100G Ethernet systems. Each cable consists of four lanes each operating at data rates of up to 100Gb/s (PAM4). This integrated cable solution provides reliable transport for aggregate data rates of up to 400Gb/s. Optimizing systems to operate with JTOPTICS 400Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of Enterprise Data Center (EDC) hosts.

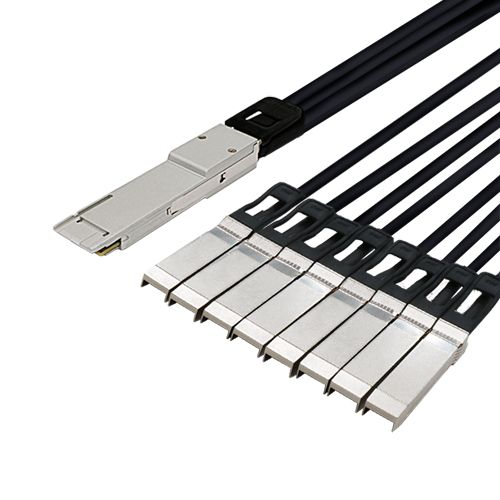

400G QSFP-DD to 8x 50G SFP56 PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections between 400G Ethernet (2x 200GE) and 50G Ethernet systems. Each cable consists of eight lanes each operating at data rates of up to 50Gb/s (PAM4). The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with QSFP-DD MSA and SFP56 MSA standard specifications and provide connectivity between system units with a QSFP-DD (QSFP56-DD) port on one side and up to eight different SFP56 ports on the other.

100G QSFP28 PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections for 100G Ethernet and InfiniBand systems. Each cable consists of four lanes each operating at data rates of up to 25Gb/s. The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8665 specifications and provide connectivity between devices using QSFP28 ports. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.

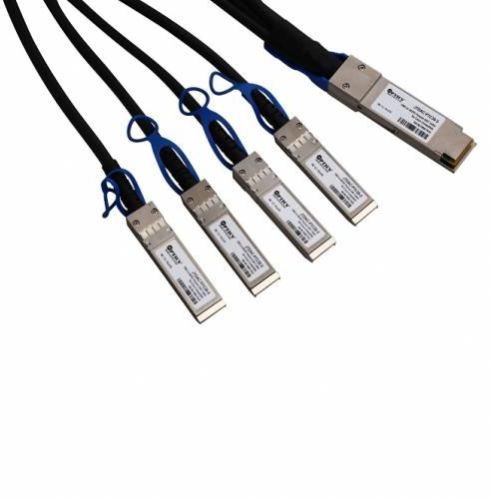

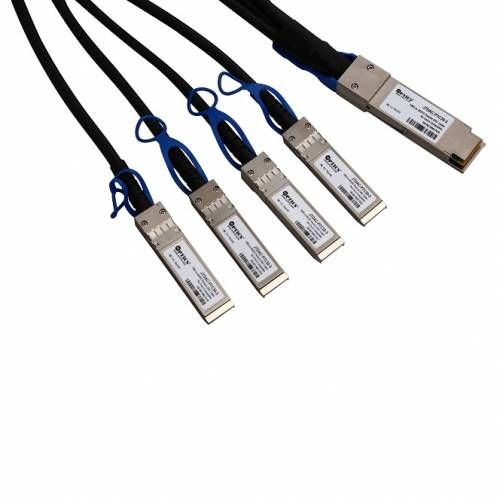

100G QSFP28 to 4x 25G SFP28 PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections between 100G Ethernet and 25G Ethernet systems. Each cable consists of four lanes each operating at data rates of up to 25Gb/s. The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other.

40G QSFP+ PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections for 40G Ethernet systems. Each cable consists of four lanes each operating at data rates of up to 10Gb/s. The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.

40G QSFP+ to 4x 10G SFP+ PCC (Passive Copper Cable), also known as Direct Attach Copper (DAC) cable or Twinax cable, provides robust connections between 40G Ethernet and 10G Ethernet systems. Each cable consists of four lanes each operating at data rates of up to 10Gb/s. The passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8418/SFF-8419 and SFF-8685/SFF-8436 specifications and provide connectivity between devices using QSFP+ port on one end and four SFP+ ports on the other end.

SFP28 direct attach copper (DAC) cables, also known as Twinax cables, are suitable for in-rack connections between servers and switches. They are suitable for short distances, making them ideal for highly cost-effective networking connectivity within a rack and between adjacent racks.

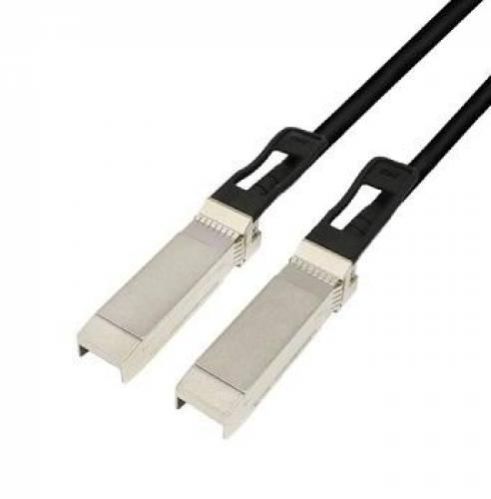

50G SFP56 PCC cable contains 2 high-speed copper pairs, operating at data rates of up to 53Gb/s. Each SFP56 port comprises an EEPROM providing product information, which can be read by the host system. JTOPTICS's unique quality Passive Copper Cable (PCC) solutions provide power-efficient connectivity for short-distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

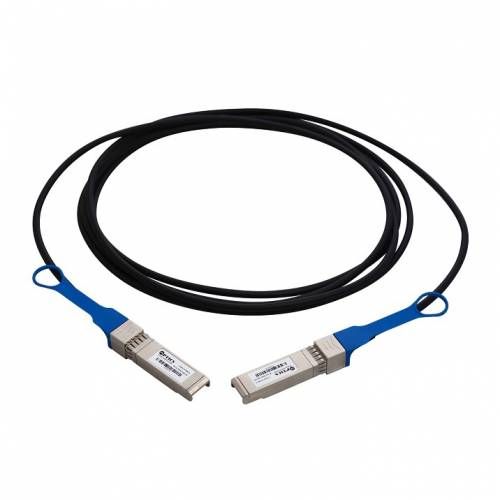

Small form-factor pluggable plus transceiver (SFP+) direct attach copper (DAC) cables, also known as Twinax cables, are suitable for in-rack connections between servers and switches. They are suitable for short distances, making them ideal for highly cost-effective networking connectivity within a rack and between adjacent racks.

400GBASE-SR8 400G OSFP AOC Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC OSFP Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver. JTOPTICS JT-OSFP-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability.

400Gb/s OSFP to 4x100G/s QSFP28 Break out AOC Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC OSFP Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver. JTOPTICS JT-OSFP-QSFP28-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability.

The 200G QSFP56 to 2x 100G QSFP28 Breakout Active Optical Cable is used in 200 Gigabit Ethernet links over OM4 multimode fiber, which provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other two sides. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP28 multiport ends. This Active Optical Splitter Cable is compliant with the QSFP-MSA and with 200GBASE-SR4 specification.

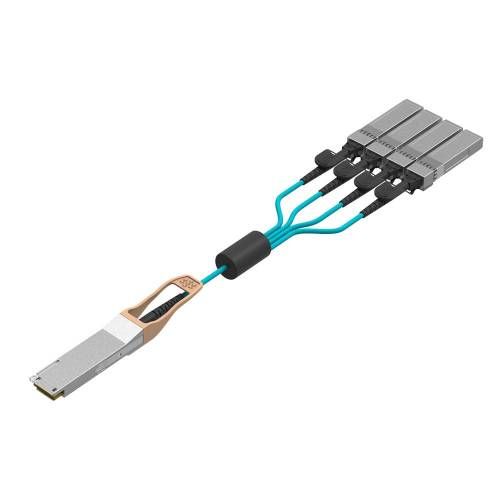

The 200G QSFP56 to 4x 50G SFP56 Breakout Active Optical Cable is used in 200 Gigabit Ethernet links over OM4 multimode fiber, which provides connectivity between system units with a 200GbE connector on one side and four separate 50GbE connectors on the other sides. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the 4 pair of each of the SFP56 multiport ends. This Active Optical Splitter Cable is compliant with the QSFP-MSA and with 200GBASE-SR4 specification.

200G QSFP56 AOC is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s Ethernet systems. The cable offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace. The 200G QSFP56 active optical cable has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.

400GBASE-SR8 400G QSFP-DD Active Optical Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC QSFP-DD Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver of the AOC. JTOPTICS JT-QSFPDD-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability.

400Gb/s QSFP-DD to 4x100G/s QSFP28 Break out AOC Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC QSFP-DD Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver. JTOPTICS JT-QSFPDD-QSFP28-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability

400Gb/s OSFP to 8x50G/s SFP56 Break out AOC Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC OSFP Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver. JTOPTICS JT-OSFP-SFP56-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability.

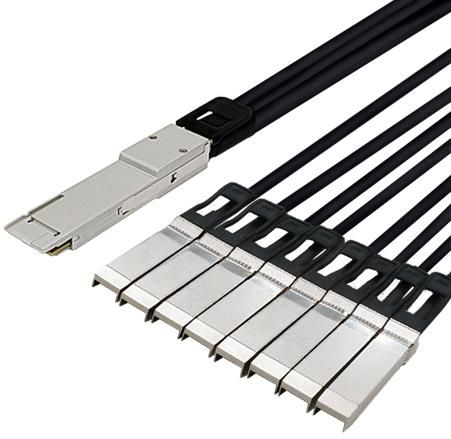

400Gb/s QSFP-DD to 8x50G SFP56 Break out AOC Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. The AOC QSFP DD Active Optical Cable uses an electronic to optical converter to translate the signals within the Transceiver. JTOPTICS JT-QSFPDD-SFP56-400G-AOC meet the Multi Source Agreement (MSA) standard SFF-8665. With MSA Standards various manufacturers determine standardizations of the transceiver to ensure the interoperability.

QSFP28 100GBASE-SR4 AOC Active Optical Cable has transceiver at its respective ends, a combination of transmitter and receiver which is connected to a fiber cable for the transfer of optical signals. 100G QSFP28 Active Optic Cables (AOCs) are direct-attach fiber assemblies with QSFP28 connectors, compliant with the QSFP MSA, 100G Ethernet IEEE 802.3bm 100GBASE-SR4 and InfiniBand standards. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks. The 100G QSFP28 AOC is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103Gb/s. The length is up to 70 meters using OM3 MMF.

100G QSFP28 to 4x 25G SFP28 breakout Active Optical Cables (AOCs) offer IT professionals a cost-effective interconnect solution for merging 100G QSFP28 and 25G SFP28 enabled host adapters, switches and servers. For typical applications, users can install this breakout/splitter cable between an available QSFP28 port on 100GE switch and feed up to 4 upstream SFP28 enabled 25GE switches. Each cable features a single SFF-8436 compliant QSFP28 connector rated for 103Gb/s on one end and 4 SFF-8431 compliant SFP28 connectors rated for 25.78Gb/s each on the other end.

40G QSFP+ Active Optic Cables (AOCs) are direct-attach fiber assemblies with QSFP+ connectors, compliant with the QSFP MSA, 40G Ethernet IEEE 802.3ba 40GBASE-SR4, and InfiniBand SDR/DDR/QDR standards. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks. The 40G QSFP+ AOC is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 10.3Gb/s, providing an aggregated rate of 41.2Gb/s. The length is up to 300 meters using OM3 MMF.

40G QSFP+ to 4x 10G SFP+ breakout Active Optical Cables (AOCs) offer IT professionals a cost-effective interconnect solution for merging 40G QSFP+ and 10G SFP+ enabled host adapters, switches and servers. For typical applications, users can install this breakout/splitter cable between an available QSFP+ port on 40GE switch and feed up to 4 upstream SFP+ enabled 10GE switches. Each cable features a single SFF-8436 compliant QSFP+ connector rated for 41.2Gb/s on one end and 4 SFF-8431 compliant SFP+ connectors rated for 10.3Gb/s each on the other end.
