Jindal Rectifiers

Sector 24, Faridabad, Haryana

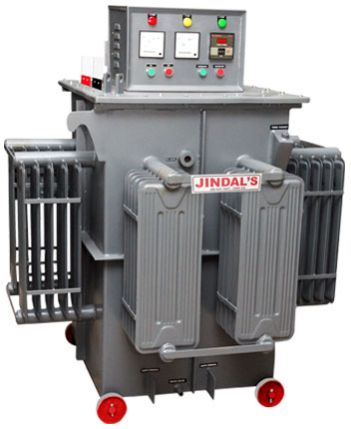

Jindal's brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining dc from ac supply. Jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. Capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. Advantages : 1. Step-less on load voltage regulator2. Designed for 100% continuous load3. Nil waveform distortion4. High efficiency of up to 97%5. Virtually zero maintenancespecifications :the standard model conforms to the following specifications:1. Output voltage : from zero to max. Rated d.c. Voltage (upto 1000 volts).2. Output current : from zero to max. Rated d.c. Current (upto 3000 amps)3. Input voltage : 415v, 3-phase, 50 hz, a.c.4. Cooling : natural oil cooled5. Modes of operation : (a) manual control (b) electrical with the help of push buttons(c) mechanical with the help of t-handle6. Ripple content: less than 5%model with 1% ripple available as optional feature7. Efficiency: 12 v rectifier: 82%24 v rectifier: 90%100 v rectifier:94%200 v rectifier:96%250 v and above:>97% note: non-standard models are also available against specific requirements. Optional features : 1. Constant voltage controller (cvc)2. Constant current controller (ccc)3. D.c. Overload trip system4. Zero run down system5. Programmable ramping arrangement6. Signal isolators to enable automation plc compatibility.

Jindal's brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining dc from ac supply. Jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. Capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. Advantages : 1. Step-less on load voltage regulator2. Designed for 100% continuous load3. Nil waveform distortion4. High efficiency of up to 97%5. Virtually zero maintenance applications : 1. Electroplating electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating lehrs9. Effluent treatment plants10. Annealing processes11. Production of chlorine gas12. Chemical electrolytic processes13. Variable speed drives specifications :the standard model conforms to the following specifications:1. Output voltage : from zero to max. Rated d.c. Voltage (upto 1000 volts).2. Output current : from zero to max. Rated d.c. Current (upto 3000 amps)3. Input voltage : 415v, 3-phase, 50 hz, a.c.4. Cooling : natural oil cooled5. Modes of operation : (a) manual control (b) electrical with the help of push buttons(c) mechanical with the help of t-handle6. Ripple content: less than 5%model with 1% ripple available as optional feature7. Efficiency: 12 v rectifier: 82%24 v rectifier: 90%100 v rectifier:94%200 v rectifier:96%250 v and above:>97% note: non-standard models are also available against specific requirements.

We offer electrical rectifier transformer.Jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. Capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. Advantages : 1. Step-less on load voltage regulator2. Designed for 100% continuous load3. Nil waveform distortion4. High efficiency of up to 97%5. Virtually zero maintenanceapplications : 1. Electroplating electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating lehrs9. Effluent treatment plants10. Annealing processes11. Production of chlorine gas12. Chemical electrolytic processes13. Variable speed drives specifications :the standard model conforms to the following specifications:1. Output voltage : from zero to max. Rated d.c. Voltage (upto 1000 volts).2. Output current : from zero to max. Rated d.c. Current (upto 3000 amps)3. Input voltage : 415v, 3-phase, 50 hz, a.c.4. Cooling : natural oil cooled5. Modes of operation : (a) manual control (b) electrical with the help of push buttons(c) mechanical with the help of t-handle6. Ripple content: less than 5%model with 1% ripple available as optional feature7. Efficiency: 12 v rectifier: 82%24 v rectifier: 90%100 v rectifier:94%200 v rectifier:96%250 v and above:>97% note: non-standard models are also available against specific requirements. Optional features :1. Constant voltage controller (cvc)2. Constant current controller (ccc)3. D.c. Overload trip system4. Zero run down system5. Programmable ramping arrangement6. Signal isolators to enable automation plc compatibility.

We offer Silicon Power Rectifier.JINDAL'S manufactures a wide range of rectifiers covering 0-500 Volts and up to 15000 Amps. Capacity suitable for Electroplating, Anodizing, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. ADVANTAGES : 1. Step-less On Load Voltage Regulator2. Designed for 100% continuous load3. Nil Waveform distortion4. High Efficiency of up to 97%5. Virtually zero maintenanceAPPLICATIONS : 1. Electroplating Electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & Heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating Lehrs9. Effluent Treatment plants10. Annealing processes11. Production of Chlorine gas12. Chemical electrolytic processes13. Variable speed drives SPECIFICATIONS :The standard model conforms to the following specifications:1. Output Voltage : From zero to max. Rated D.C. Voltage (upto 1000 Volts).2. Output Current : From zero to max. Rated D.C. Current (upto 3000 Amps)3. Input Voltage : 415V, 3-phase, 50 Hz, A.C.4. Cooling : Natural Oil cooled5. Modes of Operation : (a) Manual Control (b) Electrical with the help of push buttons(c) Mechanical with the help of T-Handle6. Ripple Content: Less than 5%Model with 1% ripple available as optional feature7. EFFICIENCY: 12 V Rectifier: 82%24 V Rectifier: 90%100 V Rectifier:94%200 V Rectifier:96%250 V and above:>97% Note: Non-standard models are also available against specific requirements. OPTIONAL FEATURES :1. Constant Voltage Controller (CVC)2. Constant Current Controller (CCC)3. D.C. Overload Trip system4. Zero Run Down system5. Programmable Ramping Arrangement6. Signal Isolators to enable automation PLC compatibility.

we offer electroplating rectifier. jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. the entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. we believe in quality & customers satisfaction. advantages : 1. step-less on load voltage regulator 2. designed for 100% continuous load 3. nil waveform distortion 4. high efficiency of up to 97% 5. virtually zero maintenance applications : 1. electroplating electro-polishing 2. anodizing plants 3. metal mining, refining & extraction 4. etching 5. furnace & heating systems 6. electrophoresis coating plants 7. metal & glass melting 8. heating lehrs 9. effluent treatment plants 10. annealing processes 11. production of chlorine gas 12. chemical electrolytic processes 13. variable speed drives specifications : the standard model conforms to the following specifications: 1. output voltage : from zero to max. rated d.c. voltage (upto 1000 volts). 2. output current : from zero to max. rated d.c. current (upto 3000 amps) 3. input voltage : 415v, 3-phase, 50 hz, a.c. 4. cooling : natural oil cooled 5. modes of operation : (a) manual control (b) electrical with the help of push buttons (c) mechanical with the help of t-handle 6. ripple content: less than 5% model with 1% ripple available as optional feature 7. efficiency: 12 v rectifier: 82% 24 v rectifier: 90% 100 v rectifier:94% 200 v rectifier:96% 250 v and above:>97% note: non-standard models are also available against specific requirements. optional features : 1. constant voltage controller (cvc) 2. constant current controller (ccc) 3. d.c. overload trip system 4. zero run down system 5. programmable ramping arrangement 6. signal isolators to enable automation plc compatibility.

We offer Anodizing Rectifier.JINDAL'S manufactures a wide range of rectifiers covering 0-500 Volts and up to 15000 Amps. Capacity suitable for Electroplating, Anodizing, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. ADVANTAGES : 1. Step-less On Load Voltage Regulator2. Designed for 100% continuous load3. Nil Waveform distortion4. High Efficiency of up to 97%5. Virtually zero maintenanceAPPLICATIONS : 1. Electroplating Electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & Heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating Lehrs9. Effluent Treatment plants10. Annealing processes11. Production of Chlorine gas12. Chemical electrolytic processes13. Variable speed drives SPECIFICATIONS :The standard model conforms to the following specifications:1. Output Voltage : From zero to max. Rated D.C. Voltage (upto 1000 Volts).2. Output Current : From zero to max. Rated D.C. Current (upto 3000 Amps)3. Input Voltage : 415V, 3-phase, 50 Hz, A.C.4. Cooling : Natural Oil cooled5. Modes of Operation : (a) Manual Control (b) Electrical with the help of push buttons(c) Mechanical with the help of T-Handle6. Ripple Content: Less than 5%Model with 1% ripple available as optional feature7. EFFICIENCY: 12 V Rectifier: 82%24 V Rectifier: 90%100 V Rectifier:94%200 V Rectifier:96%250 V and above:>97% Note: Non-standard models are also available against specific requirements. OPTIONAL FEATURES :1. Constant Voltage Controller (CVC)2. Constant Current Controller (CCC)3. D.C. Overload Trip system4. Zero Run Down system5. Programmable Ramping Arrangement6. Signal Isolators to enable automation PLC compatibility.

we offer transformer rectifier unit. jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. the entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. we believe in quality & customers satisfaction. advantages : 1. step-less on load voltage regulator 2. designed for 100% continuous load 3. nil waveform distortion 4. high efficiency of up to 97% 5. virtually zero maintenance applications : 1. electroplating electro-polishing 2. anodizing plants 3. metal mining, refining & extraction 4. etching 5. furnace & heating systems 6. electrophoresis coating plants 7. metal & glass melting 8. heating lehrs 9. effluent treatment plants 10. annealing processes 11. production of chlorine gas 12. chemical electrolytic processes 13. variable speed drives specifications : the standard model conforms to the following specifications: 1. output voltage : from zero to max. rated d.c. voltage (upto 1000 volts). 2. output current : from zero to max. rated d.c. current (upto 3000 amps) 3. input voltage : 415v, 3-phase, 50 hz, a.c. 4. cooling : natural oil cooled 5. modes of operation : (a) manual control (b) electrical with the help of push buttons (c) mechanical with the help of t-handle 6. ripple content: less than 5% model with 1% ripple available as optional feature 7. efficiency: 12 v rectifier: 82% 24 v rectifier: 90% 100 v rectifier:94% 200 v rectifier:96% 250 v and above:>97% note: non-standard models are also available against specific requirements. optional features : 1. constant voltage controller (cvc) 2. constant current controller (ccc) 3. d.c. overload trip system 4. zero run down system 5. programmable ramping arrangement 6. signal isolators to enable automation plc compatibility.

We offer Rectifier Transformer.JINDAL'S manufactures a wide range of rectifiers covering 0-500 Volts and up to 15000 Amps. Capacity suitable for Electroplating, Anodizing, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. ADVANTAGES : 1. Step-less On Load Voltage Regulator2. Designed for 100% continuous load3. Nil Waveform distortion4. High Efficiency of up to 97%5. Virtually zero maintenanceAPPLICATIONS : 1. Electroplating Electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & Heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating Lehrs9. Effluent Treatment plants10. Annealing processes11. Production of Chlorine gas12. Chemical electrolytic processes13. Variable speed drives SPECIFICATIONS :The standard model conforms to the following specifications:1. Output Voltage : From zero to max. Rated D.C. Voltage (upto 1000 Volts).2. Output Current : From zero to max. Rated D.C. Current (upto 3000 Amps)3. Input Voltage : 415V, 3-phase, 50 Hz, A.C.4. Cooling : Natural Oil cooled5. Modes of Operation : (a) Manual Control (b) Electrical with the help of push buttons(c) Mechanical with the help of T-Handle6. Ripple Content: Less than 5%Model with 1% ripple available as optional feature7. EFFICIENCY: 12 V Rectifier: 82%24 V Rectifier: 90%100 V Rectifier:94%200 V Rectifier:96%250 V and above:>97% Note: Non-standard models are also available against specific requirements. OPTIONAL FEATURES :1. Constant Voltage Controller (CVC)2. Constant Current Controller (CCC)3. D.C. Overload Trip system4. Zero Run Down system5. Programmable Ramping Arrangement6. Signal Isolators to enable automation PLC compatibility.

We offer industrial rectifier transformer.Jindal's manufactures a wide range of rectifiers covering 0-500 volts and up to 15000 amps. Capacity suitable for electroplating, anodizing, hydrogenation and many other electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. Advantages : 1. Step-less on load voltage regulator2. Designed for 100% continuous load3. Nil waveform distortion4. High efficiency of up to 97%5. Virtually zero maintenanceapplications : 1. Electroplating electro-polishing2. Anodizing plants3. Metal mining, refining & extraction4. Etching5. Furnace & heating systems 6. Electrophoresis coating plants 7. Metal & glass melting8. Heating lehrs9. Effluent treatment plants10. Annealing processes11. Production of chlorine gas12. Chemical electrolytic processes13. Variable speed drives specifications :the standard model conforms to the following specifications:1. Output voltage : from zero to max. Rated d.c. Voltage (upto 1000 volts).2. Output current : from zero to max. Rated d.c. Current (upto 3000 amps)3. Input voltage : 415v, 3-phase, 50 hz, a.c.4. Cooling : natural oil cooled5. Modes of operation : (a) manual control (b) electrical with the help of push buttons(c) mechanical with the help of t-handle6. Ripple content: less than 5%model with 1% ripple available as optional feature7. Efficiency: 12 v rectifier: 82%24 v rectifier: 90%100 v rectifier:94%200 v rectifier:96%250 v and above:>97% note: non-standard models are also available against specific requirements. Optional features :1. Constant voltage controller (cvc)2. Constant current controller (ccc)3. D.c. Overload trip system4. Zero run down system5. Programmable ramping arrangement6. Signal isolators to enable automation plc compatibility.

JINDAL'S brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining DC from AC supply. JINDAL'S manufactures a wide range of rectifiers covering 0-500 Volts and upto 15000 Amps. capacity suitable for Electroplating, Anodising, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at  every stage of production. We believe in quality & customers satisfaction.

Advantages

• Step-less On Load Voltage Regulator

• Designed for 100% continuous load

• Nil Waveform distortion

• High Efficiency of up to 97%

• Virtually zero maintenance

Salient Feature

• JINDAL'S rectifier equipments are wound with electrolytic Prime grade italics to minimise power losses, in comparison to Aluminium italic conductor used by many other manufactures. Our equipments are designed liberally as per capacity and are ideally suitable for marginal over loading conductions.

• We use verticle Rolling contact type voltage regulator wound with heavy section of copper strips suitable for 100% continuous duty cycle for industrial applications, in comparison to conventional wire wound Regulators used by other manufacturers. The carbon rollers move on both sides of the winding.

• DIODE : Silicon diodes are tested in house, similar PIV batch and same forward drop diodes are used in the equipment for equal load sharing and reducing the power losses of diodes.

• LAMINATION CORE : We use imported CRGO Lamination core which have minimum power losses and results in better efficiency of equipment and saving in energy bill.

• PAINTS : Epoxy paint is used which is resistant to acidic environment of plating process and enhance the life of the equipment by preventing it from corrosion.

• METER : We use reputed make AE/RISHAB make DC meters only which are very accurate and durable.

• CONSTANT VOLTAGE CONTROLLER (CVC) (OPTIONAL) : We offer CVC Electronic attachment with rectifier equipments, which will maintain constant Output Voltage or Current as per setting automatically-irrespective of input voltage variation.

• SERVICING : JINDAL'S have maintained enviable reputation in market in after sales services. This fact can be varified from any of our customers.

GuaranteeOur Equipments are Guaranteed Unconditionally for 5 Years against any Manufacturing Defect. We Shall not charge anything for Installation Servicing and Spares During the Guarantee Period.

Applications

• Electroplating / Electro-polishing

• Anodizing plants

• Metal mining, refining & extraction

• Etching

• Furnace & Heating systems

• Electrophoresis coating plants

• Metal & glass melting

• Heating Lehrs

• Effluent Treatment plants

• Annealing processes

• Production of Chlorine gas

• Chemical electrolytic processes

• Variable speed drives

SpecificationsThe standard model conforms to the following specifications :

• Output Voltage : From zero to max. rated D.C. voltage (upto 1000 Volts)

• Output Current : From zero to max. rated D.C. current (upto 3000 Amps)

• Input Voltage : 415V, 3-phase, 50 Hz, A.C.

• Natural Oil cooled

• Modes of Operation : Manual Control

  • Electrical with the help of push buttons

  • Mechanical with the help of T-Handle

• Ripple Content: Less than 5%

  • Model with 1% ripple available as optional feature

• Efficiency

  • 12 V Rectifier : 82%

  • 24 V Rectifier : 90%

  • 100 V Rectifier : 94%

  • 200 V Rectifier : 96%

  • 250 V and above : >97%


Note : Non-standard models are also available against specific requirements.

Optional Features

• Constant Voltage Controller (CVC)

• Constant Current Controller (CCC)

• D.C. Overload Trip system

• Zero Run Down system

• Programmable Ramping Arrangement

• Signal Isolators to enable automation / PLC compatibility
