JK Trading

Kundrathur, Chennai, Tamil Nadu

Product Details :

• Automatic inline flexo printer slotter(die cutter) folder gluer machine top print fully vacuum absorb transfer cardboard
• Adopting advanced vacuum absorb lead edge extend feeding system, with stable high speed, easy operation and high accuracy.Fully computerized slotter unit: Touch screen adjust the box width, length and height.
• inch color touch screen, pre-set 200 group orders, order inquiries, zero-order input, synchronous zero, the automatic / manual adjustment of phase, management of the parameters , up and down the plate, auto/semi-auto inking, automatic display
• All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish.
• Interval of all the roller is adjusted by high precise worm box. With three disk handle seat, convenient and swift.
• Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton.
• Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm.
• Down folding gluing system, computerized adjust the box length, width and height.
• The full machine is manufactured to high standard, reasonable and safety constitution. Easy operation and quick order change.

Product Details :

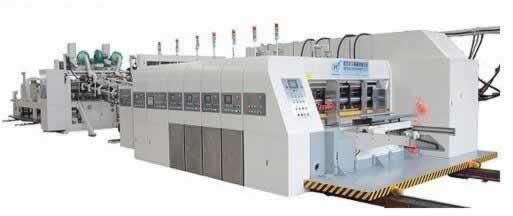

• Automatic inline flexo printer slotter(die cutter) folder gluer machine, Fully computerized machine.
• Bottom print fully vacuum absorb transfer cardboard.
• ceramic roller and doctor blade ink wiping system.
• Fully computerized slotter unit: Touch screen adjust the box width, length and height.
• Auto detects reset system. quick printing plate mounting system, for quicker order change.
• Static charge removing device, centralized dust collection system, improved dust removal and collection.
• Each unit equipped with pull string safety switch, it is for safer operation.
• Vacuum Transfer box use ceramic rollers, centralized lubrication device, ensure accuracy and life span.
• Transmission gears are precision grinded alloy steel with spraying type circulating lubrication system.
• Electric element, bearing, and pneumatic element all use international brand.

Product Details :

• Automatic inline flexo printer slotter(die cutter) folder gluer machine, Fully computerized machine.
• Bottom print fully vacuum absorb transfer cardboard
• ceramic roller and doctor blade ink wiping system
• Fully computerized slotter unit: Touch screen adjust the box width, length and height.
• Auto detects reset system. quick printing plate mounting system, for quicker order change.
• Static charge removing device, centralized dust collection system, improved dust removal and collection.
• Each unit equipped with pull string safety switch, it is for safer operation.
• Vacuum Transfer box use ceramic rollers, centralized lubrication device, ensure accuracy and life span.
• Transmission gears are precision grinded alloy steel with spraying type circulating lubrication system.
• Electric element, bearing, and pneumatic element all use international brand.

Products Details :

• Adopting advanced lead edge feeding system, with stable high speed, easy operation and high accuracy.
• Centrifugal fan (7.5KW), variable frequency drive control for vacuum blower fan for increases and decreased vacuum suction to match different sizes of paperboard
• Left and right baffle is electrically adjusted driven by the screw. Right bar have the function of pneumatic slapping.
• Has interval paper feeding device. (continuous or interval feeding is optional). Convenient for larger sized cardboard printing
• 7 inch color touch screen, pre-set 200 group orders, order inquiries, zero-order input, synchronous zero, the automatic / manual adjustment of phase, management of the parameters , up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.
• Interlocking switch with slotting unit, realize the Scram , stop feeding or Re-feeding, Forward and reverse Jog . More humanity
• Back -paper holder frame with electrically adjust which was controlled by the compressed air-motor, convenient and swift.
• Equipped with brush device to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface and to improve printing quality.

Product Details :

• This kind of machine adopts vacuum adsorption pushing board assistance to carry paper lead edge feeder.
• It has once finish corrugated paperboard opening slot, slicing corner, dividing edge, rolling line and so on.
• Axial and vertical movement of the knife seat and height of the carton are controlled and adjusted by hand(Based on clients requirement, it can set up PLC control system), Opening slot phase adjusting mechanism is the structure of planets gear structure.
• It adopts electricity power numeral 360  to adjust photo electricity counting number.
• It has many good characteristics such as handy using and handy repairing, high automation degree and soon.

Product Details :

• Adopting advanced lead edge feeding system, with stable high speed, easy operation and high accuracy.
• High pressure centrifugal fans(7.5kw). The absorption force can be adjusted to different cardboard thickness and dimension. Frequency converter control the force, make sure the smoothly feeding
• The left , right bar is manually adjust. Digital display, prompt , accurate and convenient. The gap of front bar is manually adjusted
• Has interval paper feeding device. (continuous or interval feeding is optional). Convenient for larger sized cardboard printing .
• Equipped with brush device(4kw) to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface and to improve printing quality
• Interval of the feeding roller is adjusted by high precise worm box with a range of 0-11mm.
• The feeding roller is embossing and chrome plated and subject to balance alignment.
• Interlocking switch with slotting unit, realize the Scram , stop feeding or Re-feeding, Forward and reverse Jog. More humanity

Use and characteristic :

• This series on corrugated board cut paper, roll the line , slice the corner open the slot machine, is comprehensive production equipment which integrate several process such as cutting corner line and slicing the side , electric phase, the machine characteristic is feeding single paperboard one by one , general flexural paperboard is applicable too.
• Slicing the Corner, opens the slot knife can 360 degree positive turn and reverse turn, circularly convenient to adjust , reliable to lock and open slot precisely , the adjusting function designed compactly durable and long using life.

Product Details :

• Adopting advanced lead edge feeding system, with stable high speed, easy operation and high accuracy.
• High pressure centrifugal fans(7.5kw). The absorption force can be adjusted to different cardboard thickness and dimension. Frequency converter control the force, make sure the smoothly feeding
• The left , right bar is moterized adjust. Digital display, prompt , accurate and convenient. The gap of front bar is manually adjusted
• Has interval paper feeding device. (continuous or interval feeding is optional). Convenient for larger sized cardboard printing .
• Equipped with brush device(4kw) to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface and to improve printing quality
• Interval of the feeding roller is adjusted by high precise worm box with a range of 0-11mm.
• The feeding roller is embossing and chrome plated and subject to balance alignment.
• Interlocking switch with slotting unit, realize the Scram , stop feeding or Re-feeding, Forward and reverse Jog . More humanity.

Product Details :

• Automatic inline flexo printer slotter(die cutter) folder gluer machine, Fully computerized machine.
• Top printfully vacuum absorb transfer cardboard
• ceramic roller and doctor blade ink wiping system
• Fully computerized slotter unit: Touch screen adjust the box width, length and height.
• Auto detects reset system. quick printing plate mounting system, for quicker order change.
• Static charge removing device, centralized dust collection system, improved dust removal and collection.
• Each unit equipped with pull string safety switch, it is for safer operation. Vacuum Transfer box use ceramic rollers, centralized lubrication device, ensure accuracy and life span.
• Transmission gears are precision grinded alloy steel with spraying type circulating lubrication system.
• Down folding gluing system, computerized adjust the box length, width and height.
• Electric element, bearing, and pneumatic element all use international brand.
