Our Products

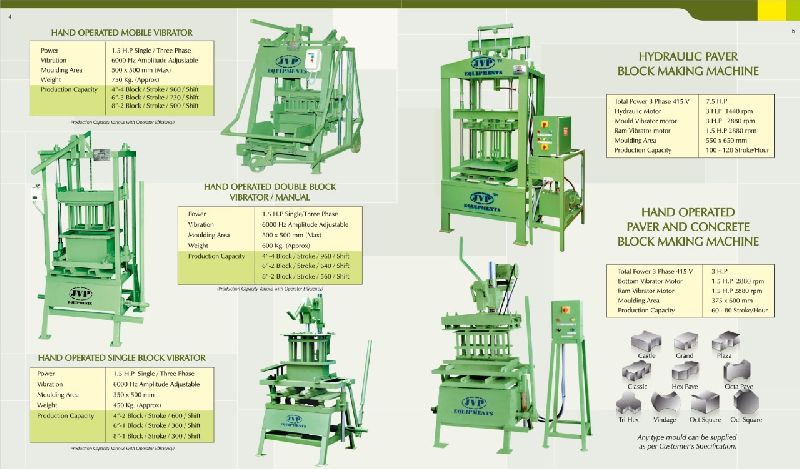

We offer a complete product range of Hand Operated Paver and Concrete Block Making Machine, Hand Operated Concrete Block Making Machine, Concrete Block Making Machine with Auto Feeder, Interlocking Block Making Machine and Automatic Concrete Block Making Machine
Our Hand Operated Paver and Concrete Block Making Machines are reckoned due to their high performance.To offer our purchasers top-notch range of products, we ensure only optimum grade supplies are utilized for their production. We are highly acknowledged for delivering the orders within the stipulated time frame as we have excellent transit facility.
Specification
| Total Power 3 Phase 415 V | 3 H.P |
|---|---|
| Bottom vibrator motor | 1.5 H.P 2880 rpm |
| Ram Vibrator motor | 1.5 H.P 2880 rpm |
| Moulding Area | 375 x 600 mm |
| Production Capacity | 60-80 Strokes / Hour |
Our Hand Operated Concrete Block Making Machines are reckoned due to their high performance. Hailing from Coimbatore(India), we are catering to the nationwide requirement with our superior products. Our company guarantees to make delivery of bulk as well as retail orders of the product within the mutually decided timeframe.
Specification
| Power | 1.5 H.P Single/ Three Phase |
|---|---|
| Vibration | 6000 Hz Amplitude Adjustable |
| Moulding Area | 500X500 mm(Max) |
| Weight | 750 Kg(Approx) |
| Production Capacity | 4"-4 Block/Stroke/960/Shift 6"-3 Block/Stroke/720/Shift 8"-2 Block/Stroke/500/Shift |
The Concrete Block Making Machine with Auto Feeder, provided by us, is reckoned due to its high performance.We are counted amid the quality-centric organizations and thus source the inputs only from the trustworthy sources. Also, these raw materials are checked against varied quality parameters. We have strong tie-ups with the leading e-commerce merchants who provide us a secure payment gateway that helps us in avoiding physical movement of money.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Export sea worthy wooden box
Specifications
| Power | 17 HP, 3 Phase |
|---|---|
| Hydraulic Pumps | 7.5 HP, 1440 RPM |
| Vibration (Double) | 3 HP 3 Nos (Total 9 HP 2880 RPM) |
| Traveler | 1 HP 2 motor (forward and Reverse) Left and Right Gear Box Motor 1 HP 960 RPM |
| Operating Pressure | 200 Bar |
| Storage Box | 1 Bag Capacity (10/7) (1 Fitted to the Machine) |
| Auto Feeder | To Load Materials by it self |
Production Capacity
| 400 X 200 X 100 mm | Production | 16 Nos Per Stroke |
| 400 X 200 X 150 mm | Production | 10 Nos Per Stroke |
| 400 X 200 X 200 mm | Production | 8 Nos Per Stroke |
We are a reckoned Manufacturer, Supplier and Exporter of Interlocking Block Making Machine in Tamil Nadu, India. Our broad assortment of Block Making Machine comprises of Concrete Block Making Machines, Hand Operated Concrete Block Making Machine and Paver Block Making Machines. Our team of veterans design them using top of the line quality metal that is checked for its durability, corrosion and abrasion resistant properties. Pricing is not an issue with us since our Interlocking Machine is competitively priced.
Technical Specifications
| Pressing Capacity | Power | Production Rate |
|---|---|---|
| 20 Tonnes | 10 HP | 30 Secs/Block |
| 30 Tonnes | 15 HP | 30 Secs/Block |
| 50 Tonnes | 25 HP | 30 Secs/Block |
Accessory Machinery Supplied
| 10/7 Concrete Mixer(Stand Type) or | - 3HP |
| 150 Kg Capacity Pan Mixer | - 5HP |
| Screening Machine | - 1HP |
| Pulveriser | - 7.5 HP |
Our company is identified as one of the preeminent Manufacturers, Exporters and Suppliers of Automatic Concrete Block Making Machine in Tamil Nadu. We are offering wide range of Concrete Block Making Machine Models at nominal price. With the use of advanced technology and premium metal components, our skilled production team is able to provide highly efficient Automatic Concrete Block Making Machine. We can process bulk orders and ensure its safe delivery.
Item Code : Model – 860
Technical Specifications
| 860 Model | Single Vibrator | Double Vibrator | Triple Vibrator |
|---|---|---|---|
| Power | 5 H.P 3 Phase | 6.5 HP 3 Phase | 8 HP 3 Phase |
| Hydraulic Motor | Hydraulic Motor | 3 HP 1440 rpm | 3 HP 1440 rpm |
| Vibrator Mould Motor | 1.5 HP 2880 rpm | 3 HP 2880 rpm | 3 HP 2880 rpm |
| Ram Motor | - | - | 1.5 HP 2880 rpm |
| Travel Motor | 0.5 HP 1440 rpm | 0.5 HP 1440 rpm | 0.5 HP 1440 rpm |
| Weight without Mould & Ram | 900 Kg | 1000 Kg |
1100 Kg |
| Vibrations | 6000 Hz Amplitude Adjustable | ||
| Operating Pressure | 140 Kg/cm2 | ||
| Moulding Area | 860X600 mm | ||
| Dimensions | 2000X1500X2000 mm | ||
| Capacity |
|
||
As a known name, we ensure safe and timely delivery of the orders at any desired Coimbatore(India). We have hired a team of professional quality experts to carry out diverse quality tests in order to ensure zero defects at buyer's end.
Additional Information:
Payment Terms : T/T
Delivery Time : 30 days
