Kanaad Electronics Pvt. Ltd.

Marol, Mumbai, Maharashtra

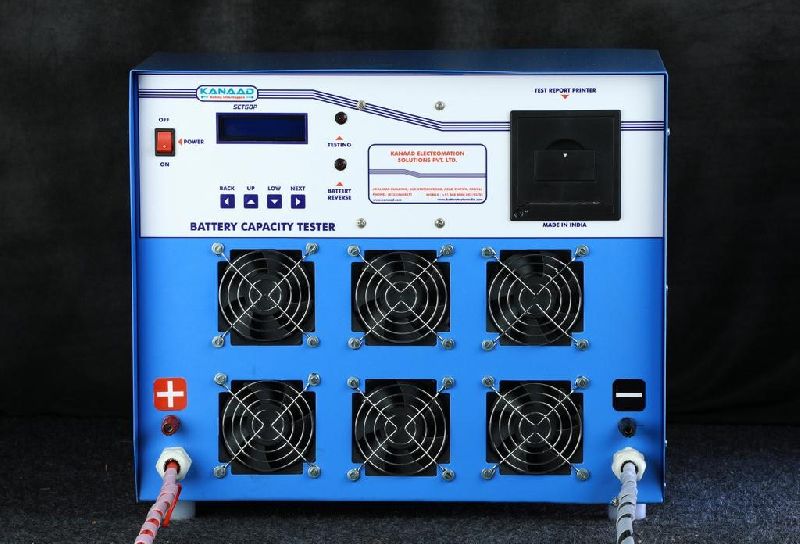

Battery capacity"is a measure of the charge stored by the battery, and is determined by the mass of active material contained in the battery. The Amp Hour (AH) specification provides a measurement of battery capacity.The battery capacity represents the maximum amount of energy that can be extracted from the battery under certain specified conditions. So how many amp-hours of capacity does your battery really have? Find out with Battery Capacity Tester. These tests are helpful for relative comparisons and battery analysis.

In this method a fully charged battery is discharged with a constant current up to the voltage level below which battery is considered as fully discharged. In this test user needs to set parameters like Battery cutoff Voltage and a test current. Current setting is dependant on expected rate of discharge. At the end of test, machine gives you the reading of exact Ah capacity extracted from the battery.

Now a days End Of Line testing of a battery is very much important to find manufacturing defects inside the battery. This saves the time for and cost of transportation in case of claims against manufacturing defects. Kanaad Battery production Line Tester delivers a heavy duty performance needed for continuous or large battery production.

This test is based on a HRD standard for testing of batteries. According to this standard any 12V automotive battery to perform well at normal temperature should sustain 3X load than its Ah capacity and remain above 10V for specific short duration of time. User needs to set the End voltage, Test current and the Test timing.

As the name suggest All In One Battery tester is developed for all types of battery testing needs. So this single machine can perform Instant Load test as well as backup test. Most of the battery traders deals in all types of batteries such as Motorcycle, Automotive as well as Inverter batteries. Problem with Instant tester is that they can not tell you exact backup time battery can give. So they need to purchase different tester for taking backup or they have to use traditional method of using bulb load. But these methods need continuous monitoring as well they need dedicated setup. For all these problems we have found a ALL IN ONE solution which is economic as well as do all the needed tests.

HRD Tester is designed for High Rate Discharge testing of automotive and commercial batteries. HRD is a standard accepted worldwide and is a reliable method for instant testing of batteries. This method simulates same condition on battery as cranking the engine. Nowadays customers need a record of their battery under test, so we have given a option to take a printout of the result. HRD tester is available in different models for Motorcycle and automotive batteries.

As per standard any 12V automotive battery to perform well at normal temperature should sustain 3X load than its Ah capacity and remain above 10V for specific short duration of time. So according to this In HRD tester user should set a battery Ah capacity, machine will automatically puts a 3X load for 5 seconds and observe the battery voltage to find the battery health. For Motorcycle batteries load is 5x battery Ah capacity.

Kanaad portable load testers are designed specially for on site battery testing need. It is useful for finding general battery health.Now a day usage of battery is increased so much. Battery systems are installed in a remote areas far away from cities. So to attend faults in such systems is needed that testing machine should be portable and should tell you precise condition of battery. By keeping this in mind during design we focused on portability of the tester as well as accuracy of results. It comes with a handy bag so that it is easy to carry anywhere.
