Our Product / Services
Our product range contains a wide range of Burmah Castrol Strips / B.C Strips, Lifting Weight for Magnetic Yoke Verification, Digital Level Angle Gauge Angle Finder Protractor, Digital Gauss Meter and Ultrasonic Flaw Detector Charger (UT Machine Charger)
With the aid of experienced professionals, we are engaged in offering the best quality of NDT Training Institute Service to our clients. These services are rendered using the latest technology. In addition to this, these training institute services are executed using the latest technology to provide optimum customer satisfaction
We offer Level II Training for:
ASTM Block: ASTM Test block for Magnetic Particle Test Performance Verification , Test Bar Included Subsurface Flaw, Block come with Zinc Plating
Pie Gauge Field Indicator: The Pie Gauge/Pie Filed Indicator is a tool for quickly verifying the direction of magnetic flux on a surface. It is made from eight ferrous segments, braised into a single piece, providing a star pattern of nonferrous discontinuities. Typically used with dry powders for yoke inspection, the Pie Gauge can be held at any angle and will generate indications perpendicular to the direction of the magnetic flux. A similar test gauge, the Berthold Penetrameter, uses four instead of eight ferrous sections
QQI Shims: Artificial flaw shims improve inspection reliability, verify magnetic field direction and relative strength at all critical areas of a component. Basic Circular and Cross Bar flaws configuration suitable for longitudinal and circular fields. Meets ASTM & MIL Standards.
Gauss Meter: Is Magnetic Field Indicators Rugged, pocket-size meters used to indicate residual magnetism remaining in part after magnetization.
Centrifuge Tube: Centrifuge tube is used for checking the concentration of the powder particles in the freshly prepared Bath for MPI. Pear-shaped 100ml glass centrifuge tube is manufactured to meet the requirements of ASTM Standard. The tube is duly graduated and has a least count of 0.05 ml and 0.1 ml. This ensures the accurate reading of the settling of powder particles.
The Quantitative Quality Indicator (QQI) or Artificial Flaw Standard is often the preferred method of assuring proper field direction and adequate field strength. The use of a QQI is also the only practical way of ensuring balanced field intensity and direction in multiple-direction magnetization equipment. QQIs are often used in conjunction with a Gauss meter to establish the inspection procedure for a particular component. They are used with the wet method only, and like other flux sharing devices, can only be used with continuous magnetization
Burmah Castrol Strips are a simple and effective tool, that provides you with assurance that you are performing an effective magnetic particle test.
Their proper use proves that you have:
Lifting Weight for Magnetic Yoke Calibration
We are manufcature of Lifting Weight Block for Magnetic Yoke Calibration having Weight 4.5, 18 and 22.5kg
MT detects surface and near-surface imperfections such as cracks, seams and laps in ferromagnetic materials, and is used to assess location, size, shape and extent of these imperfec- tions. When the test object is magnetized, flaws perpendicular to the magnetic field direction cause f lux leakage. Magnetic particles applied to the surface are held at the location of the imperfection by flux leakage.
UTG is a method of performing non-destructive gauging (measurement) of the local thickness of a solid element (typically made of metal) based on the time taken by the ultrasound wave to return to the surface. This type of measurement is typically performed with an ultrasonic thickness gauges. We offer on-site thickness gauging services for assessing corrosion in process plant, piping & equipment
Conventional hardness testers, like Rockwell, Brinell or Vickers machines, require the test piece be brought to the testing device; but this is not always possible. Portable testing devices have been developed that permit in-situ hardness measurements thus offering quick and economical supplements to conventional, stationary testing machines. We offer on-site hardness testing services using wide range of portable hardness testers
Additional Information:
Payment Terms : T/T
Delivery Time : 1 Day
360 degree swivel: All-angle ball joint holds mirror head tightly at any angle
Application: This inspection mirror is ideal for toolmakers, machinists, inspectors and mechanics
Size: S: Mirror diameter: 30mm&50MM, handle length: Unstretched length: 192mm & 280 , stretched length: 610mm & 420
30MM Retractable: The telescoping designed inspection mirror is convenient to use and store
Material: Made of carbon steel material, good quality and durable
50MMCheck leaks in hard-to-see places. Stainless steel mirror on ball joint rotates 360, CHROME FINISH WITH RED COLOR GRIP

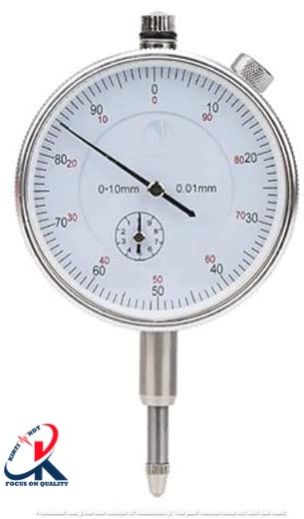

Range: 0-10mm Resolution: 0.01mm 1.100% brand new and high quality!
Precise and professional made, stable performance.
Metering the concentricity of principal.
Easy and convenient to use.
Function: Metering the concentricity of principal axis
Cross hatch Cutter to assess the adhesion paint coatings(thickness) and instant assessment of the QUALITY of the bond to the substrate.
The laser meter is very easy to use. One button operation , one key to measure. Easily measure hard-to-access areas like high ceilings without climbing a ladder. Large LCD with backlight and multi-line display, provides you with a better visibility in dark areas with this home depot electric tape measure. Portable compare size, allow you take it to anywhere that you need. There are two photosensitive holes and a large optical lens. During the measurement process, the light transmittance is increased by 50%, and the response time is 0.5s. It can better withstand strong light interference and can still be clearly read under external sunlight Compared with other laser measurement, it provides more stable and accurate measurement. Based on measured Length, width and height, gets you smart volume and area calculations, no need of manual operationany more.
| Product Model | Laser Distance Meter |
| Measuring Range | 0.0340m/60m/100m |
| Measuring Accuracy | +/-1mm |
| Measuring Unit | m/ft/in |
| Size | 118*54*27mm |
| Laser Grade | Grade II |
| Battery Type | 1.5*2V/AAA Battery 1.2v*2 rechargeable type |
| Laser Type | 635nm |
| ShellColor | Green, red, yellow, OEM |
| Working Temperature | 040 |
Digitalforce gauge with compact size, highaccuracy, easycarry out. Widelyapplied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighterand ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push loadtest, insertion force or pull and destructive experiment.
Built-inhigh sensitivity sensor, fast measurement speed and high precision. Support three different units display:Lb, Kg, N, one-button switching, easy to operateWith 3.7V lithium battery, the theoretical working time can reach 15 hours. With a low battery reminder, no operation within 10 minutes can automatically shut down, do not worry about sudden powerLarge LCD display, reading data is clearer and more convenientThe battery has short circuit, leakage, overload protection, and effectively protect the safety of the product100% satisfactory & We Provide the Quality Assurance.
| Model Name/Number | SF-500 |
| Accuracy | +/-0.5% |
| Humidity | 15% to 80%RH |
| Unit | N & kg&Lb |
| Power | 3.7V lithium Battery |
| Minimum Load | 50N / 5kg |
| Maximum Load | 500N / 50kg / 110Lb |
| Load Value / Resolution | 0.1N / 0.01kg / 0.01Lb |
| Minimum Order Quantity | 1 Piece |
PRODUCT DESCRIPTION:
This product adopts piezoelectric effect of artificialposarizedceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.
PRODUCT FEATURES:
ASTM TEST BLOCK
ASTM Test block for Magnetic Particle Test Performance Verification , Test Bar Included Subsurface Flaw, Block come with Zinc Plating
We offer full range of ultrasonic testing cables. These cables are manufacturer with Extra protection on outer insulation and reinforce junctions between the cable & the connector. Cables are available in single, dual with Lemo, Mini Lemo, BNC & Microdot connector. We can also offer customizes cable as per our client requirement, Our standard Cable Length 2Meter.
Features:
Specifications:
Features:
Specification:

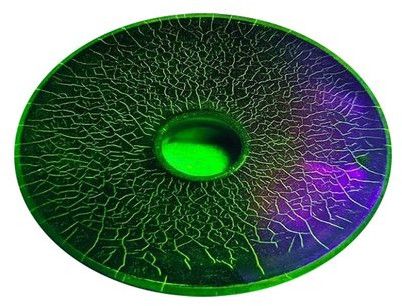

Use our MTU test block also known as reference block type 1 to test the concentration of your magnetic powder suspensions, to ensure optimal error indication while carrying out magnetic particle inspection. The disc is used to check the performance and sensitivity of of the magnetic particle materials, to allow you to assess the material degradation and/or bath contamination.
CENTRIFUGE TUBE-FLUORESCENT BATH
Centrifuge tube is used for checking the concentration of the powder particles in the freshly prepared Bath for MPI. Pear-shaped 100ml glass centrifuge tube is manufactured to meet the requirements of ASTM Standard. The tube is duly graduated and has a least count of 0.05 ml . This ensures the accurate reading of the settling of powder particles.
CENTRIFUGE TUBE-NON FLUORESCENT BATH (VISIBLE)
Centrifuge tube is used for checking the concentration of the powder particles in the freshly prepared Bath for MPI. Pear-shaped 100ml glass centrifuge tube is manufactured to meet the requirements of ASTM Standard. The tube is duly graduated and has a least count of 0.1 ml. This ensures the accurate reading of the settling of powder particles.
The Pie Gauge/Pie Filed Indicator is a tool for quickly verifying the direction of magnetic flux on a surface. It is made from eight ferrous segments, braised into a single piece, providing a star pattern of nonferrous discontinuities. Typically used with dry powders for yoke inspection, the Pie Gauge can be held at any angle and will generate indications perpendicular to the direction of the magnetic flux. A similar test gauge, the Berthold Penetrometer, uses four instead of eight ferrous sections ASME BPVC Section V Article 7 ASTM A275 ASTM E709 ASTM E1444 ASTM E3024
Digital Gauss Meter
A Gauss Meter is an instrument used for precise measurement of electromagnetic field waves. It measures Magnet fields Magnitude in Gauss and also shows Magnetic Vectors Direction.
Principle
Gauss Meter measurement works on principle of Hall Effect.
ThisGauss Meter is on par in excellence to its direct competitors and import substitutes in terms of Quality, Serviceability and Precision.
ThisGauss Meter is completely Designed, Developed and Manufactured Here In Bharat.
being a well-distinguished company in the market, we are into offeringtaper weld gauge.
other details:
Taper Gauge Rust proof Stainless Steel Material

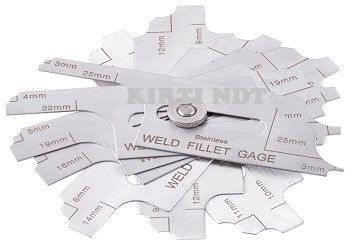

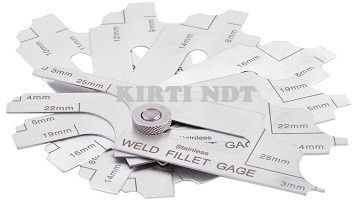

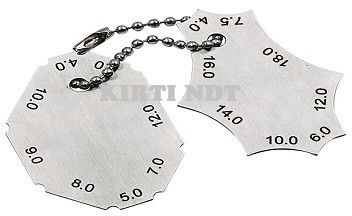

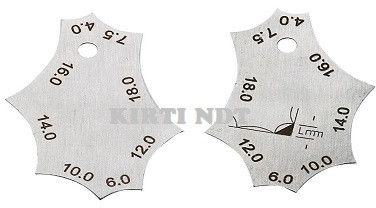

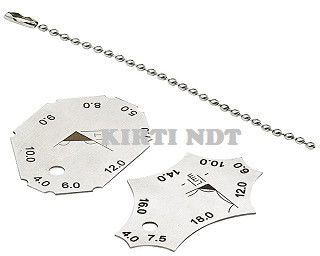

Pocket Fillet Weld Gauge
This rugged gauge, fabricated in stainless steel, is made of sets of 2 Blades with permanent markings. Gauge leaf can check welding actual throat size and fillet weld leg sizes. It is useful for Welding, Maintenance & Quality Department. Both the leaves are assembled in handy chain
Features:
Pocket Size- Measures 8 Size Fillets Check Leg Length, Throat Size, Plus allowable Convexity All Increments Permanently Engraved Each Welder Can Carry a set for pre-Inspection Handy Key Chain Hold Set Together
Material: stainless steelThickness of the fillet weld:4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm
Fillet Weld Size: 4mm, 6mm, 7.5mm, 10mm, 12mm, 14mm, 16mm, 18mmAccuracy: 0.5m

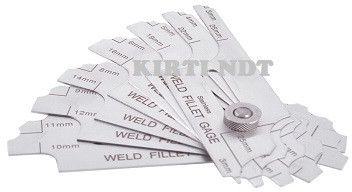

With a pivoting blade for easy measuring of eleven most specified fillet dimensions. Measures concave or convex seams. Stainless steel blades, etched increments. 325 mm, Each leaf has two ends The gages possess two ends with one piece. One end is for convex fillet, and the other end is for concave fillet. Gauge used high quality stainless steel, the users can used them many times with less worn out. The gauges comes as a set of individual gauges that used to size fillet welds. In fact, the gauge do not measure fillet welds. Only to determine whether the weld is smaller than, larger than, or the exact size of the gauge being used. The set of leaves of the fillet weld gauges like thread gauge go or no go.
Note: The gauge only tells you whether the fillet size "go" or "No go", smaller or larger than the standard. The inspector checks the size of the actual weld by using one or more gauges to compare the size of the weld to the size of the individual gauges.

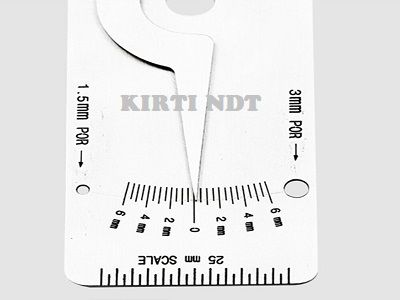

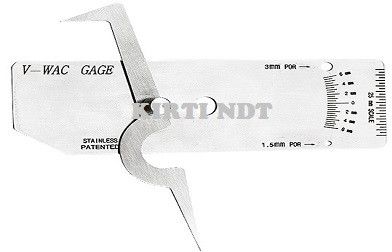

V Wac Welding Gauge
V Wac Welding Gauge is easily and quickly checks the four essential measurements required for compliance with NRC Visual Weld Acceptance Criteria. It checks undercut depth, porosity comparison, amount of porosity per linear inch and crown height, quickly determine if fillet welds meet NRC Visual Weld Acceptance Criteria for structural weldments,

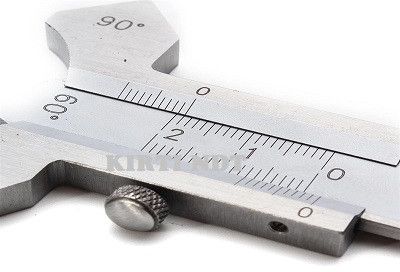

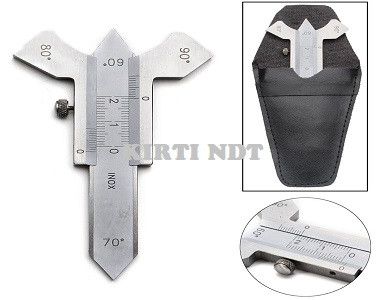

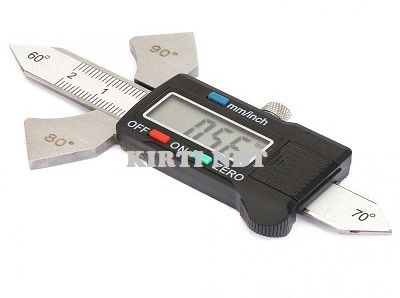

Vernier Welding Gauge
Vernier Welding Gauge Measure Butt Weld Reinforcement
Vernier Welding Gauge Measure Fillet Weld Throat Thickness
Vernier Welding Gauge
Vernier Welding Gauge Measure Butt Weld Reinforcement
Vernier Welding Gauge Measure Fillet Weld Throat Thickness

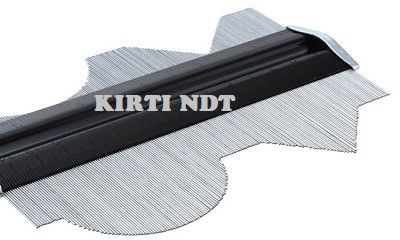

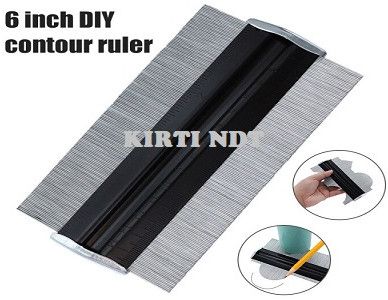

Welding Profile Gauge, Welding Profile Comb, Weld Profiler, Contour Gauge, also known as Weld Profile Gauge, Profile Comb, or weld Profiler
A weld profile gauge is just the right tool for testing welding profile, matching wheel arches and body contours, or forming panels. Simply press the gauge against the piece you want to copy. Pull it away, and there's your reproduction.
Another professional tools for welding inspection. The indicator arm has a stylus which fits into the pits of pipe being measured. The scale on the right of the guide is shown as an arc and is expressed in both sixteenths of an inch and millimeters. Each one comes comes with its own vinyl case and can be easily carried in ones pocket. It will serve as a constant guide for judging the condition of pipe.
Features:
? Range is 0 to 1/2 in 1/64 & .010 Increments Arm Can be Locked in Place at Any
? Arm Can be Locked in Place at Any Dimension
? All Stainless Steel
? Gage Will Fit in Shirt Pocket & Comes in a Pocket Protector
? Has Handy Formulas on Front & Decimal Equivalents on Back
Welding Hi-Lo gauge. Measures internal , Fit-up gap, Bevel on Pipe and Plate end preparation, Crown height, and Pipe and Plate wall thickness. Fit-up gap; Internal misalignment; Weld crown height; Scribe line, socket welds; Fillet weld size; Pipe wall thickness; Angle of bevel on end preperation to an accuracy of 0.8 mm (1/32'').
Features:
?Measures Internal alignment of pip after fit-up/alignment
?Measures Internal Misalignment of pipe before and after tacking
?Measurement scale both Inch and Metric
?Measure Bevel on end Preparation
?Measure the crown Height of welds
?Measure Fillet weld size
?Measure Scribe Line, Socket welds
?Solid Stainless Steel, Rust free, Sturdy with Caring case and User Manual

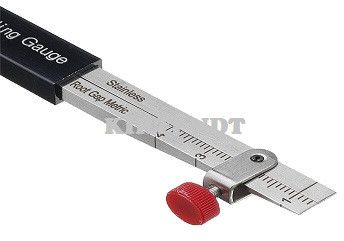

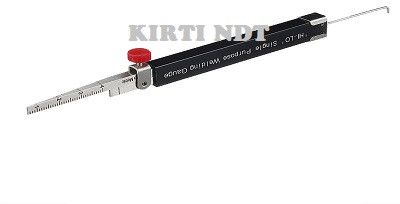

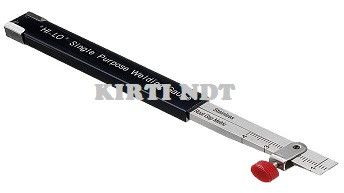

Single Purpose HI-LO Welding Gage is designed for internal alignment and determining root weld spacing, Internal HI-LO gage. Four quick steps check internal alignment You can check the internal alignment of your fit-up
Features:
? Measure Root Weld Space
? Measure Internal Misalignment
? Range 0-30mmScale 1mm (mark 1 Corresponds 0 mm, mark 4-3mm)
? Accuracy +/- 0.15mm
? Made of high quality steel, this gauge is durable and not easily scratched
? Widely used for welding inspection of boiler, shipbuilding, bridge, pressure vessel and oil pipeline
? This welding gauge measures internal alignment of pipe after fit-up/alignment
? Small size and light weight, it is convenient to carry and easy to use
? Gauge surface is clearly marked by which is wear-resisting and ensures a clear reading
permit you to accurately check welds of varying sizes quickly and easily. You can measure Weld Throat Thickness, Butt Fillet Type Welds, Weld Length, Misalignments (High-Low), and much more depending upon the Gauge selected.digital welding gauge, with the designed based on a digital vernier caliper with direct reading, Its easy to use and provides fast and accurate measurements of surface pits, gauges, dents, undercuts, etc Weld Measuring Gauges are sturdy, well-made, and come in numerous types to perfectly fit your requirements.

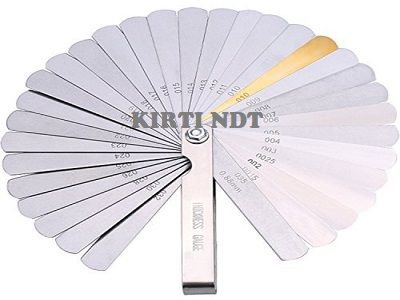

Tool for Measuring Gap Width / Thickness imperial /metric size (0.0015 inch/ 0.04 mm to 0.035 inch/ 0.88 mm)
Features:
? Feeler gauge Set: Made of stainless steel, each measuring feeler gauge has 32 blades thickness; Foldable feeler gauges, easy and convenient to take and store
? Easy identification: dual marked metric and imperial, 0.0015 inch/ 0.04 mm to 0.035 inch/ 0.88 mm, the numbers of size are etched into feeler gauge for easy identification
? Application: Stainless Steel Metric Master Feeler Gauge SET 32-Piece Blade Dual Marked Metric /Imperial Reading Combination Tool for Measuring Gap Width / Thickness imperial /metric sizes
? Inch sizes: 0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035
? metric sizes (mm): 0.04, 0.05, 0.06, 0.08, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.43, 0.45, 0.48, 0.50, 0.53, 0.55, 0.58, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.88

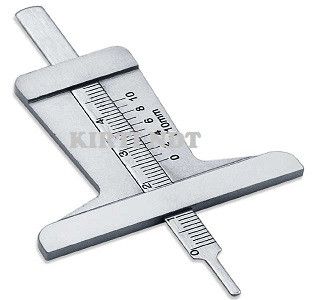

Tyre tread is the raised rubber of the Tyre which contacts the road. It is handy tool for passenger car , commercial vehicles as well as light commercial vehicles as timely checking of Tyre wear helps in minimizing errors and maximizing Tyre life Worn rubber can dramatically reduce stopping distances, as well as affecting steering and cornering ability.
Features:
? It measures thread depth of tyres
? Handy pocket clip
? Works well in narrow spaces
? Portable, easy to check and operate.
? Measuring range 050mm
? Reading: 0.1mm
? Accuracy: +/ -0.1mm
Wire gauge is great Tool Gauging non-ferrous wire and metal such as copper, brass, also gauging uncoated sheet, plate iron and steel
Features:
? Wire gauge is great Tool Gauging non-ferrous wire and metal such as copper, brass, also gauging uncoated sheet, plate iron and steel.
? Dual mark SWG and SAE.SWG: 0-36 standard, inch scale: 0.3125" - 0.007"
? Made with Stainless Steel sturdy and antirust
? Clearly marked: The numbers are etched into the surface that is easier to read.
How to gauge wire?
? Many people complained that the gauge was not accurate for wire, they made a mistake on how to measure wire. Pls follow the instruction bellow:
? Pls measure the metal part of the wire, do not include the insulator part, we mean do not include rubber, because the SWG is just about the metal part of wire.
? Pls do not use the round hole to measure wire .You have to use the slot to gauge wire or metal.

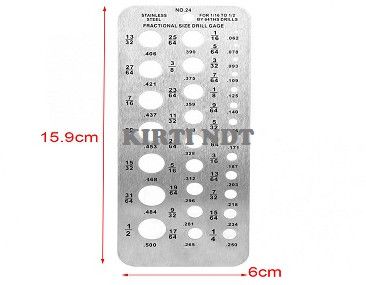

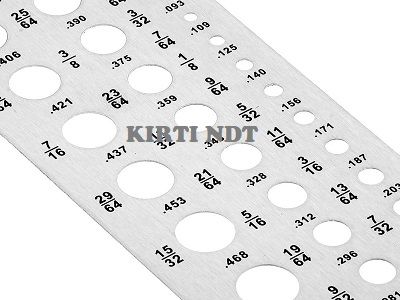

identifies drill bits sizes- helpful when working with older, unmarked drill bits and bits too small to fit diameter markings (1/16 inch to 1/2 inch in 1/64th increments )
features:
? identifies drill bits sizes- helpful when working with older, unmarked drill bits and bits too small to fit diameter markings
? 29 measuring holes- identified drill bits from 1/16 inch to 1/2 inch in 1/64th increments ? etched markings- black graduations to give high contrast and will not wear off
? no math- shows drill sizes in both inches and decimal equivalents
? durable- made from heavy duty, rustproof stainless steel ? 2-3/8" x 6-3/4" overall.

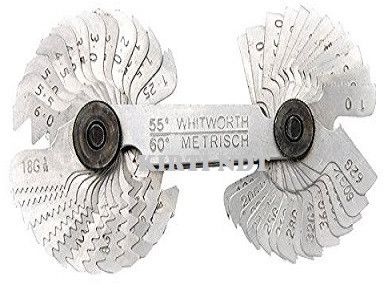

Thread Pitch Gauge
Features: ? Fit for : Whitworth 55-Degree Threads & Metric 60-Degree Threads ? Material : Stainless Steel ? Size(Closed) : 2 5/8 x 1/2 x 11/16inch(LWH) ? 52 folding leaves The leaves are individually stamped with accurately formed thread profiles Measures screw thread pitches between 0.25 6.0mm and 4 - 62 BSW(British Standard Whitworth) ? Package Content : 1 x Screw Pitch Gauge
Thread Pitch Gauge
Inch 55 specifications:? 4G, 4-1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G , 30G, 32G, 36G, 40G, 48G, 60G, 62GMetric 60 specifications:? 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5 6.0
Used with an outside micrometer for measuring inside diameter of bores.
Telescopic Gauge
Features:
? Used with an outside micrometer for measuring inside diameter of bores.
? Extra long for gaging deep and shallow holes, slots and similar work pieces.
? Gaging surface is fully hardened to insure long tool life.
? 4 sizes of gages are supplied in a fitted case.
? Spherical measuring faces hardened, Tool adjustment shaft Satin chrome finish
? Measuring Range 3-13mm (1/8"-1/2")
Instructions:
? A spring piston that telescopes in the bore enables internal diameter detection, which is measured with a micrometer or caliper. (Knurled locking device at the end.)
Using method:
? 1 Loosen the inner hole gauge and place it in the object to be measured.
? 2. Tighten clockwise and make one rotation to ensure tightening.
? 3. After the measurement is correct, tighten the lock clockwise.
? 4. After locking, measure the inner diameter data with a caliper.
Type A B C D
? Measuring range (Inch) :1/8"-1/5, 1/5"-3/10" , 3/10" -2/5" , 2/5"-1/2"
? Measuring range (mm) : 3-5mm , 5-7.5mm, 7.5-10mm , 10-13mm
? Head diameter: 5mm, 5mm, 5mm, 5mm.
? Ball diameter: 3mm, 5mm, 7.5mm, 10mm. ? Length: 76mm, 79mm, 88mm, 92mm.
Description
Charger for Ultrasonic Testing Machine , Ultrasonic Flaw Detector
Flexible probe Digital Coating Thickness Gauge or DFT with measuring range upto 2000um on F and NF substrates featuring trend graph, bluetooth, data storage and clear backlit display.
Applications:The Instrument is designed for measuring the thickness of paint or galvanized layer on iron and stainless steel surface and measuring the thickness of paint or plastic film on aluminum and copper surfaces.coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.Features
Automatic substrate recognition with flexible probe
On display calibration guide Trend graph with alarm limits
Bluetooth for data acquisition Statistics measurement and in-built data storage
Specifications
| MODEL NO. | KIRTI-DFT-CD-2000PLUS |
| Measuring principle | Magnetic induction(F) & Eddy Current (NF) |
| Measuring range | 0 - 2000um |
| Accuracy | (2% + 1um) |
| Resolution | 0.1um (0100um) 1um (> 100um) |
| Calibration | Zero point and multi-point calibration |
| Storage | 10*13*10 measurement data |
| Statistics | Number of Readings, Max, Min, Mean, Sample Standard Deviation, Coefficient of Variation, Number below Limit, Number above Limit |
| Units | um, mm, mils, inch |
| Minimum curvature radius | 5mm(convex) 25mm(concave) |
| Minimum measuring area | Diameter 15mm |
| Minimum thickness of substrate | 0.20mm(F) 0.03mm(NF) |
| Power supply | 2 x 1.5V AA battery |
| Operation environment | Temperature: -10 to 50 Humidity: 20 90% RH |
| Storage environment | Temperature: -20 to 60 Humidity: 20 90% RH |
| Size | 146mm 76mm 32mm |
| Material and weight | ABS |
| Weight | 137g (not including batteries) |
| Standard Accessories | Coating Thickness Gauge with probe, 0 calibration block, standard foils, batteries, factory calibration certificate, technical manual, hard carry case. |
