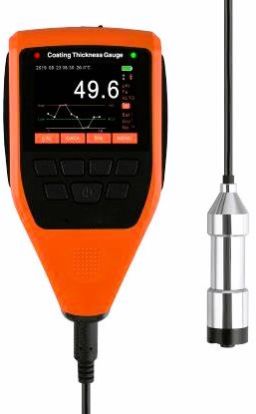

Coating-paint Thickness Gauge(kirti-DFT-CD-2000plus), Power Source : Battery

₹ 12,000 - ₹ 13,000 / Piece

Brand NameKirti NDT
ConditionNew
Power Sourcebattery
Supply TypeManufacturer, Supplier, Retailer, Distributor
Preferred Buyer Location All over the world

Flexible probe Digital Coating Thickness Gauge or DFT with measuring range upto 2000um on F and NF substrates featuring trend graph, bluetooth, data storage and clear backlit....

Company Information

Member Since 8 Years
Nature of Business Manufacturer
GST No. 27BLLPP9562M1Z3

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Flexible probe Digital Coating Thickness Gauge or DFT with measuring range upto 2000um on F and NF substrates featuring trend graph, bluetooth, data storage and clear backlit display.

Applications:The Instrument is designed for measuring the thickness of paint or galvanized layer on iron and stainless steel surface and measuring the thickness of paint or plastic film on aluminum and copper surfaces. coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.
Features

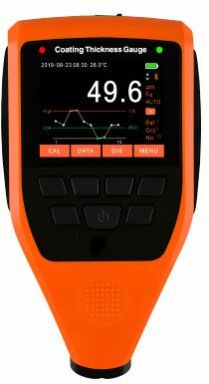

Color Display

▪ Automatic substrate recognition with flexible probe

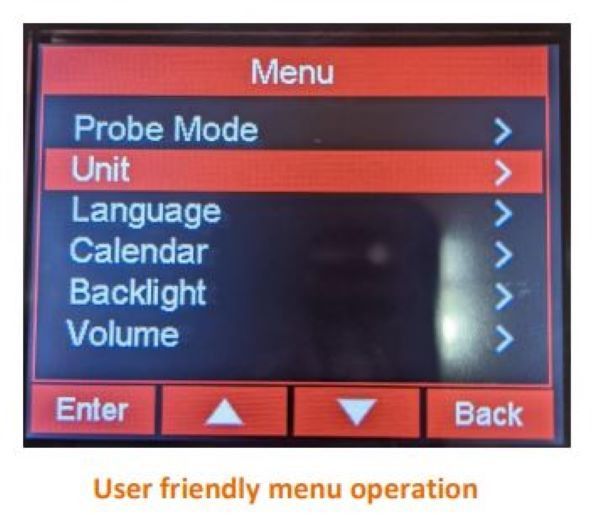

▪ On display calibration guide▪ Trend graph with alarm limits

▪ Bluetooth for data acquisition▪ Statistics measurement and in-built data storage
Specifications

MODEL NO.	KIRTI-DFT-CD-2000PLUS
Measuring principle	Magnetic induction(F) & Eddy Current (NF)
Measuring range	0 - 2000um
Accuracy	±(2% + 1um)
Resolution	0.1um (0~100um) 1um (> 100um)
Calibration	Zero point and multi-point calibration
Storage	101310 measurement data
Statistics	Number of Readings, Max, Min, Mean, Sample Standard Deviation, Coefficient of Variation, Number below Limit, Number above Limit
Units	um, mm, mils, inch
Minimum curvature radius	5mm(convex) 25mm(concave)
Minimum measuring area	Diameter 15mm
Minimum thickness of substrate	0.20mm(F) 0.03mm(NF)
Power supply	2 x 1.5V AA battery
Operation environment	Temperature: -10 to 50℃ Humidity: 20 ~ 90% RH
Storage environment	Temperature: -20 to 60℃ Humidity: 20 ~ 90% RH
Size	146mm × 76mm × 32mm
Material and weight	ABS
Weight	137g (not including batteries)

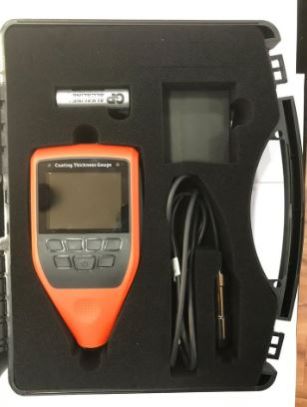

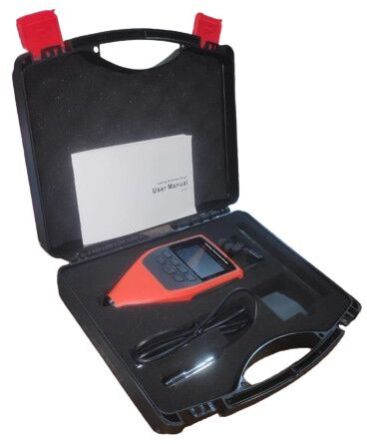

Standard Accessories	Coating Thickness Gauge with probe, ‘0’ calibration block, standard foils, batteries, factory calibration certificate, technical manual, hard carry case.
