Our Products

Leading Manufacturer, Supplier & Retailer of Bernoulli, Petrol Engine Test Setup, DOUBLE STAGE AIR COMPRESSOR TEST SETUP 2 HP, Hydraulic RAM Test Setup and Interacting & Non Interacting System.

Hydraulic RAM Test Setup

Min. Order (MOQ) K Piece
Brand Name KRISHNA

We are offering Hydraulic Ram Test Setup.Description:- the set-up is designed to study the hydraulic ram. Hydraulic ram is used for pump little quantity of water to high head from a large quantity of water available at low head. It works on a principle of water hammer stating that when flowing water is suddenly stopped in a long pipe a pressure wave travels along the pipe creating an effect of water hammer. The set-up consists of a pipe section fitted with a pulse valve and non-return valve, a supply reservoir on a stand which is connected to an overhead tank, an air vessel above the valve chamber smoothes cyclic fluctuations from the ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic. The flow rate of useful and waste water is measured using measuring tank and stop watch provided. Pressure and vacuum gauge are connected on delivery and suction side for the purpose of measurement. experiment:- to find out discharge of useful water and waste water. to find out the efficiency of the hydraulic ram features:- closed loop water circulation compact & stand alone set-upms excel sample calculation program on demandstainless steel tanks and wetted partssuperb painted structuresimple to operate & maintain utilities required:- electric supply: - provide 230 +/- 10 vac, 50 hz, single phase electric supply with proper earthing. (neutral earth voltage less than 5 vac)5 a, three pin socket with switch for pump. water supply: tap water connection bspdistilled water @ 90 ltrs. (optional)

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union, ,

Packaging Details : K

Delivery Time : K

View Complete Details

Ask Latest Price & Details

Petrol Engine Test Setup

Min. Order (MOQ) K Piece(s)
Brand Name KRISHNA

We are offering Multi/ four Cylinder Four Stroke Petrol Engine Test Setup.Td 103: multi/four cylinder four stroke petrol engine test setupdescription:- ic engines are widely used in automobile, domestic and industrial sector. they are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an ic engine. it consists of an ic engine, dynamometer, fuel measuring, air intake measuring and various other arrangements. Provision for mores test is done. experiments:- to determine specific fuel consumption. to determine brake horse power. to determine brake thermal efficiency. to determine mechanical efficiency to determine indicated thermal efficiency utilities required:- electric supply : single phase, 220 v, 5 amp. (required only for td-103b, td-103c) continuous water supply : 10 lpm approx. fuel : 10 liters. floor area : 3m x 2m tachometer : for rpm measurement technical specification: - engine a four stroke, multi cylinder, water cooled, self start, self lubricating petrol engine provided lubrication oil filter air cleaner, ignition coil, throttle control and clutch arrangement. type of loading td-103a - rope brake dynamometer rope brake arrangement fitted with the brake drum fitted on the engine shaft and provided with cooling water arrangement dial type spring balances in kg units. td-103b - electric brake dynamometer the engine is coupled with electrical alternator with resistance loading arrangement. Digital voltmeter and digital ammeter is provided. td-103c - hydraulic brake dynamometerit consists of weighing gear, control gear, a dead weight in kg unit suitable for testing the engine at different speeds. The engine and dynamometer are directly coupled on a substantial base plate. fuel measuring system 1 fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement. air intake measuring system air tank fitted with orifice and water manometer. measurement of heat carried it consist of inlet outlet piping with flow control valve, water away by cooling water meter to measure the rate of flow of cooling water and thermometers for measuring inlet & outlet water temperature. panel board arrangement panel board arrangement consisting of, ignition & starting switch, a high voltage knife switch assembly for cutting off each cylinder for morse test. optional: exhaust gas calorimeter - made of stainless steel including the body & the tubes for cooling water circulation and designed to get maximum temperature difference. The body of the calorimeter is insulated on all sides to prevent heat losses due to radiation. Thermometers are provided to measure the temperature of water and gas.

Additional Information:

Payment Terms : L/C, D/A, D/P, T/T, Western Union, ,

Packaging Details : K

Delivery Time : K

View Complete Details

Ask Latest Price & Details

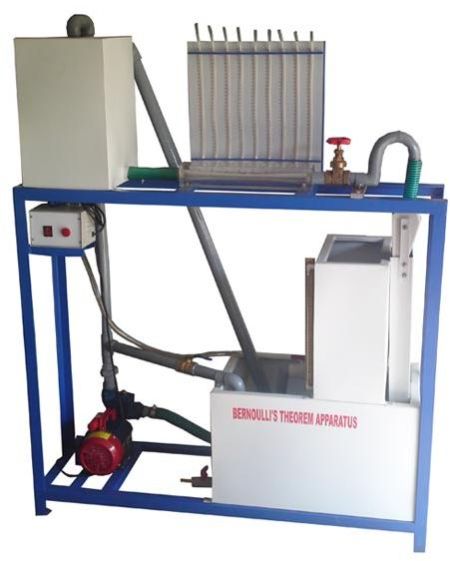

Bernoulli

Material Acrylic
Use Industrial
Inlet Tank Capacity 20 Liters
Stainless Steel Supply Tank Capacity 70 Liters
Fitted with Piezometer Tube & Scale Piezometer Tubes
Tubes Material P.U. Tubes (9 Nos.)

The Set-up is designed to verify Bernoulli's Theorem experimentally. Set up consists of a one piece clear acrylic test section with convergent and divergent part section, supply tank, measuring tank, inlet water tank and pump for closed loop water circulation. The test section is connected to Piezometer tubes through pressure tapping at different locations on the section to demonstrate the Bernoulli's Theorem. The flow rate of water is measured using measuring tank and stop watch provided.

Features :

Clear test section
Closed loop water circulation
Compact & stand alone setup
Stainless Steel tanks and wetted parts
Superb Painted structure
Simple to operate & maintain

Note : The whole Set-up is well designed and arranged in a good quality painted Structure.

View Complete Details

Ask Latest Price & Details

Interacting & Non Interacting System

Country of Origin 220V
Automatic Grade Automatic
Weight 100-1000kg
Rated Power 1-3kw
Warrenty 1 Year
Weight (approx.) 15-35kg

Interacting & Non Interacting System that we offer is one of the highly demanded products of our company. Our system consists of pump, supply tank for water circulation. We use the latest technology and high-grade components to ensure superior quality. Our Interacting & Non Interacting System is compact and has closed loop for water circulation. We provide system with different technical specifications according to the requirement of buyers. We can provide Interacting & Non Interacting System in both small and bulk quantities.

Description :The set up is designed to study dynamic response of single and multi capacity processes when connected in interacting and non-interacting mode. It is combined to study The observed step response of the tank level in different mode can be compared with mathematically predicted response.Setup consists of supply tank, pump for water circulation, Rotameter for flow measurement, transparent tanks with graduated scales, which can be connected, in interacting and non-interacting mode. The components are assembled on frame to form tabletop mounting.

Features :

Closed loop water circulation
Compact, self contained
MS Excel sample calculation

Graph 01

Download Detail File : Click Here

Graph 02

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

DOUBLE STAGE AIR COMPRESSOR TEST SETUP 2 HP

Hm 115: double stage air compressor test setup 2 hp description:-two stage air compressor test rig consists of a double stage reciprocating type air compressor driven by 2 hp motor through a belt. The outlet of the air compressor is connected to reservoir (tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of this air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by thermometer and pressure gauges. experiments:-to calculate the volumetric efficiencyto calculate isothermal hpto calculate compression ration utilities:-electricity 3 kw, 220v ac, single phasefloor area 1.5 x 0.75 m.tachometer technical specifications: -compressor : double stage, double cylinder capacity 9 cfm (max.) working pressure 15 kgcm2 (max.)make : toyo sony elgi standard availabledrive : 2 hpspring balance : dial typemanifold tank : suitable capacityflow measurement : orificemeter with manometertemperature sensor : rtd pt 100 typeair tank : capacity 145 ltrs. With safety valve, shut off valvepressure gauge : bourdon typecontrol panel : rpm measurement rpm indicator with proximity sensor, energy measurement: electronic energy meter, mcb for overload protection, digital temperature indicator: 0-199.9oc, with multi-channel switch, onoff switch, mains indicator, etc.the whole set-up is well designed and arranged in a good quality painted structure.

View Complete Details

Ask Latest Price & Details
