KRISHNA Petrol Engine Test Setup

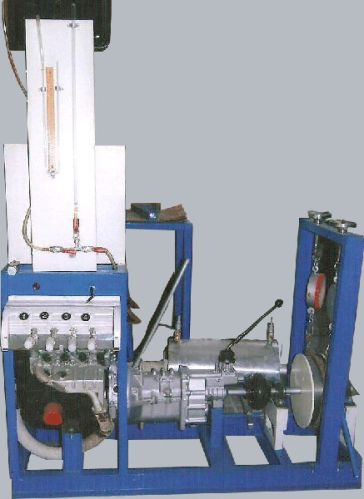

We are offering Multi/ four Cylinder Four Stroke Petrol Engine Test Setup.
Td 103: multi/four cylinder four stroke petrol engine test setup
description:-
ic engines are widely used in automobile, domestic and industrial sector. they are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an ic engine. it consists of an ic engine, dynamometer, fuel measuring, air intake measuring and various other arrangements. Provision for mores test is done.
experiments:-
• to determine specific fuel consumption.
• to determine brake horse power.
• to determine brake thermal efficiency.
• to determine mechanical efficiency
• to determine indicated thermal efficiency
utilities required:-
• electric supply : single phase, 220 v, 5 amp. (required only for td-103b, td-103c)
• continuous
water supply : 10 lpm approx.
• fuel : 10 liters.
• floor area : 3m x 2m
• tachometer : for rpm measurement
technical specification: -
engine
a four stroke, multi cylinder, water cooled, self start, self lubricating petrol engine provided lubrication oil filter air cleaner, ignition coil, throttle control and clutch arrangement.
type of loading
td-103a - rope brake dynamometer
rope brake arrangement fitted with the brake drum fitted on the engine shaft and provided with cooling water arrangement dial type spring balances in kg units.
td-103b - electric brake dynamometer
the engine is coupled with electrical alternator with resistance loading arrangement. Digital voltmeter and digital ammeter is provided.
td-103c - hydraulic brake dynamometer
it consists of weighing gear, control gear, a dead weight in kg unit suitable for testing the engine at different speeds. The engine and dynamometer are directly coupled on a substantial base plate.
fuel measuring system
1 fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
air intake measuring system
air tank fitted with orifice and water manometer.
measurement of heat carried
it consist of inlet outlet piping with flow control valve, water away by cooling water meter to measure the rate of flow of cooling water and thermometers for measuring inlet & outlet water temperature.
panel board arrangement
panel board arrangement consisting of, ignition & starting switch, a high voltage knife switch assembly for cutting off each cylinder for morse test.
optional:
exhaust gas calorimeter - made of stainless steel including the body & the tubes for cooling water circulation and designed to get maximum temperature difference. The body of the calorimeter is insulated on all sides to prevent heat losses due to radiation. Thermometers are provided to measure the temperature of water and gas.
