Electric Cutting Tools

We offer a complete product range of Center Drill, Side & Face Cutters, Face Cutters, Cylindrical Milling Cutters and Thread Milling Cutters

Center Drill

Brand Name Lalson
Material HSS
Country of Origin Made in India
Packaging Type Plastic Box

View Complete Details

Ask Latest Price & Details

Side & face cutters are milling cutters. Side & face cutters are profile-sharpened cutters with peripheral teeth and sometimes with teeth on both sides. The side & face cutters are used on horizontal milling machine to mill shoulders, slots, small-width surface, etc. We are among the highly-acclaimed manufacturers, suppliers and exporters of side & face cutters based in india. specifications
specification conform to is : 6308-1982 iso 2587-1972
normally type n tools are supplied
as per din 885 (part -1) : 1981
.

Specifications

Diameter Width

50 5, 6, 8, 10

63 5, 6, 8, 10, 12, 14, 16

80 5, 6, 8, 10, 12, 14, 16, 18, 20

100 6, 8, 10, 12, 14, 15, 18, 20, 22, 25

125 8, 10, 12, 14, 16, 18, 20, 22, 25, 28

160 10, 12, 14, 16, 18

160 20, 22, 25, 28, 32

200 12, 14, 16, 1820, 22, 25, 28, 32, 36, 40

View Complete Details

Ask Latest Price & Details

Side & Face Cutters

Side & Face Cutters are Milling Cutters. Side & Face Cutters are profile-sharpened cutters with peripheral teeth and sometimes with teeth on both sides. The Side & Face Cutters are used on horizontal milling machine to mill shoulders, slots, small-width surface, etc. We are among the highly-acclaimed Manufacturers, Suppliers and Exporters of Side & Face Cutters based in India. Specifications
Specification conform to is : 6308-1982/ ISO 2587-1972
Normally Type N Tools are supplied
As per DIN 885 (Part -1) : 1981

Specifications

Diameter Width

50 5, 6, 8, 10

63 5, 6, 8, 10, 12, 14, 16

80 5, 6, 8, 10, 12, 14, 16, 18, 20

100 6, 8, 10, 12, 14, 15, 18, 20, 22, 25

125 8, 10, 12, 14, 16, 18, 20, 22, 25, 28

160 10, 12, 14, 16, 18

160 20, 22, 25, 28, 32

200 12, 14, 16, 1820, 22, 25, 28, 32, 36, 40

View Complete Details

Ask Latest Price & Details

Cylindrical Milling Cutters

Our distinguished clients highly appreciate us as a Manufacturer, Supplier and Exporter of Cylindrical Milling Cutters. These profile-sharpened Cylindrical Milling Cutters have teeth on peripheral surface only. Cylindrical Milling Cutters confirm to: IS 6309-1982. The relatively flat surface of the Cylindrical Milling Cutter is parallel to axis of rotation. Cylindrical Milling Cutters are ideal for applications that require high rate of stock removal. We provide customized solutions as well. Highlights
Impeccable quality
Easy-installation
Cost-effective
Durable

Specifications

Diameter Bore Length

50 22 25

50 22 40

50 22 63

50 22 80

63 27 32

63 27 50

63 27 70

63 27 90

63 27 100

80 32 36

80 32 63

80 32 80

80 32 90

80 32 100

100 40 70

100 40 125

125 50 80

125 50 125

160 60 125

View Complete Details

Ask Latest Price & Details

Thread Milling Cutters

Diameter 3" to 8"

Brand Name Lalson

Country of Origin Made in India

View Complete Details

Ask Latest Price & Details

Shell End Mill Cutters

Shell End Mill Cutters are equipped with teeth on periphery. One end of the Shell End Mill Cutter is provided with a back face key slot drive for use on an arbor. These Shell End Mill Cutters are used for end and face milling operations. Shell End Mill Cutters can carry out their operations on either horizontal or vertical milling machines. Specifications of the Shell End Mill Cutters conform to IS 6257-1982 standard. We are a prominent Manufacturer, Supplier and Exporter of Shell End Mill Cutters. We make these Shell End Mill Cutters available in leading market prices. Available In
Different diameters
Various lengths

Specifications

Diameter Shell End Mill Bore Length

40 16 32

50 22 36

63 27 40

80 27 45

100 32 50

125 40 56

160 50 63

View Complete Details

Ask Latest Price & Details

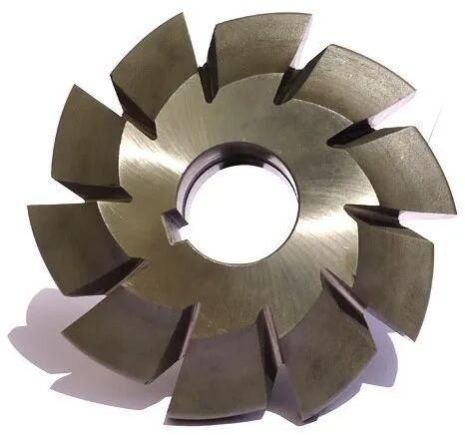

Milling Gear Cutters

Packaging Type Plastic Box

Brand Name Lalson

Features Less maintenance, High functionality, Rigid construction

View Complete Details

Ask Latest Price & Details

Machine Reamers

Material HSS

Brand Name Lalson

Country of Origin Made in India

Packaging Type Plastic Box

View Complete Details

Ask Latest Price & Details

T Slot Milling Cutters

We have carved a niche in the market a prominent manufacturer, supplier and exporter of t-slot milling cutters. Use of premium quality raw materials make these t-slot milling cutters highly resistant to heat and corrosion. Specifications of the t-slot milling cutters conform to is 2668 1978 standards. These t-slot milling cutters can be easily installed. These right hand t-slot milling cutters are normally supplied with straight teeth unless otherwise specified. available in
different diameters of shanks depending on different diameters of cutter
different lengths

Specifications

Diameter (in mm) Width Dia. of Shank Overall Length Woodruff Keys to IS - 2294

10.5 2 6 50 2 x 3.7

10.5 2.5 6 50 2.5 x 3.7

10.5 3 6 50 3 x 3.7

13.5 3 10 56 3 x 5.0

13.5 4 10 56 4 x 5.0

16.5 3 10 56 3 x 6.5

16.5 4 10 56 4 x 6.5

16.5 5 5 56 5 x 6.5

19.5 4 10 56 4 x 7.5

19.5 5 10 56 5 x 7.5

19.5 6 10 63 6 x 7.5

22.5 5 10 63 5 x 9.0

22.5 6 10 63 6 x 9.0

22.5 8 10 63 8 x 9.525.5

25.5 6 10 63 6 x 10

28.5 6 10 63 6 x 11

28.5 8 10 63 8 x 11

28.5 10 12 71 10 x 11

32.5 8 10 63 8 x 13

32.5 10 12 71 10 x 13

45.5 10 12 71 10 x

BS Cutter & Key No. Dia. of Cutters Width of Cutter Overall Length Dia. of Shank

204 0.51 0.06 2 ½

304 0.51 0.09 2 ½

404 0.51 0.12 2 ½

305 0.63 0.09 2 ½

405 0.63 0.12 2 ½

505 0.63 0.16 2 ½

406 0.76 0.12 2.1/4 ½

506 0.76 0.16 2.1/4 ½

606 0.76 0.19 2.1/4 ½

507 0.88 0.25 2.1/2 ½

607 0.88 0.19 2.1/2 ½

807 0.88 0.25 2.1/2 ½

608 1.01 0.19 2.3/4 ½

808 1.01 0.25 2.3/4 ½

1008 1.01 0.25 2.3/4 ½

609 1.13 0.25 2.3/4 ½

809 1.13 0.31 2.3/4 ½

1009 1.13 0.19 2.3/4 ½

810 1.26 0.25 2.3/4 ½

1010 1.26 0.31 2.3/4 ½

1210 1.26 0.37 2.3/4 ½

1011 1.38 0.31 3 ½

1211 1.38 0.37 3 ½

812 1.51 0.25 3 ½

1012 1.51 0.31 3 ½

1212 1.51 0.37 3 ½

View Complete Details

Ask Latest Price & Details

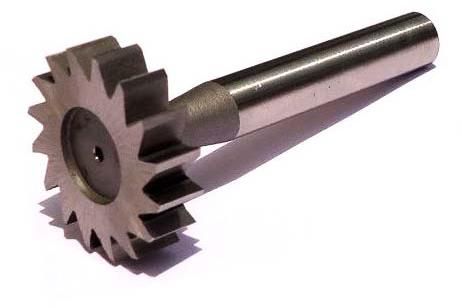

T-Slot Milling Cutters

We have carved a niche in the market a prominent Manufacturer, Supplier and Exporter of T-Slot Milling Cutters. Use of premium quality raw materials make these T-Slot Milling Cutters highly resistant to heat and corrosion. Specifications of the T-Slot Milling Cutters conform to IS 2668 1978 standards. These T-Slot Milling Cutters can be easily installed. These right hand T-Slot Milling Cutters are normally supplied with straight teeth unless otherwise specified. Available In
Different diameters of shanks depending on different diameters of cutter
Different lengths

Specifications

Diameter (in mm) Width Dia. of Shank Overall Length Woodruff Keys to IS - 2294

10.5 2 6 50 2 x 3.7

10.5 2.5 6 50 2.5 x 3.7

10.5 3 6 50 3 x 3.7

13.5 3 10 56 3 x 5.0

13.5 4 10 56 4 x 5.0

16.5 3 10 56 3 x 6.5

16.5 4 10 56 4 x 6.5

16.5 5 5 56 5 x 6.5

19.5 4 10 56 4 x 7.5

19.5 5 10 56 5 x 7.5

19.5 6 10 63 6 x 7.5

22.5 5 10 63 5 x 9.0

22.5 6 10 63 6 x 9.0

22.5 8 10 63 8 x 9.525.5

25.5 6 10 63 6 x 10

28.5 6 10 63 6 x 11

28.5 8 10 63 8 x 11

28.5 10 12 71 10 x 11

32.5 8 10 63 8 x 13

32.5 10 12 71 10 x 13

45.5 10 12 71 10 x

BS Cutter & Key No. Dia. of Cutters Width of Cutter Overall Length Dia. of Shank

204 0.51 0.06 2 ½

304 0.51 0.09 2 ½

404 0.51 0.12 2 ½

305 0.63 0.09 2 ½

405 0.63 0.12 2 ½

505 0.63 0.16 2 ½

406 0.76 0.12 2.1/4 ½

506 0.76 0.16 2.1/4 ½

606 0.76 0.19 2.1/4 ½

507 0.88 0.25 2.1/2 ½

607 0.88 0.19 2.1/2 ½

807 0.88 0.25 2.1/2 ½

608 1.01 0.19 2.3/4 ½

808 1.01 0.25 2.3/4 ½

1008 1.01 0.25 2.3/4 ½

609 1.13 0.25 2.3/4 ½

809 1.13 0.31 2.3/4 ½

1009 1.13 0.19 2.3/4 ½

810 1.26 0.25 2.3/4 ½

1010 1.26 0.31 2.3/4 ½

1210 1.26 0.37 2.3/4 ½

1011 1.38 0.31 3 ½

1211 1.38 0.37 3 ½

812 1.51 0.25 3 ½

1012 1.51 0.31 3 ½

1212 1.51 0.37 3 ½

View Complete Details

Ask Latest Price & Details

Dovetail Milling Cutters

Dovetail Milling Cutters are equipped with weldon shanks. The Dovetail Milling Cutters are suitable for use in a wide range of Ferrous and Non-Ferrous Materials. Only high speed steel is used in these Dovetail Milling Cutters. Specifications of the Dovetail Milling Cutters conform to: IS 6255 1982. We are among the most widely recognized Manufacturers, Suppliers and Exporters of Dovetail Milling Cutters. Applications
Used to produce Dovetail Slide-ways in Machine Tool Tables, Jigs and Fixtures.
Can be used both in manual and CNC Machines.
Availability In
Angle 45^o to 60^o
Various diameters as per customer requirement

Specifications

Dia. of Cutter in MM Dia. of Cutter in Inches Overall Length Dia. of Shank in MM Dia. of Shank in Inches

12 ½ 60 10 ¾

16 5/8 60 12 ½

20 ¾ 63 12 ½

25 1 67 16 5/8

32 1.1/4 71 16 5/8

40 1.1/2 75 20 ¾

50 2 80 25 1"

56 - 100 25 -

60 - 100 25 -

View Complete Details

Ask Latest Price & Details

Parallel Shank End Mills

Brand Name Lalson

Country of Origin Made in India

Packaging Type Plastic Box

View Complete Details

Ask Latest Price & Details

Concave Cutters

A Concave Cutter is a Milling Cutter available with a concave half circle. The Concave Cutters have radial relief. The Concave Cutter is designed to mill convex surfaces of circular contour equal to half circle or less than that. We are widely popular as a Manufacturer, Supplier and Exporter of Concave Cutter based in India. We make Concave Cutters available in competitive prices. Available In
Different diameters
Different width
Bores 22, 27 and 32

Specifications

Diameter Radius Width Bore

50 1.6 8 22

50 2 9 22

56 1.5 6 22

56 1.6 8 22

56 2 8 22

56 2.5 10 22

63 2.5 10 22

63 3 12 22

63 3.2 12 22

63 3.5 14 22

63 4 16 22

63 5 20 22

70 6 24 22

70 7 28 22

80 6 24 27

80 6 24 27

80 8 32 27

90 9 28 27

90 10 36 27

100 10 36 27

100 11 36 27

100 12 40 27

100 12.5 40 27

100 14 40 27

110 16 50 32

125 16 50 32

125 20 60 32

View Complete Details

Ask Latest Price & Details

Gear Hobs

Material HSS

Brand Name lalson

Country of Origin Made in India

View Complete Details

Ask Latest Price & Details

Circular Segmental Saws

Brand Name Lalson

Country of Origin Made in India

Features Robust construction, Durability, Rust free

View Complete Details

Ask Latest Price & Details

Annular Cutter

Material HSS

Brand Name Lalson

Country of Origin Made in India

View Complete Details

Ask Latest Price & Details
