Lathe Machines

Our product range contains a wide range of Automatic Counter Lathe Machine and Light Duty Lathe Machine

Automatic Counter Lathe Machine

₹ 1.20 Lakh - ₹ 1.50 Lakh / piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Brand Name TURBO
Certification ISO 9001:2008
Material Metal
LED Indicator No
Phase Three Phase
Country of Origin 220V
Condition New
Driven Type Electric
Total Carbohydrate 1 Year
Automation Grade Semi Automatic
Shape Square
Usage Turning, Sanding, Knurling, Facing, Drilling, Deformation, Cutting
Packaging Type Carton Box
Speciality High Efficiency
Dimension (LxWxH) 1675X730X1160
Power 1-3 KW
Finishing Polished
Machine Weight 100-1000 Kg
Rated Current NA
Thickness NA
Control System NA
Bed Length 1375
Cross Slide Size 220
Hardness 404
Swing Over Bed 410
Spindle Speed 8
Bed Width 280
After-Sales Service Provided YES
Automatic Grade Automatic
Layout Horizontal
Power Source Electric
Hardened Bed up to 400 BHN

lathe machine bed length 4'.6"

lathe machine height of center 6.5"

lathe machine spindle bore size 54 mm

universal milling machine table size

mac-1 1000 x 230

mac-2 1100 x 280

ag-2 1100x 280 fully automatic

ag-3 1525 x 300 fully automatic

macpower industries,

5, umakant udyognagar, mavdi plot,

rajkot - 360 004 (gujarat) india.

Additional Information:

Packaging Details : NA

Delivery Time : 40 DAYS

View Complete Details

Ask Latest Price & Details

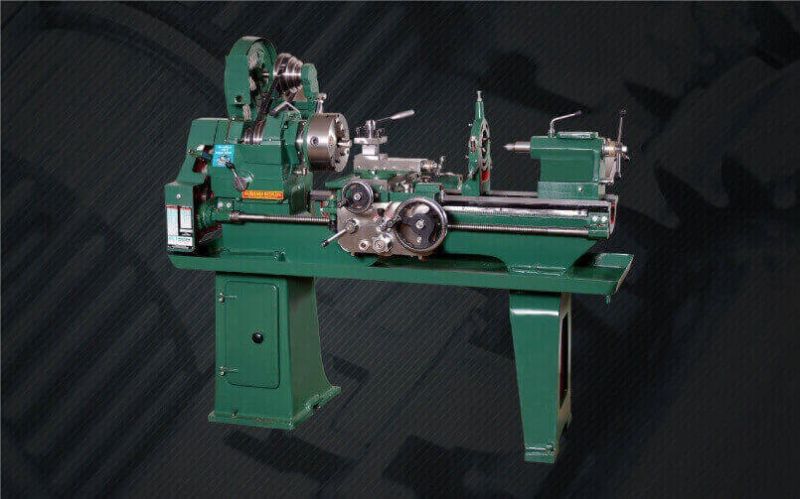

Light Duty Lathe Machine

₹ 1.05 Lakh - ₹ 1.25 Lakh / piece Get Latest Price

Min. Order (MOQ) 1 Piece
Machine Weight 100-1000 Kg, Three Phase
Usage Turning, Sanding, Knurling, Facing, Drilling, Deformation, Cutting, Three Phase
Automation Grade Semi Automatic
Driven Type Mechanical
Material Cast Iron
Brand Name TURNER
Country of Origin India
Type Horizontal Lathe
Total Carbohydrate 1 Year
Certification ISO 9001:2008
LED Indicator No
Phase Three Phase
Condition New
Corrosion Resistance No
Shape Square
Speciality Easy To Use, High Efficiency, Reliable, Robust Construction, Three Phase
Dimension (LxWxH) 1600X830X1320
Power 1-3 KW, Three Phase
Finishing Chrome Finish, Three Phase
Rated Current NA
Thickness NA
Control System NA
Bed Length 1375
Cross Slide Size 220
Cross Slide Travel NA
Hardness 404
Bar Capacity NA
Swing Over Bed 410
Spindle Speed 8
Bed Width 240
Frequency NA
After-Sales Service Provided YES

Bed is made form 25 Grade Cast Iron of 180 BHN hardness, strictly checked with Microlevel, Hardness Tester and Straightedge.
Boring of Head Stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds.
Hexagonal shaped Tail Stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding.
Instruction Manual as per Indian Standard IS 1878 (Part 1) 1993.

Notron Gear Box (Single Screw / Double Screw)
Any Special Requirement as per Customers Drawing.

Additional Information:

Packaging Details : Lathe Machine Bed Length
Lathe Machine Height of Center
Lathe Machine Spindle Bore Size

Universal Milling Machine Table size
MAC-1 1000 x 230
MAC-2 1100 x 280
AG-2 1100x 280 Fully Automatic
AG-3 1525 x 300 Fully Automatic

Delivery Time : 40 DAYS
