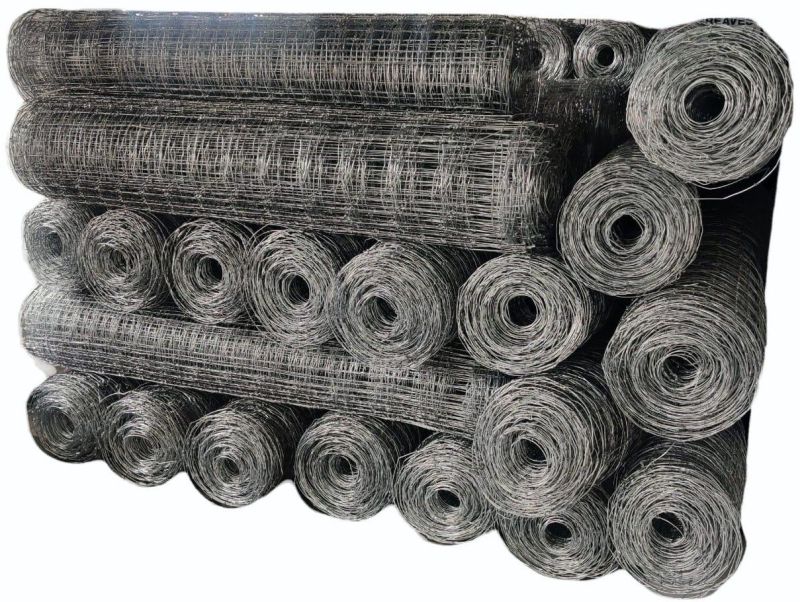

HIGH TENSILE FIXED KNOT WITH GALFAN COATING
A game-changing wire fence product:
- High tensile steel wires making the fence super strong.
- Galfan coating making the fence super corrison resistant.
- Tension crimps making the fence super impact resistant.
WHY GALFAN COATING?
- Highly specialised coating with 90% Zinc and 10% Aluminium.
- Corrosion-resistant properties prevent rust and degradation, reducing the need for frequent repairs and making it long lasting.
- Has the ability to withstand high temperature and harsh weather conditions.
- Provides a smooth and uniform finish, often in a metallic gray color, adding a sleek and modern look to any outdoor space.
Mastery In Servitude Weldmesh India Pvt. Ltd. FIXED KNOT FENCE SPECIFICATIONS:
The fencing rolls have
| Coil Length | 50m |
| Fence Height | 1.80m (6ft) |
| Spacing between vertical wires | 6 inch |
| Spacing between horizontal wires | 3.5-7 inch (variable) |

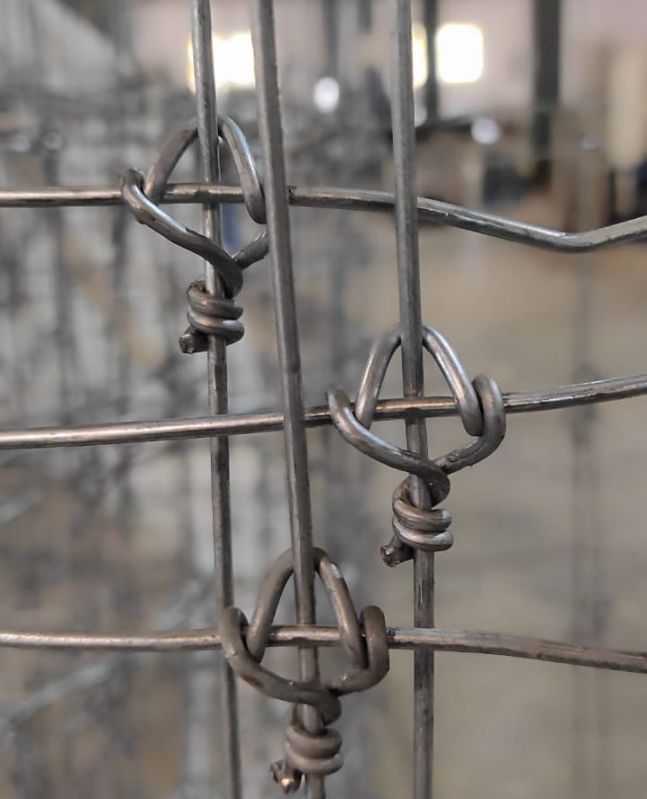

| Knot Wire (provide a secure grip | 2.24-2.44mm |
WHY FIXED KNOT FENCING BY UNIVERSAL ?
MASTERY IN SERVITUDE WELDMESH INDIA PVT. LTD. uses the best machinery and technology to ensure that the fixed knot fenced created by us are:
VERSATILE - DIFFICULT TO CUT & CLIMB
- Ideal for railway tracks, highways, farms, land and border security.
- A reliable barrier to protect land from trespassers, trucks, cattle, and wild animals.
- Horizontal wires’ crimp effectively absorbs high-impact collisions, and swiftly returns to their original shape.
RESISTANT - FIGHTS ANY TERRAIN & CLIMATE
- Galfan Coating gives the fence 3x (20yrs) higher corrosion protection as compared to conventional Zinc coated fences.
- Easy to transport and install in any temperature and terrain.
ENDURING - LONG LASTING GUARANTEE
- The fence is made of high tensile steel wires with a strength of 1150-1300 MPA, which is nearly three times stronger than conventional steel fences.
- It does not sag over time due to the non-slipping knots & rigid structure.
- Can be installed on different types of posts including steel (angle or tube), concrete, stone, and wood.
EFFECTIVE - INSTALLATION & PRICE
- Variable gap allows the fence to be light weight yet strong.
- Fast and easy installation with 20ft gap between posts.
- Most cost-effective solution for land and farm fencing.
Wire TypeDiameterTensile StrengthCoating TypeCoating Thickness
| Vertical Wire | 2.44 mm +/- 2% | 1150 to 1300 MPa | Galfan (Zinc 90% & Al 10%) | > 230 GSM |
| Horizontal Wire | 2.44 mm +/- 2% | 1150 to 1300 MPa | > 230 GSM |
| Top & 4th Horizonntal Wire | 2.74 mm +/- 2% | 1150 to 1300 MPa | > 250 GSM |
| Knot Wire | 2.24-2.44 mm +/- 2% | 400 to 500 MPa | > 220 GSM |
FIXED KNOT FENCE:
- Have long-lasting durability
- Provide reliable security and containment
- Have a longer lifespan than traditional chain-link fence, resulting in reduced maintenance costs over time.
