ASSOCIATED CRIB EQUIPMENTS

Waghbil, Thane, Maharashtra

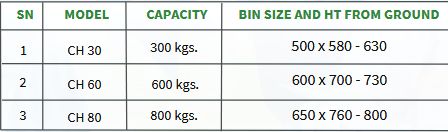

Chip Trolley is designed to collect chips which are generated during processes and comes through conveyor. They are transported to scrap yard and remove from the bin by tilting it. Suitable mechanism is in-built to restrict the rotation when not required. Coolants are drain out through a ball cock valve provided at the bottom. A fine mesh is kept in between to restrict the chips to flow with coolant. 4" castor wheels, 2 nos. fixed and 2 nos. swivel with brake is provided to restrict the movement when not required

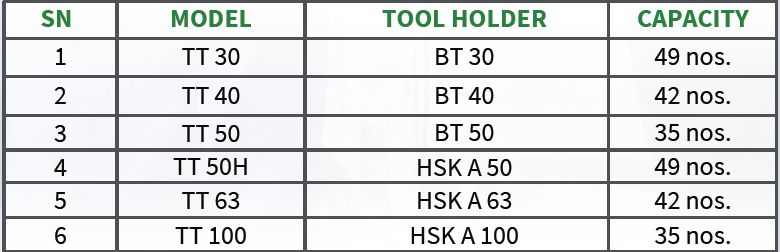

This trolley has been designed to protect the tool holders from moisture and dust. Tools are placed on a movable tray for storage and retrieval with a full length drawer with suitable partitions at the top. AluminIum checkered plate at the top for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Two sturdy plastic handles are provided for easy handling. Overall dimensions are 875L x 520D x 755H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs

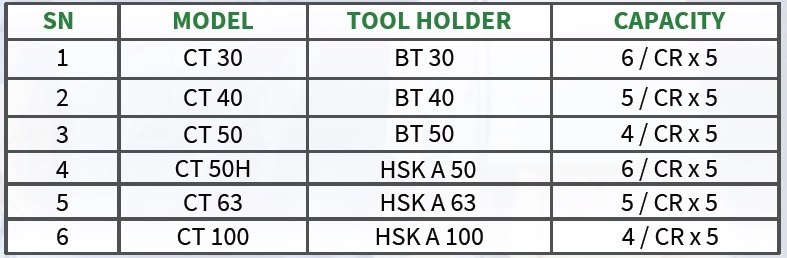

This accessibility aspect stands apart this trolley as the tools can be accessed from both the sides. Trays can be placed as per convenience. They can also be placed on the table by removing from the trolley. A projected tray with rubber mat is provided for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimension are 760L + 300 tray x 505D x 740H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs

This is the basic model to transport tools from NC room to the machine. In total, 7 trays are provided, 3 at top and 2 each on either sides. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimensions are 760L x 490D x 745H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs.
