Medical Solution

Medical Solution
location Sukchar, Kolkata, West Bengal

gstGST : 19AKUPM9463B2ZJ Verified Write a Review
View Number

Our Products

  1. X Ray Machine 6 Products available
  2. ECG Machine 5 Products available
  3. Medical Equipment & Supplies 4 Products available
  4. Diagnostic Imaging & X-ray Equipment 3 Products available

  5. Medical Accessories

    2 Products available

  6. EEG Machine

    2 Products available

  7. Electrodiagnostic Instrument

    2 Products available

  8. Audiology Equipments

    2 Products available

  9. Clinical Laboratory Device

    1 Products available

  10. Medical Treatment Services

    1 Products available
  11. Others Products 5 Products available

X Ray Machine

We offer a complete product range of Star Nuke 100 Ma Mobile Line Frequency X Ray Machine ( Mx100 ), 100 MA Line Frequency Fixed X-Ray Machine, 300 MA Line Frequency Fixed X-Ray Machine, Line Frequency Portable X-Ray Machine and Line Frequency Mobile X-Ray Machine

Star Nuke 100 Ma Mobile Line Frequency X Ray Machine ( Mx100 )

Star Nuke 100 Ma Mobile Line Frequency X Ray Machine ( Mx100 )
₹ 1.35 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name STAR NUKE
  • Material Metal
  • Color White
  • Power Source ELECTRIC
  • Style Mobile X Ray
  • Memory Size Not Aplicable
  • Type X Ray Machine
  • Camera Not Aplicable
  • Input Voltage 220 VOLT 50 HZ
  • Warranty 1 YEAR
  • Country of Origin India
  • Product Name Star Nuke 100 Ma Mobile Line Frequency X Ray Machine ( Mx100 )
  • Model MX100
  • tube current F(0-3 mA), 25 mA, 50 mA, 75 mA & 100 Ma
  • Tube Voltage 45-100 kvp (15 Steps)
  • Timer 0.02-5 Seconds (24 Steps)
  • Power Supply Single Phase 230 (+ -10) V, 50 Hz
  • RADIOGRAPHY 100 mA at 100 Kvp
  • X-RAY TUBE Indian / Imported Stationery Anode
  • COLLIMATOR Manual Light Beam Diaphragm

designed to assure the utmost accuracy and reliability

-counterbalanced mobile stand

-the stand has an integrated cassette box

-less maintenance

-compact and lightweight design

technical specification

1.radiography : 100 ma at 100 kvp

2.tube current : f(0-3 ma), 25 ma, 50 ma, 75 ma & 100 ma

3.tube voltage : 45-100 kvp (15 steps)

4.timer : 0.02-5 seconds (24 steps)

5.x-ray tube : indian / imported stationery anode

6.collimator : manual light beam diaphragm

7.power supply : single phase 230 (+- 10 v ), 50 hz

Additional Information:

Payment Terms : T/T,

Packaging Details : Corrugated box or customized packing (optional)

Delivery Time : 3 WEAK

View Complete Details
Ask Latest Price & Details
100 MA Line Frequency Fixed X-Ray Machine

100 MA Line Frequency Fixed X-Ray Machine
₹ 1.43 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name Hindrays
  • Driven Type Electric
  • Color Off White
  • Condition New
  • Automatic Grade Automatic, Manual
  • Power 6-9kw
  • Application Clinical, Hospital, Radiography
  • Voltage 220V
  • Type Digital X Ray Machine, X Ray Machine, FIXED
  • Warranty 1yrs, One Year
  • Country of Origin India

Special Features

  • Rails for Horizontal Movement of the column.
  • Tube stand and Tube head rotatable in 360 Deg.
  • Smooth & steady movement of column on rails provided on floor & ceiling.
  • Fully counter balanced tube stand with effortless vertical movement.
  • Column rotates in 360 Deg along with Tube Head for easy positioning.
  • Separate locking system of tube head, carriage arm &
  • base to keep the machine stand still during exposure.

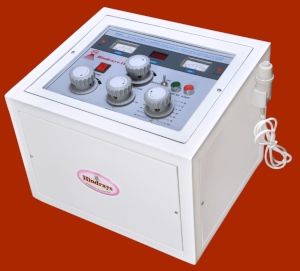

Control panel

  • ‘On’ ‘Off’ push buttons
  • Power line voltage compensator
  • Exposure time selection knob
  • mA range selection knob
  • Radio graphic KV selection knob
  • Stand by & exposure push buttons on panel and with hand switch.
  • Digital display mAs, kVp & mA
  • LED indicator of power line, High Volt X-Ray exposure and Overload.
  • Separate meter of kVp & mA
  • Wheels for Comfortable Movement



Stationary Anode Tube Head

Stationary anode tube ( imported Manual LBD for exposure centering Angle measuring scale

View Complete Details
Ask Latest Price & Details
300 MA Line Frequency Fixed X-Ray Machine

300 MA Line Frequency Fixed X-Ray Machine
₹ 3.09 Lakh - ₹ 3.40 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name , Hindrays
  • Driven Type Electric
  • Color Off White
  • Condition New
  • Automatic Grade Automatic, Manual
  • Application Clinical, Hospital, Radiography
  • Voltage 440V
  • Type Digital X Ray Machine, X Ray Machine
  • Warranty 1yrs, One Year
  • Certfication CE Certified
  • Country of Origin India
  • Radiography Kvp 30 to 125 / l00Kvp
  • Fluoro mA 0 to 5 mA
  • High Tension Full Wave Rectified

Special features:

  • Double Focus Rotating anode tube.
  • Manual LBD for exposure cantering.
  •  Angulations meter for angle measurement.
  • Simplified Control panel with Digital display.
  • Power' Trip O[f system for safety.
  • Uniform Kvp steps.
  • High volt Si rectifier and high tension systems in HT Tank



Specifications

  • Output : 24KW asper lS7620-1986
  • Controls Line Switches Voltage Compensators Range 370 to 4l5V AC , Kvp Controls with range 40 to 100 KVP (Both for
  • Radiography & Spot Filming). Independent Fluoro range kvp Control; Range 50-l 00 Kvp.
  • mA Technic : Allows Radiography & Spot Filming at the following stations
  • Controls: 50mA & I 00mA on Small Focus and 200mA, 300mAon Large Focus
  • Timer Controls: Radiographic Timer Switch, Range0.02 - 5 Sec.
  • Indicators : Digital Display of kvP, mA & mAs
  • Table : Multi position table / Horizontal Table
  • Spot Film Device : Semi Automatic Spot Film Device with I 4"xl 4" Stationery Grid
View Complete Details
Ask Latest Price & Details

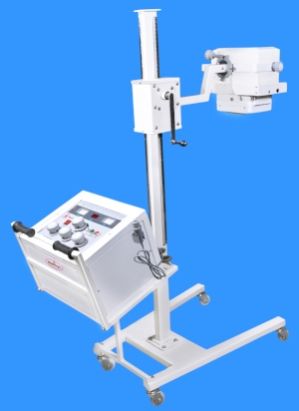

Line Frequency Portable X-Ray Machine

Line Frequency Portable X-Ray Machine
₹ 1.03 Lakh - ₹ 1.11 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Type Portable, Portable
  • Voltage 220V
  • Automatic Grade Automatic
  • Power 1-3kw
  • Driven Type Electric
  • Warranty One Year
  • Brand Hindrays
  • Model 60 Ma / 100 Ma
  • Hindrays manufactures Portable models X-Ray units in 60 mA and 100 Ma.
  • Both these units are liked by their user specially Orthopedic Surgeons.
  • These models are designed in such way that even a untrained
  • person can Dismantle/Re-assembled them in few minutes.
  • Acqire very less area.
  • Suitable for clinics/ Operation Theatres.



Features

  • Compact in size hence lesser area acquisition while parked .
  • User Friendly and easy to operate.
  • Light in weight, easy mobility and easy to carry .
  • Smooth carriage movement .
  • Suitable for operations Theaters / Clinic / Hospitals .
  • Digital display of mAs.
  • separate meters for voltage and mA.
  • With buzzer & indicator for exposure Indication.
  • Dual exposure system one on panel & one with Hand switch.
View Complete Details
Ask Latest Price & Details
Line Frequency Mobile X-Ray Machine

Line Frequency Mobile X-Ray Machine
₹ 1.43 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name hindrays, Hindrays
  • Driven Type Electric
  • Color Off White
  • Condition New
  • Automatic Grade Automatic
  • Power 6-9kw
  • Application Clinical, Hospital, Radiography
  • Voltage 220V
  • Type Digital X Ray Machine, X Ray Machine, Mobile
  • Warranty 1yrs, One Year
  • Country of Origin India
  • Model 60 Ma / 100 Ma
  • Operator friendly simple to use & easy to operate.
  • Easily adjustable in various directions.
  • Minimum efforts are made possible with counter balanced mobile tube stand.
  • Column & Tube head rotate in 360 Deg. for easy positioning.
  • A convenient and safe parking position tube head ensures safety especially in moving conditions.
  • Available in 60mA & 100mA. Ideal for Nursing Homes/Clinics/Operation Theatres.



SPECIAL FEATURES :

  • Tube stand & Panel on one small trolly made in such way with easy moveability.
  • Panel with digital display of mA.
  • Exposure buzzer with dual exposure system.
View Complete Details
Ask Latest Price & Details
Wall Mounted Model Dental Xray Machine

Wall Mounted Model Dental Xray Machine
₹ 39,000 - ₹ 48,500 / piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Driven Type Electric
  • Warranty 1yrs
  • Brand Name Hindrays
  • Model Wall mount
  • Timer 0.4 TO 3 sec
  • Output 10 Ma-70 Kv
  • Radiography KVP 70 KV
  • Easy to operate, suitable for Wall.
  • Spring counter balanced mechanism gives convenient control at tube heads
  • Vertical and horizontal travel and ensure no slide back
  • Suitable for all kind of dental Radiography.
  • Compatible with all kind of Dental chairs.
View Complete Details
Ask Latest Price & Details
