Leading Manufacturer, Supplier & Retailer of Cast Iron Test Bed Plate, Cast Iron Surface Plates, Granite Surface Plates, Cast Iron T-Slotted Floor Plates and Test Bed Plates.
we are manufacturing of cast iron surface plates to grade 1- 2 accuracy as per is 2285-2003.we offer wide variety of cast iron surface plate manufactured in compliance with international quality standards. hardness between 170 to 220 bhn. stress relieved to relieve internal stresses. material confirm to is 210 2009, grade fg 260
additional information:
Additional Information:
Payment Terms : L/C, T/T
GRE Cast iron hand scraped Surface Plate conformstoIS2285.ThesePlatesaremanufactured invarioussizes&gradestosuitcustomersexact requirements.Grade I being PRECISION HAND SCRAPEDandGradeIlaccuratelyfinishmachined totolerance.
GRESurfacePlatesaremadeofclosegrainedCast iron to IS 210 Grade FG 200 or FG 220/260 with Hardness170-200BHN.Adequatecarehasbeen takeninthedesignofRibbingtomeetrequirements ofIS/BS&DINspecifications.Theseareartificially seasonedasrecommendedbyIS2285&BS817 andHANDSCRAPEDaccurately, sothattheerrorin flatnessoverany100mmdistanceshallnotexceed asperdetailsfurnishedhereunder.
SurfacePlatesarealsosuppliedwithoneormoreT slotsaspercustomersneedatextracost.
GRE Surface Plates up to 630 x 630 mm are providedwithhandles.Sizesover1000x1000mm andaboveareprovidedwithliftingarrangement.
CI floorstands or fabricated stand could be supplied along with GRE Plates at an added cost.

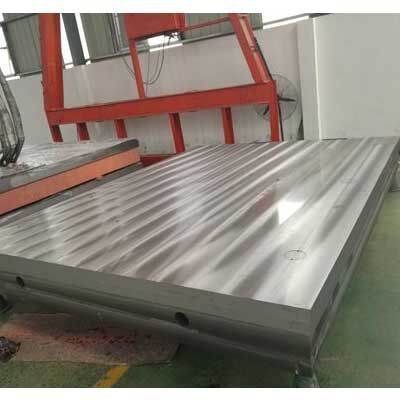

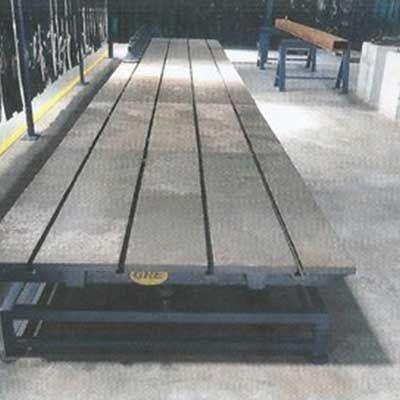

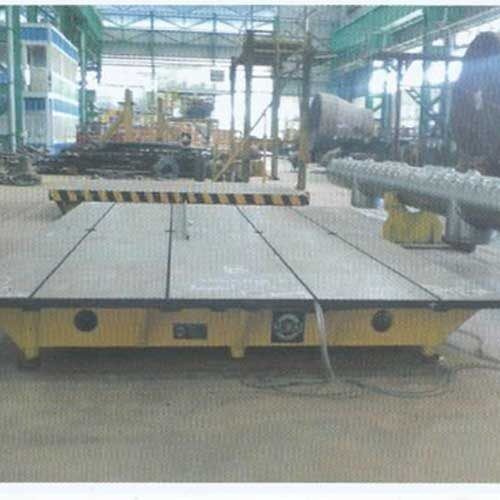

SpecialTSlottedBedPlatesaremanufacturedto suit customers requirements for variedapplication. Platesize2000x2000mmonwardsupto6000x 2000mmandcombinationthereofareundermanu facturing programme. Bed Plates & AUXILIARY- PLATESforHORIZONTALBORINGMACHINESare
alsomanufacturedtoIS10602-83.TheseareCombinationTypePlates&manufacturedwithSquareside- faces, sothat, whenoneormoreplatesarecom bined, largeconfigurationisobtained
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : WOODEN BOX
Delivery Time : 1 - 2 MONTHS

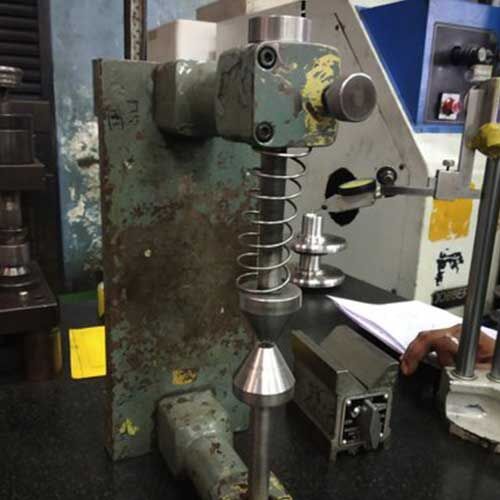

granite surface plate with metal inserts and t-slot can be used as a surface table and a concentricity checking attachment.
additional information:
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : CARTON BOX OR WOODEN BOX AS OPER CLIENT REQUIREMENT
Delivery Time : 3 - 4 WEEKS
Additional Information:
Packaging Details : wooden box
Casting shall be to IS210 FG 220 duly stress relievedand machined as well as hand scrapped to toleranceof grade I as per IS 10602. The plates will be supplied in machined condition with close tolerance and hand scraped.

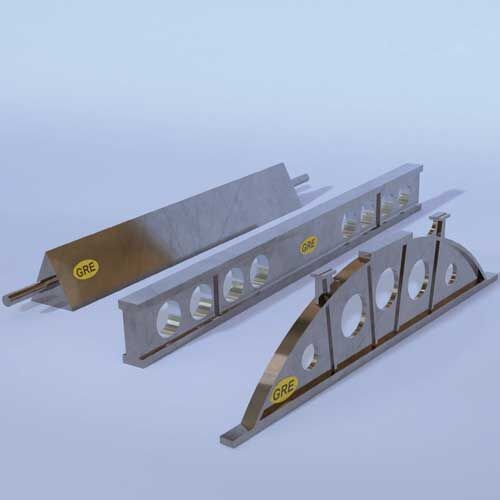

GRE I Section Straight Edges manufactured in various sizes & grades to suit individual requirements.These are made from high quality close Grained Cast Iron to IS 210 FG 200/220.
AccuracyisachievedbyHANDSCRAPINGtobewithintolerancessetforCIstraightedgesinIS5268:69. PaintedWoodenCoverissuppliedtoprotectworkingsurfaceatextracost.

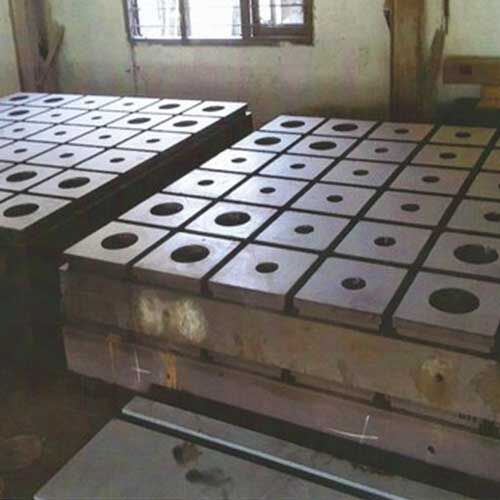

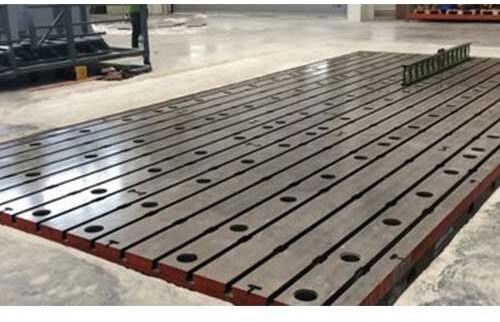

GRE Cast Iron T-Slotted Floor Plates are used in heavy engineering industries as rigid bases for layout, marking, inspection, assembly work, large fixtures, special tooling and production set ups, as also for mounting jobs for precision welding or for carrying out machining operations like drilling, boring etc. and also as test beds for mounting engines, large machines, transmission or other industrial equipment. Individual plates are manufactured to standards laid out as per IS 10602 with required squareness and with 90 deg. Face matching on all. Squareness and 90 deg face matching is ensured by CI pads provided on all sides of the casting and machined and hand scraped to achieve squareness that when two plates are matched and bolted you obtain top side flatness comparatively closer and with hand scrping done the flatness will be matched. These T-Slotted Floor / Bed plates can be encased into concrete by grouting material underneath the plates with suitable.

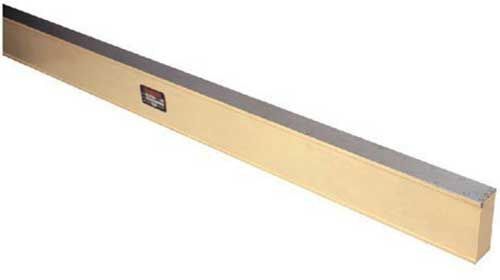

GRE Cast Iron Straight edges are used for checking the straightness and flatness of parts in conjunction with the surface plates and spirit levels. These may be made of cast iron. C.I. straight edges are made up to 4 m length and widely used for testing machine tool slide ways. They are heavily ribbed either I section or bow-shaped to prevent distortion.

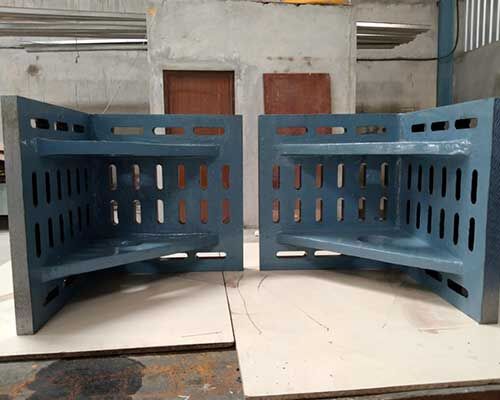

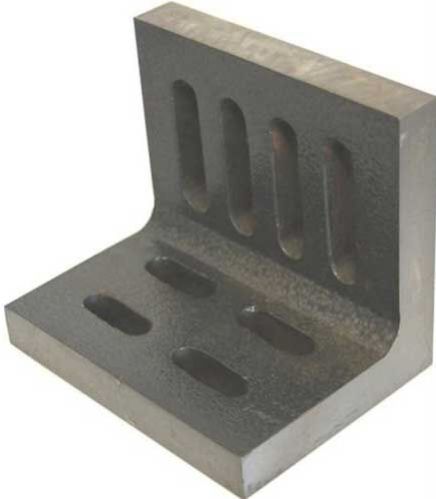

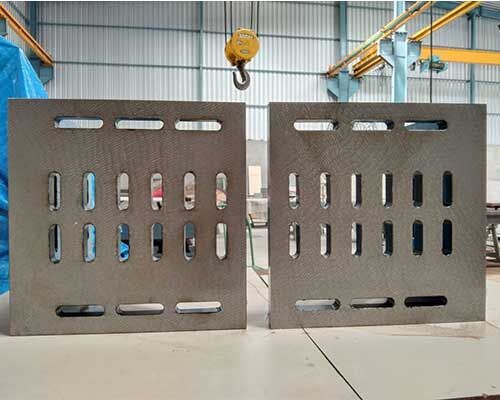

GRE Cast Iron Angle Plates provide a practical means for clamping and holding work in vertical position for layout, tooling and machining. Precision T-Slotted Angle Plates are also used as a vertical reference for inspection. They make an ideal fixture for shaping, planning milling, grinding, drilling and boring operations. Get the best slotted angle plates from the leading manufacturer and supplier of precision tools.
The casting is made of IS 210- FG 200 duly stress relieved as per Machine tool standard, and harness of casting maintained at 180-200 BHN. T slots to IS 2013 and general casting and foundation as well as leveling screws design as per IS 10602.
The casting is made of IS 210- FG 200 duly stress relieved as per Machine tool standard, and harness of casting maintained at 180-200 BHN. T slots to IS 2013 and general casting and foundation as well as leveling screws design as per IS 10602.
