GEN-LB-EU 7-10K Hybrid Solar Inverter

Product Overview:

The GEN-LB-EU 7-10K is a high-performance single-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. It is ideal for residential, commercial, and industrial applications, offering enhanced energy efficiency and flexibility.

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, optimizing energy harvest from solar panels.

• Maximum PV Input: Supports up to 15 kW of photovoltaic (PV) input power, accommodating larger solar arrays.

• High Current Capacity: Offers a maximum charging and discharging current of 210A, suitable for high-demand applications.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for various energy needs.

• Flexible Energy Management: Features a separate port for generator connection, AC coupling, or smart load connection, enhancing system versatility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) and weather optimization charging to reduce electricity bills.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Commercial Energy Solutions: Suitable for businesses aiming to enhance energy efficiency and reliability.

• Industrial Power Systems: Provides reliable power solutions for industrial applications with high energy demands.

Specifications:

• Input Voltage Range (PV): 100–600V DC

• MPPT Voltage Range: 120–500V DC

• Battery Voltage Range: 40–60V DC

• Efficiency: Up to 97.5%

• Operating Temperature Range: -25°C to +60°C

• Protection Class: IP65

Product Overview:

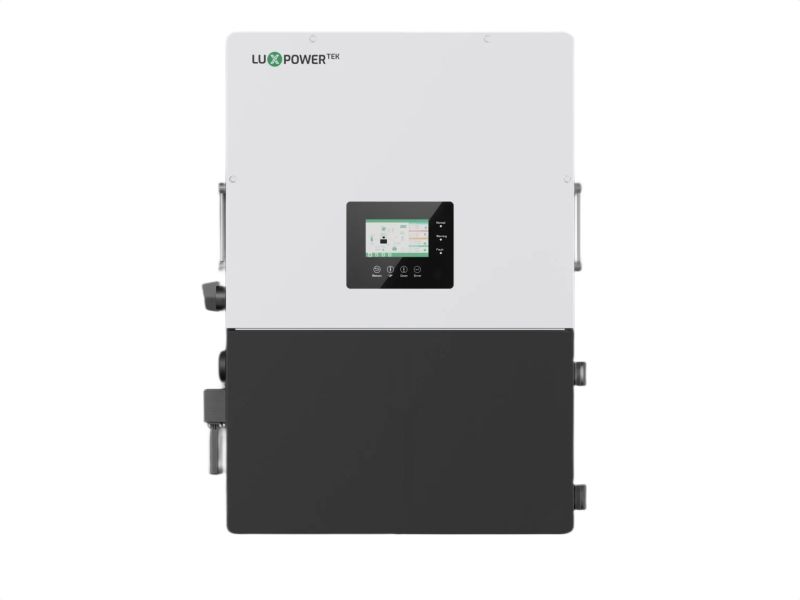

The LXP-LB-US 8K/10K is a UL-certified split-phase hybrid inverter designed for residential energy storage applications. It offers seamless integration with low-voltage batteries and features independent AC-coupling interfaces, making it ideal for both grid-connected and off-grid scenarios.

Key Features:

• Power Output: 8 kW (LXP-LB-US 8K) / 10 kW (LXP-LB-US 10K)

• Input Voltage Range: 100–600 V DC

• MPPT Voltage Range: 170–500 V DC

• Start-up Voltage: 140 V DC

• Number of MPPT Inputs: 2

• Maximum PV Input Power: 15 kW

• Battery Compatibility: Lithium-ion / Lead-Acid

• Rated Battery Voltage: 48 V

• AC Output Voltage: 120/240 V or 120/208 V

• Surge Power: Up to 120% of rated output

• Efficiency: Up to 97.5%

• Ingress Protection: IP65 / NEMA 4X

• Operating Temperature Range: -25°C to 60°C

• Warranty: 5 years

Applications:

• Residential Energy Storage: Reliable power for homes, ensuring energy independence and backup during outages.

• Grid-Tied Systems: Integrates seamlessly with existing grid infrastructure, optimizing energy consumption.

• Off-Grid Solutions: Ideal for remote locations where grid access is unavailable.

Product Overview:

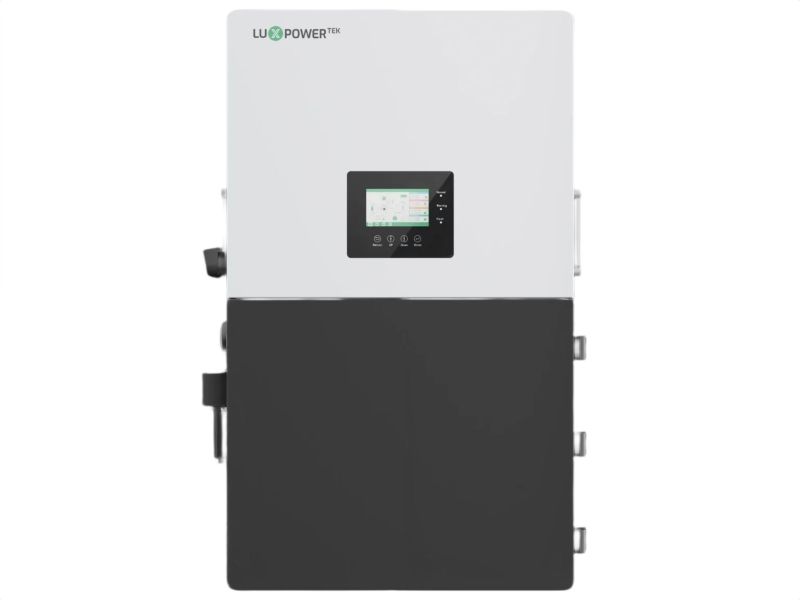

The LXP-LB-US 12K is a high-performance split-phase hybrid inverter designed for large-scale residential photovoltaic energy storage systems in North America. It integrates the inverter, charge controller, and rapid shutdown (RSD) into a single unit, offering a seamless solution for both grid-tied and off-grid applications. With certifications including IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, it ensures compliance with industry standards.

Key Features:

• Power Output: 12 kW

• PV Input: Up to 18 kW

• MPPT Inputs: 3 MPPTs with 4 strings

• Grid Pass-Through: 200A for whole-home backup

• Battery Charging/Discharging: 250A

• Seamless Switching: On/off-grid operation with less than 20ms transfer time

• Advanced Functions: Peak shaving, smart load control, and AC coupling

• Integrated Protection: AFCI protection, integrated load and battery breakers

• Parallel Capability: Supports up to 10 units in parallel

• User Interface: LCD color touch screen

Applications:

• Residential Energy Storage: Provides reliable power for homes, ensuring energy independence and backup during outages.

• Grid-Tied Systems: Integrates seamlessly with existing grid infrastructure, optimizing energy consumption.

• Off-Grid Solutions: Ideal for remote locations where grid access is unavailable.

Product Description

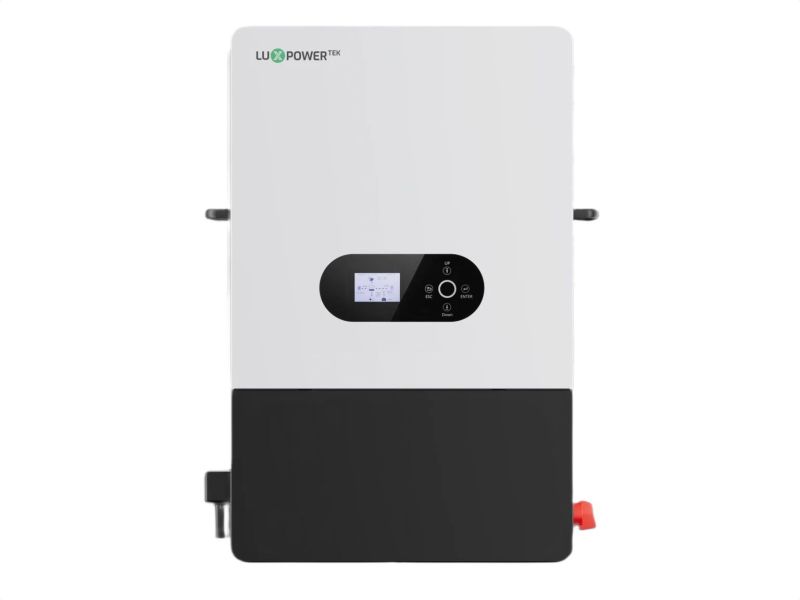

The Luxpower SNA 12K Off-Grid Inverter is a high-performance, single-phase solar inverter designed for reliable energy storage and power management. Engineered for residential and small commercial applications, it ensures continuous power supply even in remote or unstable grid environments. This inverter provides flexible operation modes, allowing seamless switching between grid and off-grid power, maximizing energy efficiency and system reliability.

Product Highlights

• Dual MPPT Design: Optimizes solar power generation by tracking multiple PV strings independently.

• High PV Input Capacity: Supports up to 12 kW solar input for enhanced power output.

• Wide PV Voltage Range: Operates efficiently across 100–480 V, suitable for various installation environments.

• Seamless Off-Grid Switching: Instantly transitions between on-grid and off-grid modes to ensure uninterrupted power.

• Parallel Operation: Supports up to 16 units in parallel for system expansion and scalability.

• High Charging/Discharging Capacity: 140 A maximum current for fast battery charging and reliable power delivery.

• Versatile Connectivity: Dedicated port for generator connection, AC coupling, or smart load management.

• Comprehensive Protection: Built-in safety features guard against overvoltage, overload, and short circuits.

Applications

• Residential Power Systems: Ensures reliable energy backup for homes during grid outages.

• Remote and Off-Grid Locations: Ideal for areas without consistent grid access.

• Small Commercial Installations: Delivers efficient energy management for small-scale operations.

• Hybrid Energy Systems: Supports solar, grid, and generator inputs for versatile energy utilization.

Product Description

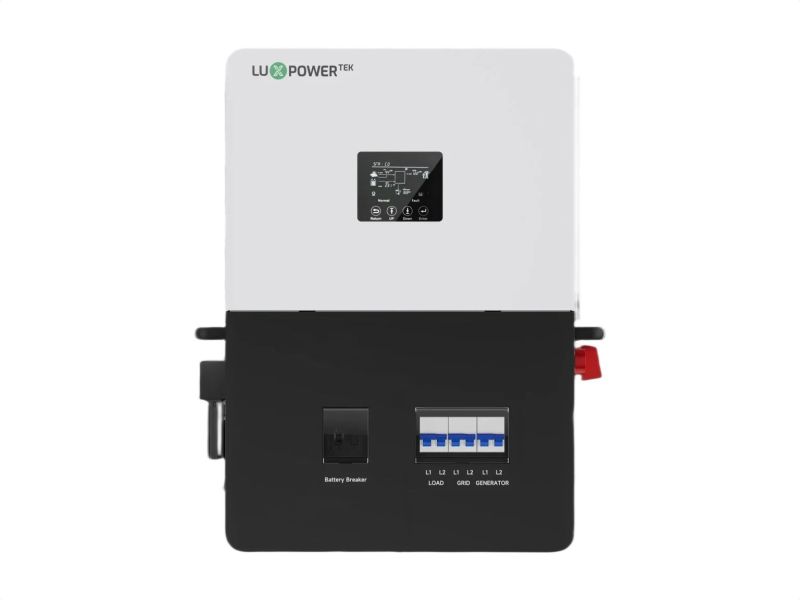

The SNA US 6K is a split-phase off-grid inverter designed to support energy independence for small households (2–4 people). It is engineered to handle both grid-connected and autonomous power generation modes, switching seamlessly between them to maintain reliable power supply.

Product Highlights / Key Features

• Split-phase output (240 V / 120 V)

• Supports up to 16 units in parallel for system expansion

• Seamless off-grid switching to maintain power during grid outages

• Integrated protection (AFCI) for safety

• Dedicated interface ports for generator connection, AC coupling, or smart load control

• Built-in breakers and switches for generator, load, battery, and PV arrays

• 240 V/120 V EPS (emergency power supply) interface, allowing essential loads to continue during power instability

Applications & Benefits

• Ideal for small households seeking energy autonomy

• Suitable for areas with unreliable grid power or remote locations

• Delivers continuous power to essential loads even during grid interruption

• Enables parallel expansion for higher power requirements

Product Description

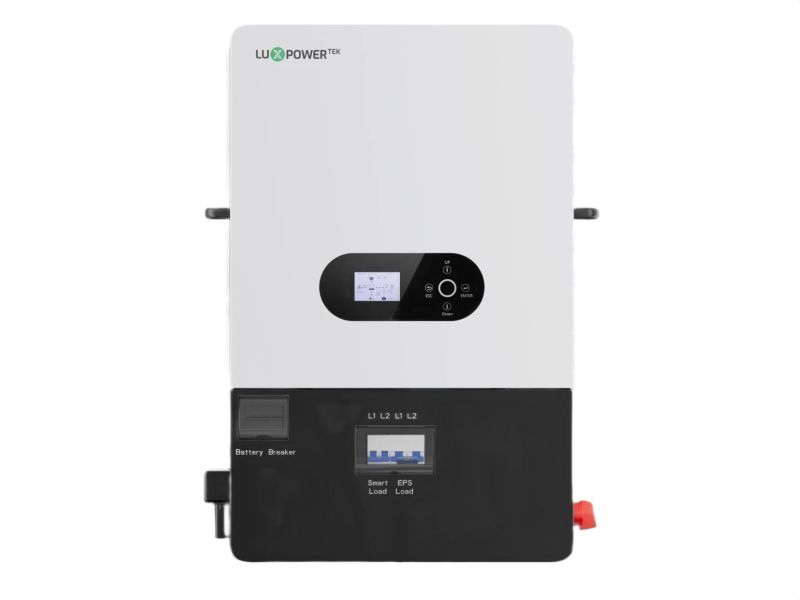

The SNA US 12K is a high-capacity off-grid split-phase inverter designed for residential and semi-commercial applications. It supports seamless switching between grid-connected and off-grid modes, while also integrating solar, battery, and generator inputs for flexible energy management.

Key Features / Highlights

• Power Output: 12 kW in split-phase mode

• Max Charging & Discharging Current: 250 A

• Output Voltage: 240 V / 120 V off-grid split-phase

• MPPT Inputs: 2 MPPTs supporting 4 strings

• Max PV Input: 24 kW

• Integrated AFCI Protection (Arc Fault Circuit Interruption)

• Dual AC Output Ports: Allows connection of multiple load circuits

• 100 A Pass-through Capability: For essential load continuity

• Generator Port: Dedicated interface for generator integration

• Seamless Mode Switching: Rapid transfer between on-grid, off-grid, and hybrid modes

Operating Modes & Flexibility

• Grid-Connected Mode: Optimizes energy use and reduces electricity bills

• Off-Grid Mode: Maintains continuous power during grid outages

• Hybrid Mode: Seamlessly integrates solar, grid, and generator inputs to meet demand

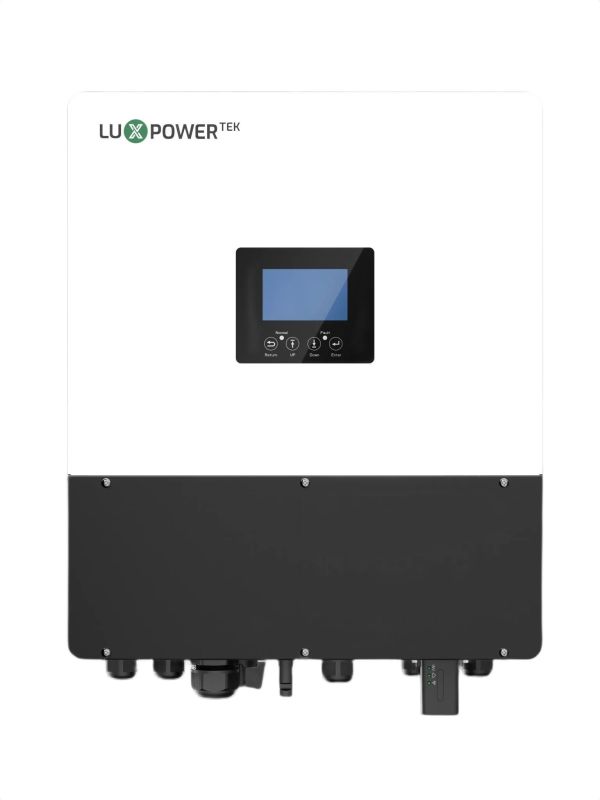

GEN2-LB-EU 3-6K Hybrid Solar Inverter

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, allowing for optimal energy harvesting from solar panels.

• Wide PV Input Voltage Range: Supports a DC input voltage range of 100–530V, accommodating various solar panel configurations.

• High PV Input Capacity: Can handle a maximum photovoltaic (PV) input power of up to 9.6 kW, ensuring efficient energy conversion.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for larger energy needs.

• High Discharge Current: Offers a maximum discharge current of 140A, suitable for high-demand applications.

• Flexible Energy Control: Features dedicated ports for generator input, AC coupling, or smart load management, enhancing system flexibility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) charging and weather-based smart charging to optimize energy usage and reduce electricity bills.

• Remote Monitoring: Provides 24/7 real-time monitoring via the LuxpowerCloud platform, allowing for remote management and updates.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Small Business Energy Solutions: Suitable for small businesses aiming to enhance energy efficiency and reliability.

• Off-Grid and Backup Power: Provides reliable backup power during grid outages, ensuring uninterrupted electricity supply.

Product Description

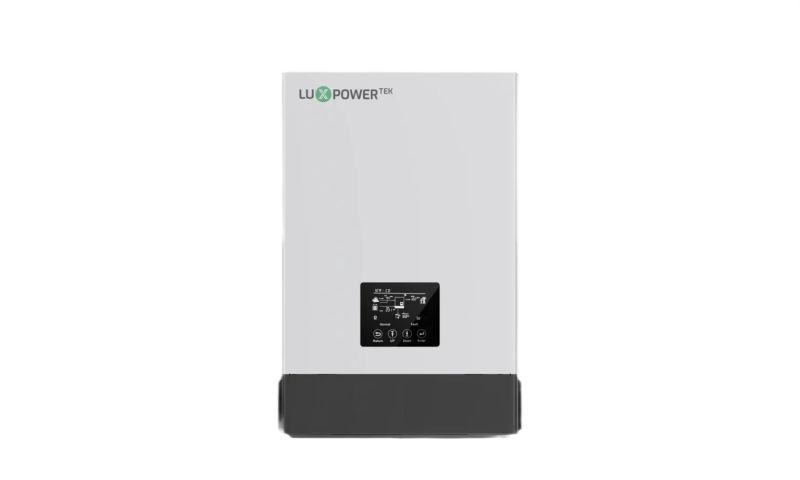

The Luxpower SNA 3-6K Off-Grid Inverter is a high-performance, single-phase solar inverter designed for reliable energy storage and power management. Engineered for residential and small commercial applications, it ensures continuous power supply even in remote or unstable grid environments. This inverter provides flexible operation modes, allowing seamless switching between grid and off-grid power, maximizing energy efficiency and system reliability.

Product Highlights

• Dual MPPT Design: Optimizes solar power generation by tracking multiple PV strings independently.

• High PV Input Capacity: Supports up to 8 kW solar input for enhanced power output.

• Wide PV Voltage Range: Operates efficiently across 100–480 V, suitable for various installation environments.

• Seamless Off-Grid Switching: Instantly transitions between on-grid and off-grid modes to ensure uninterrupted power.

• Parallel Operation: Supports up to 16 units in parallel for system expansion and scalability.

• High Charging/Discharging Capacity: 140 A maximum current for fast battery charging and reliable power delivery.

• Versatile Connectivity: Dedicated port for generator connection, AC coupling, or smart load management.

• Comprehensive Protection: Built-in safety features guard against overvoltage, overload, and short circuits.

Applications

• Residential Power Systems: Ensures reliable energy backup for homes during grid outages.

• Remote and Off-Grid Locations: Ideal for areas without consistent grid access.

• Small Commercial Installations: Delivers efficient energy management for small-scale operations.

• Hybrid Energy Systems: Supports solar, grid, and generator inputs for versatile energy utilization.

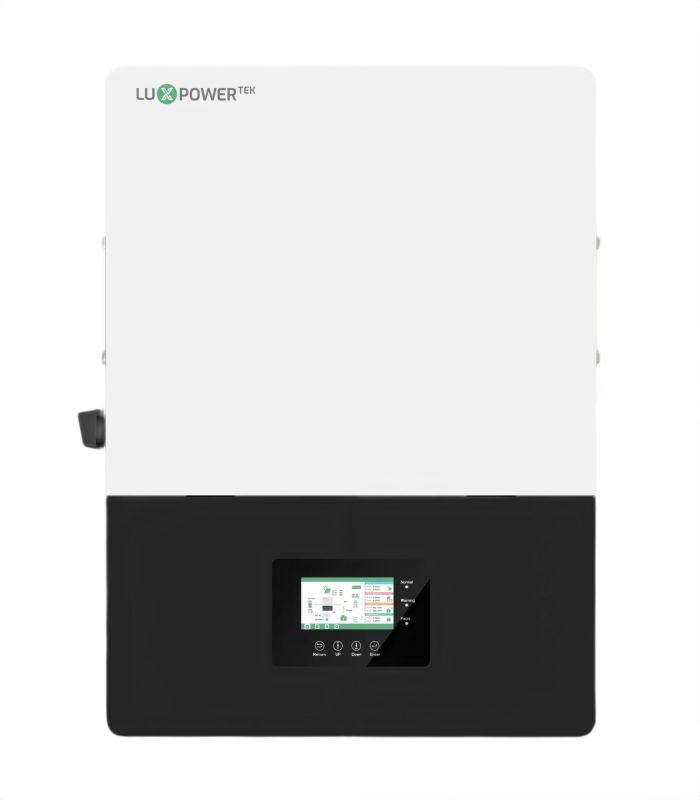

LXP-LB-EU 12K Hybrid Solar Inverter

Product Overview:

The LXP-LB-EU 12K is a high-performance single-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. It is ideal for residential, commercial, and industrial applications, offering enhanced energy efficiency and flexibility.

Key Features:

• Dual MPPTs: Equipped with two Maximum Power Point Tracking (MPPT) inputs, optimizing energy harvest from solar panels.

• Maximum PV Input: Supports up to 15 kW of photovoltaic (PV) input power, accommodating larger solar arrays.

• High Current Capacity: Offers a maximum charging and discharging current of 210A, suitable for high-demand applications.

• Parallel Operation: Supports up to 10 units in parallel, enabling scalability for various energy needs.

• Flexible Energy Management: Features a separate port for generator connection, AC coupling, or smart load connection, enhancing system versatility.

• Advanced Charging Features: Incorporates Time-of-Use (TOU) and weather optimization charging to reduce electricity bills.

Applications:

• Residential Solar Systems: Ideal for homeowners seeking to reduce energy costs and increase energy independence.

• Commercial Energy Solutions: Suitable for businesses aiming to enhance energy efficiency and reliability.

• Industrial Power Systems: Provides reliable power solutions for industrial applications with high energy demands.

Specifications:

• Input Voltage Range (PV): 100–600V DC

• MPPT Voltage Range: 120–500V DC

• Battery Voltage Range: 40–60V DC

• Efficiency: Up to 97.5%

• Operating Temperature Range: -25°C to +60°C

• Protection Class: IP65

GEN2-LB-EU 3-6K Hybrid Solar Inverter

Description:
The GEN2-LB-EU 3-6K is a single-phase hybrid solar inverter that integrates photovoltaic (PV) energy generation with battery storage. It offers seamless on/off-grid switching, making it suitable for both residential and small business applications. The inverter supports up to 10 units in parallel, providing scalability for various energy needs. With features like Time-of-Use (TOU) charging, weather-based smart charging, and 24/7 remote monitoring via the LuxpowerCloud platform, it ensures efficient energy management and cost savings.

Key Features:

• Dual Maximum Power Point Tracking (MPPT): Optimizes energy harvest from solar panels.

• High PV Input Capacity: Supports up to 9.6 kW of PV input.

• Wide Voltage Range: Operates within a 100–530V DC input range.

• High Discharge Current: Up to 140A, suitable for high-demand applications.

• Generator Input Support: Includes a dedicated port for generator connection with auto control and boost function.

• AC Coupling Function: Allows integration with existing solar systems.

• Smart Load Management: Enhances stability and efficiency of energy usage.

• Enhanced Monitoring: Provides real-time insights and remote management capabilities.

Product Overview:

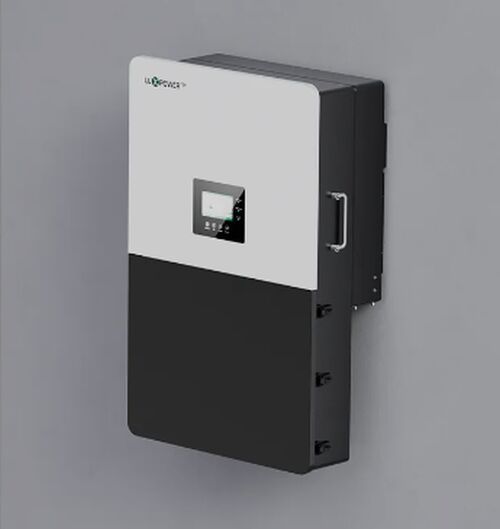

The GEN-LB-US 16K is Luxpower's most powerful split-phase hybrid inverter, engineered to meet the energy needs of large homes and mission-critical applications. With 120/240V split-phase output, up to 25kW of PV input, 250A battery current, and a built-in 400A battery breaker, this inverter is ready to support whole-home backup and advanced solar energy management.

Product Overview:

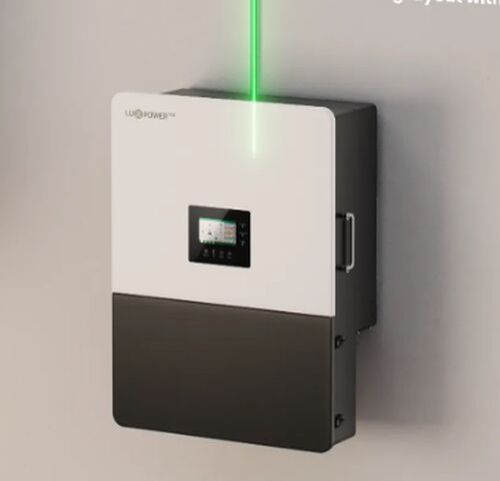

The GEN-LB-US 13K is a high-performance split-phase hybrid inverter designed to integrate solar energy generation with battery storage and grid connectivity. Tailored for North American residential applications, it offers seamless operation for grid-tied, off-grid, and backup power scenarios.

Key Features:

• Power Output: 13 kW

• Input Voltage Range: 100–550 V DC

• MPPT Voltage Range: 140–500 V DC

• Start-up Voltage: 120 V DC

• Maximum PV Input Current per MPPT: 26 A

• AC Output Voltage: 120/240 V split-phase

• Maximum AC Output Power: 15, 000 W

• Efficiency: Up to 97.5%

• Ingress Protection: IP66-rated enclosure suitable for both indoor and outdoor installation

• Communication Ports: RS485, CAN, Wi-Fi, and LAN for compatibility with various battery brands and monitoring tools

Applications:

• Grid-Tied Homes with Battery Backup: Provides reliable power and energy independence.

• Off-Grid Remote Cabins: Ensures continuous power supply in remote locations.

• Retrofit with Existing Grid-Tied Systems: Easily integrates with existing setups using AC coupling.

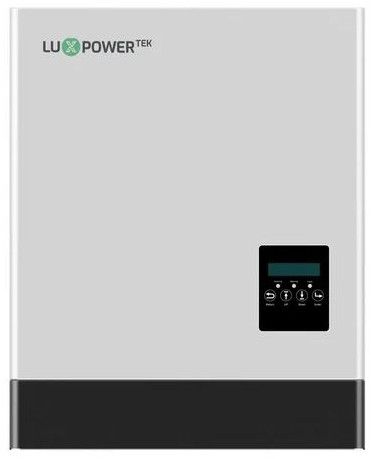

We offer the Luxpower 20kW Three Phase Hybrid Solar Inverter, designed for maximum efficiency with power output of 20 KW. This hybrid solar inverter operates at an input voltage range of 100-600 V DC, ensuring reliable performance. With a rated battery voltage of 48 V and up to 97.5% efficiency, it is ideal for residential and commercial applications. The IP65 rated protection and wide operating temperature range of -25°C to 60°C make it durable and suitable for various environments. Trust Luxpower for high-quality solar solutions.
