Microscope

Leading Manufacturer, Supplier & Retailer of Inverted Metallurgical Microscope, Stereo Zoom Articulated Arm Microscope, Upright Metallurgical Microscope, Stereo Zoom Microscope and Stereo Zoom Trinocular Microscope.

Inverted Metallurgical Microscope

Number Of Flower Inverted Metallurgical Microscope
Feature Trinocular Viewing Head, Quintuple Revolving Nosepiece, Coaxial Coarse And Fine Adjustment
Objectives Plan Achromat 5x, 10x, 20x, 50x (80X & 100X Dry Optional)
Stage Type Plain Stage, Mechanical Stage Attachable Type
Illuminator 6 Volt 30 Watt Halogen Illuminator
Eyepieces WF 10x/20mm Focusing Eyepieces With Rubber Eyeguards
Viewing Head 30° Inclined Trinocular Viewing Head
Interpupillary Adjustment 48-75mm
Filters Daylight Blue, Green, Yellow, Ground Glass

We offer Inverted Metallurgical Microscope having revolving nosepiece that can be moved vertically. Along with that, our Inverted Metallurgical Microscope has quintuple revolving nosepiece. Not just this, trinocular viewing head in our Inverted Metallurgical Microscope can be inclined to an angle of 30^o. In addition to this, our Inverted Metallurgical Microscope has 48-75mm interpupillary adjustment that is taken as best in the industry. Brief Description Of Our Inverted Metallurgical Microscope

Plan achromat 5x, 10x, 20x, and 50x objectives (80X & 100X Dry Optional)
Vertical action movement revolving nosepiece (fixed stage)
Coaxial coarse and fine adjustment; coarse stroke 37.7 mm per rotation with fine stroke 0.2mm rotation
Quintuple revolving nosepiece
Plain stage, 160 x 250mm, includes 10mm, 15mm, 20mm aperture teardrop stage insert plates
Mechanical stage, attachable type, dimensions 128 x 86mm; Stroke: 120mm (X) 78mm (Y)
Coaxial handle, attachable to the right or left side; stage extender plates dimensions 70 x 180mm
6 volt 30 watt halogen illuminator with lamp centering mechanism, built-in lever type condenser with aperture diaphragm, field diaphragm and filter slots
WF 10x/20mm focusing eyepieces with rubber eyeguards; eyepieces accept 26mm reticles
30 inclined trinocular viewing head with 48-75mm interpupillary adjustment
Filters(24mm in mount), daylight blue, green, yellow and ground glass

View Complete Details

Ask Latest Price & Details

Stereo Zoom Articulated Arm Microscope

Number Of Flower Stereo Microscope
Usage Industrial, Educational
Arm Type Articulated Arm
Mounting Horizontal Or Vertical C-Clamp Mount
Viewing Body Binocular Or Trinocular
Eyepieces WF10x Focusable Eyepieces
Magnification Range 8x-50x (Option Up To 200x)
Working Distance 115mm
Vertical Motion Range 14.5
Scannable Range 3'
Field Of View 22mm

Stereo Zoom Articulated Arm Microscope, provided by us, is procured from best vendors in the industry. Thus, we can ensure that our Stereo Zoom Articulated Arm Microscope has flawless fabrication and delivers excellent results. We provide Stereo Zoom Articulated Arm Microscope with several magnifying lenses. Our Stereo Zoom Articulated Arm Microscope is easy to use and is available at reasonable rates. Brief Description Of Our Stereo Zoom Articulated Arm Microscope

Articulating Arm with lockable 14.5 vertical motion range and 3 scannable range
Horizontal or vertical c-clamp mount
Bonder Arm (E-Arm)
Choice of binocular or trinocular viewing body
WF10x focusable eyepieces, 22mm field of view
8x-50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x(Option Up To 200X)
115mm working distance

View Complete Details

Ask Latest Price & Details

Upright Metallurgical Microscope

Number Of Flower Metallurgical Microscope
Material Metal
Feature Trinocular Viewing Head, Interpupilary Distance Adjustment, Reversed Quintuple Nosepiece, Long Working Distance Objectives, Mechanical Stage
Other Characteristics 30° Inclined Viewing Head, 360° Rotatable, Wide Field Eyepieces, LED Illuminator

Our Upright Metallurgical Microscope has viewing head that is inclined to an angle of 30^o which can be rotated in every direction. Moreover, Upright Metallurgical Microscope, that we provide, has reversible quintuple nosepiece. Not only this, our Upright Metallurgical Microscope can adjust interpupilary distance within a flexible range of 54mm to 75mm. We provide our Upright Metallurgical Microscope at affordable rates. Brief Description Of Our Upright Metallurgical Microscope

Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular /trinocular 20%/80%)
Viewing heads are inclined 30^o and rotatable 360^o
Interpupilary distance adjustment range of 54mm 75mm
High eye point wide field plan 10x eyepieces with a 22mm field of view
Reversed quintuple nosepiece
Long working distance M Infinity Plan Achromat 5x, 10x and 20x objectives
Long working distance M Infinity Semi-Plan Apochromat 50x objective (100X Optional)
Low position coaxial focusing system with tension adjustment
Mechanical Stage : 175mm x 145mm with a 76mm (X) x 42mm (Y) movement range
On reflected only models specimens of a height of up to 50mm can be observed
On reflected/transmitted models specimens of a height of up to 30mm can be observed
3 watt variable LED reflected illuminator with field and aperture diaphragm

View Complete Details

Ask Latest Price & Details

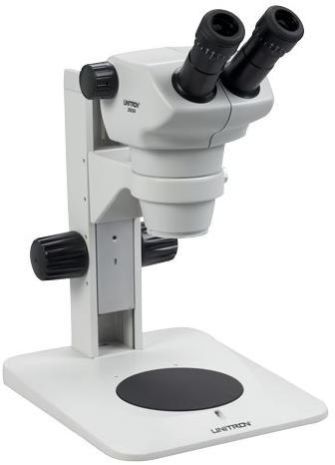

Stereo Zoom Microscope

₹ 1,010 - ₹ 1 Lakh / Bag Get Latest Price

Min. Order (MOQ) 1 Set(s)
Brand Name UNITRON
Driven Type Electricity
Condition New
Feature Easy To Use
Number Of Flower Stereo Zoom Microscope
Country of Origin India, USA
Eyepieces WF10X
Magnification 45x
lighting LED
Is It Portable Portable
Binocular Head Type Yes
Trinocular Head Type Yes
Lens Mount Zoom
Storage Permissible Ambient Temperature Normal
Model Number Z850

Stereo zoom microscopes many models & wide choice and options basic model to high end models with rich features various lighting high magnification precise imaging system with measurement feature.

Additional Information:

Payment Terms :

Packaging Details : CARTON BOX

Delivery Time : 3 WEEKS

View Complete Details

Ask Latest Price & Details

Stereo Zoom Microscopes

Min. Order (MOQ) 1 Set(s)
Number Of Flower Stereo Zoom Microscope
Material High Quality Optics
Feature Smooth Focusing Wheel, Magnification Changer With Click Stop, Stands For Different Applications, Optional Lighting, Optional Imaging System

Crisp clear imagehigh quality optics smooth focusing wheel magnification changer with click stop stands for different applicationsoptional lighting optional imaging system.

Additional Information:

Packaging Details : CARTON BOX

View Complete Details

Ask Latest Price & Details

Stereo Zoom Trinocular Microscope

Number Of Flower Stereo Zoom Trinocular Microscope
Magnification Range 8x-50x With Click Stops At 1x, 2x, 3x, 4x, 5x (optional Up To 200x)
Light Source 12v/2w Variable LED Incident Light, 12v/4w Variable LED Transmitted Light
Focusing Co-axial Coarse Fine Focusing Led Stand, 4 Inches (100mm) Of Smooth Focus Travel
Stage Plates Black, White, And Clear Glass Stage Plates
Eyepieces WF10x Focusable Eyepieces, 22mm Field Of View
Working Distance 115mm

We supply Stereo Zoom Trinocular Microscope that has different magnification range along with click stops. In addition to this, our Stereo Zoom Trinocular Microscope has best eye pieces that provide excellent view of the minute things. Stereo Zoom Trinocular Microscope, offered by us, has been widely accepted for its precision and quality output. Brief Description Of Our Stereo Zoom Trinocular Microscope

Co-axial Coarse Fine Focusing Led Stand
8x-50x magnification range with click stops at 1x, 2x, 3x, 4x and 5x(optional up to200X)
12v/2w variable LED incident light
12v/4w variable LED transmitted light
4 inches (100mm) of continuously smooth focus travel
Black, white and clear glass stage plates
Choice of binocular or trinocular viewing body
WF10x focusable eyepieces, 22mm field of view
115mm working distance

View Complete Details

Ask Latest Price & Details

Metallurgical Microscopes
Get Best Quote
Stereo Zoom Microscopes
Get Best Quote
