Direct to steering column attachment

True steering torque-feedback for automobiles, Cars, trucks, buses and material handling equipment.

Custom designs & other versions are also availableas per your requirement

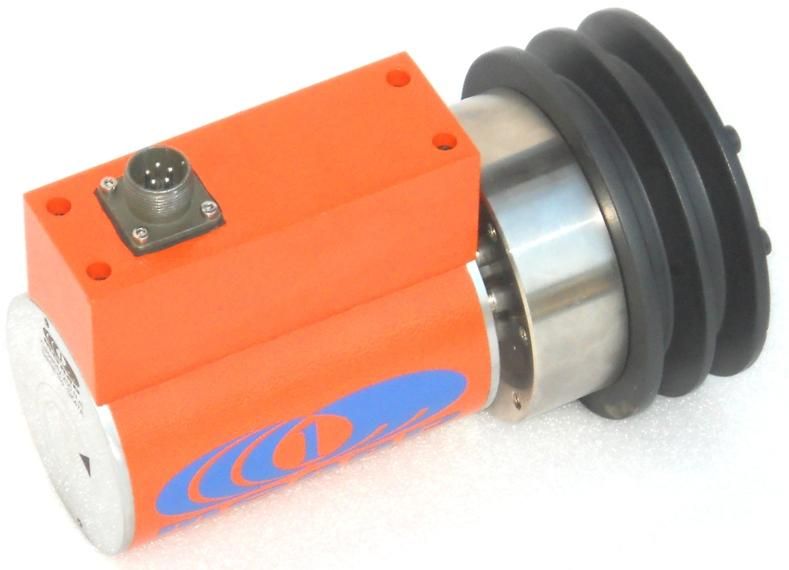

MONAD`s Sprocket/Pulley Torque Sensor is a low- cost, accurate method to measure processing torques. Coupled to any belt or chain driven stub shaft and monitored by a closed electrical circuit, machinery speeds and material feed rates can be precisely controlled. Consequently, this automation can increase productivity and decrease power consumption.

- High torsional stiffness- Insensitivity to belt/chain tension loads on torque readings*- Elimination of torque error due to bearing losses in jack shaft assembly- Measurements of torque at the source

The Automobile Wheel Torque Sensor is designed to be bolted to the brake drum or spindle of a car or truck in place of the regular wheel. The wheel is then bolted to the torque sensor. This moves the wheel outward approximately 11/2 inches from its original location. A slip ring or rotary transformer assembly is provided to connect the torque sensor to an instrument in the vehicle. Most torque sensors can be supplied with two sets of bolt holes so that it can fit two different bolt circle diameters, each with the same number of holes. The sensor is normally furnished with one adapter plate for one given stud pattern. Some of the wheel torque sensors are designed to be used with special wheels which bring the tire rim back to its original location, thus maintaining the original tire track. Also, on some models, a DC tachometer or 60-tooth gear and magnetic pickup generator can be supplied which provides a signal proportional to wheel speed.

- At the source torque measurement- Large selection of capacities available- Wheel centerline offset correction available for cornering testing- Special application versions available

Monad manufactures a wide range of absolute, gauge, and true gauge pressure sensors. All of these pressure sensors are manufactured as standard, modified standard, and custom transducers to provide fast delivery.

Monad is among a handful of companies offering pressure sensors that can measure pressure up to 200, 000 psi with superior accuracy and reliability. Foil based strain gauge technology enables our pressure sensors to withstand pressure that would destroy silicon based or micromachined pressure sensors. The Model MPS-01 strain gauge pressure sensor measures pressure up to 60, 000 psi with +/-0.1% accuracy. For ranges up to 100, 000 psi, we offer the Model MPS-02 with 0.5% accuracy and operating temperature range from 0 to 250 degrees Centigrade. For your most demanding applications, we use a hoop-stress design and special metal alloys to custom-build pressure transducers that measure up to 200, 000 psi safely, reliably, and with 0.75% accuracy. Typical applications for these tough, reliable high-end instruments are in oil-field geology and aerospace research and development. Our high pressure sensors offer optional compensated temperature ranges from0to 250 degrees Centigrade. with either millivolt or high-leve l outputs. Versions certified for hazardous environments are also available.

The MAP-05 is a versatile, flush diaphragm, miniature pressure transducer which delivers a high-level, internally-amplified 1-5VDC, 1-10VDC, or 4-20mA output signal. The MAP-05 is fully welded from 17- 4PH stainless steel and hermetically sealed, making it a solid performer in harsh or corrosive environments.
