Analog Junction Box

Load cell connectivity 4 (JB04), 6 (JB06) or 8(JB08), 10 (JB10), 12 (JB12)
Corner adjustment Through multi turn potentiometers for individual load cells
Section load trimming Through multi turn potentiometers (one foreach section)
Electrical protection Special lightening protection components forprotection againsttransients induced by lightning
Environmental protection Rubber Seal Gasket on top cover and air tight cableglands for entry of loadcell cables and indicator
Dimensions(mm) JB04:- 230 X 190 X 5, JB06:- 250 X 190 X 55, JB08:- 280 x 190 X 55, JB10:- 315 X 190 X 55, JB12:- 35

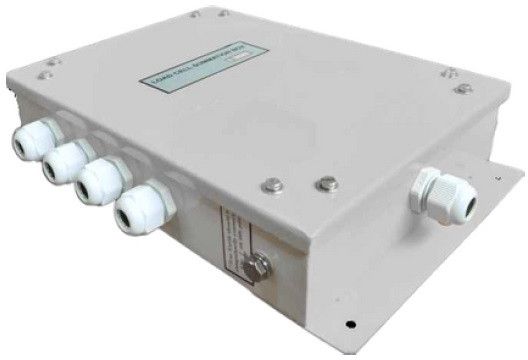

Load Cell Junction box is designed for the use of summing the signal outputs from multiple load cells. The junction box is constructed using thick MS sheet and is powder coated to withstand harsh environmental conditions. Protective rubber seal for the lid, airtight cable glands for routing cables ensure prevention of moisture & dust ingress, thus preventing signal distortion. A high quality signal thus obtained, offers higher resolution in the constructed weighing scale.

Features

Makes weigh scale installation fast and easy Powder coated MS sheet enclosure sealed against moisture and dust Air _ght cable glands for load cell cables and output cable to indicator Signal trimming by trim pots for every load cell (corner error correc_on) Sec_on trimming by trim pots for every sec_on Protec_on against high voltage induced by lightning

View Complete Details

Ask Latest Price & Details

Junction Box

₹ 4,500 - ₹ 4,900 / piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin India
Pattern Plain
Feature Weatherproof
Condition New
Shape Rectangular
Brand Name Nagarjun Technovision
Packaging Type Grey
Number Of Flower Junction Box

Weighbridge Junction Box Nagarjun Technovision

The Weighbridge Junction Box is a crucial part of any Electronic Weighbridge, Slow Speed Weigh-In-Motion (SSWIM), or Medium Speed Weigh-In-Motion (MSWIM) system. It connects multiple load cells used in the weighing platform, balances their signals, and ensures accurate and stable weight readings for every vehicle passing over the weighbridge.

At Nagarjun Technovision, we manufacture and supply premium-quality Junction Boxes designed for high precision, reliability, and long-term outdoor performance. Our junction boxes are compatible with all types of weighbridges, including Pit Type, Pitless Type, Mobile, and Modular Weighbridges, as well as Axle Weighing Systems and WIM Systems.

Product Overview

The Nagarjun Technovision Junction Box acts as the central hub between multiple load cells and the weighbridge indicator. It collects individual signals from each load cell, performs signal trimming and corner balancing through precision potentiometers, and sends a combined, stable signal to the weight indicator or weighing controller. This ensures consistent readings for axle weight, gross vehicle weight, and tandem axle measurement in SSWIM and MSWIM applications.

Key Features

Rugged Construction: Made from high-grade stainless steel or industrial ABS plastic for superior durability and corrosion resistance.
Weatherproof & Dustproof: IP65/IP67-rated enclosure suitable for harsh field and highway environments.
Multiple Load Cell Inputs: Supports 4, 6, or 8 load cells — ideal for standard weighbridges and WIM systems.
Accurate Signal Trimming: Built-in multi-turn potentiometers for section-wise and corner-wise adjustment.
Surge & Lightning Protection: Integrated protection circuitry safeguards against voltage spikes and transients.
Shielded Signal Transmission: Maintains signal integrity and minimizes electrical noise for stable readings.
Easy Service & Maintenance: Clear terminal markings, cable glands, and removable cover for quick access.
Long Life Performance: Designed for continuous 24×7 operation under heavy vehicle load conditions.

Technical Specifications

Parameter	Specification
Material	Stainless Steel / ABS Plastic
Ingress Protection	IP65 / IP67
Load Cell Inputs	4 / 6 / 8
Output Signal	Summed Load Cell Signal to Indicator
Connection Type	Screw Terminal Blocks with Cable Glands
Operating Voltage	5V to 12V DC (Typical)
Operating Temperature	-10°C to +60°C
Mounting Type	Wall or Base Mount
Protection	Surge & Lightning Protection

Applications

Pit Type & Pitless Weighbridges
Slow Speed Weigh-In-Motion (SSWIM) Systems
Medium Speed Weigh-In-Motion (MSWIM) Systems
Axle Weighing Platforms
Truck & Trailer Weighing Systems
Industrial Platform Scales & Hopper Weighing

Why Choose Nagarjun Technovision Junction Boxes

Designed and manufactured in India with strict quality control.
Compatible with OIML R134 and Indian metrology standards.
Tested for precision, stability, and environmental endurance.
Fully integrated with Nagarjun Technovision SSWIM, MSWIM, and Electronic Weighbridge systems.
Reliable customer support and service across India.

Our Weighbridge Junction Boxes are trusted in highway weigh stations, industrial plants, mining zones, logistics yards, and government weigh-in-motion projects. Whether you are installing a new system or upgrading your existing weighbridge, Nagarjun Technovision provides reliable, field-proven junction boxes that enhance accuracy, reduce downtime, and improve weighing efficiency.
